J1939 Network Configuration - HMS Anybus X-gateway User Manual

J1939 Network Configuration

The J1939 network configuration dialog from BWConfig is shown in Figure 5-4.
Refer to "Configuration" on page 3-1 for more details on BWConfig.

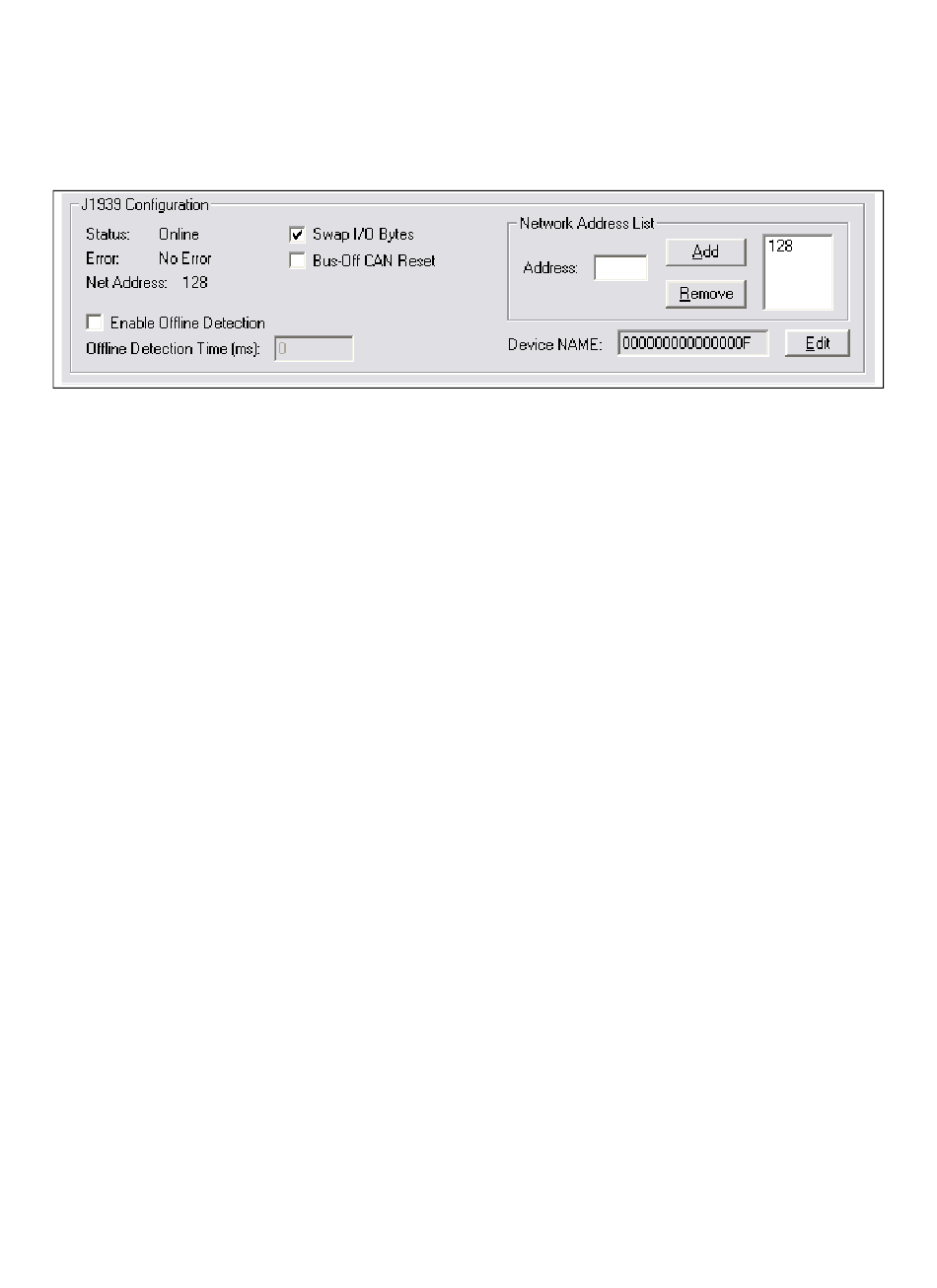

Figure 5-4 Example J1939 Network Configuration
The J1939 device NAME has been set to an arbitrary value for the purpose of this
example. The NAME should be set according to the vendor and application where
the module is being used based on the J1939 specification.
The network address list is set to a single address of 128.
The Swap I/O Bytes option has been enabled so that the data will be in the right
byte orientation when accessing it via Modbus.
