HMS Anybus X-gateway User Manual page 29

Configuration 3-15
J1939 Diagnostic Tables
The X-gateway has the ability to monitor the commonly used diagnostic messages
on J1939. The Active Diagnostics (DM1) and Previously Active Diagnostics
(DM2) can be monitored by the X-gateway. Configuring diagnostic table monitor-
ing is done through the input data points in much the same manner as data PGN
configuration. Figure 3-4 shows the data point editor dialog when a diagnostic
type is selected.

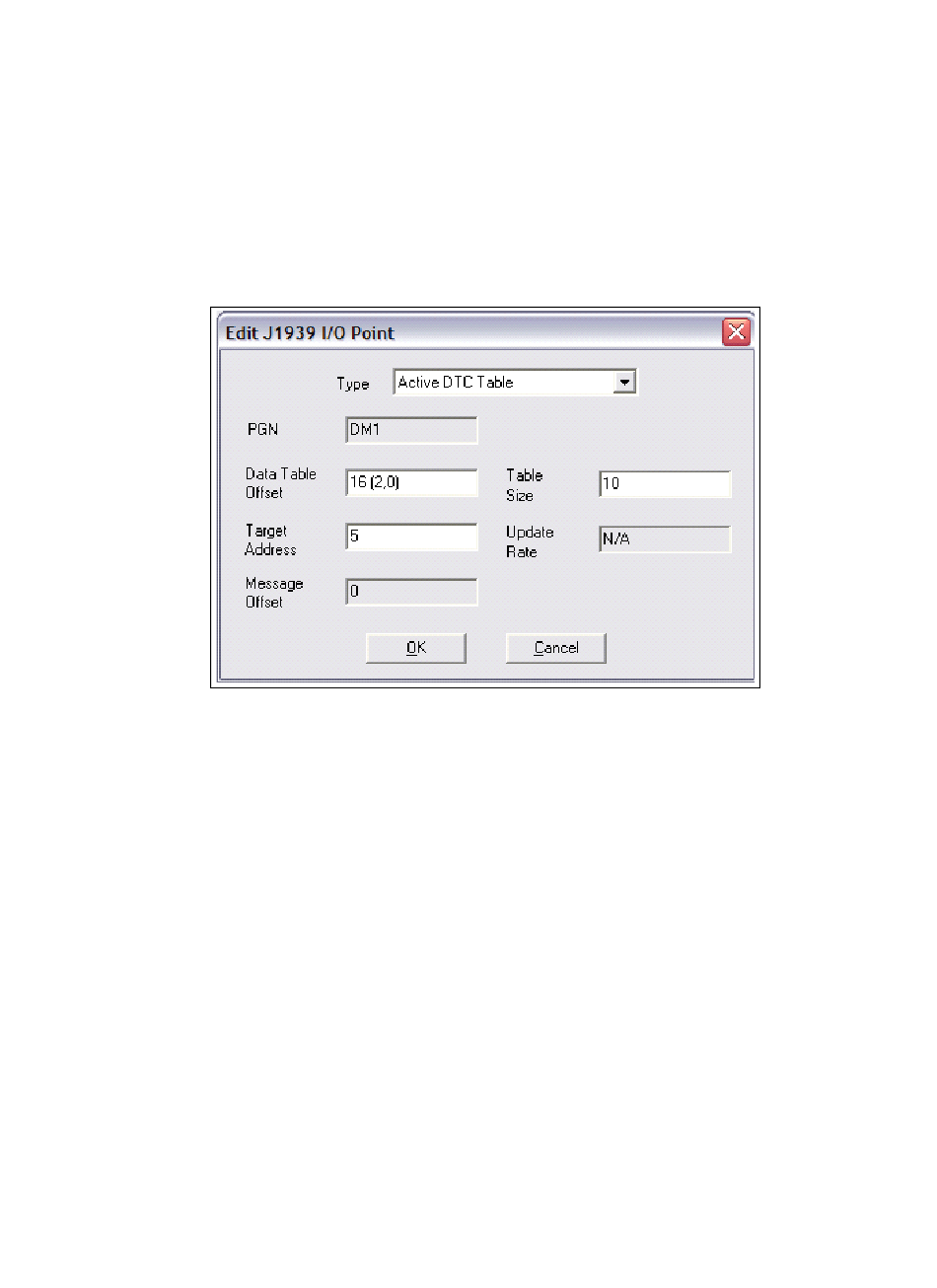

Figure 3-4 J1939 Data Point Editing Dialog for Diagnostics
