Modbus Network Configuration

The Modbus network configuration must be set so that the serial communication

parameters match those of the system controller and the rest of the Modbus net-

work. The system controller is running the network at 19200 baud with no parity

and 1 stop bit. The Modbus network configuration dialog from BWConfig is

shown in Figure 5-3.Refer to "Configuration" on page 3-1 for more details on

BWConfig.

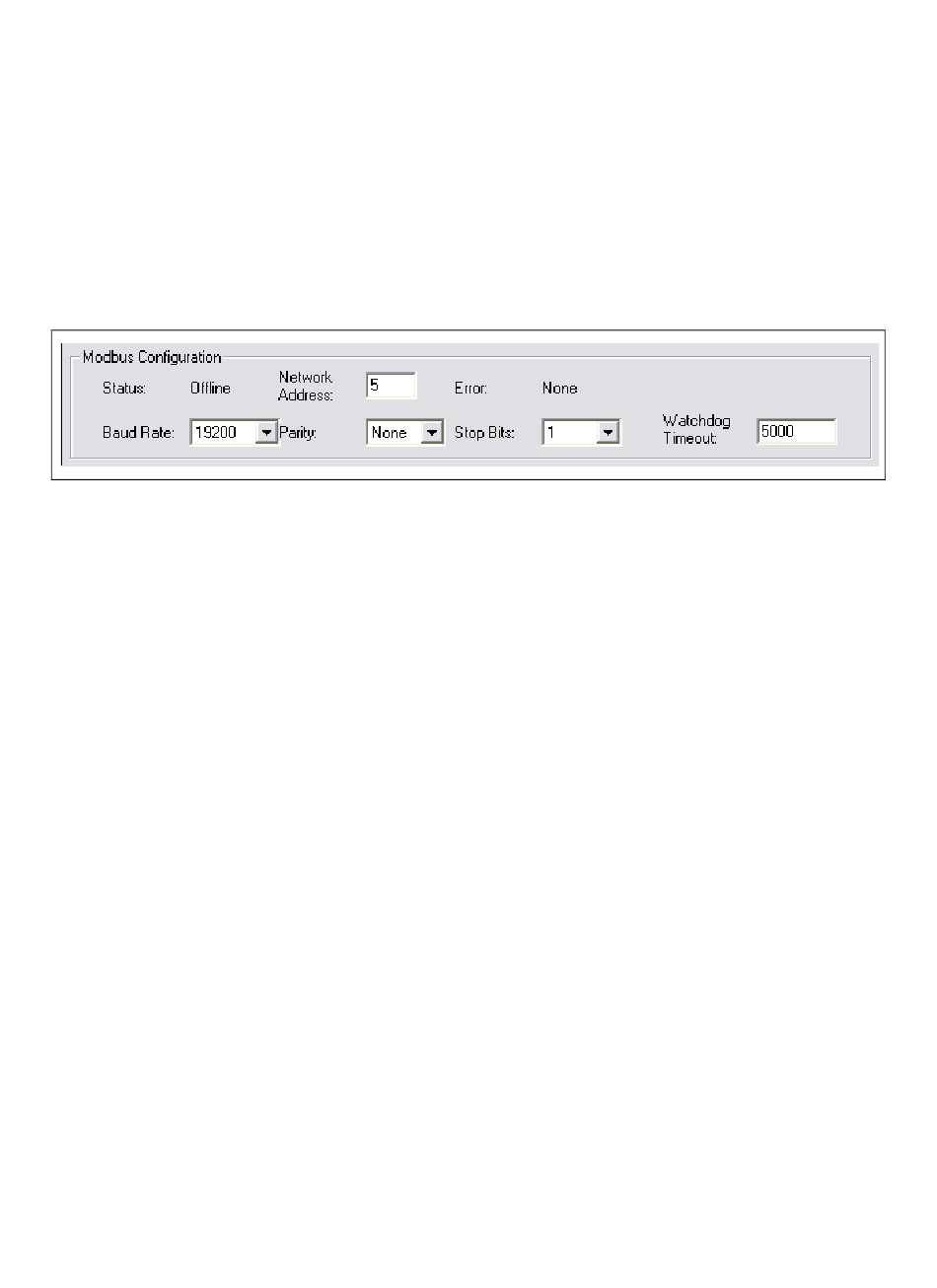

Figure 5-3 Example Modbus Network Configuration

The JMI's Modbus network address must be set to an unused address on the Mod-

bus network. The master connection time-out has been set to 5 seconds.

Example Application 5-2

Doc.Id. HMSI-168-25
