HMS Anybus X-gateway Installation Sheet

Anybus X-gateway Modbus-TCP - PROFINET
INSTALLATION SHEET
HMS Industrial Networks AB
Web: www.anybus.com
Tel: +46 35 172900
E-mail: info@hms.se
SP1330, rev 2.01, Mar 2012. AB9007. www.anybus.com

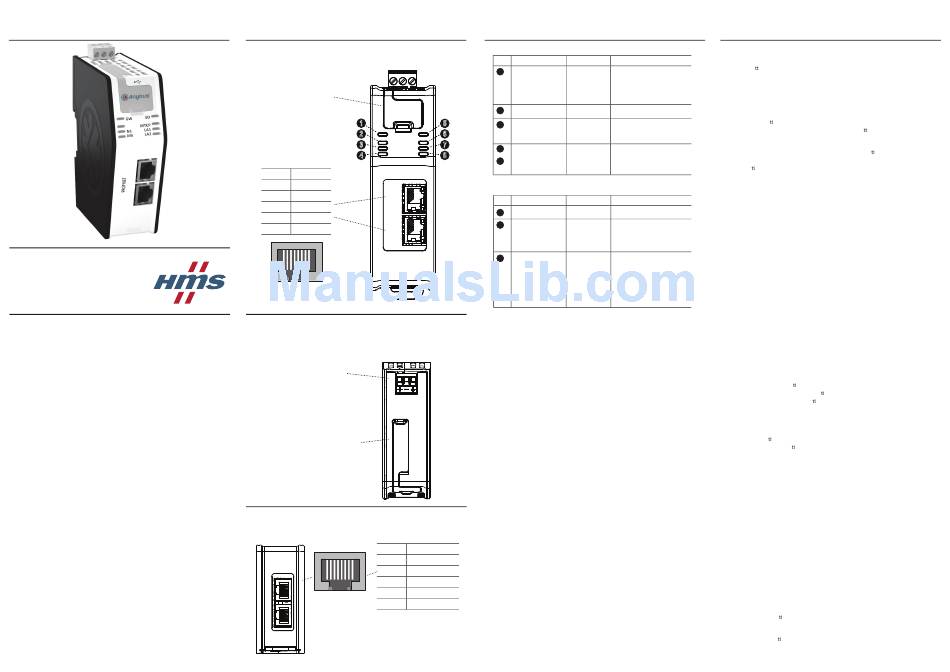

Module Front
USB port:
Connect a PC to the USB port
for fi rmware upgrades.
1
2
3
PROFINET 4
Connector:
Pin no Description
1 TX+
2 TX-
X1.1
3 RX+
6 RX-
4, 5, 7, 8 Termination X1.2
1 8
Top View
Power:
(+) +24 V DC
(-) GND
(A) PE
X3
SD card slot:
Bottom View
Modbus-TCP Connector:
(Front)
Pin no Description
1 TX+
X2.1
2 TX-
3 RX+
6 RX-
1 8
4, 5, 7, 8 Termination
X2.2
LEDs: X-gateway and Modbus-TCP Network
No Name Indication Meaning
1 (GW) Off Power off
Gateway Status Alternating red/green Missing confi guration
Flashing green Idle
Green Running
Flashing red Invalid confi guration
Red Fatal error
(SD) Green Accessing SD card
5
SD Card Status Flashing red Failure
5
(MTCP) Off No Modbus-TCP network communication
6
Modbus-TCP Status Green Communicating with Modbus-TCP network
6
Flashing red Transaction error or timeout
Red Fatal error
7
7 (LA1, LA2) Off No link
8 Ethernet Link 1 & 2 Flashing green Receiving/transmitting Ethernet packets
at 100 Mbit
8
Flashing yellow Receiving/transmitting Ethernet packets
at 10 Mbit
LEDs: PROFINET Network
No Name Indication Meaning
Not used - -
2
3 (NS) Off No connection
Network Status Green Online (RUN): Connection established, IO
controller in RUN state
Flashing green Online (STOP): Connection established,
IO controller in STOP state
4 (MS) Off Not initialized
Module Status Green Normal operation
Green, two fl ashes Used by engineering tools to identify the
module on the network
Red Fatal error
Red, one fl ash Confi guration error
Red, two fl ashes IP address error
Red, three fl ashes Station name error
Red, four fl ashes Internal error
Installation and Startup Summary
• A ach the X-gateway to the DIN-rail.
• Connect the module to the PROFINET network.
• Connect the module to the Modbus-TCP network.
• Turn on the module (+24 V DC).
• Download IPconfi g from www.anybus.com to a PC.
• Connect the PC to the module via one of the Modbus-TCP con-
nectors (Ethernet crossover cable not necessary). Use IPconfi g
to iden fy the IP address of the module on the network using its
Modbus-TCP MAC address (found at the bo om of the module).
• Start a web browser (IE 7.0 or 8.0), enter the IP address and con-
nect to the X-gateway's web interface.
• Confi gure the module using the web confi gura on pages.
• Include the Anybus X-gateway GSD fi le in the PROFINET confi gura-
on tool (download the GSD fi le from www.anybus.com).
• Confi gure and start the PROFINET network.
Technical Details
• Power supply:
24 V DC (-15% to +20%).
• Power consump on:
Maximum power consump on is 300 mA @ 24 V DC.
Typical power consump on: 150 mA @ 24 V DC.
• Surrounding temperature
70 degrees C @ 225 mA @ 24 V DC.
• Protec ve Earth (PE):
Internal connec on to PE via DIN-rail or, if the DIN-rail can not be
used, via the power connector.
Note: Make sure the DIN-rail is properly connected to PE.
For maintenance and support, contact the HMS support department.
Contact informa on is available at the support pages on
www.anybus.com.
Further informa on and documents about this product can be found at
the product pages on www.anybus.com.
