Configuration 25-Pin D-Subminiature
Pin
1
Shield
2
Transmit Data
3
Receive Data
4
Not used
5
Not used
6
Not used
7
Signal Ground
8
Not used
9
Not used
10
Not used
11
Not used
12
Not used
13
Not used
Table 9-2 Configuration Connection Pin Definitions
© 2012 HMS Industrial Networks AB

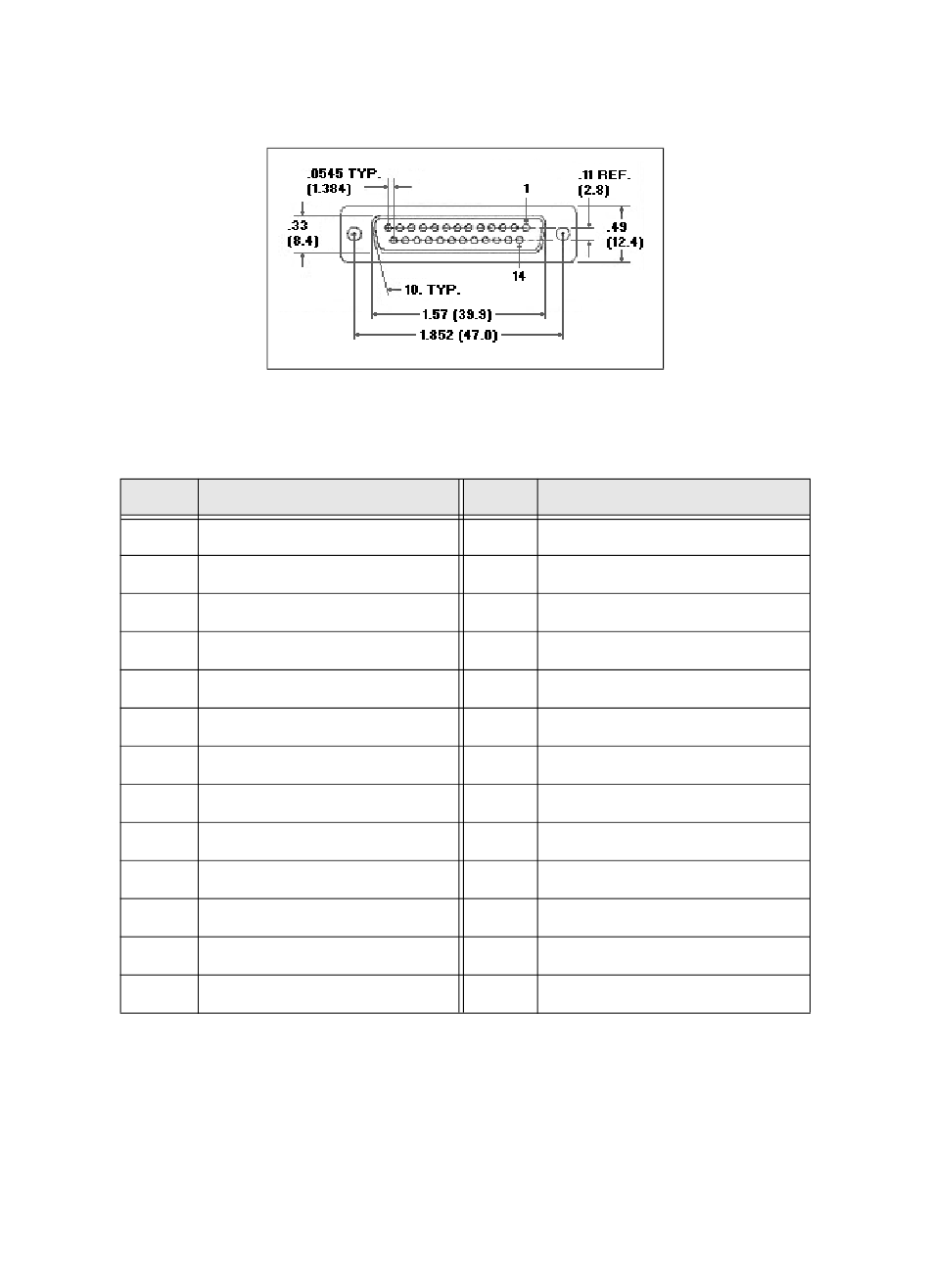

Figure 9-2 Configuration 25-Pin D-Sub Connector
Connection
Pin
Connection
14
Not used
15
Not used
16
Not used
17
Not used
18
Not used
19
Not used
20
Not used
21
Not used
22
Not used
23
Not used
24
Not used
25
Not used
---
Connectors 9-2
Doc.Id. HMSI-168-25
