Configuration Port Connector

The configuration port is the 25-pin D-Subminiature female connector on the end

of the X-gateway. The connector has a standard RS-232 DTE pin configuration.

The connections to be made are shown in Figure 2-2.

If the PC running BWConfig has a 25-pin serial port, use a 25-pin to 25-pin null-

modem (pins 2 and 3 swapped) cable to connect the PC to the X-gateway. If the

PC has a 9-pin serial port (or USB serial adapter), use a 9-pin to 25-pin straight

through cable.

Note: The Anybus X-gateway does not make use of the modem control signals

specified for a DTE connector. Connecting the module through devices, such as

isolation modules, which assume control of these lines may cause the BWConfig

communications to be unreliable.

Signal Ground (7)

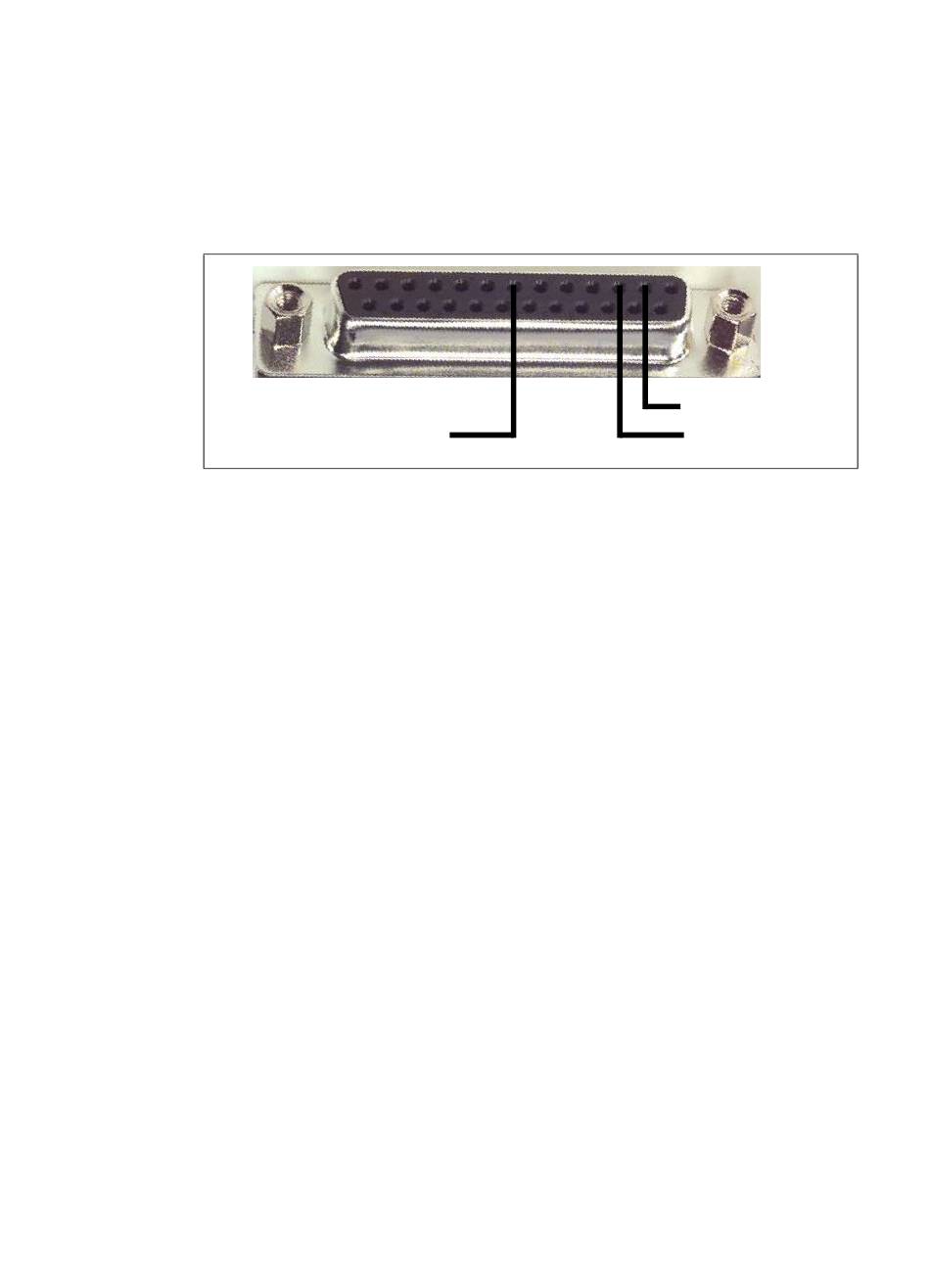

Figure 2-2 Configuration Port Connector

Installation 2-4

(2) Transmit Data

(3) Receive Data

Doc.Id. HMSI-168-25
