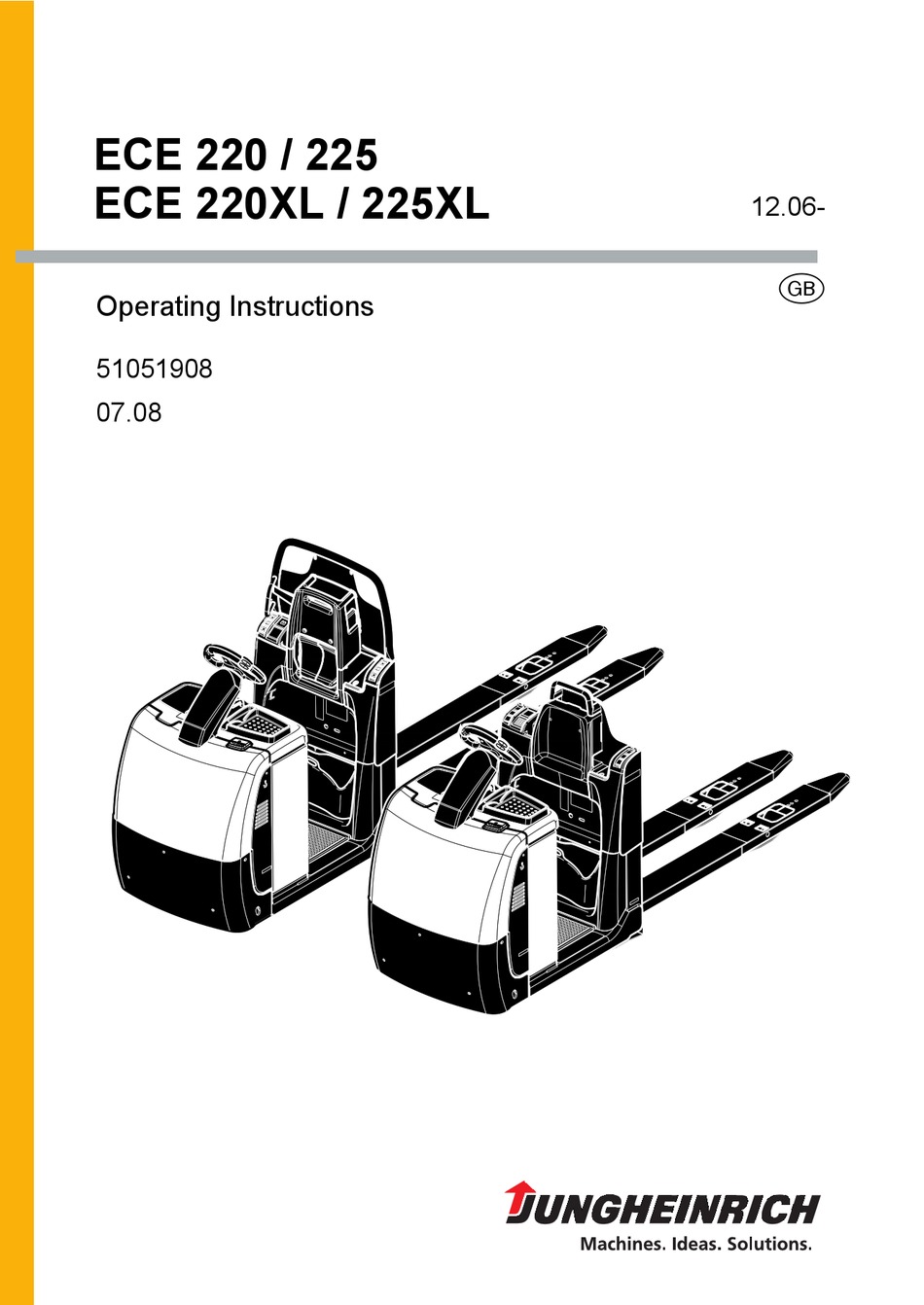

ECE 220 / 225
ECE 220XL / 225XL
Operating Instructions
51051908
07.08
12.06-
G

Advertisement

Table of Contents
loading

Related Manuals for Jungheinrich ECE 220

Summary of Contents for Jungheinrich ECE 220

  • Page 1 ECE 220 / 225 ECE 220XL / 225XL 12.06- Operating Instructions 51051908 07.08...
  • Page 2 Used to indicate standard equipment. Used to indicate optional equipment. Our trucks are subject to ongoing development. Jungheinrich reserves the right to alter the design, equipment and technical features of the truck. No guarantee of particular features of the truck should therefore be inferred from the present operating instructions.

  • Page 4: Table Of Contents

    Index Correct Application Truck Description Application ................... B 1 Assemblies ..................B 2 Standard Version Specifications ............B 3 Performance Data ................B 3 Dimensions ..................B 4 EN norms .................... B 6 Conditions of use ................B 6 Identification points and data plates ............ B 7 Truck data plate ..................
  • Page 5 Operation Safety Regulations for the Operation of Forklift Trucks ...... E 1 Controls and Displays ................. E 2 Starting up the truck ................E 6 Industrial Truck Operation ..............E 7 Safety regulations for truck operation ..........E 7 Travel, steering, braking ..............E 8 Pedestrian operation (o) ..............
  • Page 6 Industrial Truck Maintenance Operational Safety and Environmental Protection ......F 1 Maintenance Safety Regulations ............F 1 Servicing and Inspection ..............F 3 Maintenance checklist ................. F 4 Lubrication Schedule ................F 6 Consumables ..................F 7 Maintenance Instructions ..............F 8 Preparing the truck for maintenance and repairs ........
  • Page 8 Appendix JH Traction Battery Operating Instructions These operating instructions apply only to Jungheinrich battery models. If using another brand, refer to the manufacturer's operating instructions.

  • Page 10: A Correct Application

    A Correct Application The “Guidelines for the Correct Use and Application of Industrial Trucks” (VDMA) are supplied with the truck. The guidelines form part of these operating instructions and must be observed. National regulations apply in full. The truck described in the present operating instructions is an industrial truck designed for lifting and transporting loads.

  • Page 12: B Truck Description

    B Truck Description Application The ECE 220/225 is a four-wheel electric pallet truck with an operator position, equipped either with a Jet Pilot or electric tiller steering (o). The truck is designed to transport and pick goods on level surfaces. Roll cages and open bottom pallets or pallets with transverse boards (provided these are outside the range of the load wheels) can be collected.

  • Page 13: Assemblies

    Assemblies 7, 8 Item Model Item Model t Front panel o Stop button t Main switch / isolator o Forward “pedestrian / walk- (emergency disconnect) along operation” button t Battery panel t Lift mechanism t Jet Pilot o Portable container t Controller t Operator platform t Brake button...

  • Page 14: Standard Version Specifications

    Standard Version Specifications Technical specification details in accordance with VDI 2198. Technical modifications and additions reserved. Performance Data Model ECE 220 ECE 225 Q Rated capacity 2000 2500 Load centre distance with standard fork length * Travel speed 9.5 / 12.5 9.2 / 12.5...

  • Page 15: Dimensions

    Gauge, rear 340 / 370 / 494 Width across forks 510 / 540 / 664 Fork width Safety distance Net weight See truck data plate ECE 220 aisle widths (all dimensions in mm) 1) 2) 1) 2) 1000 2267 1863 1000...
  • Page 16 ECE 225 aisle widths (all dimensions in mm) 1) 2) 1) 2) 1400 2667 2263 1214 1400 2481 2867 1600 2867 2463 1414 1600 2681 3067 1880 3147 2371 1322 1880 2589 3347 1950 3217 2441 1392 2000 2659 3467 2180 3447 2429...

  • Page 17: Norms

    EN norms Noise level: 67 dB(A) in accordance with EN 12053 as harmonized with ISO 4871. The noise emission level is calculated in accordance with standard procedures and takes into account the noise level when travelling, lifting and when idle. The noise level is measured at the driver’s ear.

  • Page 18: Identification Points And Data Plates

    Identification points and data plates Item Model “Attention Touch Mode” warning decal *) for “Touch mode only in drive direction” option Truck data plate Test sticker (o) Serial number, on the left or right of the mast section Attachment point of crane loading (inside), hook symbol enhanced Capacity Qmax The capacity plate (25) indicates the maximum capacity of the truck, Qmax.
  • Page 19 Truck data plate Item Model Item Model Type Manufacturer Serial no. Min./max. battery weight (kg) Rated capacity (kg) Output (kW) Battery: Voltage (V) Load centre of gravity (mm) Net weight w.o. battery (kg) Year of Manufacture Manufacturer’s logo Option For queries relating to the truck or spare part orders, please state the truck’s serial no.

  • Page 20: C Transport And Commissioning

    C Transport and Commissioning Lifting by crane Only lifting gear with sufficient capacity (for transport weight see truck data plate). Lifting gear attachment points are provided on the chassis (1) and the fork (2) in case the truck is to be lifted or transported by crane.

  • Page 21: Securing The Truck During Transport

    Securing the truck during transport The truck must be securely fastened when transported on a lorry or a trailer. The lorry / trailer must have fastening rings. – To secure the truck attach the tensioning belt to the strap points (1) and secure them to the fastening rings.

  • Page 22: Using The Truck For The First Time

    Using the truck for the first time Only operate the truck with battery current. Rectified AC current will damage the electronic components. Cables connected to the battery (trailing cables) must be less than 6 meters in length. To prepare the truck after delivery or after transport, proceed as follows: –...

  • Page 23: Operating The Truck Without Its Own Drive System

    Operating the truck without its own drive system This operating mode is not permitted when negotiating inclines and gradients. If the truck has to be moved after a failure has rendered it immobile, proceed as follows: – Set the isolator “OFF”. –...

  • Page 24: D Battery Maintenance, Charging & Replacement

    D Battery Maintenance, Charging & Replacement Safety regulations for handling acid batteries Park the truck securely before carrying out any work on the batteries (see Chapter E). Maintenance personnel: Batteries may only be charged, serviced or replaced by trained personnel. The present operator manual and the manufacturer’s instructions concerning batteries and charging stations must be observed when carrying out the work.

  • Page 25: Battery Types

    Battery types The truck will be equipped with different battery types, depending on the application. The following table shows which combinations can be included as standard: 24 V PzS battery 3 PzS 420 Ah L 24 V - PzS battery 3 PzS 450 Ah HX high performance The battery weights can be taken from the battery data plate.

  • Page 26: Charging The Battery

    Charging the battery To charge the battery, the truck must be parked in a closed and properly ventilated room. – Expose the battery (see Section 3). The battery connector (4) and the charging cable (6) of the battery charging station must only be connected or disconnected when the truck and the battery charger are switched off.

  • Page 27: Battery Removal And Installation

    Battery removal and installation The truck must be parked on level ground. To prevent short circuits, batteries with exposed terminals or connectors must be covered with a rubber mat. Place the battery connector or the battery cable in such a way that they will not get caught on the truck when the battery is withdrawn.

  • Page 28: Safety Regulations For The Operation Of Forklift Trucks

    E Operation Safety Regulations for the Operation of Forklift Trucks Driver authorisation The forklift truck may only be used by suitably trained personnel, who have demonstrated to the proprietor or his representative that they can drive and handle loads and have been authorised to operate the truck by the proprietor or his representative.

  • Page 29: Controls And Displays

    Controls and Displays Item Control / Display Function t The circuit is interrupted, all electrical 1 Main switch / isolator (emergency disconnect) functions are cut out and the truck automatically brakes. t Triggers a warning signal. 2 “Horn” button t Lowers the lift mechanism. 3 “Lower”...
  • Page 31 Item Control / Display Function o Replaces the key switch. 11 Code Lock Switches control voltage on and off. Activates the truck functions. o Switch current on and off. CANCODE keypad Code settings. Release and select the travel programs. Enter travel parameters. o Code settings.

  • Page 33: Starting Up The Truck

    Starting up the truck Before the truck can be started, operated or a load lifted, the driver must ensure that there is nobody within the hazardous area. The electronic traction controller and the steering controller monitor their own operation. In the event of an error, travel and steering are interrupted. The error must be rectified by the manufacturer's service department.

  • Page 34: Industrial Truck Operation

    Industrial Truck Operation Safety regulations for truck operation Travel routes and work areas: Only use lanes and routes specifically designated for truck traffic. Unauthorised third parties must stay away from work areas. Loads must only be stored in places specially designated for this purpose. Driving conduct: The driver must adapt the travel speed to local conditions.

  • Page 35: Travel, Steering, Braking

    Travel, steering, braking Be extremely careful when driving and steering, especially when operating outside the geometry of the truck. The electric steering system is self-monitoring. The steering controller monitors the fault frequency over a certain period. If the same fault is detected several times during this period, the steering controller reduces the travel speed of the truck to slow travel.
  • Page 36 Travel Do not drive the truck unless the panels are closed and properly locked. – Start up the truck (refer to section 3). – Set the controller (6) to the desired travel direction: forward (V) or reverse (R). The truck starts to travel in the direction selected. The travel speed is governed by the controller (6).
  • Page 37 Travelling on inclines Loads must always be carried on the end of the truck facing uphill. Preventing the truck from rolling back: With the controller (6) set to neutral, the service brake automatically applies after a short jerk (the controller detects downhill motion on an incline). The service brake is released again via the controller (6), which is also used to select the speed and the travel direction.
  • Page 38 Braking The brake pattern of the truck depends largely on the ground conditions. The driver must take this into account when operating the truck. The truck can brake in three different ways: – with the service brake – by regenerative braking (coasting) –...

  • Page 39: Pedestrian Operation (O)

    Pedestrian operation (o) When travelling in pedestrian mode you must make sure – while walking alongside – that the steering system is set to straight ahead travel and that the operator cannot be trapped between the truck and an obstacle. In pedestrian mode the truck can be operated by the operator from all sides while walking alongside.

  • Page 40: Lifting And Depositing Loads

    Travel using the controller – Set the controller (6) to the desired travel direction: forward (V) or reverse (R). The truck moves at reduced speed (can be set up to a maximum of 4km/h). Travel using the “pedestrian” button – Press the “pedestrian” buttons (8, 10). The truck travels at a fixed speed of approximately 2km/h (slow travel).
  • Page 41 Lift & Lower Press the “Lift” (4) or “Lower” (3) buttons to activate lifting or lowering at a preset speed. Lifting – Press the “Lift” (4) button until you reach the desired lift height. Lowering – Press the “Lower” (3) button to lower the lift mechanism. E 14...

  • Page 42: 2Nd Level Stockpicking (O)

    2nd level stockpicking (o) The operator position is designed so that the driver can climb onto the step (18) using the grab handle (17). The driver can climb onto the battery panel (19) if necessary via the step board (18). When picking at the 2nd level the operator must only hold onto the grab handles (17) on the raised backrest, not the Jet Pilot or the tiller (o)! The operator must not press any controls while carrying out this activity.

  • Page 43: Seat O (Xl Only)

    Seat o (XL only) The seat (16) is incorporated into the backrest when folded up. When unfolded, the seat allows the operator to take up a comfortable position for driving and operating. The height of the seat is adjustable and can be locked into one of four positions.

  • Page 44: Keypad (Cancode) (O)

    Keypad (CANCODE) (o) The keypad consists of 10 digit keys, a Set key and a o key. Activation of the travel programs is indicated through green LEDs on keys 1, 2 and 3. The o key indicates operational status through a red/green LED.
  • Page 45 Commissioning When the main switch is turned on the LED (21) goes red. When you enter the correct operator code (factory setting 2-5-8-0) the LED (21) turns green. If the wrong code is entered LED (21) flashes red for two seconds. The correct code can then be entered.

  • Page 46: Travel Programs

    Travel programs Press the digit keys 1, 2, and 3 to select any of three travel programs. The activated program is indicated by the green LEDs (23), (24), (25) in the corresponding key. The travel programmes differ with respect to travelling speed, acceleration, and deceleration.

  • Page 47: Parameter Settings

    Parameter Settings To change the truck setting you must enter the master code. The factory setting for the master code is 7-2-9-5. When starting the truck for the first time, change the master code (see section 5.1). Safety notes for trucks with indicator instrument (CANDIS (o)) –...
  • Page 48 Setting procedure for trucks with and without display instrument (CANDIS (o)): – Enter the three digit parameter number, confirm with the Set key (22). – The display instrument (CANDIS (o)) continues to display the operating hours. If the display changes, cancel the setting procedure with the o key (26) and restart from the beginning.
  • Page 49 Function Setting Standard Comments range setting Procedure Code Lock 002 Change user code 0000 - 9999 (LED 23 flashes) Enter current code 00000 - 99999 Confirm (Set) 000000 - 999999 (LED 24 flashes) Enter a new code Confirm (Set) (LED 25 flashes) Repeat code entry Confirm...
  • Page 50 Start Travel Program Setting with Code Lock pre-06.07 Function Setting Standard Comments range setting Procedure Code Lock 020 Start 0 – There is no start program travel program 1 – Travel program 1 = Start travel program 2 – Travel program 2 = Start travel program 3 –...
  • Page 51 Start Travel Program Setting with Code Lock post-06.07 Function Setting Standard Comments range setting Procedure Code Lock 024 User code 1112 configuration The travel programs are connected to the user code. The travel programs can be individually released or blocked for each user code. A start travel program can be assigned to each user code.

  • Page 52: Travel Parameters

    Travel parameters For trucks without a display instrument (CANDIS (o)) the code lock parameters can only be set by the manufacturer's service department. The following example shows the parameter setting for the acceleration of travel program 1 (parameter 101). Acceleration example Enter the three digit parameter number (101) and confirm with the Set key (22).
  • Page 53 Travel is disabled while the parameters are being entered. If the setting is to be checked in programming mode, follow this sequence: – Select the edited travel program after changing the parameter value, confirm with the Set key (22). – The truck is now in travel mode and can be checked. –...
  • Page 54 Function Setting Standard Comments range setting Travel program 2 200 Acceleration in 0 - 9 Value of parameter 201 >= Pedestrian mode Parameter 200 201 Acceleration in 0 - 9 Rider mode 202 Coasting brake in 0 - 9 rider mode 203 Coasting brake in 0 - 9 Value of...
  • Page 55 Function Setting Standard Comments range setting Travel program 3 300 Acceleration in 0 - 9 Value of parameter 301 >= Pedestrian mode Parameter 300 301 Acceleration in 0 - 9 Rider mode 302 Coasting brake in 0 - 9 rider mode 303 Coasting brake in 0 - 9 Value of...

  • Page 56: Ism (O)

    Program-independent parameters For trucks without a display instrument (CANDIS (o)) the parameters can BATTERY only be set by the manufacturer's service department. The parameters are set in the same way as for the travel parameters. The following parameters may be entered. Function Setting Standard...

  • Page 57: Battery Discharge Indicator

    Battery discharge indicator Battery Discharge Indicator (t) When the truck has been released via the key switch or CANCODE, the battery charge status is displayed. The colours of the LEDs (12) represent the following conditions: LED colour Meaning Green Battery is charged Orange Battery residual capacity approx.

  • Page 58: Display Instrument (Candis) (O) Pre-10.2006

    Display instrument (CANDIS) (o) pre-10.2006 The instrument indicates: – Residual battery charge (LED bars (28)), – Service hours (LCD display (30)). It also displays error messages for the electronic components and parameter changes. Discharge status display When the truck has been released via the key switch or CANCODE, the battery charge status is displayed.

  • Page 59: Display Instrument (Candis) (O) Post-10.2006

    Display instrument (CANDIS) (o) post-10.2006 The instrument indicates: 27 Attention pre-warning symbol, battery charge required 28 Capacity display bars Battery residual charge status 29 Stop symbol; lift cutout, battery charge required 30 6 digit LCD display; hourmeter; entry display; error display 31 T symbol appears during operation when the discharge indicator is set to maintenance-free battery...

  • Page 60: Operating Hours Display

    Operating hours display Hourmeter: The hourmeter (30) contained in the battery discharge indicator shows the overall travel and lifting times. The meter starts as soon as the operator stands on the operator platform or uses pedestrian mode. Display range between 0.0 and 99,999.0 hours. Travel and lifting are logged. This is a backlit display.

  • Page 61: Troubleshooting

    Troubleshooting This chapter is designed to help the user identify and rectify basic faults or the results of incorrect operation. When locating a fault, proceed in the order shown in the table. Fault Probable Cause Action Truck – Battery connector –...

  • Page 62: F Industrial Truck Maintenance

    F Industrial Truck Maintenance Operational Safety and Environmental Protection The checks and servicing operations contained in this chapter must be performed in accordance with the intervals as indicated in the servicing checklists. Any modification to the forklift truck assemblies, in particular the safety mechanisms, is prohibited.
  • Page 63 Electrical System: Only suitably trained personnel may operate on the truck’s electrical system. Before working on the electrical system, take all precautionary measures to avoid electric shocks. For battery-operated trucks, also de-energise the truck by removing the battery connector. Welding: To avoid damaging electric or electronic components, remove these from the truck before performing welding operations.

  • Page 64: Servicing And Inspection

    The application conditions of an industrial truck have a considerable impact on the wear of the service components. We recommend that a Jungheinrich customer service adviser carries out an application analysis on site to work out specific service intervals to prevent damage due to wear.

  • Page 65: Maintenance Checklist

    Maintenance checklist Maintenance Intervals = t W A B C Standard Cold store Brake 1.1 Check magnetic brake air gap Electrics 2.1 Test of instruments, displays and control switches 2.2 Test warning and safety device. 2.3 Check fuse ratings. 2.4 Make sure wire connections are secure and check for damage.
  • Page 66 Maintenance Intervals = t W A B C Standard Cold store Hydraulic 6.1 Visually inspect rollers, slide pieces and stops. operation 6.2 Test operation of lift mechanism, check for wear and check settings. 6.3 Test hydraulic system. 6.4 Check that hose and pipe lines and their connections are secure, check for leaks and damage, and tighten unions if necessary.

  • Page 67: Lubrication Schedule

    Lubrication Schedule A + C 0,7 l 1,05 l Contact surfaces Grease nipple Gear oil filler neck Gear oil drain plug Cold store application 1) Cold store mix ratio 1:1 2) Transmission oil values are guidelines only. The spur wheel should be dipped approx.

  • Page 68: Consumables

    Consumables Handling consumables: Consumables must always be handled correctly. Follow the manufacturer’s instructions. Improper handling is hazardous to health, life and the environment. Consumables must only be stored in appropriate containers. They may be flammable and must therefore not come into contact with hot components or naked flames. Only use clean containers when filling up with consumables.

  • Page 69: Maintenance Instructions

    Maintenance Instructions Preparing the truck for maintenance and repairs All necessary safety measures must be taken to avoid accidents when carrying out maintenance and repairs. The following preparations must be made: – Park the truck securely (see Chapter E). – Disconnect the battery so that the truck cannot be started by unauthorised persons (see chapter D).

  • Page 70: Remove The Front Panel

    Remove the front panel – Open battery panel (see chapter D). – Remove the screws (5). – Lift up the front panel (4) and put it to one side. Installation is the reverse order. Do not drive the truck unless the panels are closed and properly locked.

  • Page 71: Checking Electrical Fuses

    Checking electrical fuses – Prepare the truck for maintenance and repairs (see Chapter 6.1). – Remove the front panel (see Section 6.3). – Referring to the table, check all fuses for correct rating and damage; replace fuses where required. 6 7 8 9 Item Model To protect:...

  • Page 72: Recommissioning

    Recommissioning The truck may only be restored to service after cleaning or repair work, once the following operations have been performed. – Test horn. – Test main switch operation. – Test brakes. – Lubricate the truck in accordance with the lubrication schedule. Decommissioning the industrial truck If the industrial truck is to be decommissioned for more than two months, e.g.

  • Page 73: Returning The Truck To Operation After Decommissioning

    Carry out a safety check in accordance with national regulations. Junheinrich recommends checks in accordance with FEM Guideline 4.004. Jungheinrich has a special safety department with trained personnel to carry out such checks. The truck must be inspected at least annually (refer to national regulations) or after any unusual event by a qualified inspector.
  • Page 74 Jungheinrich traction battery Table of contents Jungheinrich traction battery ..........2-6 with positive tubular plates type EPzS and EPzB Type plate Jungheinrich traction battery..........7 Instruction for use ............8-12 Aquamatic/BFS III water refilling system Jungheinrich traction battery Maintenance free traction batteries with positive tubular plates type EPzV ....................13-17...

  • Page 75: Jungheinrich Traction Battery

    Jungheinrich traction battery with positive tubular plates type EPzS and EPzB Rating Data 1. Nominal capacity C5: See type plate 2. Nominal voltage: 2,0 V x No of cells 3. Discharge current:: C5/5h 4. Nominal S.G. of electrolyte* Type EPzS:...
  • Page 76 Ignoring the operation instructions, repair with non-original parts or using additives for the electrolyte will render the warranty void. For batteries in classes I and II the instructions for maintaining the appropriate protection class during operation must be complied with (see relevant certificate). 1.
  • Page 77 Battery container lids and the covers of battery compartments must be opened or re- moved. The vent plugs should stay on the cells and remain closed. With the charger switched off connect up the battery, ensuring that the polarity is cor- rect.
  • Page 78 3. Maintenance 3.1 Daily Charge the battery after every discharge. Towards the end of charge the electrolyte level should be checked and if necessary topped up to the specified level with purified water. The electrolyte level must not fall below the anti-surge baffle or the top of the separator or the electrolyte „min“...
  • Page 79 5. Storage If batteries are taken out of service for a lengthy period they should be stored in the fully charged condition in a dry, frost-free room. To ensure the battery is always ready for use a choice of charging methods can be made: 1.

  • Page 80: 7. Type Plate, Jungheinrich Traction Battery

    7. Type plate, Jungheinrich traction battery Baujahr T ype Year of manufacture Serien-Nr. Lieferanten Nr. Serial-Nr. Supplier No. Nennspannung Kapazität Nominal V oltage Capacity Zellenzahl Batteriegewicht min/max Number of Cells Battery mass min/max Hersteller Jungheinrich AG, D-22047 Hamburg, Germany Manufacturer...

  • Page 81: Aquamatic/Bfs Iii Water Refilling System

    Aquamatic/BFS III water refilling system for Jungheinrich traction battery with EPzS and EPzB cells with tubular positive plates Aquamatic plug arrangement for the Operating Instructions Cell series* Aquamatic plug type (length) EPzS EPzB Frötek (yellow) (black) 2/120 – 10/ 600 2/ 42 –...
  • Page 82 Diagrammatic view Equipment for the water refilling system 1. Water tank 2. Level switch 3. Discharge point with ball valve 4. Discharge point with sole- noid valve 5. Charger 6. Sealing coupler 7. Closing nipple 8. Ion exchange cartridge with conductance meter and solenoid valve 9.
  • Page 83 4. Filling (manual/automatic) The batteries should be filled with battery water as soon as possible before the battery charging comes to an end; this ensures that the refilled water quantity is mixed with the electrolyte. In normal operation it is usually sufficient to fill once a week. 5.
  • Page 84 8. Battery hose connections Hose connections for the individual plugs are laid along the existing electric circuit. No changes may be made. 9. Operating temperature The temperature limit for battery operation is set at 55° C. Exceeding this temperature damages the batteries. The battery filling systems may be operated within a tempe- rature range of >...
  • Page 85 10.2.1 Clamping ring tool The clamping ring tool is used to push on a clamping ring to increase the contact pres- sure of the hose connection on the plugs' hose couplings and to loosen it again. 10.3 Filter element For safety reasons a filter element (ident no.: 50307282) can be fitted into the batte- ry's main supply pipe for supplying battery water.

  • Page 86: Jungheinrich Traction Battery

    Jungheinrich traction batterie Maintenance free Jungheinrich traction batterie with positive tubular plates type EPzV and EPzV-BS Rating Data 1. Nominal capacity C5: See type plate 2. Nominal voltage: 2,0 Volt x No of cells 3. Discharge current: C5/5h 4. Rated temperature: 30°...
  • Page 87 Ignoring the operation instructions, repair with non-original parts and non authorised interventions will render the warranty void. For batteries in classes I and II the instructions for maintaining the appropriate protection class during operation must be complied with (see relevant certificate). 1.
  • Page 88 With the charger switched off connect up the battery, ensuring that the polarity is cor- rect (positive to positive, negative to negative). Now switch on the charger. When charging the temperature of the battery rises by about 15° C, so charging should only begin if the battery temperature is below 35°...
  • Page 89 3.2 Weekly Visual inspection after recharging for signs of dirt and mechanical damage. 3.3 Quarterly After the end of the charge and a rest time of 5 h following should be measured and recorded: • the voltages of the battery •...

  • Page 90: 7. Type Plate, Jungheinrich Traction Battery

    Batteries with this sign must be recycled. Batteries which are not returned for the recycling process must be disposed of as hazardous waste! We reserve the right make technical modification. 7. Type plate, Jungheinrich traction battery Baujahr T ype Year of manufacture Serien-Nr.
