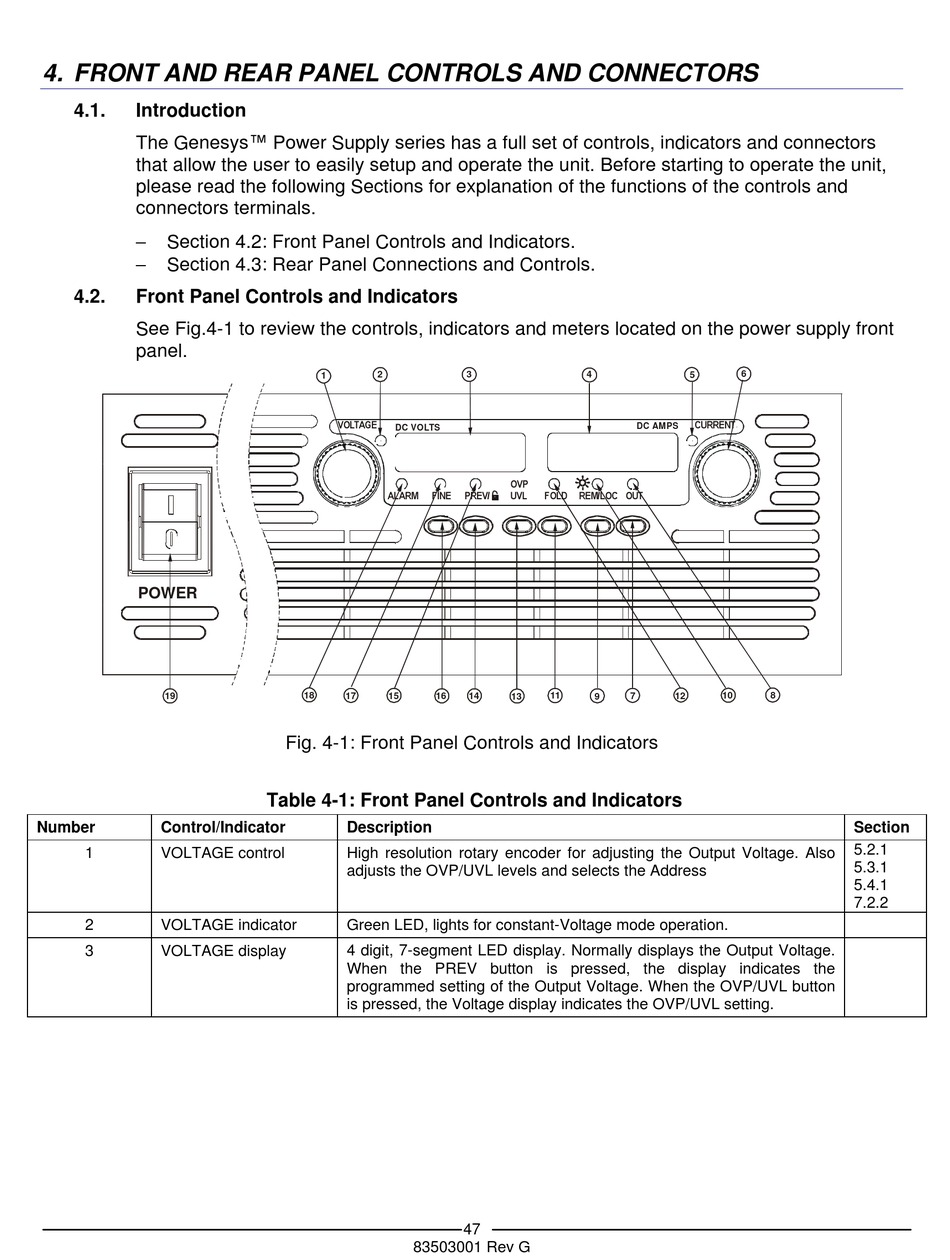

4. FRONT AND REAR PANEL CONTROLS AND CONNECTORS

4.1.

Introduction

The Genesys™ Power Supply series has a full set of controls, indicators and connectors
that allow the user to easily setup and operate the unit. Before starting to operate the unit,
please read the following Sections for explanation of the functions of the controls and
connectors terminals.

Section 4.2: Front Panel Controls and Indicators.

Section 4.3: Rear Panel Connections and Controls.
4.2.

Front Panel Controls and Indicators

See Fig.4-1 to review the controls, indicators and meters located on the power supply front
panel.
POWER
19
Number Control/Indicator
1 VOLTAGE control
2 VOLTAGE indicator
3 VOLTAGE display
2
1
VOLTAGE
DC VOLTS
ALARM FINE
18 17 15 16
Fig. 4-1: Front Panel Controls and Indicators
Table 4-1: Front Panel Controls and Indicators
Description
High resolution rotary encoder for adjusting the Output Voltage. Also
adjusts the OVP/UVL levels and selects the Address
Green LED, lights for constant-Voltage mode operation.
4 digit, 7-segment LED display. Normally displays the Output Voltage.
When the PREV button is pressed, the display indicates the
programmed setting of the Output Voltage. When the OVP/UVL button
is pressed, the Voltage display indicates the OVP/UVL setting.
83503001 Rev G
3 4
DC AMPS
OVP
PREV/ UVL FOLD REM/LOC OUT
14 11 7
13 9
47
6
5
CURRENT
12 10 8
Section
5.2.1
5.3.1
5.4.1
7.2.2
