Hardware Features

Package Contents

Modes of Operation

The module firmware can be updated over Ethernet using the Windows
utility supplied. Refer to page 72 for details.

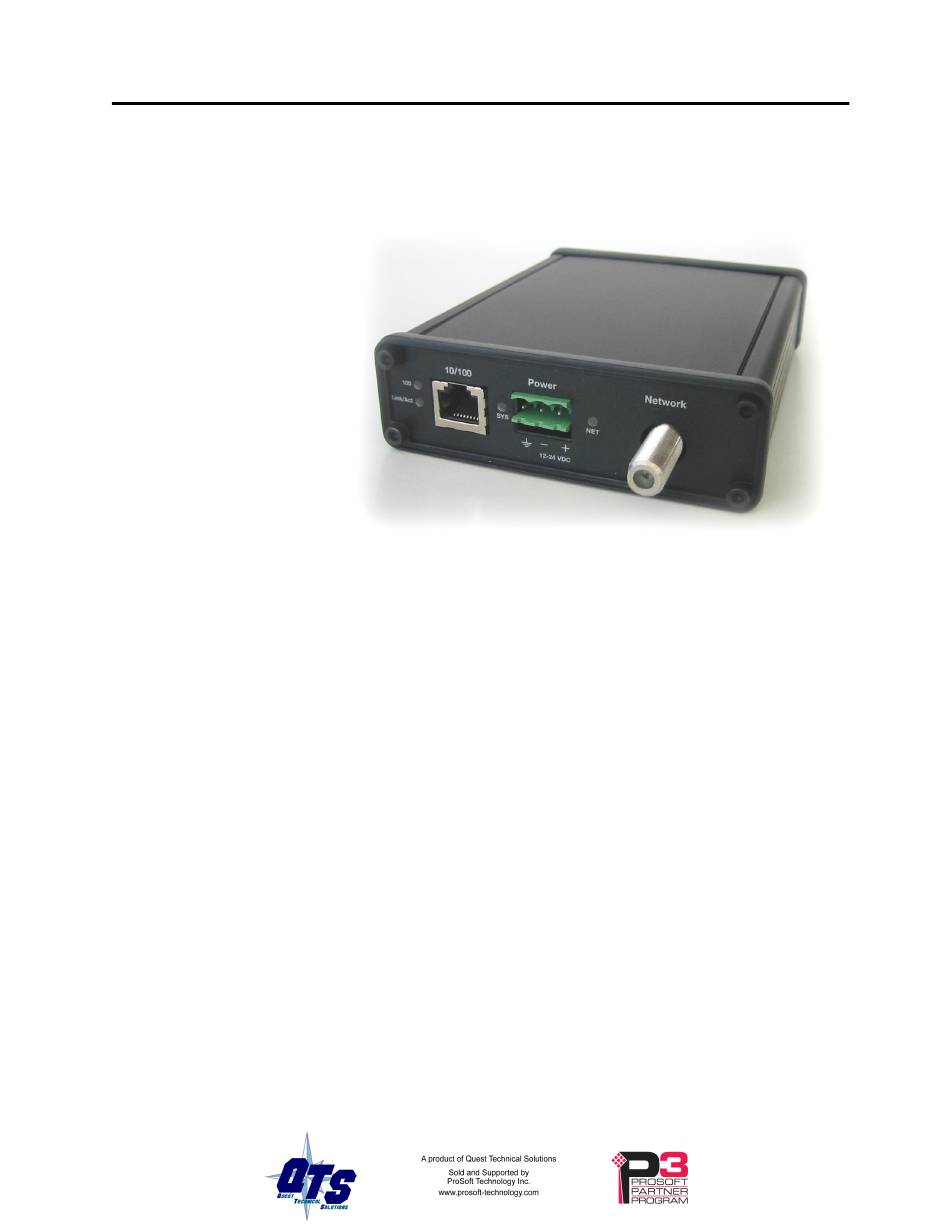

The module has:
•
LEDs to indicate the status of the Ethernet connection, the module's
internal state, and state of the connection to the S908 remote I/O
network
•
an Ethernet connector
•
a power connector
•
an F connector to connect to the S908 network
•
AN-X-MOD (Master) module
•
CD containing software and documentation
•
rubber feet for desktop use
There are three AN-X modes of operation:
•
Boot mode. The AN-X is running its low level startup firmware.
•
Configuration mode. This is the mode when you are updating the
firmware in the AN-X.
•
Production mode. This is the normal runtime mode of operation.
