Input Only Connections

Ensure that any check box that refers to Unicast connections is
unchecked.
The AN-X-MOD (Master) supports one input only connection from a
ControlLogix processor. The ControlLogix will be able to read the same
input data as the ControlLogix processor with the exclusive owner
connection to the AN-X-MOD (Master).

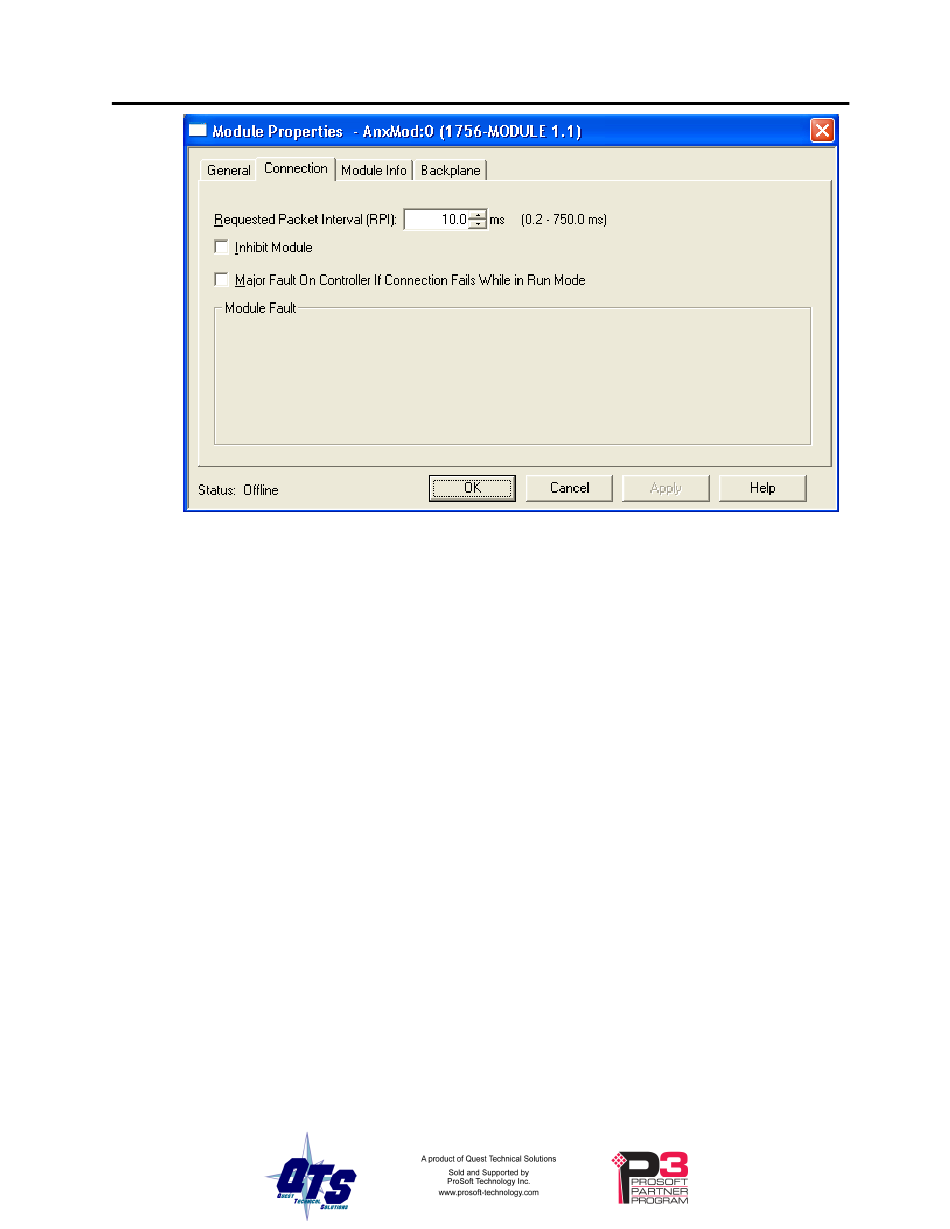

To configure the input only connection to the AN-X-MOD (Master) in
RSLogix 5000:
1. Right click on the ControlLogix Ethernet module that will be
communicating with the AN-X and select Add Module. Add a
1756-ENBT/A module. Set the Major Rev to 1.
