AN-X-MOD (Master)
Configure ControlLogix Support
Manual Configuration
Manual configuration does not require that the network be online.
Create a configuration file. Refer to page 24 for details on the file
format.
Browse or type the file name.
Click the Send File to AN-X button to send the values to AN-X.
AN-X exchanges scheduled data with a ControlLogix processor over
Ethernet. Refer to section Exchanging Scheduled Data with a
ControlLogix on page 24 for information on configuring scheduled data
exchange.

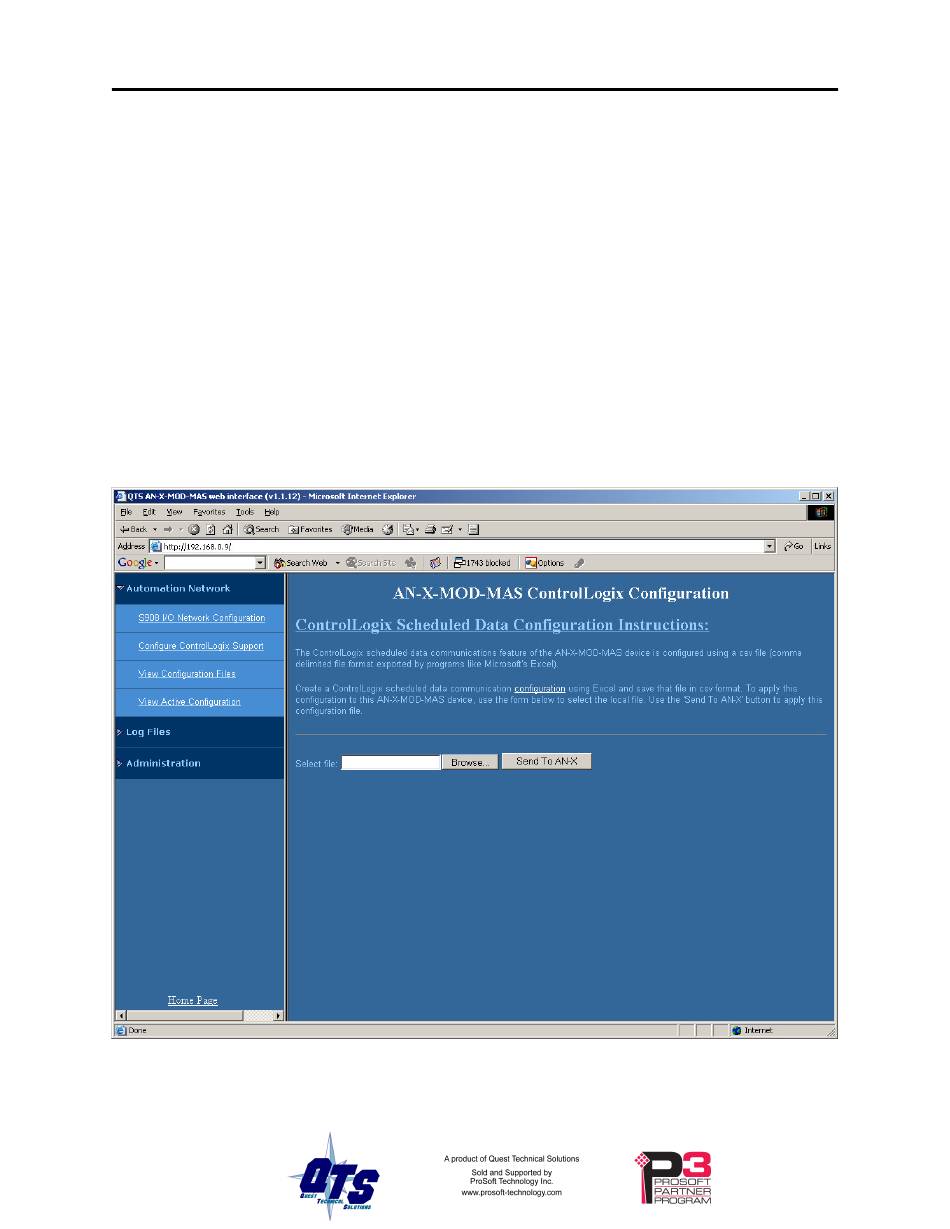

Select Automation Network/Configure ControlLogix Support in the web
interface to upload the configuration.
Type or browse the configuration file name into the Select file: area.
Then click the Send To AN-X button to send the file to AN-X.
