Page AN-X-MOD (Master)
The AN-X module contains a webserver capable of commuincating with
standard web browsers such as Internet Explorer.
Use the web interface to:
•
set the S908 remote I/O network configuration
•
set the ControlLogix scheduled data configuration
•
view the current configuration
•
view AN-X logs
To use the web interface, you need to know the IP address of the AN-X.
Use the Utilities/Locate All AN-X Modules command in AnxInit to find
all AN-X modules on the Ethernet network.

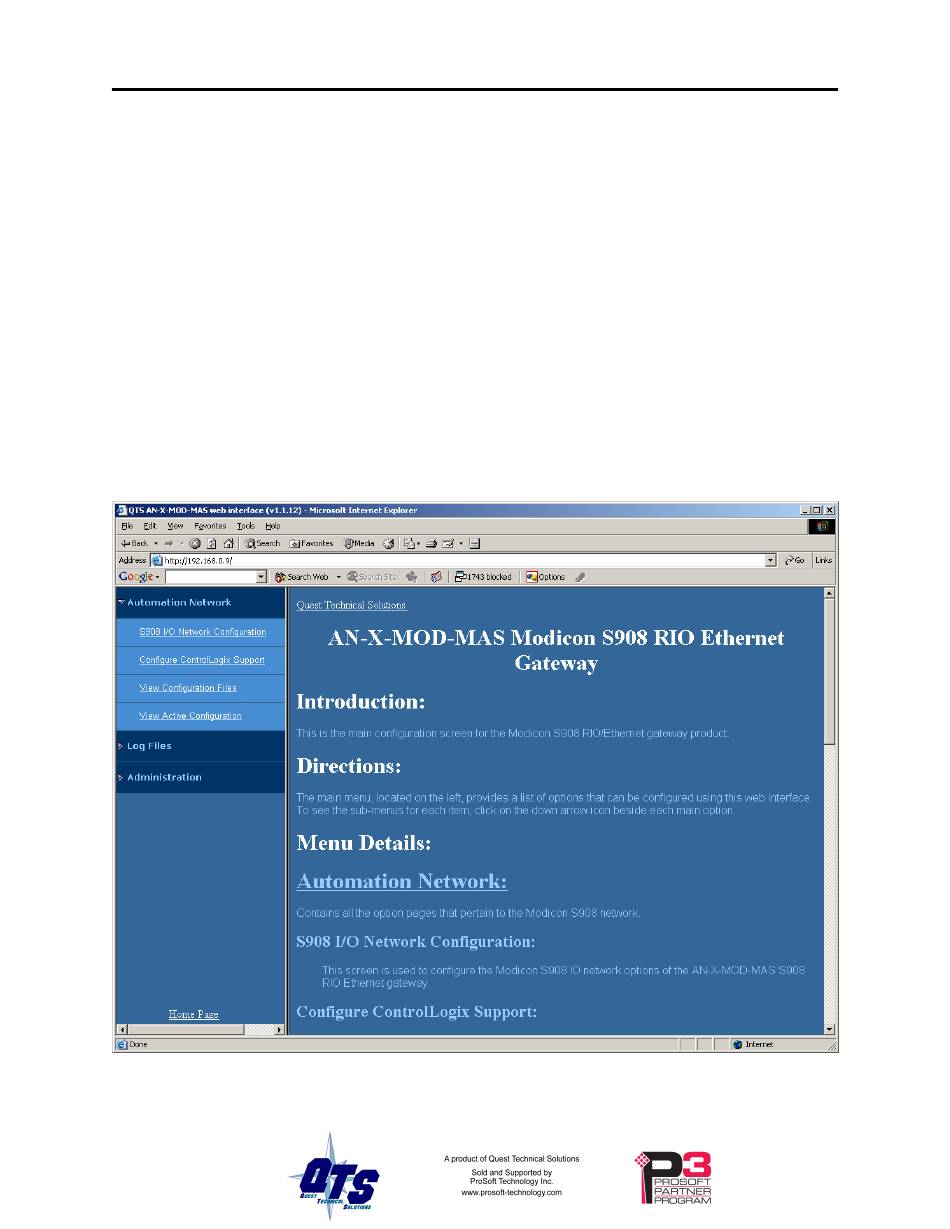

To access the web interface, start your web browser and type the AN-X
IP address where you normally enter web addresses in the browser.
The left pane contains commands. Click on the arrows at the left of the
main headings to expand or contract the sections.

Using the Web Interface
