48
Page
AN-X-MOD (Master)
November 2011

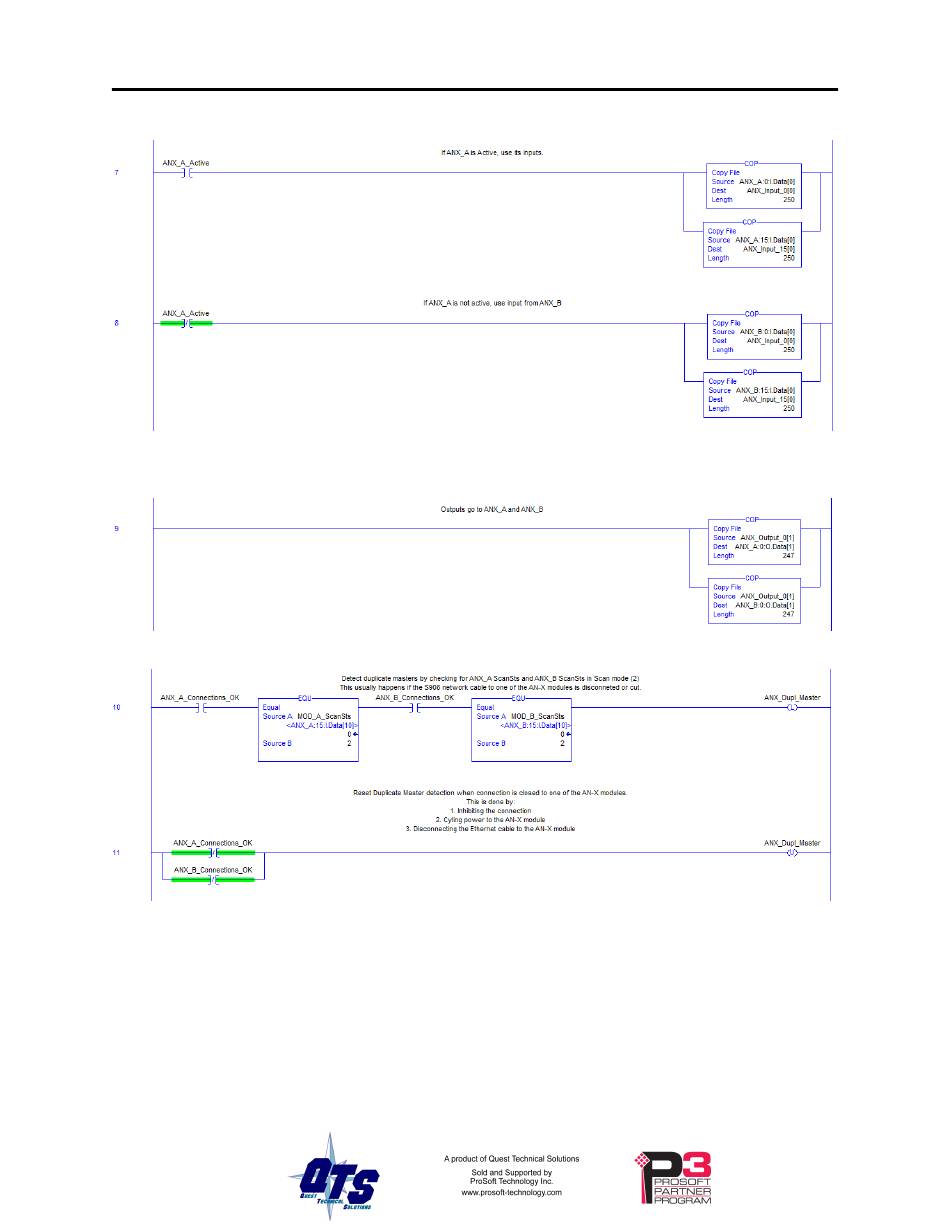

Take inputs from the active scanner.
Send outputs to both AN-X modules.
Duplicate master detection.
Other factors to consider...
Do not use the ScanModProg parameter if you are using redundancy.
When you modify the ControlLogix configuration file and add elements,
the mapped data may become larger than the maximum for a connection,
especially for large I/O networks or for networks with many analog
modules. It may be necessary to change some of the mappings. Also,
