Viewing the Current Configuration

Saving the Current Configuration

Configuring the AN-X Module in RSLogix 5000

To view the ControlLogix configuration currently stored in the AN-X,
start the web interface and select View Active Configuration.
Click the Ethernet/IP link to view the current ControlLogix scheduled
data configuration. The configuration will be displayed using whatever
application is associated with *.csv files on your computer, usually a
spreadsheet or text editor.
To save the ControlLogix configuration currently stored in the AN-X to
a file, start the web interface and Select View Active Configuration.
Right click the Ethernet/IP link and select Save target to save the current
ControlLogix scheduled data configuration to a file.
To configure the AN-X-MOD (Master) in RSLogix 5000:

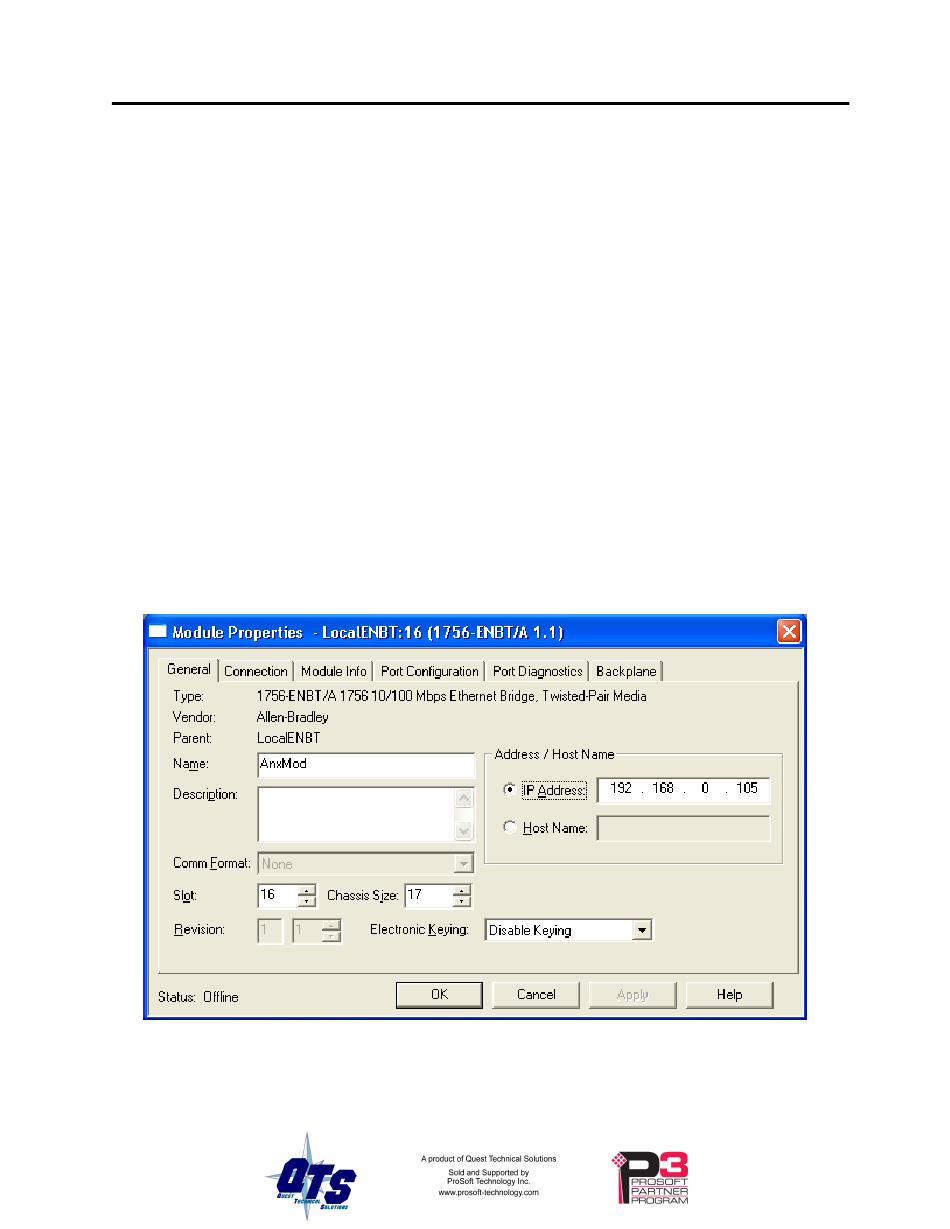

1. Right click on the ControlLogix Ethernet bridge module that will be
communicating with the AN-X and select Add Module. Add a
1756-ENBT/A module. Set the Major Rev to 1.
Enter the Name. This is usually the host name you assigned to AN-X
when you configured its IP properties.
AN-X-MOD (Master) Page
31
