Viessmann Vitocom 100 Installation And Service Instructions For Contractors

Type gsm remote monitoring and remote control of heating systemsv
Hide thumbs Also See for Vitocom 100:
Table of Contents

Advertisement

Quick Links

Download this manual
VIESMANN
Installation and service
instructions
for contractors

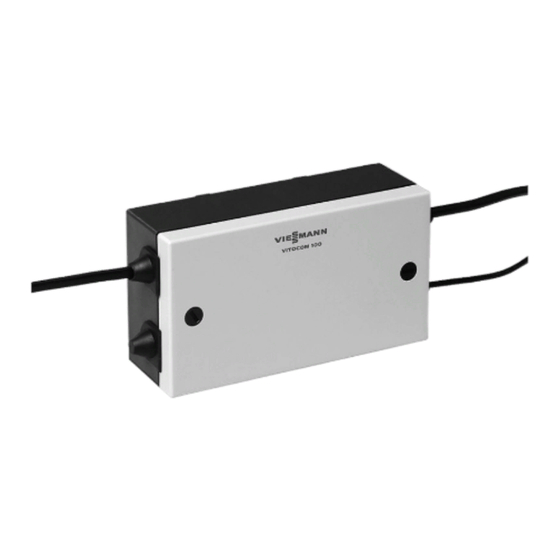

Vitocom 100
Type GSM
Remote monitoring and remote control of heating systems
For applicability, see the last page
VITOCOM 100
Please keep safe.
5606 565 GB
10/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vitocom 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viessmann Vitocom 100

Summary of Contents for Viessmann Vitocom 100

  • Page 1 VIESMANN Installation and service instructions for contractors Vitocom 100 Type GSM Remote monitoring and remote control of heating systems For applicability, see the last page VITOCOM 100 Please keep safe. 5606 565 GB 10/2011...
  • Page 2 Repairing components that fulfil a ■ Legal instructions regarding the pre- safety function can compromise vention of accidents the safe operation of your sys- ■ Legal instructions regarding environ- tem. mental protection Replace faulty components only with original Viessmann spare parts.
  • Page 3 Installing non-author- ised components and making non-approved modifications or conversions can compromise safety and may invalidate our warranty. For replacements, use only orig- inal spare parts supplied or approved by Viessmann.

  • Page 4: Table Of Contents

    Commissioning steps – Overview................ 18 Inserting the SIM card ..................18 Entering the SIM card PIN..................20 Sending the commissioning SMS to the Vitocom 100 ......... 21 Creating SMS templates in the mobile phone............22 SMS commands Notes on SMS commands..................23 Changing the access code...................
  • Page 5 Index Index (cont.) Troubleshooting Interpreting the LED flashing patterns..............33 Fault messages....................33 Specification....................... 35 Certificates Declaration of conformity..................36 Keyword index....................37...

  • Page 6: Safety And Liability

    Liability Viessmann accepts no liability for loss of We accept no liability for SMS and e-mail profit, unattained savings, or other direct services provided by network operators. or indirect consequential losses resulting...

  • Page 7: Preparing For Installation

    – Bi-directional function (sending and if changes are implemented by the receiving) mobile phone operator. ■ The radio reception of the Vitocom 100 Note has not been tested with all types of SIM cards approved for use with the mobile phone. Although no restrictions...

  • Page 8: Vitocom 100 Functions

    Connect the control unit to the switched over. Vitocom 100 via a KM BUS. Remote scanning The following settings of the Vitocom 100 ■ Cost of one SMS (stored value). can be scanned: ■ Information text for designating the ■ 2 mobile phone numbers that can be system and the digital input.

  • Page 9: Installation Sequence

    32. ■ Maintain the max. cable length (total length of all cable lengths of KM BUS subscribers up to 50 m) ■ Power plug of the Vitocom 100 must be easily accessible. 3. 4x...

  • Page 10: Overview Of Electrical Connections

    Installation sequence Overview of electrical connections Opening the enclosure A KM BUS cable (plug aVG supplied) K Cable entry, digital input 230 V~ (for B Aerial cable (standard delivery) additional appliance) L Power cable C KM BUS terminals M Green LED D Plug-in connection to the wiring N Yellow LED chamber...
  • Page 11 Installation sequence Overview of electrical connections (cont.) Danger 1. Carefully push in all 3 clips with a pair There is a risk of electric shock or of pliers. damage to the device when work- ing in the wiring chamber with 2.

  • Page 12: Connecting The Vitocom 100

    K Cable entry, digital input 230 V~ (for T Transformer additional appliance) U Plug-in connection to upper PCB Connecting the Vitocom 100 Note If there are several KM BUS subscribers (e.g. remote control), use KM BUS dis- tributor (part no. 7415 028, accessory).
  • Page 13 (If an extension kit for one heating circuit with mixer has already been connected via plug "X5" to the wall mounted boiler, connect the Vitocom 100 KM BUS to this plug in parallel.) X Vitotronic control unit for wall moun- 5 4 3 2 1 ted and storage combi boilers and Vitotronic 200, Type KW6...)

  • Page 14: Digital Input Connections

    Using this input, external signals can be hooked up as mains voltage signals with 230 V ~. ■ The input signal is monitored by the Vitocom 100 and the fault is signalled via SMS. ■ The text of the SMS can be individually composed.
  • Page 15 Digital input connections (cont.) Connection example for an additional C Digital input appliance D 230 V~ voltage signal E Message signal via switching con- tact F Message signal via contactor relay A Vitocom 100 wiring chamber B Power supply 230 V/50 Hz...

  • Page 16: Power Supply

    [or local regulations]. currents that can occur with energy effi- Protect the power cable to the control cient equipment. unit or the Vitocom 100 according to reg- ulations. For oil and gas combustion equipment in excess of 100 kW the Sample Combus- tion Ordinance [Germany] "FeuVo"...
  • Page 17 G Vitocom 100 Connection independent of the "emergency stop" (mains isola- tor) When the heating system is switched off via the mains isolator, the Vitocom 100 continues to function. On-site faults continue to be signalled. A Power supply 230 V/50 Hz...

  • Page 18: Commissioning

    Commissioning Commissioning steps – Overview Condition: 4. Sending the commissioning SMS to Adequate reception quality (see the Vitocom 100 (see page 21). page 9). 5. Option: 1. Inserting the SIM card (see the fol- Creating SMS templates in the lowing chapter).
  • Page 19 Commissioning Inserting the SIM card (cont.) OPEN LOCK 1. Slide the metal slider of the SIM card 5. Slide the metal slider of the SIM card holder in the direction of the hinge holder in the direction of the opening ("OPEN"), thereby unlocking the ("LOCK"), thereby locking the holder.

  • Page 20: Entering The Sim Card Pin

    Entering the SIM card PIN Once a PIN has been entered it remains permanently in force, even after a power failure. Entering the PIN at the Vitocom 100 Note 3. With the PIN rotary selector (G) set PIN input is terminated if nothing is...

  • Page 21: Sending The Commissioning Sms To The Vitocom 100

    Press / to move to the next posi- 3. Confirm with OK. tion. 5. Confirm with OK. Sending the commissioning SMS to the Vitocom 100 1. Entering the access code The following text is transmitted to the The access code protects the mobile phone number of the Vitocom Vitocom 100 against misuse.

  • Page 22: Creating Sms Templates In The Mobile Phone

    SMSWERT a fault. AKTDAT Reply SMS are always sent by the ENDDAT Vitocom 100 to the mobile phone num- DITEXT bers. Creating SMS templates in the mobile phone You may save the SMS commands as templates.

  • Page 23: Sms Commands

    þbahk4þ0 mands. ■ The text length of a SMS command is Reply SMS from the Vitocom 100 restricted to 70 characters. If the text 1234 CODE 1234 OK MOBNR2 is longer it will be truncated after the 017198765432 OK BAHK4 0 ERROR final permitted character.

  • Page 24: Language Selection

    SMS commands Changing the access code (cont.) Access code forgotten You can scan the access code with the Reply SMS from the Vitocom 100 "password" command. The Vitocom 100 1111 SAFECODE 1111 replies by SMS to the mobile phone numbers.

  • Page 25: Entering Information Text

    SMS commands Entering information text SMS command "info" Information text to identify the heating Reply SMS from the Vitocom 100 system (e.g. name of the system opera- 1111 INFO Heating system OK tor, location of the system). This text is...

  • Page 26: Entering Operating Mode Changeover

    SMS commands Entering a mobile phone number (cont.) Reply SMS from the Vitocom 100 Note Scan see page 31. 1111 MOBNR1 01791234567 OK "mobnr2" deleting Enter as mobile phone number 0. Reply SMS from the Vitocom 100 1111 MOBNR2 0 OK SMS from the user 1111þmobnr2þ0...

  • Page 27: Entering Sim Card Credit (Prepaid Only)

    Central heating with standard room temperature and DHW heat- Standby mode: Switching off central heating and DHW; frost protection only Example: Reply SMS from the Vitocom 100 Selecting operating mode 5 for heating 1111 BAHK1 Standby mode OK circuit 1.

  • Page 28: Entering The Cost For Sending One Sms (Prepaid Only)

    SMS from the user points with comma or full stop. 1111þsmswertþ0.19 Example: Reply SMS from the Vitocom 100 Entering cost of €0.19 per SMS. 1111 SMSWERT 0.19 OK Entering SIM card valid from date (prepaid only) SMS commands "aktdat" and "enddat"...
  • Page 29 If the end of the validity period "info", see page 25) was entered, that was specified with "enddat", then text will be shown in this warning SMS. the Vitocom 100 will send 3 warn- ing SMS in good time prior to the Example: expiry of validity: Warning SMS with information text ■...

  • Page 30: Re-Starting The Vitocom 100 And Selection Resets

    This reset can be effected by holding down the pushbutton for entering the PIN (P) (see page 20) for at least 60 s. Note The Vitocom 100 does not issue a reply SMS to "reset" commands. Example: SMS from the user 1111þresetþ1...

  • Page 31: Scanning

    "password", a scanning command is always followed by a question mark with- out space. sprache? smswert? info? aktdat? mobnr1? enddat? mobnr2? ditext? password vwert? Example: SMS from the user 1111þinfo? Reply SMS from the Vitocom 100 1111 INFO Heating system...

  • Page 32: Led Indications

    LED indications LED descriptions The Vitocom 100 is equipped with three LEDs on its top PCB (see diagram on page 10). Red LED Reception quality indicator. Yellow LED Connection being built indicator/SMS transmission star- ted. Green LED Connection made indicator/SMS transmission completed.

  • Page 33: Troubleshooting

    ■ Trigger a reset by briefly within 2 minutes. pressing the pushbutton for entering the PIN and mak- ing another attempt to dial Fault messages Faults on the Vitocom 100 Fault Fault message SMS Digital input Digital input (DE1): 230V <EE-text> Note If information text (SMS command "ditext", see...
  • Page 34 (cont.) To monitor the Vitotronic 200-H, connect the central fault mes- sage output gÖ with the digital input of the Vitocom 100 (see page 15). Match the information text to the function of the digital input (SMS command "ditext", see page 25) accordingly.

  • Page 35: Specification

    Specification Specification Rated voltage 230 V∼ Rated frequency 50 Hz Power consumption Safety category IP rating IP 41 to EN 60529; ensure through appropriate design and installation Function Type 1 B as per EN 60730-1 Permiss. ambient temperature ■ During operation 0 to +55°C Installation in living spaces or boiler rooms (stand- ard ambient conditions)

  • Page 36: Certificates

    Certificates Declaration of conformity We, Viessmann Werke GmbH&Co KG, D-35107 Allendorf, declare as sole respon- sible body that the Vitocom 100, type GSM product complies with the following standards: EN 50 090-2–2 EN 61 000-4-3 EN 55 014-1 EN 61 000-4-4...

  • Page 37: Keyword Index

    Keyword index Keyword index Access code Fault diagnosis........33 ■ Changing........23 Fault messages........33 ■ Forgotten........24 Faults on the Vitocom 100....33 Field strength........32 Field strength indication.....32 Cable lengths........9 Commissioning steps......18 Connecting the Vitocom 100....12 Installation sequence......9 Connection Installing the aerial.......9 ■ Additional appliance.......15 ■...
  • Page 38 Specification ........35 Removing the top PCB......10 Strength of reception......9 Reply SMS.........21 System limitations........7 Resetting selections......30 System requirements......7 Restarting the Vitocom 100....30 ■ Message paths.........7 ■ Message targets.......7 Safety...........6 Scanning current settings....31 Troubleshooting.........33 Sending the commissioning SMS to the Vitocom 100........21 SIM card Vitocom 100 functions......8...
  • Page 40 Applicability Serial No.: 7457954 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
