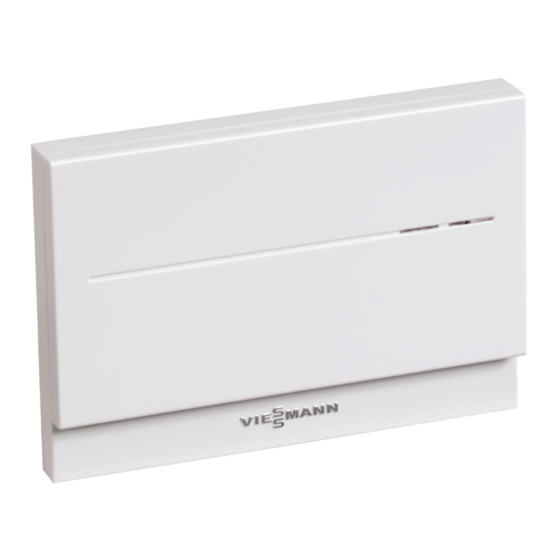

Viessmann Vitocom 100 Operating Instructions Manual
Hide thumbs
Also See for Vitocom 100:
- Installation and service instructions for contractors (44 pages) ,
- Installation and service instructions manual (44 pages) ,
- Operating instructions manual (44 pages)
Related Manuals for Viessmann Vitocom 100
Summary of Contents for Viessmann Vitocom 100

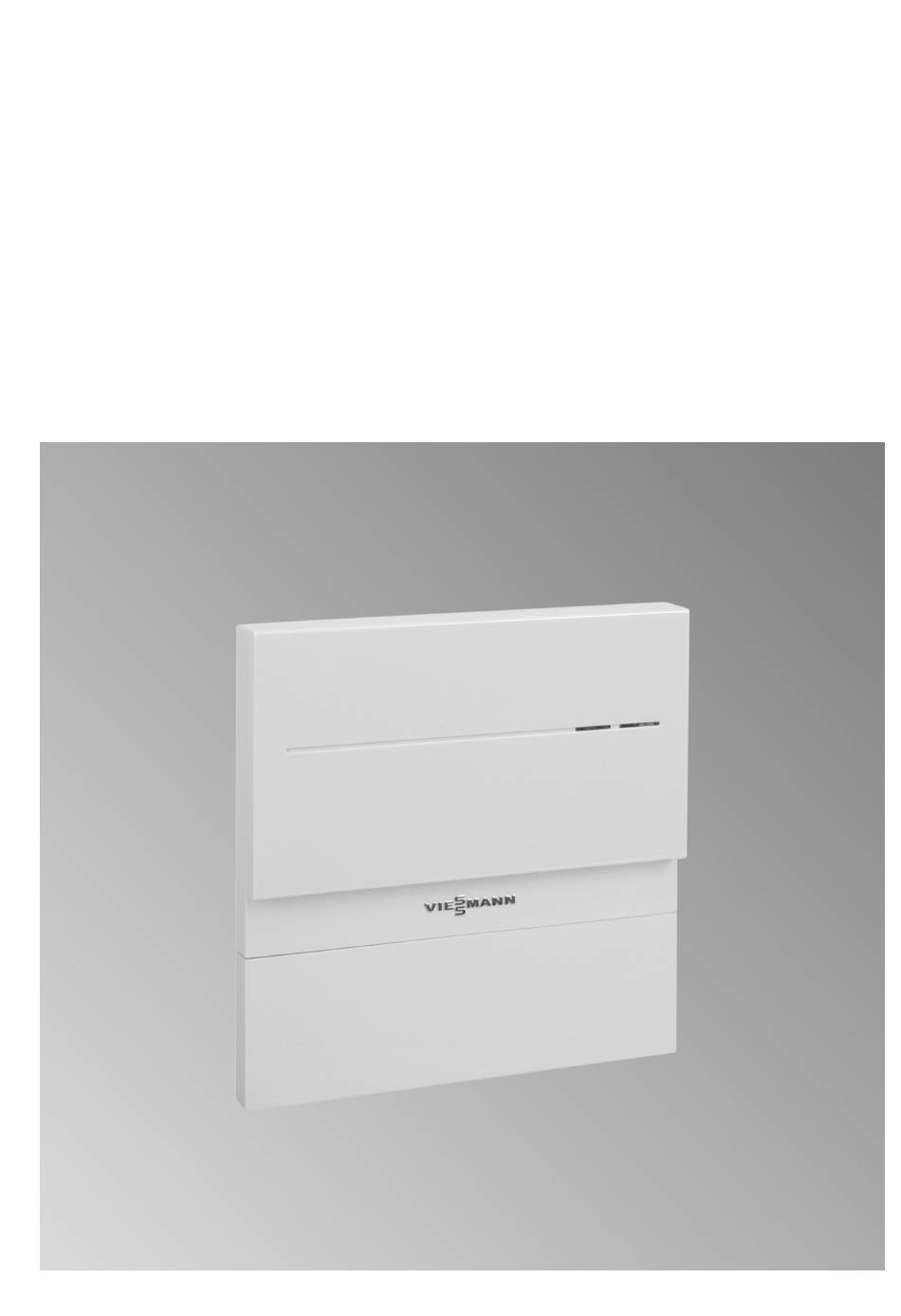

- Page 1 VIESMANN Operating instructions for the system user Remote monitoring and remote control of heating systems Vitocom 100, type GSM2 VITOCOM 100 Please keep safe. 5782 277 GB 2/2015...
- Page 2 Safety instructions For your safety Please follow these safety instructions closely to ■ Never remove casings. prevent accidents and material losses. ■ Never change or remove attachments or fitted accessories. Safety instructions explained Never open or retighten pipe connections. ■ Danger Danger This symbol warns against the risk of injury.
- Page 3 Safety instructions For your safety (cont.) In case of water leaking from the appliance Extractors Danger The operation of appliances that extract air to the out- Water leaking from the appliance poses an elec- side (cooker hoods, extractors, air conditioning units, trocution hazard.
-
Page 4: Table Of Contents
Index Index 1. Safety and liability Operational reliability ................Liability ....................■ 2. Information Symbols ....................Intended use ..................3. Introductory information System requirements ................Heating system ................... ■ Mobile network ................... ■ Commissioning ..................Terminology ................... Your device is preset at the factory ............4. -
Page 5: Index Index
Index Index (cont.) 12. Appendix Terminology ................... 28 13. Keyword index ........................30... -
Page 6: Safety And Liability Operational Reliability
The Vitocom 100 only relays faults occurring in the power failure, we recommend connecting the connected Vitotronic control units and in the compo- Vitocom 100 to the power supply via a UPS (on site). nents connected to the configured input of the Vitocom. -
Page 7: Information Symbols
Power is supplied exclusively via the plug-in power supply unit supplied. Intended use presupposes that a sufficient reception level (mobile network) is present and that the SIM card is approved by Viessmann and enabled by the mobile phone provider. Message destinations must be set up correctly. -
Page 8: Introductory Information System Requirements
Introductory information System requirements Heating system The Vitocom 100, type GSM2 is approved for 1 heat- ■ ing system with or without heating circuits down- stream. ■ The control unit is connected to the Vitocom 100 via KM BUS. Standard 230 V/50 Hz socket ■... -
Page 9: Your Device Is Preset At The Factory
Your heating contractor has made further settings for you during commissioning. Standby Provided the following requirements have been met, the Vitocom 100 is ready for operation. You can use the Vitocom 100 if (see page 14): Your heating contractor has installed the equipment. ■... -
Page 10: About The Controls Functions
Mobile phone Your mobile phone enables you to communicate with Note the Vitocom 100 via SMS. Observe the system requirements (see page 8). The Vitocom 100 provides the following functions for your heating system: ■ Remote switching ■ Remote scanning ■... -
Page 11: Interpreting The Led Indicators
Illuminates green. "Standard mode", no heating system or Vitocom 100 fault Flashes green slowly. The Vitocom 100 is initialised after the power supply unit is plugged in or reset but- ton "T4" is pressed PIN entry (see page 19). Flashes green quickly. -
Page 12: Security
The access code must be entered at the start of ■ The PIN is specific to the inserted SIM card and is each SMS to the Vitocom 100 (not for the "pass- stored in the Vitocom 100. word" command). The PIN is a 4 digit number that cannot be modified ■... -
Page 13: Reply Sms
About the controls How to use the controls (cont.) Reply SMS Every SMS received by the Vitocom 100 is acknowl- ■ edged with a reply SMS. – "OK": Command successful – "ERROR": Command not carried out (error) The Vitocom 100 always sends the reply SMS ■... -
Page 14: Control Functions Entering Operating Mode Changeover
"aktdat" to be entered. In a LON system, only the control unit that is connec- ted to the Vitocom 100 via the KM BUS is monitored. Example: "aktdat" was deleted by a power failure. After the... -
Page 15: Further Sms Commands Sms Commands (Summary)
The access code prevents misuse and is specific to Only numbers 0 to 9 can be used for each digit. the Vitocom 100, regardless of the SIM card used. The 4-digit access code is preset to "1111" in the Note delivered condition. -
Page 16: Deleting Previous Entries
Further SMS commands Changing the access code (cont.) If you change the access code, the Vitocom 100 sends Note an SMS with the new code to the mobile phone num- If you have forgotten your access code, you can check bers "mobnr1"... -
Page 17: Commissioning The Replacing The Sim Card
SMS messages are to the SIM card. When a new SIM card is used, deleted from the SIM card. the Vitocom 100 is given a new mobile phone Check the position of the angled corner. ■... -
Page 18: Closing The Cover
Commissioning the Vitocom Replacing the SIM card (cont.) Fig.3 Closing the cover Fig.4... -
Page 19: Restarting The Vitocom
"3" flash yellow; the When carrying out first-time commissioning of the operating status indicator "4" flashes red. Vitocom 100 with a new SIM card, the PIN of the SIM card must entered. Indication during PIN entry... -
Page 20: Sending A Commissioning Sms
Commissioning the Vitocom Entering the PUK (cont.) 1. Switch off the power supply. 5. Insert the SIM card in the Vitocom 100; see page 17. 2. Open the casing cover. 6. Switch ON the power supply. 3. Remove the SIM card from the Vitocom 100; see page 17. -
Page 21: Device Settings Changing The Mobile Phone Numbers
Device settings Changing the mobile phone numbers The Vitocom 100 sends heating system fault and reply Scanning or changing a mobile phone number: SMS messages to both mobile phone numbers The reply SMS is sent to the previous mobile phone "mobnr1"... -
Page 22: Entering Information Texts
11.02.2015 þ þ than the end date "enddat". Reply SMS from the Vitocom 100 The Vitocom 100 sends the following SMS alert: 1111 AKTDAT 11.02.2015 OK SMS alert as error message 1111 ENDDAT 10.02.2015 ERROR AKTDAT 11.02.2015 ERROR Entering information texts... -
Page 23: Credit Monitoring Validity Of Sim Card
D.M.YY or D.M.YYYY ■ DD.MM.YYYY or DD.MM.YY SIM card runtime Prior to expiry of the validity period, the Vitocom 100 Note sends an SMS alert to both mobile phone numbers If an information text ("info") has been specified, that "mobnr1" and "mobnr2" (if entered). This message is... -
Page 24: Credit Warning (Prepaid)
1111 SMSWERT 0.19 OK Credit warning (prepaid) If the available credit falls below the default amount, the Vitocom 100 sends an SMS alert to both mobile phone numbers "mobnr1" and "mobnr2" (if entered). This message is sent for the following number of... -
Page 25: Scanning Scanning The Access Code
Note With the exception of the "password" command, a call up command is always followed by a question mark without space. The following current settings of the Vitocom 100 can be called up remotely: sprache? Current language setting info? Information text for naming the heating system and the digital input, if specified... -
Page 26: What To Do If
Use a mobile phone to check the reception quality of the mobile network ■ where the aerial is installed. Adjust the aerial. ■ Select a different site for the Vitocom 100 and the aerial; inform your heating ■ contractor if necessary. Mobile network connection status indicator "3" Flashes yellow slowly. -
Page 27: Faults Without Led Indication
Contact your heating contractor in connection with input. each fault message received. The Vitocom 100 sends the fault message SMS to the The SMS sent by the Vitocom 100 shows the fault mobile phone numbers "mobnr1" and "mobnr2" (if pro- message in a similar way using the following informa- grammed). - Page 28 Heating circuit grated circuit card. The SIM card is inserted into a mobile phone or the Vitocom 100. The SIM card identi- A heating circuit is a sealed unvented circuit that con- fies the user within the mobile network. It enables...
- Page 29 "text messages" or "SMS". This service allows you to send text messages of up to 160 characters from one mobile phone to another (or to the Vitocom 100).
- Page 30 Combining SMS commands........12 Command Mains power failure............ 14 – RESET..............16 Maintenance button............10 Commissioning............19 Malfunction............26, 27 Commissioning SMS, sending to the Vitocom 100..20 Message code............14 Confirmation button............10 Message destinations..........6 Connection, establishing..........11 Message forwarding...........14 Connection fault............11 Message text..............14 Control................10...
- Page 31 Keyword index Keyword index (cont.) SIM card SMS costs..............23 – Activation..............8 Summary of functions..........10 – Adding credit............23 System limitations............8 – Credit..............23, 24 System requirements – End date..............23 – Heating system............8 – Runtime..............23 – Message destinations..........8 –...
- Page 32 Your contact Contact your local contractor if you have any questions regarding the maintenance and repair of your system. You may, for example, find local contractors on the internet under www.viessmann.com. Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford...
