Installation instructions
for contractors

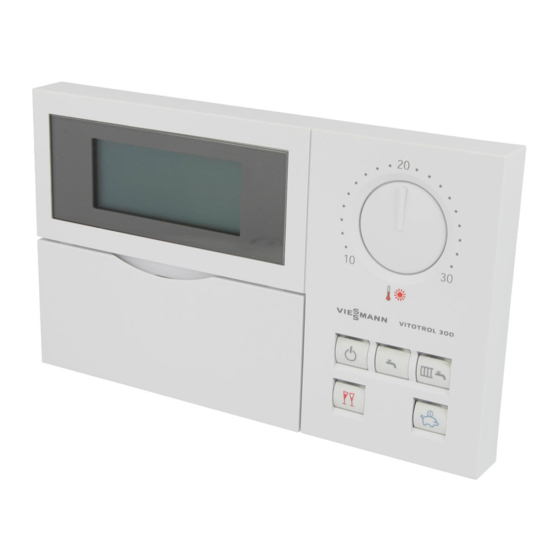

Vitotrol 300
Remote control for one heating circuit
Part no. 7248 907

Safety instructions

Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
!
Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Installation, initial start-up, inspection,
maintenance and repairs must only be
carried out by a competent person (heat-
ing engineer/installation contractor).
Before working on the equipment/heat-
ing system, isolate the power supply
(e.g. by removing a separate mains fuse
or by means of a mains isolator) and
safeguard against unauthorised recon-
nection.

Installation location

■ Weather-compensated mode
Installation in any room.
5592 911 GB
6/2007
VIESMANN
When using gas as fuel, also close the
main gas shut-off valve and safeguard
against unauthorised reopening.
Repairing components which fulfil a
safety function can compromise the safe
operation of your heating system.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
■ Operation with room temperature-
dependent control
Dispose after installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vitotrol 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Viessmann Vitotrol 300

  • Page 1: Safety Instructions

    VIESMANN Installation instructions for contractors Vitotrol 300 Remote control for one heating circuit Part no. 7248 907 Safety instructions Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained When using gas as fuel, also close the...
  • Page 2: Installing And Connecting The Vitotrol 300

    – Not near windows and doors – Not above radiators – Not near heat sources (direct sun- light, fireplace, TV set etc.) Installing and connecting the Vitotrol 300 Note Please note If the remote control cannot be installed Electronic modules can be dam-...
  • Page 3 Installing and connecting the Vitotrol 300 (cont.) Connection Note Two-core cable with a cross-section of at Never route the cable to the remote con- least 0.75 mm, trol immediately next to 230/400 V Cable length up to 50 m. cables.
  • Page 4: Connecting Several Remote Control Units

    Installing and connecting the Vitotrol 300 (cont.) Note If 2-pin plug aVG is plugged into a 3-pin socket, the connection must be made at terminals 1 and 2. Connecting several remote control units Version 1 ≤ 15 m ≤ 15 m ≤...
  • Page 5: Adjusting The Dip Switches

    Connecting several remote control units (cont.) ■ If several remote control units and ■ Limit the total length of all KM BUS additional KM BUS users are connec- cables to 50 m. ted, make the connections via an on- site socket as shown in the diagram. Adjusting the DIP switches Remote control DIP switch...
  • Page 6: Connecting The Remote Control

    Connecting the remote control Opening the remote control unit Changing the setting range for the standard set room temper- ature Delivered condition: via coding address "E1" on the 10 to 30 °C Vitotronic. Changeover to ■ 3 to 23 °C Vitotronic installation and service ■...
  • Page 7: Operating State/Scanning Temperatures

    Operating state/scanning temperatures Vitotrol operating instructions Specification Power supply via KM BUS. Setting range for stand- Power consumption 0.5 W ard set room temp. 10 to 30 ºC Protection class Setting range for IP rating IP 30 reduced set room temp. 3 to 37ºC Permiss.
  • Page 8 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
