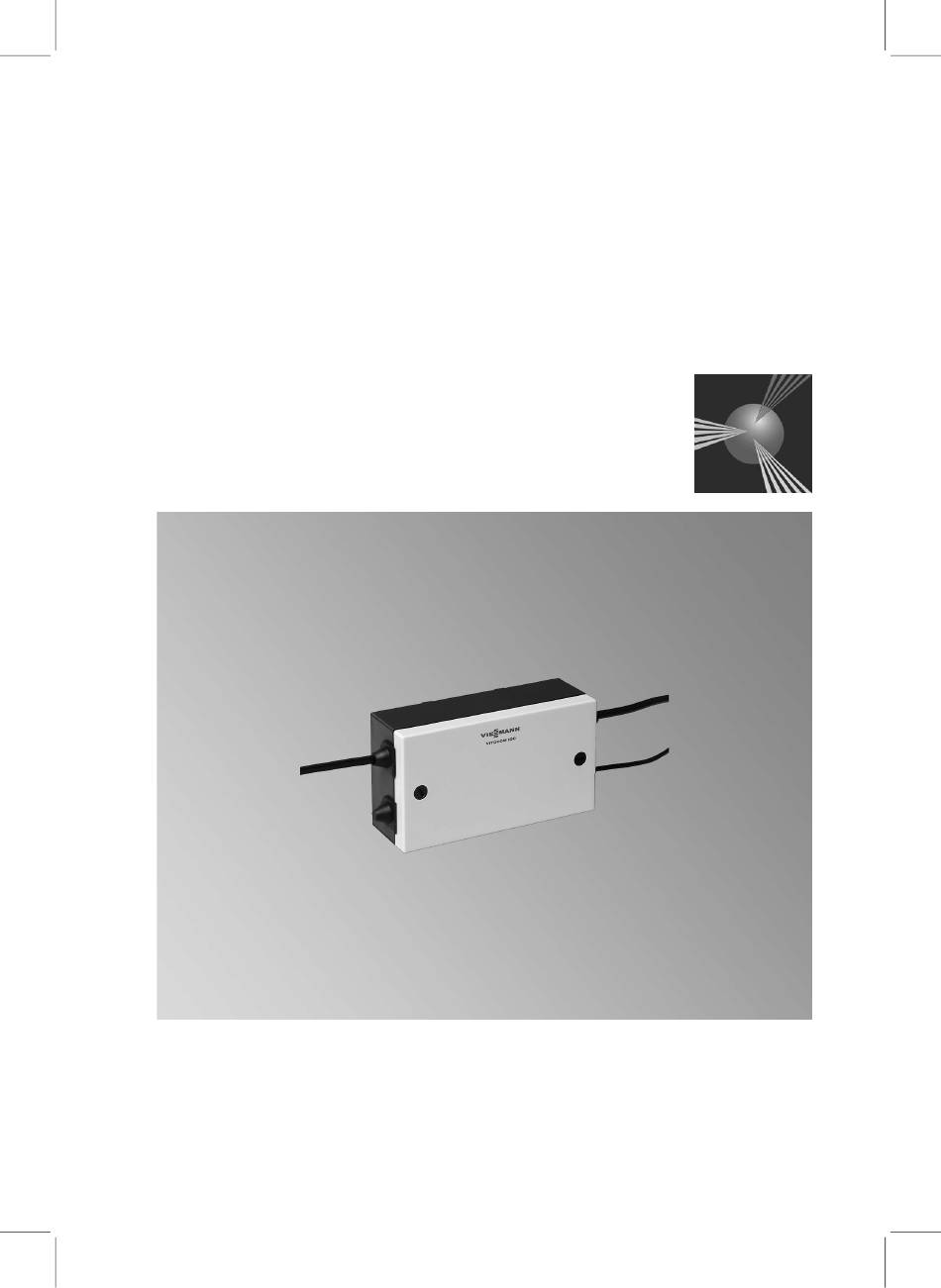

VIESMANN
Installation and service
instructions
for contractors

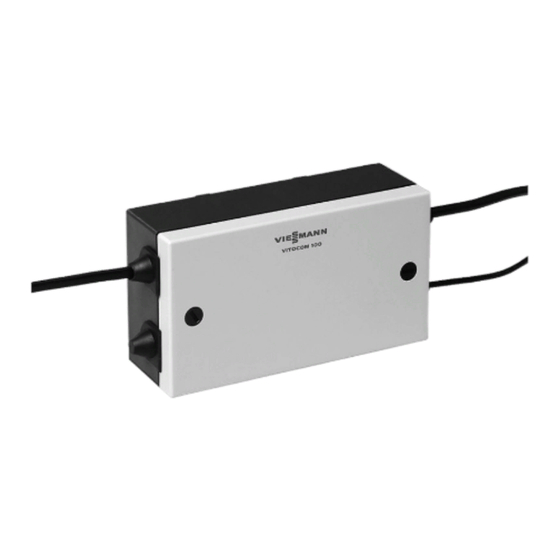

Vitocom 100
Type GSM
Remote monitoring and control of heating systems
For applicability, see the last page
VITOCOM 100
Please keep safe.
5592 950 GB
8/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vitocom 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Viessmann Vitocom 100

Summary of Contents for Viessmann Vitocom 100

  • Page 1 VIESMANN Installation and service instructions for contractors Vitocom 100 Type GSM Remote monitoring and control of heating systems For applicability, see the last page VITOCOM 100 Please keep safe. 5592 950 GB 8/2007...
  • Page 2 Safety instructions Safety instructions Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained the Code of Practice of relevant trade associations, Danger all current safety regulations as This symbol warns against the defined by DIN, EN, DVGW, TRGI, risk of injury.
  • Page 3 Instal- charge static loads. ling non-authorised compo- nents and non-approved modifications/conversion can compromise safety and may invalidate our warranty. For replacements, use only ori- ginal spare parts from Viessmann or those which are approved by Viessmann.

  • Page 4: Table Of Contents

    Selecting a SIM card ................... Application ....................Installation sequence Installing the Vitocom 100 ................Summary of electrical connections .............. 11 Connecting the Vitocom 100 ............... 15 Connecting additional signals ..............18 Power supply ....................20 Service instructions Commissioning Requirements ..................... 22 PIN code ....................

  • Page 5: Preparing For Installation Functions

    (like a mobile tele- phone). If devices like this are used, please avoid the immediate vicinity of the Vitocom 100 if it is ready for operation. Please note For a further improvement of the The Vitocom transfers exclu-...
  • Page 6 A Mobile phone D Control unit (see equipment B SMS centre of the mobile phone selection) network operator E Viessmann heating system C Vitocom 100 Remote switching The operating mode of the heating cir- cuits connected to the control unit can...

  • Page 7: Selecting A Sim Card

    Preparing for installation Functions (cont.) Remote scanning The following current Vitocom 100 SIM card credit (prepaid) parameter settings can be scanned Current date and expiry date of SIM remotely: card (prepaid) Message text as information about Cost of an SMS...

  • Page 8: Application

    PIN. Visual confirmation is possible via the LED indicators on the device. Application The Vitocom 100 can be connected to the following control units: Control units for freestanding boilers Control unit Type Vitotronic 150...

  • Page 9: Installation Sequence

    Installation sequence Installing the Vitocom 100 Installation location The installation site must meet the fol- Install aerial in a suitable location: lowing criteria: To a suitable metal using the mag- Adequate reception quality (test net that is integrated in the aerial...
  • Page 10 Installation sequence Installing the Vitocom 100 (cont.) Wall mounting 1. Secure the retainer to the wall. 2. Slide housing onto the retainer.

  • Page 11: Summary Of Electrical Connections

    Installation sequence Installing the Vitocom 100 (cont.) 3. Bend up all 4 tabs to secure the unit. Summary of electrical connections Remove housing cover...
  • Page 12 Installation sequence Summary of electrical connections (cont.) Upper PCB level A KM BUS cable H Red LED B Aerial cable K Keys C Cable entry for 230 V~ digital L PIN code rotary selector input M SIM card holder (for additional unit) N Plug-in connector to lower PCB D Mains connection 230 V/50 Hz O KM BUS connecting terminal...
  • Page 13 Installation sequence Summary of electrical connections (cont.) Lifting off the upper PCB Lift off the upper PCB, only for con- necting an additional unit to the digital input and gaining access to the mains connection. Note The connecting terminals for the digi- tal input are located on the lower PCB in the wiring box of the housing.
  • Page 14 Installation sequence Summary of electrical connections (cont.) Lower connecting level A KM BUS cable F Power supply connection terminal B Aerial cable with strain relief C Cable entry for 230 V~ digital G Digital input 230 V~, terminal input with strain relief (for additional unit) H Transformer D Mains connection 230 V/50 Hz...

  • Page 15: Connecting The Vitocom 100

    4. Connect the cable of the additional device to the terminal of the digital input. 5. Fit the grommet and screw on the strain relief upper part (pack). Connecting the Vitocom 100 Connection to control units for freestanding boilers: Control unit Type Vitotronic 150...
  • Page 16 Installation sequence Connecting the Vitocom 100 (cont.) Note If there are several KM BUS subscri- bers (e.g. remote control), use KM BUS distributor (part no. 7415 028, accessory). A Vitocom 100 D Vitotronic 150, 200 or 300 B KM BUS distributor...
  • Page 17 Installation sequence Connecting the Vitocom 100 (cont.) Connection to control units for wall mounted boilers: Control unit Type Vitotronic 100 Vitotronic 200 A Vitocom 100 D Terminal X3 to wall mounted boil- B KM BUS cable, standard delivery (total cable length of all KM BUS...

  • Page 18: Connecting Additional Signals

    Installation sequence Connecting additional signals Digital input Please note To prevent short circuiting or damage to the Vitocom 100: Ensure that the digital input and the Vitocom power supply are connected to the same phase.
  • Page 19 On-site fault messages can be con- nected as 230 V~ volt signals via the digital input. The input signal is monitored by the Vitocom 100 and the fault is sig- nalled via SMS. The text of the SMS can be individu- ally specified.

  • Page 20: Power Supply

    Carry out the power supply connec- Protect the power supply cable to the tion and all earthing measures (i.e. control unit or Vitocom 100 with a fuse fault current circuit) in accordance with a maximum rating of 16 A. with IEC 364, the requirements of your local electricity supply company and the VDE or local regulations.
  • Page 21 E Junction box (on-site) F Main isolator, two-pole, on-site (if installed) G Vitocom 100 Connection that is independent of the main isolator When the heating system is switched off via the main isolator, the Vitocom 100 continues to operate.

  • Page 22: Commissioning Requirements

    Commissioning Requirements A few details need to be entered to start up the Vitocom 100. The commissioning requires the fol- Note lowing steps: After entering the PIN code, the PIN code Vitocom 100 is commissioned exclu- Commissioning SMS with access...

  • Page 23: Pin Code

    Commissioning PIN code Enter PIN code with rotary selector and button...

  • Page 24: Inserting A Sim Card

    Commissioning PIN code (cont.) Note 3. Enter the first digit of PIN code The subsequent adjusting procedure using rotary selector C and con- is terminated if nothing is entered firm by briefly pressing B. within 30 seconds after the first or pre- The red LED F briefly goes off.
  • Page 25 Commissioning Inserting a SIM card (cont.) 1. Slide the metal slider of the SIM 3. Slide the SIM card into the holder card holder in the direction of the with contacts facing downwards. hinge ("OPEN"), thereby unlocking the holder. 4. Swivel the SIM card holder down- wards.

  • Page 26: Automatic Dialling Into The Gsm Mobile Phone Network

    LED F and indication of the reception strength. Entering SMS All entries apart from the PIN code are transmitted to the Vitocom 100 via mobile phone as SMS. Access code In addition to the PIN code of the SIM...
  • Page 27 30). password Commissioning SMS An initial SMS must be transmitted in Commissioning SMS in Ger- order to start the Vitocom 100. man (de): The commissioning SMS defines the 1111 de mobile phone number for incoming fault messages. For this, the mobile...
  • Page 28 Commissioning Entering SMS (cont.) 1. Reply SMS: Recommendation 1111 It is advisable to enter the emergency CODE call number of a heating contractor or LANGUAGE service company as the second INFO mobile phone number "MOBNR2". MOBNR1 "017..." This company should be commis- MOBNR2 sioned to maintain the heating sys- BAHKx...
  • Page 29 Commissioning Entering SMS (cont.) SMS template text from user: Switching the heating and DHW off 1111 bahk1 5 (with frost protection) Selecting operating mode 5 for heating circuit 1 All other entries are made in accor- Observe the entry of spaces during dance with the following list of SMS text input.

  • Page 30: Configuration

    Configuration SMS commands with examples The user can transmit various commands and scans to the Vitocom 100 using SMS. The access code must always be at Upper and lower case can be used. the start of the SMS. A reply message from the Vitocom...
  • Page 31 SMS from user: 1111 language de Setting the language to German Observe the entry of spaces during Reply SMS (acknowledgement) text input. from the Vitocom 100: 1111 LANGUAGE de ok SMS command Description INFO Information concerning the heating system: Take care not to enter any terms that will trigger com- mands.
  • Page 32 SMS from user: 1111 mobno1 01791234567 Enter 2 mobile phone numbers to be notified Reply SMS (acknowledgement) Applies to both numbers "MOBNR1" from the Vitocom 100: and "MOBNR2". 1111 MOBNR1 01791234567 Observe the entry of spaces during text input. SMS command...
  • Page 33 SMS from user: 1111 bahk1 5 Selecting operating mode 5 for heat- ing circuit 1 Reply SMS (acknowledgement) Observe the entry of spaces during from the Vitocom 100: text input. 1111 BAHK1 Standby mode ok SMS command Description VWERT Amount that has been put onto the SIM card.
  • Page 34 This entry is not required for a con- has now been restored. tract SIM card. However, to obtain The Vitocom 100 transmits the follow- information about a power failure, ing SMS alarm to "MOBNR1" and enter a fictitious "AKTDAT" and "MOBNR2":...
  • Page 35 The entire commissioning procedure must be repeated. Example: Then another commissioning SMS must be transmitted to the Deleting all previous entries, except Vitocom 100 (see page 27). the SIM card PIN code Observe the entry of spaces during Note text input.

  • Page 36: Special Instructions On Transmitting Sms

    As well as the above commands, other instructions and possibilities exist for transmitting SMS. Every SMS received by the Example: Vitocom 100 is acknowledged with a reply SMS (confirmation or error 3 commands combined in one SMS message). Observe the entry of spaces during "OK"...

  • Page 37: Credit Monitoring

    1111 Only 30 days left SIM card credit (prepaid) If the credit is less than the specified 30 SMS remaining amount, the Vitocom 100 transmits an 20 SMS remaining alarm SMS to both mobile phone num- 10 SMS remaining bers "MOBNR1" and "MOBNR2" (if entered).

  • Page 38: Led Indicators

    LED indicators LED descriptions The Vitocom 100 has 3 LED's that indicate the following: Red LED Field strength indicator Yellow LED Connection set up indicator / SMS transmission started Green LED Connection set up indicator / SMS transmission com- pleted...

  • Page 39: Troubleshooting

    Trigger a reset by briefly within 2 minutes pressing the button and making another attempt to dial in Fault messages Vitocom 100, type GSM fault messages: Code Fault Message text Digital input Digital input (DE1): 230V <EE text>...
  • Page 40 Troubleshooting Fault messages (cont.) Example of a Vitotronic fault message: Code Fault Message text Outside temperature sensor fault Emergency operation outside temp. 10 Note For a complete list of fault mes- The Vitocom resends a fault message sages, see installation/service if the fault has not been removed after instructions for the relevant 24 h.

  • Page 41: Specification

    Specification Specification Rated voltage 230 V Rated frequency 50 Hz Power consumption Protection class Protection IP 41 to EN 60529; safeguard through appropriate design and installation Function Type 1 B as per EN 60730-1 Permiss. ambient temperature during operation 0 to +55°C Installation in living spaces or boiler rooms (standard ambient conditions) -20 to +85 °C...

  • Page 42: Certificates

    Certificates Declaration of conformity We, Viessmann Werke GmbH & Co KG, D-35107 Allendorf, declare as sole responsible body that the Vitocom 100, type GSM product complies with the following standards: EN 50 090-2 2 EN 61 000-4-3 EN 55 014-1...
  • Page 44 Applicability Product information/applicability Applies to the following unit: Vitocom 100, type GSM Part no. 7249 366 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com...
