Supply End (Back)— Manifolds (Style 1 & 2)
21 Trays
Height: Approximately 87" (Frame only)

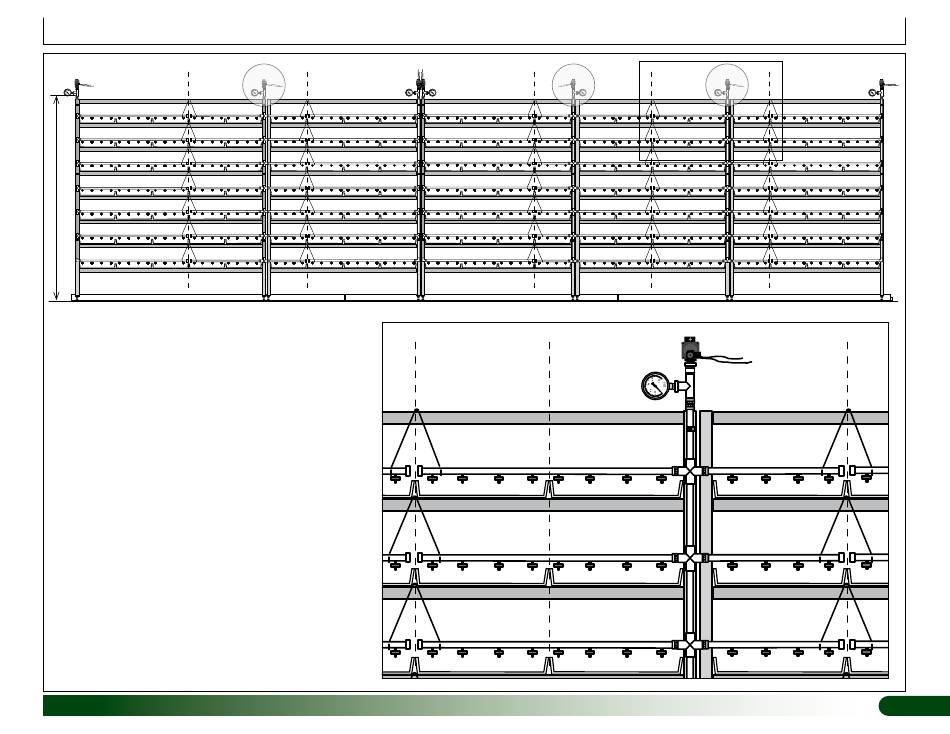

Each solenoid controls water to 21 trays in three (3) vertical
rows.
Style 1 Manifolds control water to trays on the same pod
frame. They are shown above (no circle). There are four (4)
Style 1 manifolds for this system.
Style 2 supply manifolds control water to trays on two
different pod frames. These manifolds are circled above.
There are three (3) Style 2 manifolds for this system. The
close up at the right shows an example of this manifold:
Rows 1 & 2 are on Frame A and Row 3 is on Frame B.
During assembly, position these manifolds as shown.
See diagrams on the next two (2) page that show which
trays are watered by which supply manifold.
Dashed lines above show division of trays as controlled by
each solenoid.
Dashed line to the right show each vertical row of trays.
Revision date: 09.21.18 112712
21 Trays
Two (2) vertical rows
of trays–Frame A.
21 Trays
Frame A
Frame B
One (1) vertical row of
trays–Frame B.
