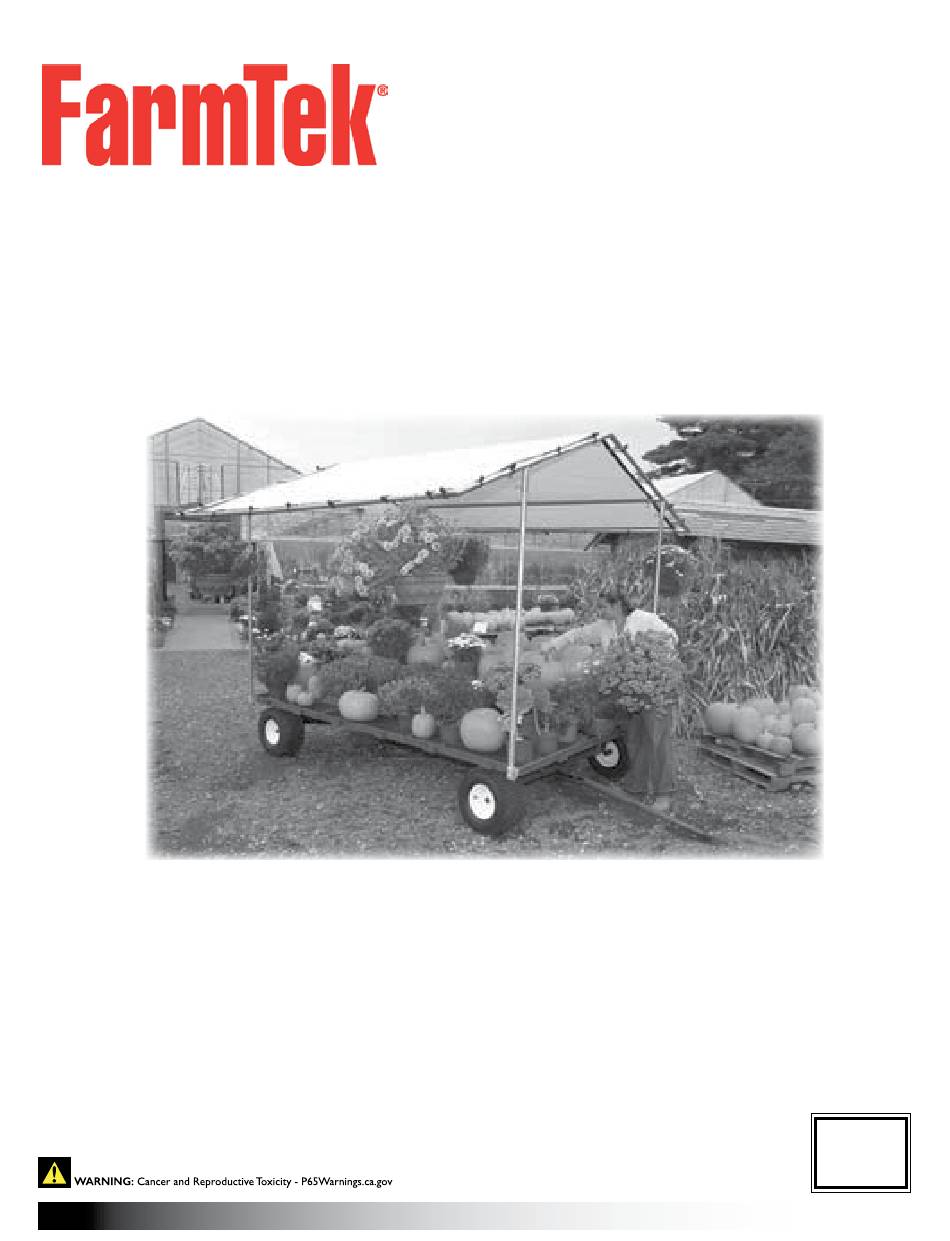

- Page 1 CANOPIES Canopy Wagon Photo may show a different but similar model. ©2009 FarmTek® All Rights Reserved. Reproduction SKU# is prohibited without permission. 104479 Revision date: 09.16.09...
-
Page 2: Required Tools
Hammers and gloves • Ladders, work platforms, and other machinery for lifting Thank you for purchasing this FarmTek® canopy wagon. designed to work safely at the height of the canopy. When properly assembled and maintained, this product will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the canopy wagon. -
Page 3: Assembly Procedure
These words and phrases are common to most flattened ends and is used for diagonal bracing of the FarmTek® shelters and identify the different parts of the shelter frame. A strut is typically secured to the frame shelter. (Some are used in this document. Others may work by special brackets and bolts. - Page 4 CANOPIES The following graphics and photos will help you identify the different parts and show you how they are used. (Some parts are not shown.) CC4595 FA4482B 100441 104557 Tie Down 8'' Snugger Ball Wall Mount Flange Tek screw Nut Setter 104646 104647 104656...
- Page 5 CANOPIES ADDITIONAL PARTS IDENTIFICATION NOTES In some instances, there can be differences between the Space below is reserved for customer notes. parts that are shown and referenced in the instructions and the parts that are shipped with the product. These differences do not affect the integrity of the product, but can change the assembly procedures.
- Page 6 CANOPIES FarmTek® Canopy Wagon NOTE: Diagrams show how to secure the pipe to the coupler using Tek screws if locking eyebolts are not ASSEMBLE THE MAIN FRAME present. This section is an overview of the process for assembling 104657 104646 your frame.
- Page 7 CANOPIES ATTACH CANOPY FRAME TO WAGON Gather the parts: • Wall mount flange (#104557) • Tek screw (#FA4482B) • Assembled wagon NOTE: Assistance is required to attach the frame. 1. Using the on-center distance between the front and back legs of the frame as a guide, attach a wall mount flange to the side of the wagon in each corner with Tek screws.
- Page 8 CANOPIES INSTALL THE MAIN COVER After assembling the main frame, install the main frame cover. Gather the parts: • Snugger ball tie downs (#CC4595) • Main cover NOTE: Assistance is required to install the cover. 1. Locate the main cover, unfold it along the assembled frame, and pull it onto the frame and into position. 2.
-
Page 9: Care And Maintenance
Never pack the covers when they are wet. Always dry them before you pack the shelter. • For replacement or missing parts, call 1-800-245-9881 for assistance. NOTE: With the exception of Truss Arch buildings, FarmTek® shelters and greenhouses do not have any tested loading criteria. Revision date: 09.16.09...
