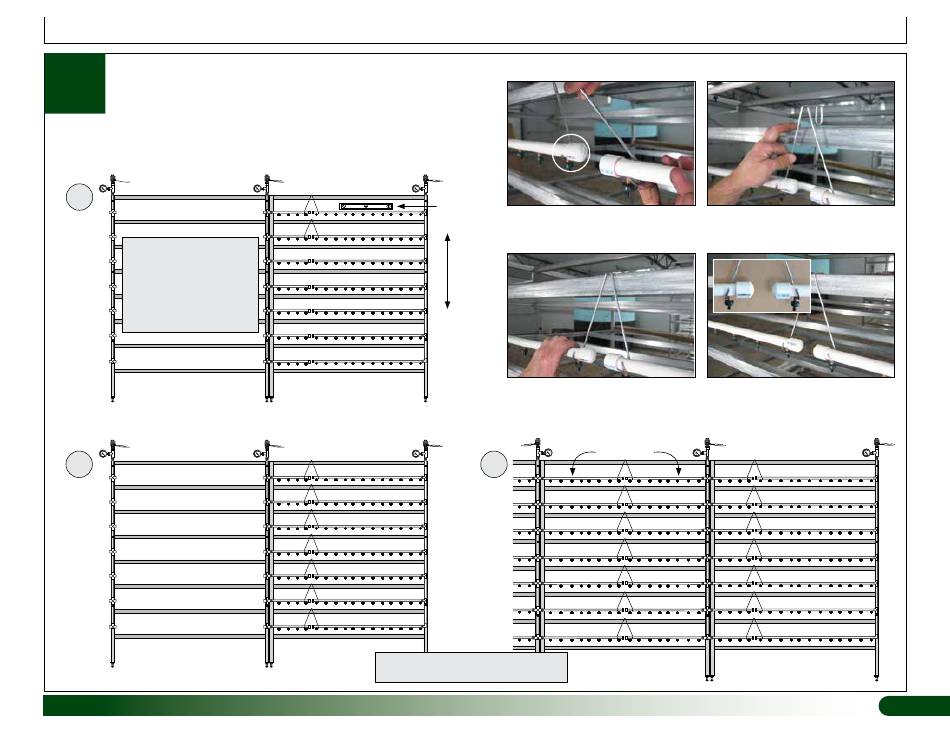

INSTALL MANIFOLD BRANCH TUBES—continued
The following diagrams show one way to install the horizontal branch tubes of the manifolds.
Personal preference and experience may affect how you complete the installation. Review
all diagrams that follow and continue with the installation of the manifold branch tubes.
5
ATTENTION: During hanger
installation, ensure that the
horizontal tubes remain level.
Adjust manifold assemblies up
or down as needed. Release
pipe hangers for easier
adjustment. Exercise caution!
Drippers are fragile.
Install hangers. See
procedure—upper right.
6
Install hangers. See
procedure—upper right.
Revision date: 09.21.18 112712
Install Manifold Branch Tubes
INSTALL BRANCH HANGERS—113100
Level
1. Hook ends of hanger under each
branch end. Bend as needed to
place ends as shown.
Slide
manifold up
or down to
level branch
tubes.
3. Hook hanger over top of frame
tube and gently pull down to seat
in place.
7
Repeat all steps as needed to install all
remaining branch tubes and hangers.
2. Seat tubes tightly in hanger.
Hanger hooks are to the outside of
the end drippers.
4. Verify that hanger hooks are
positioned outside of each end
dripper as shown.
FPB2PG
