INSTALL MANIFOLD BRANCH TUBES—continued

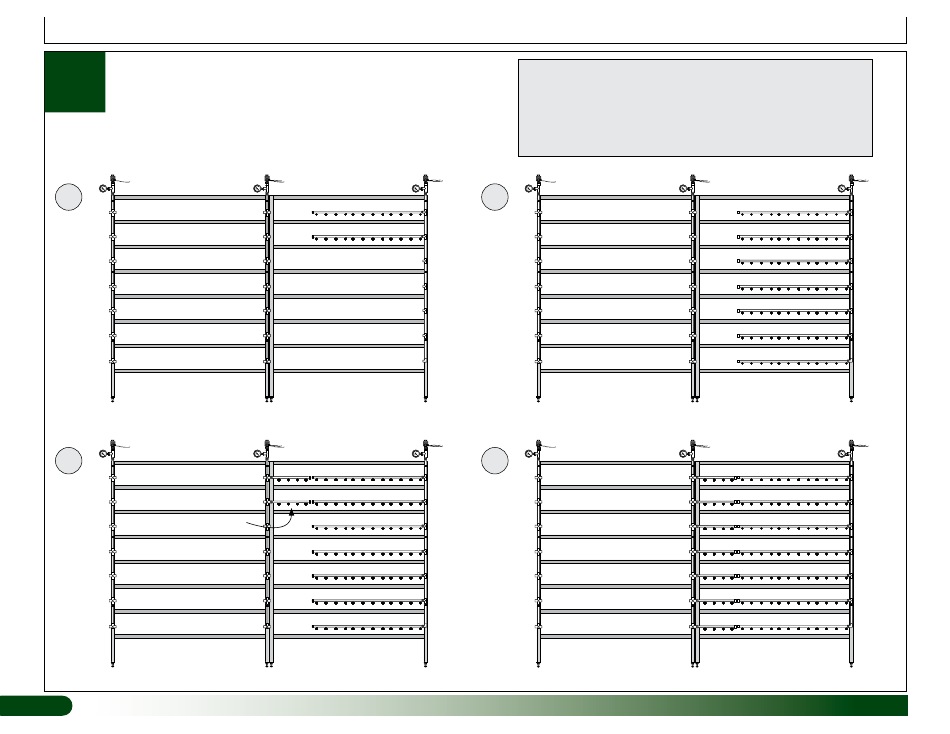

The following diagrams show one way to attach the horizontal branch tubes to the manifolds.
Personal preference and experience can affect how you complete the installation. Review all
diagrams that follow and continue with the installation of the manifold branch tubes.
1
4-Tray Pod
3
FPB1PG
24
24
Install Manifold Branch Tubes
2
FPB3PG
4-Tray Pod
4

ASSEMBLY NOTES

• Wrap branch fitting threads with thread tape.
• Tighten tube connection until snug. Do not overtighten!
• Install so dripper nozzles point straight down to tray position.
4-Tray Pod
