INSTALL MANIFOLD BRANCH TUBES
After installing the manifold assemblies, apply thread tape to the fitting at the end of each horizontal branch tube and attach tubes to each manifold trunk. Consult the full frame

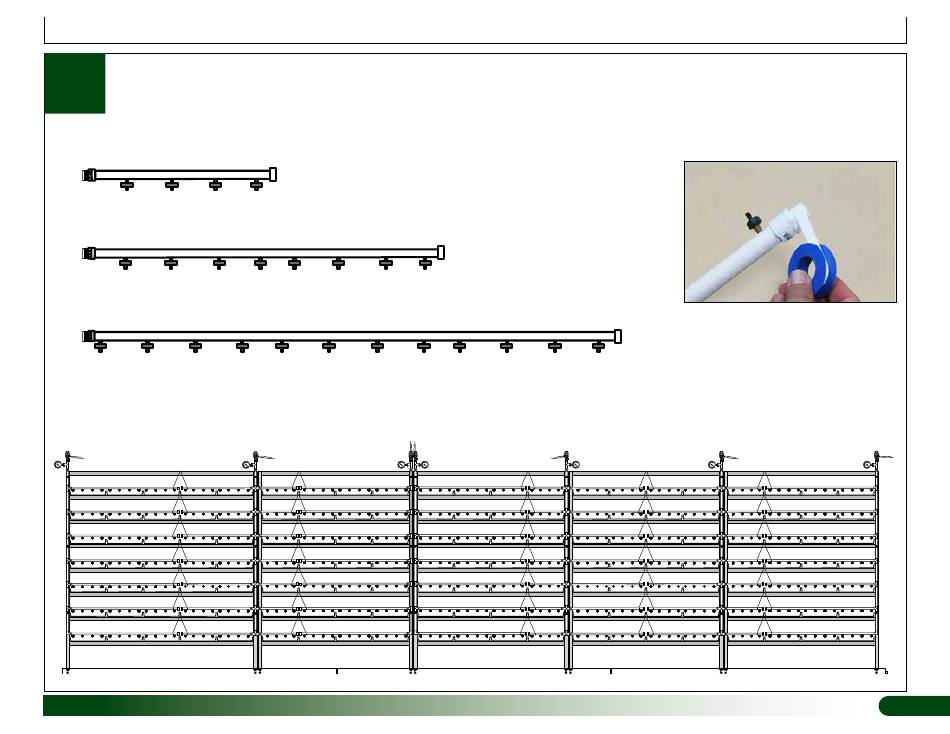

diagram below and those on the next pages to install branch tubes.
FPB1PG—1 Tray Branch
FPB2PG—2 Tray Branch
FPB3PG—3 Tray Branch
3 Tray 2 Tray
5-Tray Pod
Revision date: 09.21.18 112712
Install Manifold Branch Tubes
1 Tray 3 Tray
4-Tray Pod
3 Tray 1 Tray 2 Tray
4-Tray Pod 4-Tray Pod
Wrap the threaded end of each manifold
branch tube with thread tape before
attaching it to the manifold trunk.
2 Tray 1 Tray 3 Tray
4-Tray Pod
