FarmTek FodderPro 2.0 Full Feed System-Wall Mount 111628W Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
111628W FodderPro 2.0 Full
Feed System–Wall Mount
"...grow your own nutrient-rich fodder..."

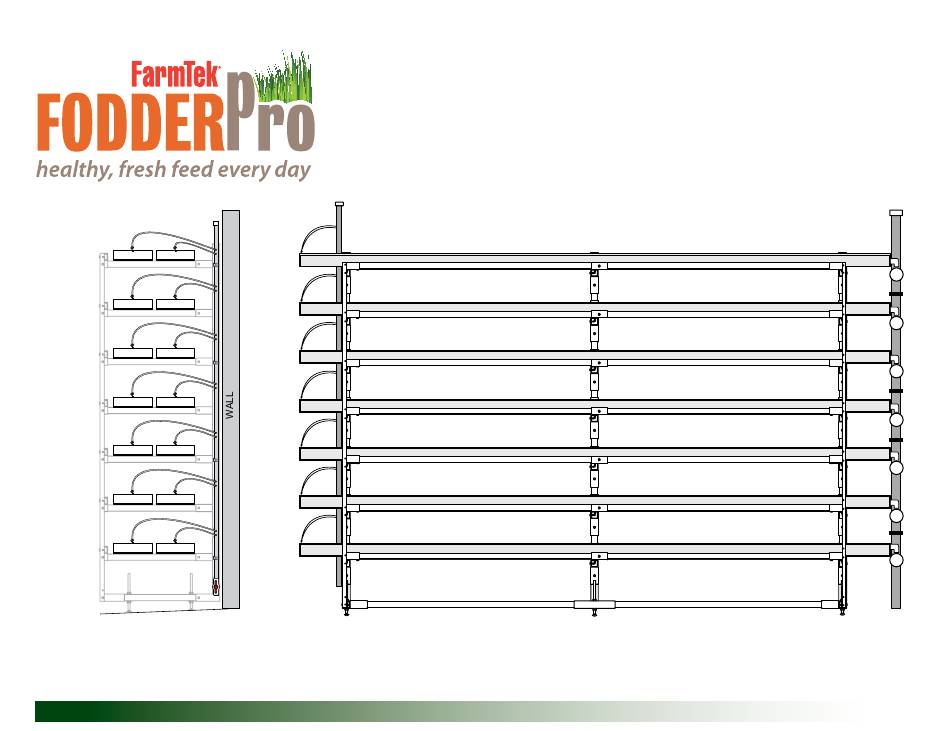

End View Shows Supply Manifold and Channels
Side View with Channels and Manifolds Installed
©2018 FarmTek
®
All Rights Reserved. Reproduction
*Actual system may differ slightly from what is shown.
is prohibited without permission.
1
Revision date: 09.25.18
