FarmTek Growers supply HydroCycle 117837 Manual

Strawberry hobby system 6'l
Hide thumbs

Advertisement

Table of Contents

117837 - Strawberry Hobby System 6'L
Designed to grow healthy plants without soil using mineral-nutrient solutions.
©2024 Growers Supply
All Rights Reserved. Reproduction
is prohibited without permission.
1
Revision date: 05.08.24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Growers supply HydroCycle 117837 and is the answer not in the manual?

Questions and answers

Related Manuals for FarmTek Growers supply HydroCycle 117837

Summary of Contents for FarmTek Growers supply HydroCycle 117837

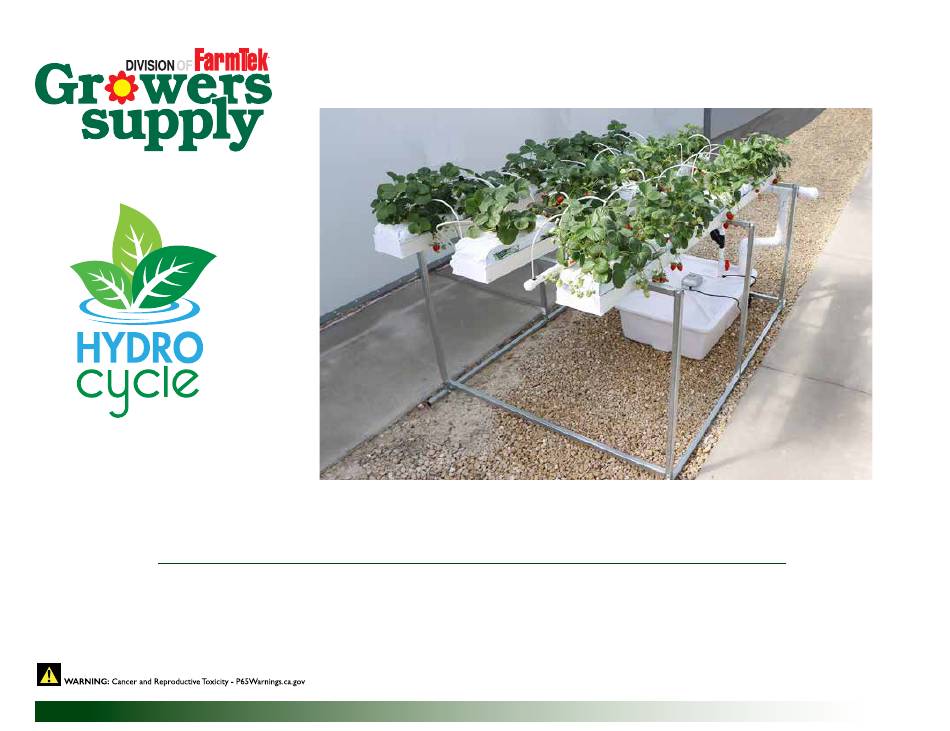

  • Page 1 117837 - Strawberry Hobby System 6'L Designed to grow healthy plants without soil using mineral-nutrient solutions. ©2024 Growers Supply All Rights Reserved. Reproduction is prohibited without permission. Revision date: 05.08.24...
  • Page 2 Important Information READ THIS DOCUMENT BEFORE YOU BEGIN Thank you for purchasing this NFT system. When properly assembled and maintained, this system will provide years of reliable service. These instructions include helpful hints and important information needed to safely assemble and properly maintain the system. Please read these instructions before you begin. If you have any questions during the assembly, contact Customer Service at 1.800.245.9881 for assistance.
  • Page 3 Important Information PICTORIAL GUIDE The following graphics and photos will help identify the different parts of the NFT system. (Some parts may not be shown.) Keep all fittings in the shipping bags until they are needed. FA4472B WF1386 FAG332B FALB02B 115857 1"...
  • Page 4 Important Information PICTORIAL GUIDE (continued) 111127 111128 118451 and 118452 WF6990 PVC Cement and End Cap No Outlet End Cap w/ Outlet 25 Gallon Reservoir and Lid 113372 Purple Primer PVC PRIMER & PVC CEMENT Follow all directions printed on pvc primer and cement 117871 containers.

  • Page 5: Getting Started

    Getting Started ASSEMBLY PROCEDURES BASIC CARE AND MAINTENANCE Below are the main steps to assemble the Strawberry Hobby system. Daily Procedures can occur simultaneously when assistants are available, or each 1. Check all 1/4" supply tubes at each channel to ensure proper flow. Clean procedure can be completed before moving onto the next.
  • Page 6 Assemble Main Support Frame ASSEMBLE MAIN SUPPORT FRAME 4. Continue with the middle size and the longest in the last as shown below. Complete these steps to get started: 1. Place the (2) two 78" (118206) base tubes on a flat surface. 2.
  • Page 7 Assemble Main Support Frame ASSEMBLE MAIN SUPPORT FRAME (continued) 8. Find the (3) three 56" tube (118207). Put one tube through the male cut at the top of each leg. Secure each tube with a hex screw and bolt. Do not tighten the screws at this time.
  • Page 8 Assemble Main Support Frame ASSEMBLE MAIN SUPPORT FRAME (continued) LEVEL AND SQUARE THE MAIN FRAME Level and square the support frame before adding the channels. An uneven frame can affect the delivery and distribution of the nutrient solution. Improper flow may cause irregular crop growth. the following procedure helps to ensure that channels sit squarely on the frame. Complete these steps to level and square the main frame: Level End View...
  • Page 9 Assemble Channels ASSEMBLE THE 112625 10' NFT CHANNELS Complete these steps: 1. Place (1) one 6' channel (11158276) on the assembled frame's 56" cross supports. Apply adhesive, PVC primer, and PVC cement in a well-ventilated area. Read the container information for additional precautions.
  • Page 10 Drain Manifold Hangers DRAIN MANIFOLD HANGERS Use the photos to the right to attach the drain manifold mounting hangers to the frame using the FA4472 Tek screws. Attach Drain Manifold Mounting Clamps at the low end of the frame. FA4472 Tek Screws Drain/Low End High End...
  • Page 11 Reservoir Cover Drill the 2-1/2" Drain Tube and 1" Supply Tube Holes 2-1/2" Drain DRILL HOLES IN RESERVOIR COVER Tube Hole Drill the 2-1/2" Drain Tube Hole 1" Supply 1. Determine in which corner you want to drill the drain Tube Hole ATTENTION: Reservoir and tube hole.
  • Page 12 Manifolds, Pumps, and Supply Lines Horizontal Drain Manifold Supply Lines Filter Manifold Air Pump Drain Manifold - pages 14-15 Filter Manifold - page 16 Aqua Pump - page 17 Supply Manifold- pages 17-18 *Frame may differ on the Supply Lines - pages 19-20 following pages Air Pump - page 21 117837...
  • Page 13 Drain Manifold DRAIN MANIFOLD ASSEMBLE HORIZONTAL DRAIN MANIFOLD 8. Drill (3) three holes at each of these spots using a 1-1/4" hole saw. 9. Add (1) one WF6717 cap to each end of the manifold. Do not cement 1. Cut a 111560Z5 PVC tube 5" from the end. these to the manifold.
  • Page 14 Drain Manifold DRAIN MANIFOLD (continued) ASSEMBLE VERTICAL DRAIN TUBE The vertical drain tube is made up of (3) three sections of 2" PVC (111560Z5) and (2) two 2" PVC elbows (WF1574). The length of each PVC tube depends on the position of the reservoir and the support frame. 1.
  • Page 15 Filter Manifold FILTER MANIFOLD Complete these steps: 1. First remove the WF1023 filter cap and replace it with the 112066 shut-off valve. Tape the filter WR1095 WF2160 threads before installation. Tighten valve until snug. Tape 3/4" Adapter 112066 Inline Shut-Off 2.
  • Page 16 Pump And Supply Manifold PUMP AND SUPPLY MANIFOLD PUMP Complete these steps: WF2840 WF3410 112526 WF1530 Close Nipple 110722 3/4" Union 3/4" PVC Pipe 3/4" Elbow Aqua Pump 1. Cut (1) one piece of 3/4" Schedule 40 PVC pipe at 6-1/2". 2.
  • Page 17 Pump And Supply Manifold PUMP AND SUPPLY MANIFOLD (continued) ASSEMBLE SUPPLY MANIFOLD 10. Cut the pipe. 11. Dry fit the piece into the elbow and union. 6. Measure the distance between the tee of the supply manifold and the vertical filter manifold. NOTE: Generally, this measurement is around 3".

  • Page 18: Supply Lines

    Supply Lines SUPPLY LINES Complete these steps: Step 2 1. Remove the PVC supply lines from the supply manifold. HELPFUL HINT: 2. Using a marker, mark (1) one hole location along the bottom side of one PVC To maintain hole supply line for each channel 1"...
  • Page 19 Supply Lines SUPPLY LINES (continued) Complete these steps: 110403 1. Tek screw a 106808 pipe hanger between each NFT channel on the middle pipe (131P03475) of the frame. Angle Dripper 2. Lay PVC supply line into the pipe hanger and tighten. Do not cover any holes in the supply line. 3.
  • Page 20 Air Pump And Aerator Stones AIR PUMP AND AERATOR STONES For optimal system performance and to extend the life of nutrient solution through increased 109260 Air oxygenation, an aerator pump and aerator stones are included. Position stones at reservoir Stone bottom opposite water pump.
  • Page 21 Frame Caps FRAME CAPS Install 115857 square caps to cover end of base pipe. ATTENTION: Do not cement or drive caps onto pipe using a hammer. If needed, lightly tap to start on pipe and to hold in place. Revision date: 05.08.24 117837...
  • Page 22 Grow Bags (Optional) GROW BAGS Complete these steps: 4. Puncture the grow bag with the stakes and slide all the way into the bag. 1. Lay the 4" NFT channel lid into the channel as shown below. 5. Fill reservoir with water to above the pump. 6.
  • Page 23 Grow Bags (Optional) GROW BAGS 8. Continue creating these drain slits along the crease where the side 10. Using your finger, move the growing material to create a pocket. meets the bottom of the bag. Cut in between the irrigation lines and alternate sides.
  • Page 24 Operational And Maintenance Information System Check General Cleaning and Maintenance Instructions After assembling the 117838 hobby strawberry system, take a few minutes to For optimal performance and to increase yields, check and clean the NFT check system. Complete these steps. channels periodically.
  • Page 25 Operational And Maintenance Information RESERVOIR CLEANING AND MAINTENANCE Clean the reservoir monthly to maximize plant growth and to minimize system contamination. The steps that follow can be used to change nutrient solution and to pump the reservoir for cleaning and typical maintenance. 4.
  • Page 26 Operational And Maintenance Infomration Clean the Filter Screen and Housing ATTENTION: SYSTEM SHOWN MAY Regular cleaning of the filter is recommended to ensure proper flow. Filter should also be DIFFER FROM ACTUAL SYSTEM. FILTER cleaned after cleaning the reservoir to remove sediment. When a reduced flow rate is noticed, ASSEMBLY IS THE SAME.
  • Page 27 PAGE RESERVED FOR CUSTOMER NOTES AND RECORDS Revision date: 05.08.24 117837...
  • Page 28 117837 Revision date: 05.08.24...
