Warning: Before installing the chassis into a rack, ensure that the rack can support the
device(s) without compromising the stability of the rack. Otherwise, personal injury and/or
equipment damage may result.
Advertencia: Antes de instalar el chassis en un rack, asegurarse que el rack puede
soportar el(los) dispositivo(s) sin comprometer la estabilidad del mismo. De otra forma
puede suceder algun tipo de daño personal o del equipo.
Warnhinweis: Schützen Sie sich vor Verletzungen und Geräteschaden, überzeugen Sie
sich vor der Installation des Chassis in das Rack, von dessen Stabilität.

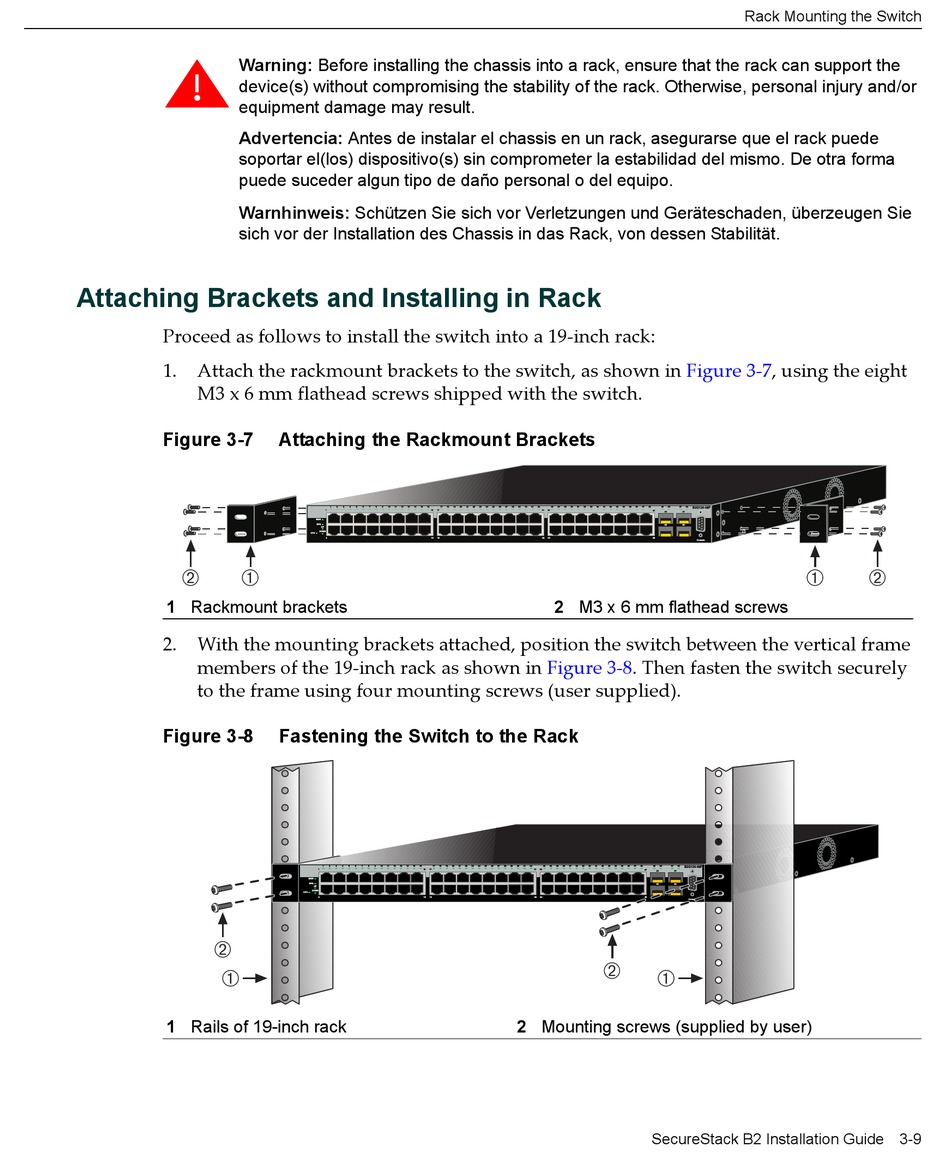

Attaching Brackets and Installing in Rack

Proceed as follows to install the switch into a 19‐inch rack:
1. Attach the rackmount brackets to the switch, as shown in Figure
M3 x 6 mm flathead screws shipped with the switch.
Figure 3-7
Á À
1 Rackmount brackets
2. With the mounting brackets attached, position the switch between the vertical frame
members of the 19‐inch rack as shown in Figure
to the frame using four mounting screws (user supplied).
Figure 3-8
Á
À
1 Rails of 19-inch rack

Attaching the Rackmount Brackets

Fastening the Switch to the Rack

2 M3 x 6 mm flathead screws
3‐8. Then fasten the switch securely
Á
À
2 Mounting screws (supplied by user)
SecureStack B2 Installation Guide 3-9
Rack Mounting the Switch
3‐7, using the eight
À Á
