Rack Mounting the Switch

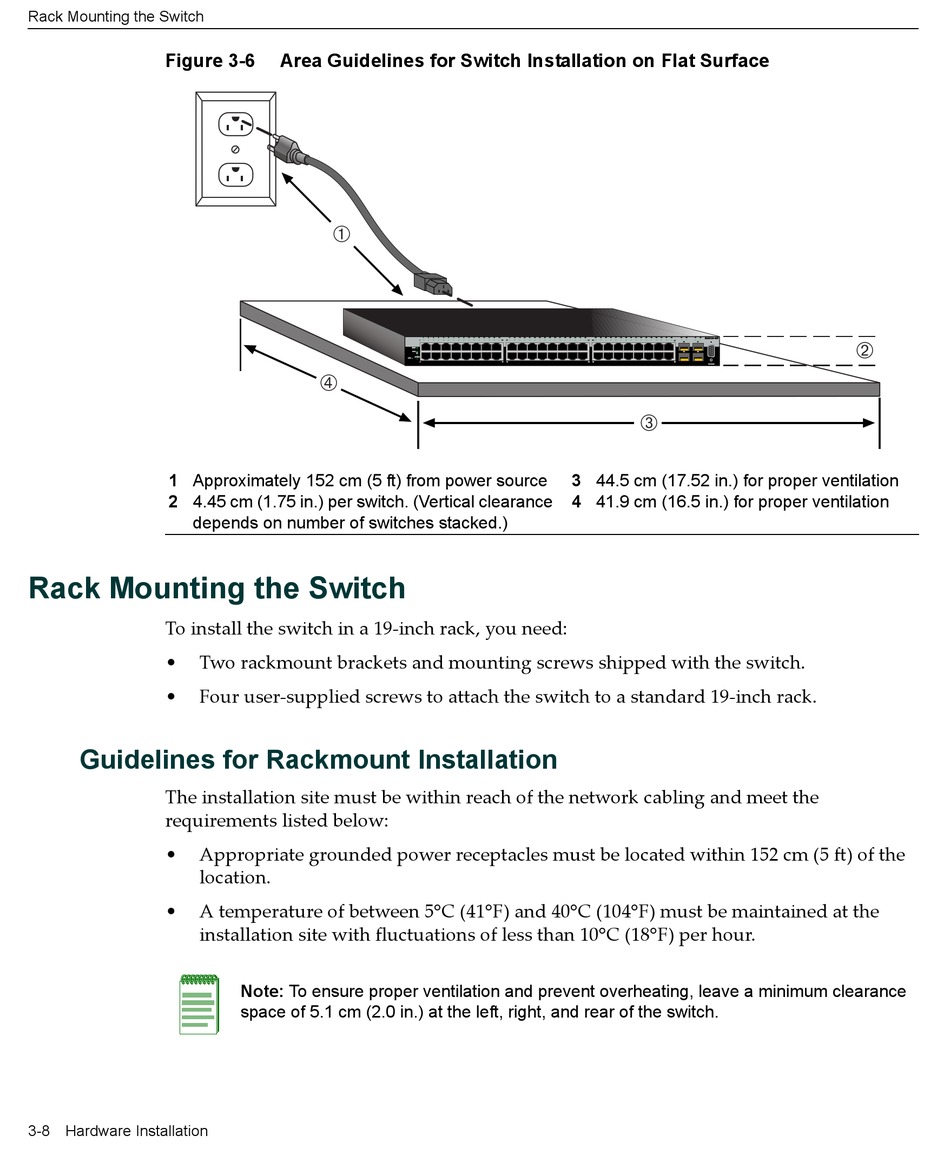

Figure 3-6
1 Approximately 152 cm (5 ft) from power source
2 4.45 cm (1.75 in.) per switch. (Vertical clearance
depends on number of switches stacked.)
Rack Mounting the Switch
To install the switch in a 19‐inch rack, you need:
•
Two rackmount brackets and mounting screws shipped with the switch.
•
Four user‐supplied screws to attach the switch to a standard 19‐inch rack.
Guidelines for Rackmount Installation
The installation site must be within reach of the network cabling and meet the
requirements listed below:
•
Appropriate grounded power receptacles must be located within 152 cm (5 ft) of the
location.
•
A temperature of between 5°C (41°F) and 40°C (104°F) must be maintained at the
installation site with fluctuations of less than 10°C (18°F) per hour.
3-8 Hardware Installation
Area Guidelines for Switch Installation on Flat Surface
À
Ã
Note: To ensure proper ventilation and prevent overheating, leave a minimum clearance
space of 5.1 cm (2.0 in.) at the left, right, and rear of the switch.
Â
3 44.5 cm (17.52 in.) for proper ventilation
4 41.9 cm (16.5 in.) for proper ventilation
Á
