Installing the Switch on a Flat Surface

Installing the Rubber Feet

To install the rubber feet, refer to Figure
1. Place the switch on its back on a sturdy flat surface to gain access to the bottom of the
chassis.
2. Remove the four rubber feet from their plastic bag in the shipping box.
3. Locate the four marked locations on the bottom four corners of the chassis.

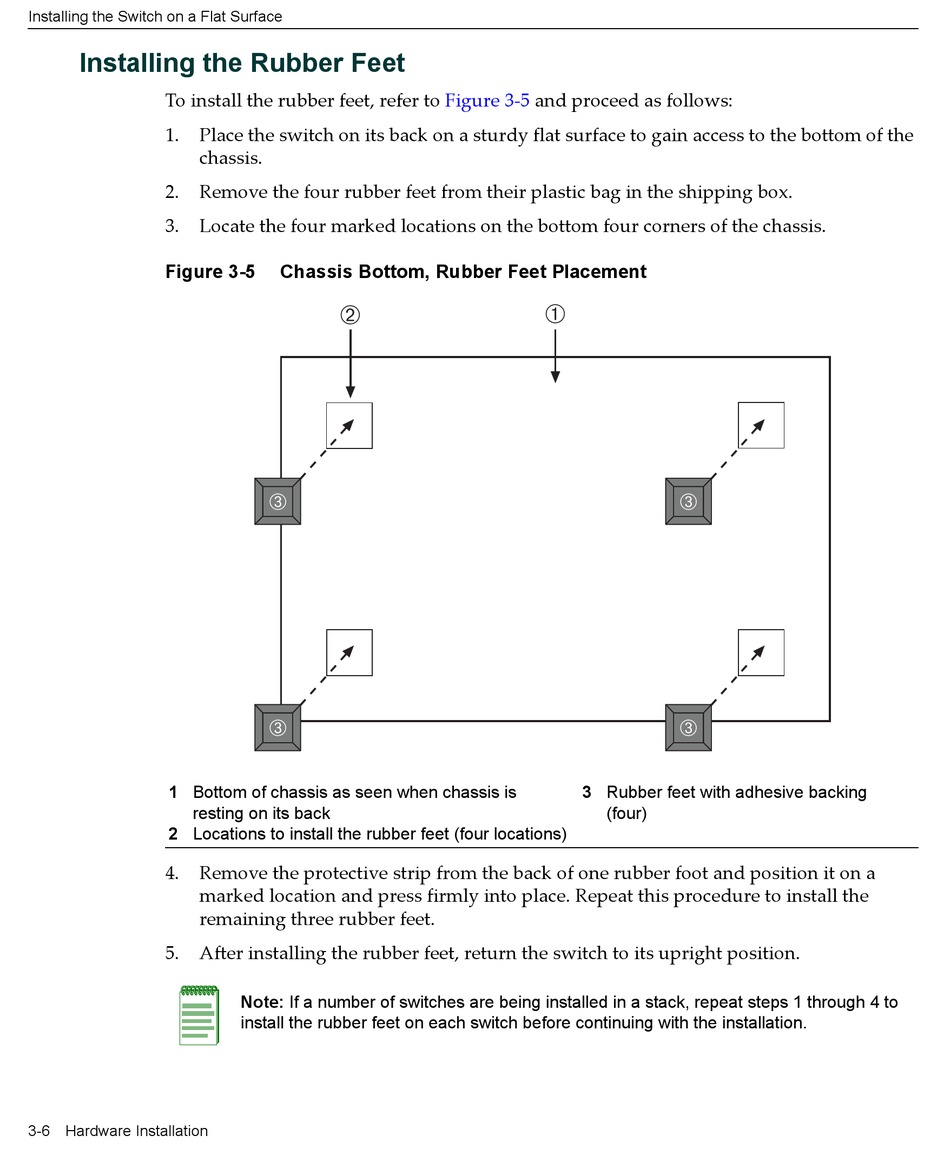

Figure 3-5
1 Bottom of chassis as seen when chassis is
resting on its back
2 Locations to install the rubber feet (four locations)
4. Remove the protective strip from the back of one rubber foot and position it on a
marked location and press firmly into place. Repeat this procedure to install the
remaining three rubber feet.
5. After installing the rubber feet, return the switch to its upright position.
3-6 Hardware Installation

Chassis Bottom, Rubber Feet Placement

Á
Â
Â
Note: If a number of switches are being installed in a stack, repeat steps 1 through 4 to
install the rubber feet on each switch before continuing with the installation.
3‐5 and proceed as follows:
À
Â
Â
3 Rubber feet with adhesive backing
(four)
