Connecting to the Network
2. Insert the MT‐RJ cable connector into the MT‐RJ connector until it clicks into place.

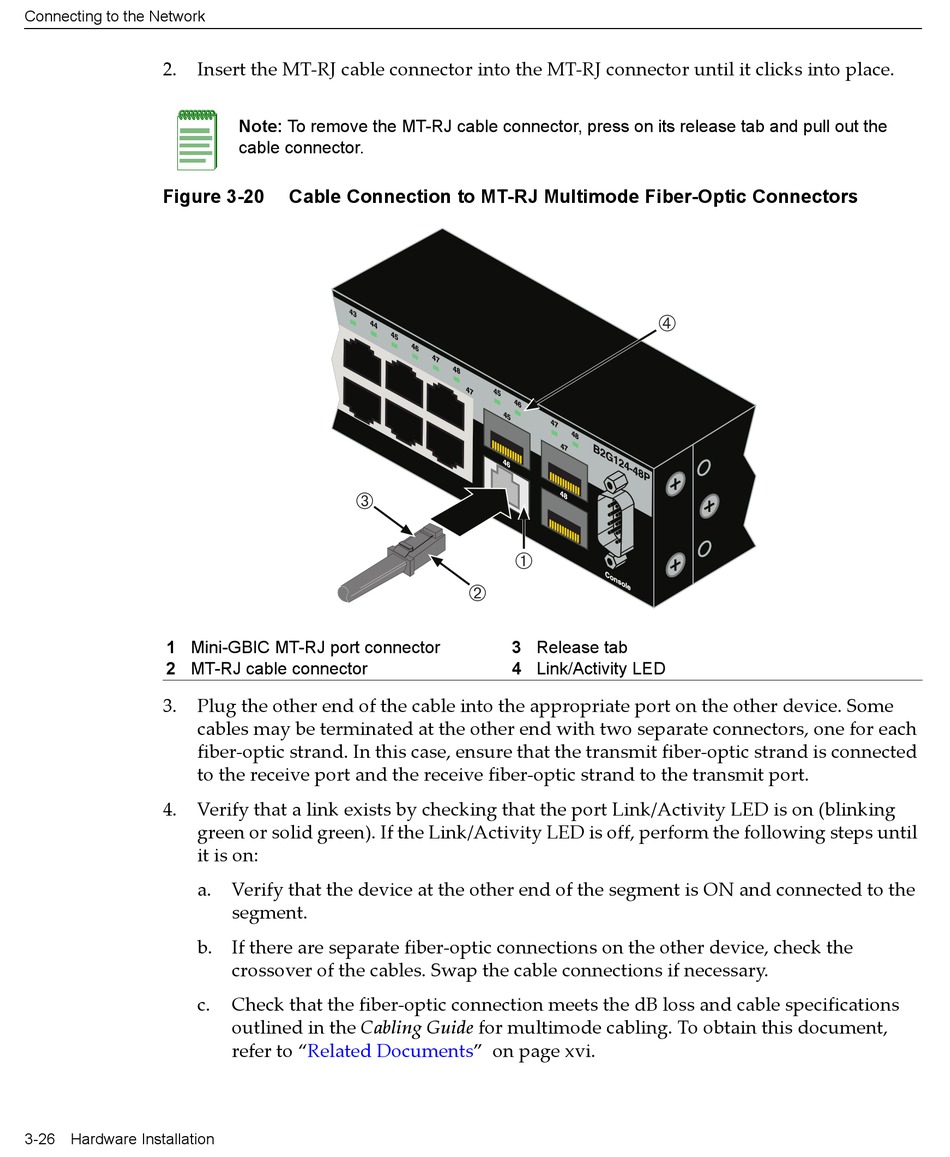

Figure 3-20
1 Mini-GBIC MT-RJ port connector
2 MT-RJ cable connector
3. Plug the other end of the cable into the appropriate port on the other device. Some
cables may be terminated at the other end with two separate connectors, one for each
fiber‐optic strand. In this case, ensure that the transmit fiber‐optic strand is connected
to the receive port and the receive fiber‐optic strand to the transmit port.
4. Verify that a link exists by checking that the port Link/Activity LED is on (blinking
green or solid green). If the Link/Activity LED is off, perform the following steps until
it is on:
a.
b. If there are separate fiber‐optic connections on the other device, check the
c.
3-26 Hardware Installation
Note: To remove the MT-RJ cable connector, press on its release tab and pull out the
cable connector.

Cable Connection to MT-RJ Multimode Fiber-Optic Connectors

Â
Verify that the device at the other end of the segment is ON and connected to the
segment.
crossover of the cables. Swap the cable connections if necessary.
Check that the fiber‐optic connection meets the dB loss and cable specifications
outlined in the Cabling Guide for multimode cabling. To obtain this document,
refer to "Related Documents" on page xvi.
À
Á
3 Release tab
4 Link/Activity LED
Ã
