Using LANVIEW

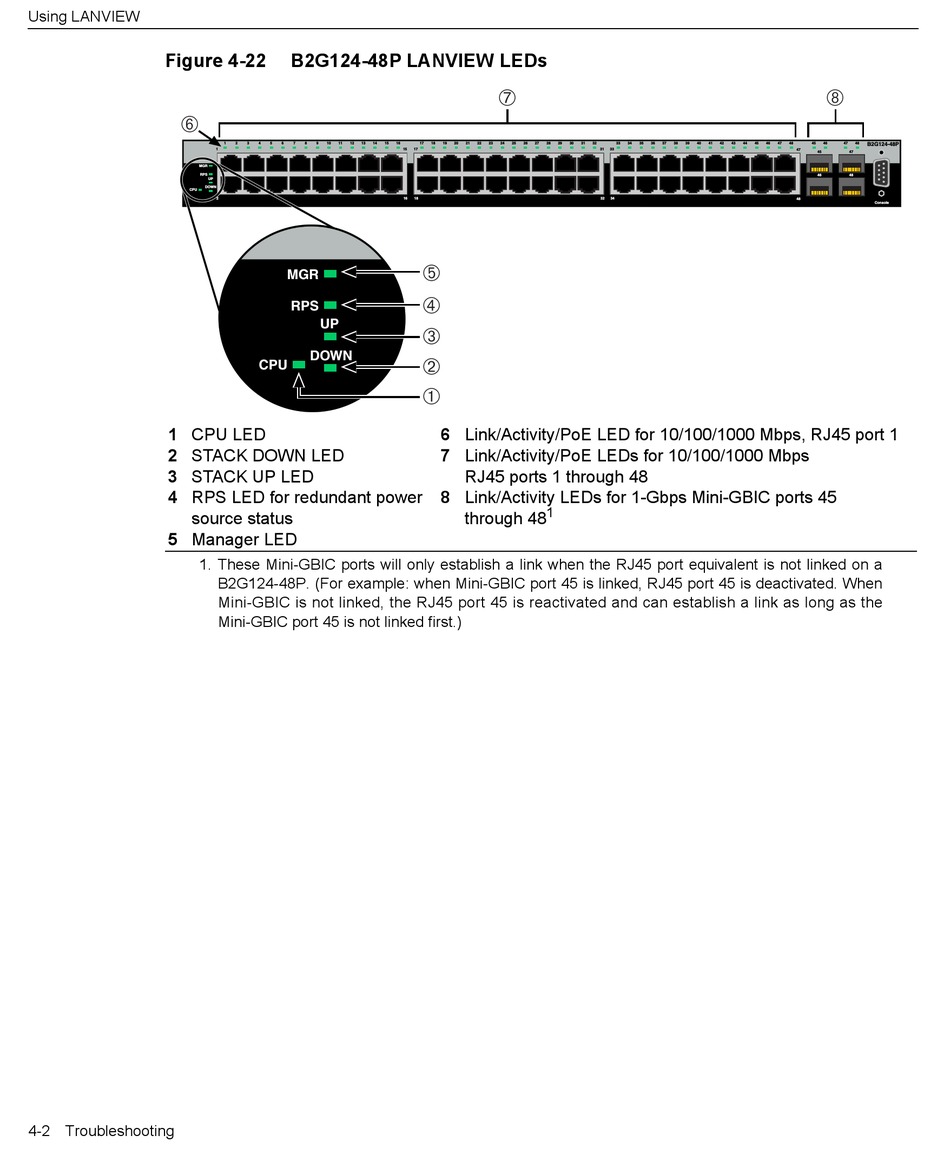

Figure 4-22
Å
1 CPU LED
2 STACK DOWN LED
3 STACK UP LED
4 RPS LED for redundant power
source status
5 Manager LED
1. These Mini-GBIC ports will only establish a link when the RJ45 port equivalent is not linked on a
4-2 Troubleshooting
B2G124-48P LANVIEW LEDs
B2G124-48P. (For example: when Mini-GBIC port 45 is linked, RJ45 port 45 is deactivated. When
Mini-GBIC is not linked, the RJ45 port 45 is reactivated and can establish a link as long as the
Mini-GBIC port 45 is not linked first.)
Æ
Ä
Ã
Â
Á
À
6 Link/Activity/PoE LED for 10/100/1000 Mbps, RJ45 port 1
7 Link/Activity/PoE LEDs for 10/100/1000 Mbps
RJ45 ports 1 through 48
8 Link/Activity LEDs for 1-Gbps Mini-GBIC ports 45
1
through 48
Ç
