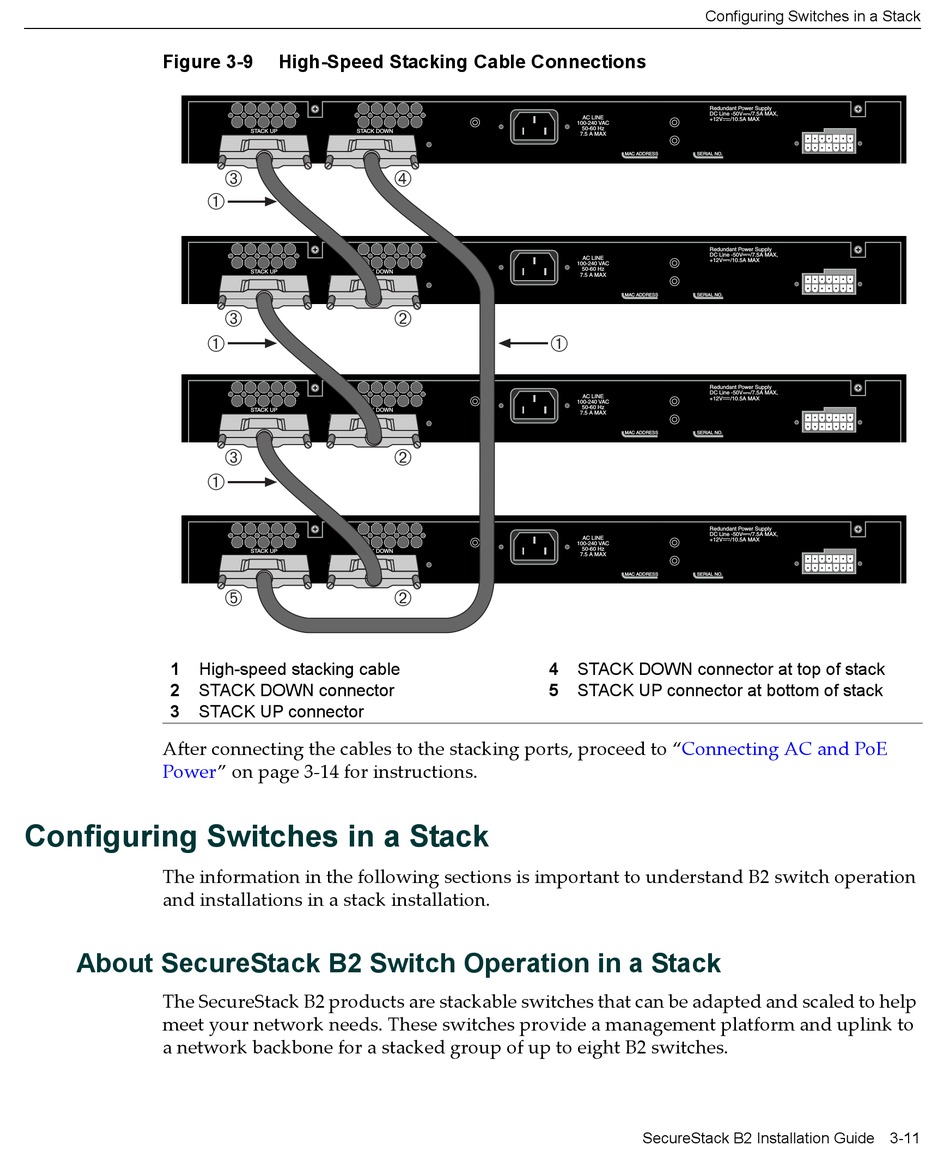

Figure 3-9
1 High-speed stacking cable
2 STACK DOWN connector
3 STACK UP connector
After connecting the cables to the stacking ports, proceed to "Connecting AC and PoE
Power" on page 3‐14 for instructions.

Configuring Switches in a Stack

The information in the following sections is important to understand B2 switch operation
and installations in a stack installation.

About SecureStack B2 Switch Operation in a Stack

The SecureStack B2 products are stackable switches that can be adapted and scaled to help
meet your network needs. These switches provide a management platform and uplink to
a network backbone for a stacked group of up to eight B2 switches.

High-Speed Stacking Cable Connections

Â
Â
À
Â
Â
À
Â
Â
À
Ä
Ä
Ã
Á
À
Á
Á
4
5

Configuring Switches in a Stack

STACK DOWN connector at top of stack
STACK UP connector at bottom of stack
SecureStack B2 Installation Guide 3-11
