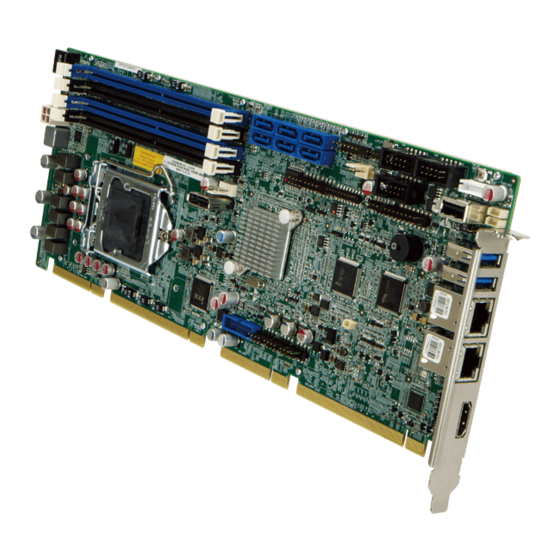

SPCIE-C246 Full-size PICMG 1.3 CPU Card
MODEL:
SPCIE-C246
®
®
Full-Size PICMG 1.3 CPU Card Supports LGA1151 Intel
Xeon
th
th
®
®
E3, 8
/9
Gen. Core™ i9/i7/i5/i3, Pentium
or Celeron
CPU,
®
Intel
C246 Chipset, DDR4, HDMI, DisplayPort, Dual GbE,
USB 3.2 Gen 1, SATA 6Gb/s, M.2, RS-232, HD Audio and RoHS
User Manual
Page i
Rev. 1.11 – March 6, 2020

Advertisement

Table of Contents
loading

Related Manuals for IEI Technology SPCIE-C246

Summary of Contents for IEI Technology SPCIE-C246

  • Page 1 SPCIE-C246 Full-size PICMG 1.3 CPU Card MODEL: SPCIE-C246 ® ® Full-Size PICMG 1.3 CPU Card Supports LGA1151 Intel Xeon ® ® E3, 8 Gen. Core™ i9/i7/i5/i3, Pentium or Celeron CPU, ® Intel C246 Chipset, DDR4, HDMI, DisplayPort, Dual GbE, USB 3.2 Gen 1, SATA 6Gb/s, M.2, RS-232, HD Audio and RoHS...
  • Page 2 SPCIE-C246 Full-size PICMG 1.3 CPU Card Revision Date Version Changes March 6, 2020 1.11 Updated supported CPU specification March 7, 2019 1.10 Initial release Page ii...
  • Page 3 SPCIE-C246 Full-size PICMG 1.3 CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
  • Page 4 SPCIE-C246 Full-size PICMG 1.3 CPU Card Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Table of Contents 1 INTRODUCTION ......................1 1.1 I ......................2 NTRODUCTION 1.2 F ........................3 EATURES 1.3 C ......................4 ONNECTORS 1.4 D ....................... 5 IMENSIONS 1.5 D ........................ 6 1.6 T ..................7...
  • Page 6 SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.11 Front Panel Connector ................... 25 3.2.12 I C Connector ....................26 3.2.13 Keyboard and Mouse Connector ..............27 3.2.14 LAN LED Connectors ..................28 3.2.15 M.2 2280 Slot, M-Key ..................29 3.2.16 Power Button ....................31 3.2.17 RS-232 Serial Ports ..................
  • Page 7 SPCIE-C246 Full-size PICMG 1.3 CPU Card 4.8 S ..................59 OFTWARE NSTALLATION 4.9 D ....................59 RIVER OWNLOAD ® 4.10 I AMT S ................61 NTEL ETUP ROCEDURE 5 BIOS ..........................62 5.1 I ......................63 NTRODUCTION 5.1.1 Starting Setup ....................63 5.1.2 Using Setup ......................
  • Page 8 SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.4.1.3 PEG Port Configuration ................93 5.4.2 PCH-IO Configuration ..................94 5.4.2.1 PCI Express Configuration ............... 97 5.4.2.2 SATA Configuration .................. 99 5.4.2.3 HD Audio Configuration ................. 101 5.5 S ....................... 102 ECURITY 5.6 B ........................
  • Page 9 List of Figures Figure 1-1: SPCIE-C246 ........................2 Figure 1-2: Connectors ........................4 Figure 1-3: SPCIE-C246 Dimensions (mm) .................. 5 Figure 1-4: Data Flow Diagram ...................... 6 Figure 3-1: Peripheral Interface Connectors ................15 Figure 3-2: +12V ATX Power Connector Pinout Location ............18 Figure 3-3: Audio Connector Location ..................
  • Page 10 SPCIE-C246 Full-size PICMG 1.3 CPU Card Figure 3-27: USB 3.2 Gen 1 Connector Location ..............40 Figure 3-28: External Peripheral Interface Connector .............. 41 Figure 3-29: Ethernet Connector ....................41 Figure 3-30: HDMI Connector ...................... 43 Figure 4-1: Disengage the CPU Socket Load Lever ..............47 Figure 4-2: Remove Protective Cover..................
  • Page 11 SPCIE-C246 Full-size PICMG 1.3 CPU Card List of Tables Table 1-1: SPCIE-C246 Specifications ..................8 Table 2-1: Packing List ......................... 11 Table 2-2: Optional Items ......................13 Table 3-1: Peripheral Interface Connectors ................17 Table 3-2: External Peripheral Connectors ................17 Table 3-3: +12V ATX Power Connector Pinouts ................
  • Page 12 SPCIE-C246 Full-size PICMG 1.3 CPU Card Table 3-28: USB 3.2 Gen 1 Connector Pinouts ................40 Table 3-29: LAN Pinouts ......................41 Table 3-30: USB 3.2 Port Pinouts ....................42 Table 3-31: HDMI Connector Pinouts ..................43 Table 4-1: AT/ATX Power Mode Switch Settings ............... 53 Table 4-2: PCIe x16 Channel Mode Setup ..................
  • Page 13 SPCIE-C246 Full-size PICMG 1.3 CPU Card BIOS Menus BIOS Menu 1: Main ........................65 BIOS Menu 2: Advanced ......................66 BIOS Menu 3: CPU Configuration ....................67 BIOS Menu 4: PCH-FW Configuration ..................69 BIOS Menu 5: Trusted Computing ....................70 BIOS Menu 6: ACPI Settings .......................
  • Page 14 SPCIE-C246 Full-size PICMG 1.3 CPU Card BIOS Menu 31: Security ......................102 BIOS Menu 32: Boot ........................103 BIOS Menu 33: Save & Exit ......................105 Page xiv...

  • Page 15: Introduction

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Chapter Introduction Page 1...

  • Page 16: Ntroduction

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 1.1 Introduction Figure 1-1: SPCIE-C246 The SPCIE-C246 is a full-size PICMG 1.3 CPU card. It has a LGA1151 socket that ® ® supports Intel Xeon E3, 8 generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processors, and it supports four 288-pin 2666MHz dual-channel DDR4 DIMM modules up to 64 GB.

  • Page 17: Features

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 1.2 Features The SPCIE-C246 motherboard features are listed below: Full-size PICMG 1.3 CPU card  ® ® LGA1151 socket supports Intel Xeon E3, 8 generation Core™ i9/i7/i5/i3,  ® ® Pentium or Celeron processor ®...

  • Page 18: Connectors

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 1.3 Connectors The connectors on the SPCIE-C246 are shown in the figure below. Figure 1-2: Connectors Page 4...

  • Page 19: Dimensions

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 1.4 Dimensions The main dimensions of the SPCIE-C246 are shown in the diagram below. Figure 1-3: SPCIE-C246 Dimensions (mm) Page 5...

  • Page 20: Data Flow

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 1.5 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 21: Technical Specifications

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 1.6 Technical Specifications The SPCIE-C246 technical specifications are listed below. Specification/Model SPCIE-C246 Form Factor Full-size PICMG 1.3 CPU card ® ® LGA1151 socket supports Intel Xeon E3, 8 ® ® CPU Supported generation Core™ i9/i7/i5/i3, Pentium...

  • Page 22: Table 1-1: Spcie-C246 Specifications

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Chassis Intrusion One 2-pin header Digital I/O 8-bit digital I/O (10-pin header) Ethernet Two RJ-45 ports One 4-pin CPU smart fan connector One 3-pin system smart fan connector One 14-pin header (power LED, HDD LED, speaker, power...

  • Page 23: Packing List

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Chapter Packing List Page 9...

  • Page 24: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the  motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the SPCIE-C246 is unpacked, please do the following: Follow the anti-static guidelines above.  Make sure the packing box is facing upwards when opening.

  • Page 25: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the SPCIE-C246 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.

  • Page 26: Optional Items

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image PS/2 KB/MS Y-cable with bracket (P/N: 19800-000075-RS) SATA power cable (P/N: 32102-000100-200-RS) 7.1-channel HD audio kit with Realtek ALC892 audio...

  • Page 27: Table 2-2: Optional Items

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Item and Part Number Image LGA1150 cooler kit (1U chassis compatible, 54W) (P/N: CF-1150SF-R10) SATA to IDE/CompactFlash® converter board (P/N: SAIDE-KIT01-R10) Table 2-2: Optional Items Page 13...

  • Page 28: Connectors

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Chapter Connectors Page 14...

  • Page 29: Peripheral Interface Connectors

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.1 Peripheral Interface Connectors This chapter details all the peripheral interface connectors. 3.1.1 SPCIE-C246 Layout The figure below shows all the peripheral interface connectors. Figure 3-1: Peripheral Interface Connectors Page 15...

  • Page 30: Peripheral Interface Connectors

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label 4-pin Molex power +12V ATX power supply connector CPU12V1 connector Audio kit connector 10-pin header J_AUDIO1 Battery connector...

  • Page 31: External Interface Panel Connectors

    USB3_1, USB3_2 HDMI connector HDMI HDMI1 Table 3-2: External Peripheral Connectors 3.2 Internal Peripheral Connectors The section describes all of the connectors on the SPCIE-C246. 3.2.1 +12V ATX Power Connector CN Label: CPU12V1 CN Type: 4-pin Molex power connector, p=4.2 mm...

  • Page 32: Audio Kit Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Figure 3-2: +12V ATX Power Connector Pinout Location Description Description +12V +12V Table 3-3: +12V ATX Power Connector Pinouts 3.2.2 Audio Kit Connector CN Label: J_AUDIO1 CN Type: 10-pin header, p=2.00 mm CN Location:...

  • Page 33: Battery Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description HDA_SYNC HDA_BIT_CLK HDA_SDOUT HDA_SPKR HDA_SDIN HDA_RST# HDA_VCC HDA_GND HDA_+12V HDA_GND Table 3-4: Audio Connector Pinouts 3.2.3 Battery Connector CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery.

  • Page 34: Chassis Intrusion Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Figure 3-4: Battery Connector Location Description VBATT Table 3-5: Battery Connector Pinouts 3.2.4 Chassis Intrusion Connector CN Label: CHASSIS1 CN Type: 2-pin header, p=2.54 mm CN Location: See Figure 3-5 See Table 3-6 CN Pinouts: The chassis intrusion connector is for a chassis intrusion detection sensor or switch that detects if a chassis component is removed or replaced.

  • Page 35: Ddr4 Dimm Sockets

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.5 DDR4 DIMM Sockets CN Label: CHA_DIMM0, CHA_DIMM1, CHB_DIMM0, CHB_DIMM1 CN Type: 288-pin DDR4 DIMM socket CN Location: See Figure 3-6 The DIMM sockets are for DDR4 DIMM memory modules. Figure 3-6: DDR4 DIMM Socket Locations 3.2.6 Digital I/O Connector...

  • Page 36: Displayport Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-7: Digital I/O Connector Pinouts 3.2.7 DisplayPort Connector CN Label: CN Type: 20-pin DisplayPort CN Location:...

  • Page 37: Ec Debug Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description AUX_CTRL_DET AUX_CTRL+ AUX_CTRL- HOT PLUG DP_PWR Table 3-8: DisplayPort Connector Pinouts 3.2.8 EC Debug Connector CN Label: CN Type: 18-pin header, p=2.00 mm CN Location: See Figure 3-9 See Table 3-9 CN Pinouts: The EC debug connector is used for EC debug.

  • Page 38: Fan Connector (Cpu)

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description EC_EPP_PD6 EC_EPP_KSI5 EC_EPP_PD7 EC_EPP_KSI4 Table 3-9: EC Debug Connector Pinouts 3.2.9 Fan Connector (CPU) CN Label: CPU_FAN1 CN Type: 4-pin wafer, p=2.54 mm CN Location: See Figure 3-10 CN Pinouts: See Table 3-10 The fan connector attaches to a CPU cooling fan.

  • Page 39: Fan Connectors (System)

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.10 Fan Connectors (System) CN Label: SYS_FAN1 CN Type: 3-pin wafer, p=2.54 mm CN Location: See Figure 3-11 CN Pinouts: See Table 3-11 The fan connector attaches to a system cooling fan. Figure 3-11: System Fan Connector Location...

  • Page 40: I 2 C Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Figure 3-12: Front Panel Connector Location Function Description Function Description PWR_LED+ Speaker SPKR+ Power LED IPMI LED PWR_LED- PWR_BTN+ Speaker SPKR- Power Button PWR_BTN- HDD_LED+ Reset+ HDD LED Reset HDD_LED- Reset- Table 3-12: Front Panel Connector Pinouts 3.2.12 I...

  • Page 41: Keyboard And Mouse Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Figure 3-13: I C Connector Location Description I2C_DAT I2C_CLK Table 3-13: I C Connector Pinouts 3.2.13 Keyboard and Mouse Connector CN Label: KB_MS1 CN Type: 6-pin wafer, p=2.00 mm CN Location: See Figure 3-14...

  • Page 42: Lan Led Connectors

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Mouse Data Mouse Clock Keyboard Data Keyboard Clock Table 3-14: Keyboard and Mouse Connector Pinouts 3.2.14 LAN LED Connectors CN Label: LED_LAN1, LED_LAN2 CN Type: 2-pin header, p=2.54 mm See Figure 3-15 CN Location:...

  • Page 43: 2280 Slot, M-Key

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.15 M.2 2280 Slot, M-Key CN Label: M2_M1 CN Type: M.2 2280 M-key slot CN Location: See Figure 3-16 CN Pinouts: See Table 3-17 The M.2 2280 slot is keyed in the M position. The M.2 slot supports PCIe x4 interfaces.

  • Page 44: Table 3-17: M.2 2280 Connector Pinouts

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description PCIE_RXN1 PCIE_RXP1 PCIE_TXN1 PCIE_TXP1 DEVSLP PCIE_RXN0 PCIE_RXP0 PCIE_TXN0 PCIE_TXP0 PERST# CLKREQ# REFCLKN PEWAKE REFCLKP Notch Notch Notch Notch Notch Notch Notch Notch SUSCLK PEDET +3.3V +3.3V +3.3V Table 3-17: M.2 2280 Connector Pinouts...

  • Page 45: Power Button

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.16 Power Button CN Label: PWR_SW1 CN Type: Push button CN Location: See Figure 3-17 The on-board power button controls system power. Figure 3-17: Power Button Location 3.2.17 RS-232 Serial Ports CN Label: COM1, COM2, COM3 CN Type: 10-pin box header, p=2.54 mm...

  • Page 46: Rs-422/485 Serial Port

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description Table 3-18: RS-232 Serial Port Pinouts 3.2.18 RS-422/485 Serial Port CN Label: COM4 CN Type: 4-pin wafer, p=2.00 mm See Figure 3-19 CN Location: CN Pinouts: See Table 3-19 Each of these connectors provides RS-422/485 connections.

  • Page 47: Sata 6Gb/S Drive Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card RS-422 Pinouts RS-485 Pinouts Table 3-20: DB-9 RS-422/485 Pinouts 3.2.19 SATA 6Gb/s Drive Connector CN Label: S_ATA1, S_ATA2, S_ATA3, S_ATA4, S_ATA5, S_ATA6 CN Type: 7-pin SATA drive connector CN Location: See Figure 3-20 CN Pinouts:...

  • Page 48: Smbus Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description Table 3-21: SATA 6Gb/s Drive Connector Pinouts 3.2.20 SMBus Connector CN Label: SMB1 CN Type: 4-pin wafer, p=1.25 mm CN Location: See Figure 3-21 CN Pinouts: See Table 3-22 The SMBus (System Management Bus) connector provides low-speed system management communications.

  • Page 49: Spi Flash Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.21 SPI Flash Connector CN Label: JSPI1 CN Type: 8-pin header, p=2.54 mm CN Location: See Figure 3-22 CN Pinouts: See Table 3-23 The SPI flash connector is used to flash the SPI ROM.

  • Page 50: Spi Flash Connector, Ec

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.22 SPI Flash Connector, EC CN Label: JSPI2 CN Type: 8-pin header, p=2.54 mm CN Location: See Figure 3-23 CN Pinouts: See Table 3-24 The SPI flash connector is used to flash the EC ROM.

  • Page 51: Tpm Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.23 TPM Connector CN Label: TPM1 CN Type: 20-pin header, p=2.54 mm CN Location: See Figure 3-24 CN Pinouts: See Table 3-25 The TPM connector connects to a TPM module. Figure 3-24: TPM Connector Location...

  • Page 52: Usb 2.0 Connectors

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.24 USB 2.0 Connectors CN Label: USB1, USB2, USB4 CN Type: 8-pin header, p=2.54 mm CN Location: See Figure 3-25 CN Pinouts: See Table 3-26 The USB 2.0 connectors connect to USB 2.0 devices. Each pin header provides two USB 2.0 ports.

  • Page 53: Usb 2.0 Connector (Type A)

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.25 USB 2.0 Connector (Type A) CN Label: USB3 CN Type: USB Type A CN Location: See Figure 3-26 CN Pinouts: See Table 3-27 The USB Type A connector connects to a USB 2.0/1.1 device.

  • Page 54: Usb 3.2 Gen 1 Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.2.26 USB 3.2 Gen 1 Connector CN Label: USB3-1 CN Type: 19-pin box header, p=2.00 mm CN Location: See Figure 3-27 CN Pinouts: See Table 3-28 The USB 3.2 Gen 1 connector connects to USB 3.2 devices. This connector provides two USB 3.2 Gen 1 (5 Gb/s) ports.

  • Page 55: External Peripheral Interface Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 3.3 External Peripheral Interface Connector Panel The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following: Figure 3-28: External Peripheral Interface Connector 3.3.1 Ethernet Connectors CN Label:...

  • Page 56: Usb 3.2 Gen 1 Connectors

    3.3.2 USB 3.2 Gen 1 Connectors CN Label: USB3_1, USB3_2 CN Type: USB 3.2 CN Location: See Figure 3-28 CN Pinouts: See Table 3-30 There are two external USB 3.2 Gen 1 connectors on the SPCIE-C246. Description Description VBUS STDA_SSRX_N STDA_SSRX_P GND_DRAIN STDA_SSTX_N STDA_SSTX_P Table 3-30: USB 3.2 Port Pinouts...

  • Page 57: Figure 3-30: Hdmi Connector

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Description Description HDMI_SCL HDMI_SDA HDMI_HPD HDMI_GND HDMI_GND HDMI_GND HDMI_GND Table 3-31: HDMI Connector Pinouts Figure 3-30: HDMI Connector Page 43...

  • Page 58: Installation

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Chapter Installation Page 44...

  • Page 59: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the SPCIE-C246. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the SPCIE-C246 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 60 Turn all power to the SPCIE-C246 off:  When working with the SPCIE-C246, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system. Before and during the installation of the SPCIE-C246, DO NOT: Remove any of the stickers on the PCB board.

  • Page 61: Socket Lga1151 Cpu Installation

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 4.3 Socket LGA1151 CPU Installation WARNING: CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

  • Page 62: Figure 4-2: Remove Protective Cover

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Figure 4-2: Remove Protective Cover Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 63: Figure 4-3: Insert The Socket Lga1151 Cpu

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are properly aligned, the CPU should slide into the CPU socket smoothly. See Figure 4-3. Figure 4-3: Insert the Socket LGA1151 CPU Step 8: Close the CPU socket.

  • Page 64: Socket Lga1151 Cooling Kit Installation

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power supply to the board. Step 0: 4.4 Socket LGA1151 Cooling Kit Installation WARNING: DO NOT attempt to install a push-pin cooling fan.

  • Page 65: Figure 4-5: Cooling Kit Support Bracket

    Do not overtighten the screws. Step 5: Connect the fan cable. Connect the cooling kit fan cable to the CPU fan connector on the SPCIE-C246. Carefully route the cable and avoid heat generating chips and fan blades.Step 0:...

  • Page 66: Dimm Installation

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 4.5 DIMM Installation To install a DIMM, please follow the steps below and refer to Figure 4-6. Figure 4-6: DIMM Installation Step 1: Open the DIMM socket handles. Open the two handles outwards as far as they can.

  • Page 67: System Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 4.6 System Configuration The system configuration should be performed before installation. 4.6.1 AT/ATX Power Mode Setting The AT and ATX power mode selection is made through the AT/ATX power mode switch which is shown in Figure 4-7.

  • Page 68: Pcie X16 Channel Mode Setup

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 4.6.3 PCIe x16 Channel Mode Setup The SPCIE-C246 supports one PCIe x16 interface on the backplane. The PCIe x16 channel mode setup is made through the BIOS menu in “Chipset  System Agent (SA) Configuration ...
  • Page 69 SPCIE-C246 Full-size PICMG 1.3 CPU Card To update the ME firmware, please follow the steps below. Step 1: Before turning on the system power, short pin 2-3 of the flash descriptor security override jumper. Step 2: Update the BIOS and ME firmware, and then turn off the system power.

  • Page 70: Usb Power Selection

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 4.6.5 USB Power Selection The USB power selection is made through the BIOS menu in “Chipset  PCH-IO Configuration”. Use the USB Power SW1 and the USB Power SW2 BIOS options to configure whether to provide power to the corresponding USB connectors when the system is in S3/S4 sleep state.

  • Page 71: Internal Peripheral Device Connections

    This section outlines the installation of peripheral devices to the onboard connectors. 4.7.1 SATA Drive Connection The SPCIE-C246 is shipped with two SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 72: Figure 4-11: Sata Power Drive Connection

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Figure 4-11: SATA Power Drive Connection The SATA power cable can be bought from IEI. See Optional Items in Section 2.4. Page 58...

  • Page 73: Software Installation

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 4.8 Software Installation All the drivers for the SPCIE-C246 are available on IEI Resource Download Center (https://download.ieiworld.com). Type SPCIE-C246 and press Enter to find all the relevant software, utilities, and documentation. Figure 4-12: IEI Resource Download Center 4.9 Driver Download...
  • Page 74 SPCIE-C246 Full-size PICMG 1.3 CPU Card Step 3: Click the driver file name on the page and you will be prompted with the following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download ( ...

  • Page 75: Intel ® Amt Setup Procedure

    ® 4.10 Intel AMT Setup Procedure The SPCIE-C246 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below. Step 1: Make sure at least one of the memory sockets is installed with a DDR4 DIMM.

  • Page 76: Bios

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Chapter BIOS Page 62...

  • Page 77: Introduction

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 78: Getting Help

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Function Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option Page...

  • Page 79: Main

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc.

  • Page 80: Advanced

    SPCIE-C246 Full-size PICMG 1.3 CPU Card System Date [xx/xx/xx]  Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx]  Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 81: Cpu Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications or enable the Intel Virtualization Technology. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced CPU Configuration...
  • Page 82 SPCIE-C246 Full-size PICMG 1.3 CPU Card Active Processor Cores [All]  Use the Active Processor Cores BIOS option to enable numbers of cores in the processor package.  Enable all cores in the processor package. EFAULT  Enable one core in the processor package.

  • Page 83: Pch-Fw Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.2 PCH-FW Configuration The PCH-FW Configuration menu (BIOS Menu 4) allows Intel® Active Management Technology (AMT) options to be configured. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced AMT BIOS Features...

  • Page 84: Trusted Computing

    SPCIE-C246 Full-size PICMG 1.3 CPU Card  Enabled Unconfigure ME with resetting MEBx password to default 5.3.3 Trusted Computing Use the Trusted Computing menu (BIOS Menu 5) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM).

  • Page 85: Acpi Settings

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.4 ACPI Settings The ACPI Settings menu (BIOS Menu 6) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced ACPI Settings Select ACPI sleep state...

  • Page 86: Iwdd H/W Monitor

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.5 iWDD H/W Monitor The iWDD H/W Monitor menu (BIOS Menu 7) contains the fan configuration submenu, and displays the system temperature and CPU fan speed. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc.

  • Page 87: Smart Fan Mode Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card +12V +5VSB +3.3V +3.3VSB 5.3.5.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 8) to configure the CPU/system fan temperature and speed settings. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc.
  • Page 88 SPCIE-C246 Full-size PICMG 1.3 CPU Card Auto mode fan start temperature  If the CPU temperature is between fan off and fan start, the fan speed change to fan start PWM. To set a value, Use the + or – key to change the value or enter a decimal number between 1 and 100.

  • Page 89: F81866 Super Io Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.6 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 9) to set or change the configurations for the parallel ports and serial ports. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc.

  • Page 90: Serial Port 1 Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.6.1 Serial Port 1 Configuration Use the Serial Port 1 Configuration menu (BIOS Menu 10) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced Serial Port n Configuration...

  • Page 91: Serial Port 2 Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.6.2 Serial Port 2 Configuration Use the Serial Port 2 Configuration menu (BIOS Menu 11: Serial Port 2 Configuration MenuBIOS Menu 11) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc.

  • Page 92: Serial Port 3 Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.6.3 Serial Port 3 Configuration Use the Serial Port 3 Configuration menu (BIOS Menu 12) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced Serial Port n Configuration...

  • Page 93: Serial Port 4 Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.6.4 Serial Port 4 Configuration Use the Serial Port 4 Configuration menu (BIOS Menu 13) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced Serial Port n Configuration...

  • Page 94: Rtc Wake Settings

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.7 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 14) enables the system to wake at the specified time. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced Wake system with Fixed Time...

  • Page 95: Serial Port Console Redirection

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Wake up minute Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 5.3.8 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 15) allows the console redirection options to be configured.
  • Page 96 SPCIE-C246 Full-size PICMG 1.3 CPU Card Console Redirection [Disabled]  Use Console Redirection option to enable or disable the console redirection function.  Disabled Disabled the console redirection function EFAULT  Enabled Enabled the console redirection function The following options are available in the Console Redirection Settings submenu when the Console Redirection option is enabled.
  • Page 97 SPCIE-C246 Full-size PICMG 1.3 CPU Card Parity [None]  Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors.  None No parity bit is sent with the data bits.

  • Page 98: Legacy Console Redirection Settings

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.8.1 Legacy Console Redirection Settings Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced Legacy Serial Redirection Port [COM1] Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages.

  • Page 99: Usb Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 17) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 100: Csm Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.10 CSM Configuration The CSM Configuration menu (BIOS Menu 18) configures the CSM (Compatibility Support Module) support. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced Compatibility Support Module Configuration Enable/Disable CSM Support.

  • Page 101: Nvme Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.11 NVMe Configuration Use the NVMe Configuration (BIOS Menu 19) menu to display the NVMe controller and device information. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced NVMe controller and Drive information...

  • Page 102: Iei Feature

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.3.12 iEi Feature Use the iEi Feature menu (BIOS Menu 20) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover...

  • Page 103: Chipset

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.4 Chipset Use the Chipset menu (BIOS Menu 21) to access the PCH IO and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 104: System Agent (Sa) Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.4.1 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 22) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Chipset System Agent (SA) Configuration...

  • Page 105: Memory Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 23) to view memory information. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Chipset Memory Configuration CHA_DIMM0 Populated & Enabled Size 4092 MB (DDR4)
  • Page 106 SPCIE-C246 Full-size PICMG 1.3 CPU Card Primary Display [Auto]  Use the Primary Display option to select the primary graphics controller the system uses. The following options are available: Auto Default  IGFX   PCIe  Internal Graphics [Enabled] ...

  • Page 107: Peg Port Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Primary IGFX Boot Display [VBIOS Default]  Use the Primary IGFX Boot Display option to select the display device used by the system when it boots. Configuration options are listed below. VBIOS Default Default ...

  • Page 108: Pch-Io Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Enable Root Port [Enabled]  Use the Enable Root Port option to enable or disable the PCI Express (PEG) controller.  Disabled Disables the PCI Express (PEG) controller.  Enabled Enables the PCI Express (PEG) controller.
  • Page 109 SPCIE-C246 Full-size PICMG 1.3 CPU Card Restore AC Power Loss [Last State]  Use the Restore AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.

  • Page 110: Table 5-2: Bios Options And Configured Usb Ports

    SPCIE-C246 Full-size PICMG 1.3 CPU Card  Sets the USB power source to +5V  +5V DUAL Sets the USB power source to +5V dual EFAULT BIOS Options Configured USB Ports USB3_1 (external USB 3.2 Gen 1 port) USB Power SW1 USB3_2 (external USB 3.2 Gen 1 port)

  • Page 111: Pci Express Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.4.2.1 PCI Express Configuration Use the PCI Express Configuration menu (BIOS Menu 27) to configure the PCI Express and M.2 slots. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Chipset PCI Express Configuration PCI Express Root Port Settings.
  • Page 112 SPCIE-C246 Full-size PICMG 1.3 CPU Card PCIe Speed [Auto]  Use this option to select the support type of the PCI Express slots. The following options are available: Auto Default  Gen1  Gen2  Gen3  Detect Non-Compliance Device [Disabled] ...

  • Page 113: Sata Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.4.2.2 SATA Configuration Use the SATA Configuration menu (BIOS Menu 29) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc.
  • Page 114 SPCIE-C246 Full-size PICMG 1.3 CPU Card SATA Mode Selection [AHCI]  Use the SATA Mode Selection option to determine how the SATA devices operate.  AHCI Configures SATA devices as AHCI device. EFAULT  Intel Configures SATA devices to the Intel RST Premium...

  • Page 115: Hd Audio Configuration

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.4.2.3 HD Audio Configuration Use the HD Audio Configuration menu (BIOS Menu 30) to configure the PCH Azalia settings. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Chipset HD Audio Configuration Control Detection of the HD-Audio device.

  • Page 116: Security

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.5 Security Use the Security menu (BIOS Menu 31) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description...

  • Page 117: Boot

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.6 Boot Use the Boot menu (BIOS Menu 32) to configure system boot options. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration...
  • Page 118 SPCIE-C246 Full-size PICMG 1.3 CPU Card Quiet Boot [Enabled]  Use the Quiet Boot BIOS option to select the screen display when the system boots.  Disabled Normal POST messages displayed  Enabled OEM Logo displayed instead of POST messages...

  • Page 119: Save & Exit

    SPCIE-C246 Full-size PICMG 1.3 CPU Card 5.7 Save & Exit Use the Safe & Exit menu (BIOS Menu 33) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2018 American Megatrends, Inc.

  • Page 120: A Regulatory Compliance

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix Regulatory Compliance Page 106...
  • Page 121 SPCIE-C246 Full-size PICMG 1.3 CPU Card DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply.

  • Page 122: B Product Disposal

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix Product Disposal Page 108...
  • Page 123 SPCIE-C246 Full-size PICMG 1.3 CPU Card CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union–If you wish to dispose of used electrical and ...

  • Page 124: Cbios Options

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix BIOS Options Page 110...
  • Page 125 SPCIE-C246 Full-size PICMG 1.3 CPU Card Below is a list of BIOS configuration options in the BIOS chapter. System Date [xx/xx/xx] ......................66 System Time [xx:xx:xx] ....................... 66 Intel (VMX) Virtualization Technology [Disabled] ............. 67 Active Processor Cores [All] ....................68 Hyper-threading [Enabled] ....................
  • Page 126 SPCIE-C246 Full-size PICMG 1.3 CPU Card Auto Recovery Function [Disabled] ................... 88 VT-d [Disabled] ........................90 Primary Display [Auto] ......................92 Internal Graphics [Enabled] ....................92 DVMT Pre-Allocated [32M] ....................92 DVMT Total Gfx Mem [MAX] ....................92 Primary IGFX Boot Display [VBIOS Default] ..............93 PEG Link Width Configuration [1 x16] ................
  • Page 127 SPCIE-C246 Full-size PICMG 1.3 CPU Card Page 113...

  • Page 128: D Terminology

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix Terminology Page 114...
  • Page 129 SPCIE-C246 Full-size PICMG 1.3 CPU Card AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 130 SPCIE-C246 Full-size PICMG 1.3 CPU Card DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 131 SPCIE-C246 Full-size PICMG 1.3 CPU Card LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer. POST The Power-on Self Test (POST) is the pre-boot actions the system performs when the system is turned-on.

  • Page 132: E Digital I/O Interface

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix Digital I/O Interface Page 118...

  • Page 133: Introduction

    SPCIE-C246 Full-size PICMG 1.3 CPU Card E.1 Introduction The DIO connector on the SPCIE-C246 is interfaced to GPIO ports on the Super I/O chipset. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices. Data can be read or written to the selected address to enable the DIO functions.

  • Page 134: Assembly Language Sample 1

    SPCIE-C246 Full-size PICMG 1.3 CPU Card E.2 Assembly Language Sample 1 AX, 6F08H ;setting the digital port as input AL low byte = value AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O input value E.3 Assembly Language Sample 2...

  • Page 135: F Watchdog Timer

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix Watchdog Timer Page 121...
  • Page 136 SPCIE-C246 Full-size PICMG 1.3 CPU Card NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for other operating systems. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 137 SPCIE-C246 Full-size PICMG 1.3 CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 138: G Error Beep Code

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix Error Beep Code Page 124...

  • Page 139: Pei Beep Codes

    SPCIE-C246 Full-size PICMG 1.3 CPU Card G.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found...

  • Page 140: H Hazardous Materials Disclosure

    SPCIE-C246 Full-size PICMG 1.3 CPU Card Appendix Hazardous Materials Disclosure Page 126...

  • Page 141: Rohs Ii Directive (2015/863/Eu)

    SPCIE-C246 Full-size PICMG 1.3 CPU Card H.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 142: China Rohs

    SPCIE-C246 Full-size PICMG 1.3 CPU Card H.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 128...

Table of Contents
