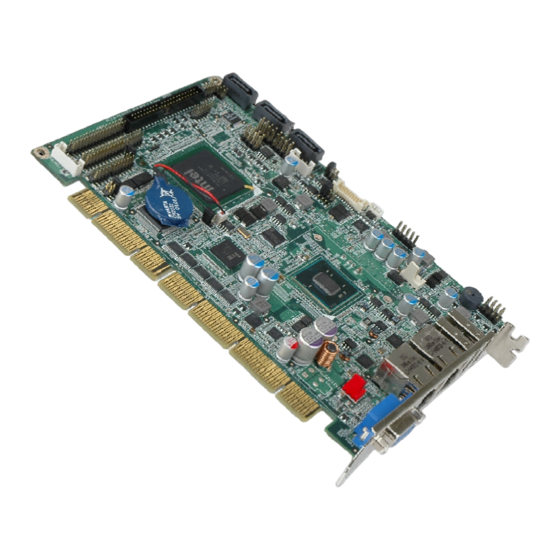

Half-size cpu card for intel atom cpu, ddr3, vga, lan, sata 3gb/s, usb, hd audio, rohs compliant
Hide thumbs Also See for PCISA-PV-D4251:
Table of Contents

Advertisement

Quick Links

Download this manual
PCISA-PV-D4251/N4551/D5251 CPU Card
IEI Technology Corp.
MODEL:
PCISA-PV-D4251/N4551/D5251
Half-Size CPU Card for Intel® Atom™ CPU,
Rev. 1.04 – 1 July, 2013
DDR3, VGA, LAN, SATA 3Gb/s,
USB, HD Audio, RoHS Compliant
User Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCISA-PV-D4251 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PCISA-PV-D4251

Summary of Contents for IEI Technology PCISA-PV-D4251

  • Page 1 PCISA-PV-D4251/N4551/D5251 CPU Card IEI Technology Corp. MODEL: PCISA-PV-D4251/N4551/D5251 Half-Size CPU Card for Intel® Atom™ CPU, DDR3, VGA, LAN, SATA 3Gb/s, USB, HD Audio, RoHS Compliant User Manual Page i Rev. 1.04 – 1 July, 2013...
  • Page 2 PCISA-PV-D4251/N4551/D5251 CPU Card Revision Date Version Changes 1 July, 2013 1.04 Modified Table 3-20: COM2 Pinouts 3 December, 2012 1.03 Modified Table 3-18: Parallel Port Connector Pinouts Modified Section 2.4: Optional Items 25 July, 2011 1.02 Modified Table 3-17: LVDS LCD Connector Pinouts 7 December, 2010 1.01...
  • Page 3 PCISA-PV-D4251/N4551/D5251 CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    PCISA-PV-D4251/N4551/D5251 CPU Card Table of Contents 1 INTRODUCTION......................1 1.1 I ......................2 NTRODUCTION 1.2 M ....................2 ODEL ARIATIONS 1.3 B ........................3 ENEFITS 1.4 F ........................3 EATURES 1.5 C ......................4 ONNECTORS 1.6 D ....................... 6 IMENSIONS 1.7 D...
  • Page 5 PCISA-PV-D4251/N4551/D5251 CPU Card 3.2.10 IDE Connector ....................26 3.2.11 Infrared Interface Connector ................. 27 3.2.12 Keyboard/Mouse Connector ................28 3.2.13 LCD Backlight Connector................29 3.2.14 LVDS LCD connector ..................30 3.2.15 Parallel Port Connector ................31 3.2.16 RS-232 Serial Port Connectors (COM1, COM3 and COM4 ) ...... 32 3.2.17 RS-232/422/485 Serial Port Connector (COM2) ..........
  • Page 6 PCISA-PV-D4251/N4551/D5251 CPU Card 4.6 E ........... 55 XTERNAL ERIPHERAL NTERFACE ONNECTION 4.6.1 LAN Connection....................55 4.6.2 USB Device Connection................... 56 4.6.3 VGA Monitor Connection ................57 4.7 S ..................58 OFTWARE NSTALLATION 5 BIOS ..........................59 5.1 I ......................60 NTRODUCTION 5.1.1 Starting Setup....................
  • Page 7 PCISA-PV-D4251/N4551/D5251 CPU Card B TERMINOLOGY......................92 C ONE KEY RECOVERY..................... 96 C.1 O ..............97 ECOVERY NTRODUCTION C.1.1 System Requirement ..................98 C.1.2 Supported Operating System................99 C.2 S ................ 100 ETUP ROCEDURE FOR INDOWS C.2.1 Hardware and BIOS Setup ................100 C.2.2 Create Partitions ...................
  • Page 8 PCISA-PV-D4251/N4551/D5251 CPU Card List of Figures Figure 1-1: PCISA-PV-D4251/N4551/D5251 ..................2 Figure 1-2: Connectors (Front Side) .....................4 Figure 1-3: Connectors (Solder Side) ...................5 Figure 1-4: Dimensions (mm) ......................6 Figure 1-5: Data Flow Diagram......................7 Figure 3-1: Connectors and Jumpers..................15 Figure 3-2: ATX Power Supply Enable Connector Location ............17 Figure 3-3: Audio Connector Location ..................18...
  • Page 9 PCISA-PV-D4251/N4551/D5251 CPU Card Figure 4-2: Connect Fan Cable....................45 Figure 4-3: CF Card Setup Jumper Location ................47 Figure 4-4: Clear CMOS Jumper ....................48 Figure 4-5: COM 2 Function Select Jumper Location...............49 Figure 4-6: LVDS Voltage Selection Jumper Pinout Locations ..........50 Figure 4-7: LVDS Resolution Selection Jumper Pinout Locations .........51 Figure 4-8: PCIe Slot Jumper Location ..................52...
  • Page 10 PCISA-PV-D4251/N4551/D5251 CPU Card Figure C-23: System Configuration for Linux................. 114 Figure C-24: Access menu.lst in Linux (Text Mode) .............. 114 Figure C-25: Recovery Tool Menu ................... 115 Figure C-26: Recovery Tool Main Menu .................. 116 Figure C-27: Restore Factory Default ..................117 Figure C-28: Recovery Complete Window ................
  • Page 11 PCISA-PV-D4251/N4551/D5251 CPU Card List of Tables Table 1-1: Model Variations ......................3 Table 1-2: Technical Specifications....................9 Table 2-1: Packing List.........................13 Table 2-2: Optional Items......................13 Table 3–1: Internal Peripheral Connectors ................16 Table 3–2: External Peripheral Connectors ................17 Table 3-3: ATX Power Supply Enable Connector Pinouts ............18 Table 3-4: AT/ATX Power Mode Setting ..................18...
  • Page 12 PCISA-PV-D4251/N4551/D5251 CPU Card Table 3-27: External USB Connector Pinouts................39 Table 4-1: Jumpers ........................46 Table 4-2: CF Card Setup Jumper Settings ................46 Table 4-3: Clear CMOS Jumper Settings..................47 Table 4-4: COM 2 Function Select Jumper Settings ..............48 Table 4-5: LVDS Voltage Selection Jumper Settings..............50 Table 4-6: LVDS Resolution Selection Jumper Settings ............51...
  • Page 13 PCISA-PV-D4251/N4551/D5251 CPU Card BIOS Menus BIOS Menu 1: Main ........................62 BIOS Menu 2: Advanced ......................63 BIOS Menu 3: TPM Configuration ....................64 BIOS Menu 4: CPU Configuration ....................65 BIOS Menu 5: IDE Configuration....................66 BIOS Menu 6: USB Configuration ....................67 BIOS Menu 7: Super IO Configuration..................68 BIOS Menu 8: Floppy Disk Controller Configuration Menu .............69...

  • Page 14: Introduction

    PCISA-PV-D4251/N4551/D5251 CPU Card Chapter Introduction Page 1...

  • Page 15: Introduction

    PCISA-PV-D4251/N4551/D5251 CPU Card 1.1 Introduction Figure 1-1: PCISA-PV-D4251/N4551/D5251 The PCISA-PV-D4251/N4551/D5251 half-size PCISA CPU card is an Intel® Atom dual-core CPU platform. The PCISA-PV-D4251/N4551/D5251 comes with a DDR3 SO-DIMM socket, VGA interface and dual PCI Express (PCIe) Gigabit Ethernet (GbE). The PCISA-PV-D4251/N4551/D5251 supports up to three, second-generation serial ATA (SATA) hard disk drives (HDD) with maximum transfer rates of 3Gb/s and up to six USB 2.0 devices.

  • Page 16: Benefits

    Staying connected with both wired LAN connections Speedy running of multiple programs and applications 1.4 Features Some of the PCISA-PV-D4251/N4551/D5251 motherboard features are listed below: RoHS compliant Supports Intel® Atom™ dual-core/single-core processor Supports one 204-pin 2 GB (max.) 800 MHz DDR3 SDRAM SO-DIMM...

  • Page 17: Connectors

    PCISA-PV-D4251/N4551/D5251 CPU Card 1.5 Connectors The connectors on the PCISA-PV-D4251/N4551/D5251 are shown in the figure below. Figure 1-2: Connectors (Front Side) Page 4...

  • Page 18: Figure 1-3: Connectors (Solder Side)

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure 1-3: Connectors (Solder Side) Page 5...

  • Page 19: Dimensions

    PCISA-PV-D4251/N4551/D5251 CPU Card 1.6 Dimensions The main dimensions of the PCISA-PV-D4251/N4551/D5251 are shown in the diagram below. Figure 1-4: Dimensions (mm) Page 6...

  • Page 20: Data Flow

    PCISA-PV-D4251/N4551/D5251 CPU Card 1.7 Data Flow F igure 1-5 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-5: Data Flow Diagram Page 7...

  • Page 21: Technical Specifications

    PCISA-PV-D4251/N4551/D5251 CPU Card 1.8 Technical Specifications PCISA-PV-D4251/N4551/D5251 technical specifications are shown below. Specifications PCISA-PV-D4251/N4551/D5251 Intel® Atom™ D525 dual core processor (1.80GHz/1MB L2 cache) CPU Supported Intel® Atom™ D425 single core processor (1.80GHz/512KB L2 cache) Intel® Atom™ N455 single core processor (1.66GHz/512KB L2 cache) Intel®...

  • Page 22: Table 1-2: Technical Specifications

    PCISA-PV-D4251/N4551/D5251 CPU Card One 4-pin wafer for CPU fan Fan connector One internal 6-pin wafer connector Keyboard/Mouse Serial Ports Three RS-232 COM connectors One RS-232/422/485 COM connector USB 2.0/1.1 ports Four internal via pin header Two external USB ports Infrared...

  • Page 23: Packing List

    PCISA-PV-D4251/N4551/D5251 CPU Card Chapter Packing List Page 10...

  • Page 24: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the PCISA-PV-D4251/N4551/D5251 is unpacked, please do the following: Follow the antistatic guidelines above. Make sure the packing box is facing upwards when opening.

  • Page 25: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the PCISA-PV-D4251/N4551/D5251 was purchased from or contact an IEI sales representative directly by sending an email to ales@iei.com.tw.

  • Page 26: Optional Items

    PCISA-PV-D4251/N4551/D5251 CPU Card Quantity Item and Part Number Image Mini jumper pack (2.0mm) (P/N:33100-000033-RS) Utility CD Quick Installation Guide Table 2-1: Packing List 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number...

  • Page 27: Connectors

    PCISA-PV-D4251/N4551/D5251 CPU Card Chapter Connectors Page 14...

  • Page 28: Peripheral Interface Connectors

    PCISA-PV-D4251/N4551/D5251 CPU Card 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 Layout The figure below shows all the connectors and jumpers. Figure 3-1: Connectors and Jumpers 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board.

  • Page 29: Table 3-1: Internal Peripheral Connectors

    PCISA-PV-D4251/N4551/D5251 CPU Card Connector Type Label CompactFlash® card slot 50-pin slot (solder side) DDR3 DIMM socket 204-pin slot (solder side) DIMM1 Digital input/output connector 10-pin header DIO1 Fan connector, CPU 4-pin wafer connector CPU_FAN1 FDD connector 34-pin header FDD1 Flash SPI ROM connector...

  • Page 30: External Interface Panel Connectors

    USB 2.0 port (2) USB port connector USB_C2 Table 3–2: External Peripheral Connectors 3.2 Internal Peripheral Connectors The section describes all of the connectors on the PCISA-PV-D4251/N4551/D5251. 3.2.1 ATX Power Supply Enable Connector CN Label: ATXCTL1 CN Type: 3-pin wafer (1x3)

  • Page 31: Audio Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card PIN NO. DESCRIPTION +5V Standby PS-ON Table 3-3: ATX Power Supply Enable Connector Pinouts The AT/ATX power mode settings are listed below. PIN NO. DESCRIPTION AT Mode Short 2-3 ATX Mode Use PS_ON# and 5VSB cable Table 3-4: AT/ATX Power Mode Setting 3.2.2 Audio Connector...

  • Page 32: Battery Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION SPK_R LINE1R SPK_L LINE1L FMIC1R FMIC1L Table 3-5: Audio Connector Pinouts 3.2.3 Battery Connector CN Label: BAT1 CN Type: 2-pin wafer (1x2) CN Location: See Figure 3-4 CN Pinouts: See Table 3-6 This is connected to the system battery.

  • Page 33: Compactflash® Socket

    PCISA-PV-D4251/N4551/D5251 CPU Card 3.2.4 CompactFlash® Socket CN Label: CF1 (solder side) 50-pin slot (2x25) CN Type: CN Location: See Figure 3-5 CN Pinouts: See Table 3-7 A CF Type I or Type II memory card is inserted to the CF socket on the solder side of the PCISA-PV-D4251/N4551/D5251.

  • Page 34: Digital Input/Output Connector

    See Figure 3-6 CN Pinouts: See Table 3-8 The DIO connector is managed through a Super I/O chip. The DIO connector pins are user programmable. The digital IO port of PCISA-PV-D4251/N4551/D5251 is 5V CMOS level. Figure 3-6: DIO Connector Location Page 21...

  • Page 35: Fan Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION +5 V OUTPUT 3 OUTPUT 2 OUTPUT 1 OUTPUT 0 INPUT 3 INPUT 2 INPUT 1 INPUT 0 Table 3-8: DIO Connector Pinouts 3.2.6 Fan Connector CN Label: CPU_FAN1 4-pin wafer connector (1x4)

  • Page 36: Floppy Disk Connector (34-Pin)

    PCISA-PV-D4251/N4551/D5251 CPU Card PIN NO. DESCRIPTION +12V Sense Control Table 3-9: Fan Connector Pinouts 3.2.7 Floppy Disk Connector (34-pin) CN Label: FDD1 CN Type: 34-pin header (2x17) CN Location: See Figure 3-8 CN Pinouts: See Table 3-10 The floppy disk connector is connected to a floppy disk drive.

  • Page 37: Flash Spi Rom Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card MOTOR ENABLE B# DIRECTION# STEP# WRITE DATA# WRITE GATE# TRACK 0# WRITE PROTECT# READ DATA# SIDE 1 SELECT# DISK CHANGE# Table 3-10: 34-pin FDD Connector Pinouts 3.2.8 Flash SPI ROM Connector CN Label: SPI1 CN Type: 8-pin header (2x4)

  • Page 38: Front Panel Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION 3.3V SPI_CS SPI_CLK SPI_SO SPI_SI Table 3-11: Flash SPI ROM Connector Pinouts 3.2.9 Front Panel Connector CN Label: F_PANEL1 8-pin header (2x4) CN Type: CN Location: See Figure 3-10 CN Pinouts:...

  • Page 39: Ide Connector

    CN Location: See Figure 3-11 CN Pinouts: See Table 3-13 One primary 44-pin IDE device connector on the PCISA-PV-D4251/N4551/D5251 supports connectivity to ATA 100/66/33 IDE devices with data transfer rates up to 100MB/s. Figure 3-11: IDE Device Connector Location PIN NO.

  • Page 40: Infrared Interface Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 IDE DRQ IOW# IOR# IDE IORDY# CSEL IDE DACK INT_IRQ14 SDA1 IDE_PATADET SDA0 SDA2 IDE CS1# IDE CS3# HDD ACTIVE# Table 3-13: IDE Connector Pinouts 3.2.11 Infrared Interface Connector...

  • Page 41: Keyboard/Mouse Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure 3-12: Infrared Connector Pinout Locations PIN NO. DESCRIPTION IR-RX IR-TX Table 3-14: Infrared Connector Pinouts 3.2.12 Keyboard/Mouse Connector CN Label: KB/MS1 6-pin wafer (1x6) CN Type: CN Location: See Figure 3-13 CN Pinouts: See Table 3-15 The keyboard/mouse connector can be connected to a standard PS/2 cable or PS/2 Y cable to add keyboard and mouse functionality to the system.

  • Page 42: Lcd Backlight Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card PIN NO. DESCRIPTION +5 V MS DATA MS CLK KB DATA KB CLK GROUND Table 3-15: Keyboard/Mouse Connector Pinouts 3.2.13 LCD Backlight Connector CN Label: INV1 CN Type: 5-pin wafer (1x5) CN Location: See Figure 3-14 CN Pinouts: See Table 3-16 The LCD backlight connector is for the LCD inverter connection.

  • Page 43: Lvds Lcd Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card BL_EN Table 3-16: LCD Backlight Connector Pinouts 3.2.14 LVDS LCD connector CN Label: LVDS1 CN Type: 20-pin crimp connector (2x10) CN Location: See Figure 3-15 CN Pinouts: See Table 3-17 The connector supports one or one channel 18-bit LVDS panel.

  • Page 44: Parallel Port Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card 3.2.15 Parallel Port Connector CN Label: LPT1 26-pin header (2x13) CN Type: CN Location: See Figure 3-16 CN Pinouts: See Table 3-18 The 26-pin parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 45: Serial Port Connectors (Com1, Com3 And Com4 )

    PCISA-PV-D4251/N4551/D5251 CPU Card 3.2.16 RS-232 Serial Port Connectors (COM1, COM3 and COM4 ) CN Label: COM1, COM3 and COM4 10-pin header (2x5) CN Type: CN Location: See Figure 3-17 CN Pinouts: See Table 3-19 The 10-pin serial port connector provides a RS-232 serial communications channel. The COM1, COM3 and COM4 serial port connectors can be connected to external RS-232 serial port devices.

  • Page 46: Rs-232/422/485 Serial Port Connector (Com2)

    PCISA-PV-D4251/N4551/D5251 CPU Card 3.2.17 RS-232/422/485 Serial Port Connector (COM2) CN Label: COM2 14-pin header (2x7) CN Type: CN Location: See Figure 3-18 CN Pinouts: See Table 3-20 The serial ports connectors connect to RS-232/422/485 serial port device. Figure 3-18: COM2 Location PIN NO.

  • Page 47: Smbus Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card CN Location: See Figure 3-19 CN Pinouts: See Table 3-21 The three SATA drive connectors are connected to three SATA 3Gb/s drives. SATA 3Gb/s drives transfer data at speeds as high as 3Gb/s. Figure 3-19: SATA Drive Connector Locations PIN NO.

  • Page 48: Usb Connectors (Internal)

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure 3-20: SMBus Connector Location Description SMBDATA SMBCLK Table 3-22: SMBus Connector Pinouts 3.2.20 USB Connectors (Internal) CN Label: USB0_1 and USB0_2 CN Type: 8-pin header (2x4) CN Location: See Figure 3-21 CN Pinouts: See Table 3-23 One 2x4 pin connector provides connectivity to two USB 2.0 ports.

  • Page 49: External Peripheral Interface Connector Panel

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure 3-21: Internal USB Connector Locations PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC (+5V) DATA- DATA+ DATA+ DATA- VCC (+5V) Table 3-23: USB3 and USB4 Pinouts 3.3 External Peripheral Interface Connector Panel The figure below shows the external peripheral interface connector (EPIC) panel. The...

  • Page 50: Crt Connector

    LAN1 and LAN2 CN Type: RJ-45 See Figure 3-22 CN Location: CN Pinouts: See Table 3-25 The PCISA-PV-D4251/N4551/D5251 is equipped with two built-in GbE Ethernet controllers. The controllers can connect to the LAN through two RJ-45 LAN connectors. Page 37...

  • Page 51: Figure 3-24: Rj-45 Ethernet Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card There are two LEDs on the connector indicating the status of LAN. The pin assignments are listed in the following table: DESCRIPTION DESCRIPTION LAN#_MDI0+ LAN_MDI3- LAN#_MDI0- LAN#_LINK100 LAN#_MDI1+ LAN#_LED3/EEDO LAN#_MDI1- LAN#_ACT-1 LAN#_MDI2+ LAN#_MDI2- LAN#_MDI3+ Table 3-25: LAN1 and LAN2 Pinouts Figure 3-24: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow.

  • Page 52: Usb Connector

    PCISA-PV-D4251/N4551/D5251 CPU Card 3.3.3 USB Connector CN Label: USB_C1 and USB_C2 USB port CN Type: CN Location: See Figure 3-22 CN Pinouts: See Table 3-27 USB devices can be connected directly to the USB connectors on the rear panel. PIN NO.

  • Page 53: Installation

    PCISA-PV-D4251/N4551/D5251 CPU Card Chapter Installation Page 40...

  • Page 54: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PCISA-PV-D4251/N4551/D5251. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the PCISA-PV-D4251/N4551/D5251 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 55 Before and during the installation of the PCISA-PV-D4251/N4551/D5251 DO NOT: Remove any of the stickers on the PCB board. These stickers are required for warranty validation.

  • Page 56: Basic Installation

    The chassis should have fans and vents as necessary to keep things cool. The PCISA-PV-D4251/N4551/D5251 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an...

  • Page 57: Backplane Installation

    4.3.3 Backplane Installation Before the PCISA-PV-D4251/N4551/D5251 can be installed into the chassis, a backplane must first be installed. Please refer to the installation instructions that came with the backplane and the chassis to see how to install the backplane into the chassis.

  • Page 58: Jumper Settings

    To CLOSE/SHORT jumper means connecting the pins of the jumper with the plastic clip and to OPEN a jumper means removing the plastic clip from a jumper. The PCISA-PV-D4251/N4551/D5251 includes one jumper shown in Table 4-1. Page 45...

  • Page 59: Cf Card Setup

    PCISA-PV-D4251/N4551/D5251 CPU Card Description Label Type CF card setup JCF1 2-pin header Clear CMOS J_CMOS1 3-pin header COM 2 function selection 6-pn header LVDS LCD voltage selection J_VLVDS1 6-pin header LVDS LCD resolution selection 6-pin header PCIe interface setup 2-pin header Table 4-1: Jumpers 4.4.1 CF Card Setup...

  • Page 60: Clear Cmos Jumper

    Jumper Location: See Figure 4-4 If the PCISA-PV-D4251/N4551/D5251 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 61: Com 2 Function Select Jumper

    PCISA-PV-D4251/N4551/D5251 CPU Card The location of the clear CMOS jumper is shown in Figure 4-4 below. Figure 4-4: Clear CMOS Jumper 4.4.3 COM 2 Function Select Jumper Jumper Label: Jumper Type: 6-pin header See Table 4-4 Jumper Settings: Jumper Location:...

  • Page 62: Lvds Voltage Selection

    Figure 4-5: COM 2 Function Select Jumper Location 4.4.4 LVDS Voltage Selection WARNING: Permanent damage to the screen and PCISA-PV-D4251/N4551/D5251 may occur if the wrong voltage is selected with this jumper. Please refer to the user guide that cam with the monitor to select the correct voltage.

  • Page 63: Lvds Panel Resolution Selection

    PCISA-PV-D4251/N4551/D5251 CPU Card Short 5-6 +12 V Table 4-5: LVDS Voltage Selection Jumper Settings The LVDS Voltage Selection jumper location is shown in Figure 4-6. Figure 4-6: LVDS Voltage Selection Jumper Pinout Locations 4.4.5 LVDS Panel Resolution Selection Jumper Label:...

  • Page 64: Pcie Interface Setup

    PCISA-PV-D4251/N4551/D5251 CPU Card Short 3-4, 5-6 1280 x 800 (18-bit) Short 1-2, 3-4, 5-6 1280 x 600 (18-bit) Table 4-6: LVDS Resolution Selection Jumper Settings The LVDS Voltage Selection jumper location is shown in Figure 4-7. Figure 4-7: LVDS Resolution Selection Jumper Pinout Locations 4.4.6 PCIe Interface Setup...

  • Page 65: Internal Peripheral Device Connections

    This section outlines the installation of peripheral devices to the onboard connectors. 4.5.1 SATA Drive Connection The PCISA-PV-D4251/N4551/D5251 is shipped with three SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 66: Figure 4-9: Sata Drive Cable Connection

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure 4-9: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 4-10.

  • Page 67: Usb Cable (Dual Port) With Slot Bracket

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure 4-10: SATA Power Drive Connection 4.5.2 USB Cable (Dual Port) with Slot Bracket The PCISA-PV-D4251/N4551/D5251 is shipped with a dual port USB 2.0 cable. To connect the USB cable connector, please follow the steps below. Step 1: Locate the connectors.

  • Page 68: External Peripheral Interface Connection

    Step 3: Insert the cable connectors. Once the cable connectors are properly aligned with the USB connectors on the PCISA-PV-D4251/N4551/D5251, connect the cable connectors to the on-board connectors. See Figure 4-11. Figure 4-11: Dual USB Cable Connection Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a bracket.

  • Page 69: Usb Device Connection

    Chapter 3. Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of the RJ-45 connectors on the PCISA-PV-D4251/N4551/D5251. See Figure 4-12. Figure 4-12: LAN Connection Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the on-board RJ-45 connector.

  • Page 70: Vga Monitor Connection

    4.6.3 VGA Monitor Connection The PCISA-PV-D4251/N4551/D5251 has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the PCISA-PV-D4251/N4551/D5251, please follow the instructions below. Step 1: Locate the female DB-15 connector.

  • Page 71: Software Installation

    Step 0: 4.7 Software Installation All the drivers for the PCISA-PV-D4251/N4551/D5251 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 72: Bios

    PCISA-PV-D4251/N4551/D5251 CPU Card Chapter BIOS Page 59...

  • Page 73: Introduction

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 74: Getting Help

    PCISA-PV-D4251/N4551/D5251 CPU Card Function F4 key Save all the CMOS changes Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help...

  • Page 75: Main

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 76: Advanced

    PCISA-PV-D4251/N4551/D5251 CPU Card System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 5.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:...

  • Page 77: Cpu Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced TPM Configuration Enables or Disables TPM TPM SUPPORT [Disable] support. O.S. will not show TPM. Reset of Current TPM Status Information platform is required. NO TPM Hardware...
  • Page 78 PCISA-PV-D4251/N4551/D5251 CPU Card Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Processor Type Intel(R) Atom(TM) CPU EMT64 Supported ---------------------- Processor Speed 1834 MHz System Bus Speed 667 MHz : Select Screen ↑ ↓: Select Item...

  • Page 79: Sata Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.3.3 SATA Configuration Use the SATA Configuration menu (BIOS Menu 5) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced PATA Master...

  • Page 80: Usb Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card Configure SATA as [IDE] Use the Configure SATA as option to configure SATA devices as normal IDE devices. Configures SATA devices as normal IDE device. EFAULT AHCI Configures SATA devices as AHCI device. 5.3.4 USB Configuration Use the USB Configuration menu (BIOS Menu 6) to read USB configuration information and configure the USB settings.

  • Page 81: Super Io Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 82: Floppy Disk Controller Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.3.5.1 Floppy Disk Controller Configuration Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Floppy Disk Controller Configuration Enable or Disable Floppy...

  • Page 83: Serial Port N Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.3.5.2 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Serial Port 0 Configuration Enable or Disable Serial...
  • Page 84 PCISA-PV-D4251/N4551/D5251 CPU Card IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=3, 4 address is IRQ3 and IRQ4 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3 and IRQ4 IRQ=3, 4 5.3.5.2.2 Serial Port 1 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.
  • Page 85 PCISA-PV-D4251/N4551/D5251 CPU Card Enabled Enable the serial port EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. The serial port IO port address and interrupt address Auto EFAULT are automatically detected.

  • Page 86: Irda Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card IO=2E8h; Serial Port I/O port address is 2E8h and the interrupt IRQ=10 address is IRQ10 Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ10, 11 IRQ=10, 11 IO=2E8h; Serial Port I/O port address is 2E8h and the interrupt...

  • Page 87: Parallel Port Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.3.5.4 Parallel Port Configuration Use the Parallel Port Configuration menu (BIOS Menu 9) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Parallel Port Configuration Change the Printer Port...

  • Page 88: H/W Monitor

    PCISA-PV-D4251/N4551/D5251 CPU Card IO=3BCh; Parallel Port I/O port address is 3BCh and the IRQ=7 interrupt address is IRQ7 Parallel Port I/O port address is 378h IO=378h IO=278h Parallel Port I/O port address is 278h IO=3BCh Parallel Port I/O port address is 3BCh Device Mode [Printer Mode] Use the Device Mode option to select the mode the parallel port operates in.
  • Page 89 PCISA-PV-D4251/N4551/D5251 CPU Card Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced PC Health Status CPU Temperature :+37 C SYS Temperature :+36 C CPU FAN Speed :5976 RPM VCC3C :+3.312 V V_core :+1.288 V :+5.129 V --------------------- Vcc12 :+11.968 V...

  • Page 90: Serial Port Console Redirection

    PCISA-PV-D4251/N4551/D5251 CPU Card CPU Smart Fan control [Auto Mode] Use the CPU Smart Fan control option to configure the CPU fan. The fan adjusts its speed using these settings: Auto Mode Temperature Bound 1 Temperature Bound 2 Temperature Bound 3...

  • Page 91: Chipset

    PCISA-PV-D4251/N4551/D5251 CPU Card Disabled Disabled the console redirection function EFAULT Enabled the console redirection function Enabled 5.4 Chipset Use the Chipset menu (BIOS Menu 14) to access the Northbridge and Southbridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 92: Host Bridge Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.4.1 Host Bridge Configuration Use the Host Bridge Configuration menu (BIOS Menu 15) to configure the Northbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset > OnChip VGA Configuration Select which graphics Initate Graphic Adapter...

  • Page 93: Onchip Vga Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.4.1.1 OnChip VGA Configuration Use the OnChip VGA Configuration menu (BIOS Menu 15) to configure the OnChip VGA. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset OnChip VGA Configuration Select Share Memory Size. Share Memory Size...

  • Page 94: South Bridge Configuration

    PCISA-PV-D4251/N4551/D5251 CPU Card Disabled Disabled the multi-monitor function Enabled the multi-monitor function Enabled EFAULT 5.4.2 South Bridge Configuration Use the South Bridge Configuration menu (BIOS Menu 17) to configure the Southbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 95: Intel Igd Swsci Opregion

    PCISA-PV-D4251/N4551/D5251 CPU Card Enabled USB function support enabled EFAULT USB 2.0 (EHCI) Support [Enabled] Use the USB 2.0 (EHCI) Support BIOS option to enable or disable USB 2.0 support. USB 2.0 (EHCI) support enabled Enabled EFAULT Disabled USB 2.0 (EHCI) support disabled Set Spread Spectrum Function [Disabled] The Set Spread Spectrum Function option can help to improve CPU EMI issues.
  • Page 96 PCISA-PV-D4251/N4551/D5251 CPU Card DVMT Mode Select [DVMT Mode] Use the DVMT Mode Select option to select the Intel Dynamic Video Memory Technology (DVMT) operating mode. Fixed A fixed portion of graphics memory is reserved as Mode graphics memory. Graphics memory is dynamically allocated according...

  • Page 97: Boot

    PCISA-PV-D4251/N4551/D5251 CPU Card 1024x768 18bit 1280x1024 18bit 1366x768 18bit 1280x800 18bit 1280x600 18bit 5.5 Boot Use the Boot menu (BIOS Menu 19) to configure system boot options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset...
  • Page 98 PCISA-PV-D4251/N4551/D5251 CPU Card Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.

  • Page 99: Security

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.6 Security Use the Security menu (BIOS Menu 20) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set,...

  • Page 100: Exit

    PCISA-PV-D4251/N4551/D5251 CPU Card 5.7 Exit Use the Exit menu (BIOS Menu 21) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save &...
  • Page 101 PCISA-PV-D4251/N4551/D5251 CPU Card Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 102: Abios Options

    PCISA-PV-D4251/N4551/D5251 CPU Card Appendix BIOS Options Page 89...
  • Page 103 PCISA-PV-D4251/N4551/D5251 CPU Card Below is a list of BIOS configuration options in the BIOS chapter. 　 BIOS Information .........................62 　 System Date [xx/xx/xx] ......................62 　 System Time [xx:xx:xx] .......................63 　 TPM Support [Disable] ......................64 　 ATA/IDE Configurations [Enhanced] .................66 　...
  • Page 104 PCISA-PV-D4251/N4551/D5251 CPU Card 　 IGD - Boot Type [VBIOS Default] ..................83 　 LCD Panel Type [Select by Panel ID] .................83 　 Bootup NumLock State [On]....................84 　 Quiet Boot [Enabled] ......................85 　 Fast Boot [Disabled] ......................85 　 Launch PXE OpROM [Disabled] ..................85 　...

  • Page 105: B Terminology

    PCISA-PV-D4251/N4551/D5251 CPU Card Appendix Terminology Page 92...
  • Page 106 PCISA-PV-D4251/N4551/D5251 CPU Card ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. Advanced Host Controller Interface (AHCI) is a SATA Host controller AHCI register-level interface. The Advanced Technology Attachment (ATA) interface connects storage devices including hard disks and CD-ROM drives to a computer.
  • Page 107 PCISA-PV-D4251/N4551/D5251 CPU Card The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices. Data can be read or written to the selected address to enable the DIO functions. EHCI The Enhanced Host Controller Interface (EHCI) specification is a register-level interface description for USB 2.0 Host Controllers.
  • Page 108 PCISA-PV-D4251/N4551/D5251 CPU Card Random Access Memory (RAM) is volatile memory that loses data when power is lost. RAM has very fast data transfer rates compared to other storage like hard drives. SATA Serial ATA (SATA) is a serial communications bus designed for data transfers between storage devices and the computer chipsets.

  • Page 109: C One Key Recovery

    PCISA-PV-D4251/N4551/D5251 CPU Card Appendix One Key Recovery Page 96...

  • Page 110: One Key Recovery Introduction

    PCISA-PV-D4251/N4551/D5251 CPU Card C.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. The one key recovery provides quick and easy shortcuts for creating a backup and reverting to that backup or for reverting to the factory default settings.

  • Page 111: System Requirement

    PCISA-PV-D4251/N4551/D5251 CPU Card C.1.1 System Requirement NOTE: The recovery CD can only be used with IEI products. The software will fail to run and a warning message will appear when used on non-IEI hardware. To create the system backup, the main storage device must be split into two partitions (three partitions for Linux).

  • Page 112: Supported Operating System

    PCISA-PV-D4251/N4551/D5251 CPU Card NOTE: Specialized tools are required to change the partition size if the operating system is already installed. C.1.2 Supported Operating System The recovery CD is compatible with both Microsoft Windows and Linux operating system (OS). The supported OS versions are listed below.

  • Page 113: Setup Procedure For Windows

    PCISA-PV-D4251/N4551/D5251 CPU Card NOTE: Installing unsupported OS versions may cause the recovery tool to fail. C.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore Windows system, a few setup procedures are required. Step 1: Hardware and BIOS setup (see Section C.2.1)

  • Page 114: Create Partitions

    PCISA-PV-D4251/N4551/D5251 CPU Card Step 4: Turn on the system. Step 5: Press the <DELETE> key as soon as the system is turned on to enter the BIOS. Step 6: Select the connected optical disk drive as the 1 boot device. (Boot...

  • Page 115: Figure C-3: Recovery Tool Setup Menu

    PCISA-PV-D4251/N4551/D5251 CPU Card Step 3: The recovery tool setup menu is shown as below. Figure C-3: Recovery Tool Setup Menu Step 4: Press <5> then <Enter>. Figure C-4: Command Mode Step 5: The command prompt window appears. Type the following commands (marked in red) to create two partitions.

  • Page 116: Figure C-5: Partition Creation Commands

    PCISA-PV-D4251/N4551/D5251 CPU Card system32>format F: /fs:ntfs /q /v:Recovery /y system32>exit Figure C-5: Partition Creation Commands Page 103...

  • Page 117: Install Operating System, Drivers And Applications

    PCISA-PV-D4251/N4551/D5251 CPU Card NOTE: Use the following commands to check if the partitions were created successfully. Step 6: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build-up Recovery Partition.S t e p 0 : C.2.3 Install Operating System, Drivers and Applications...

  • Page 118: Build-Up Recovery Partition

    PCISA-PV-D4251/N4551/D5251 CPU Card C.2.4 Build-up Recovery Partition Step 1: Put the recover CD in the optical drive. Step 2: Start the system. Step 3: Boot the system from recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be...

  • Page 119: Figure C-8: Build-Up Recovery Partition

    PCISA-PV-D4251/N4551/D5251 CPU Card recovery files in Section C.2.2 is hidden and the recovery tool is saved in this partition. Figure C-8: Build-up Recovery Partition Step 6: After completing the system configuration, press any key in the following window to reboot the system.

  • Page 120: Create Factory Default Image

    PCISA-PV-D4251/N4551/D5251 CPU Card C.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 121: Figure C-12: About Symantec Ghost Window

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure C-12: About Symantec Ghost Window Step 4: Use mouse to navigate to the option shown below (Figure C-13). Figure C-13: Symantec Ghost Path Step 5: Select the local source drive (Drive 1) as shown in Figure C-14. Then click OK.

  • Page 122: Figure C-14: Select A Local Source Drive

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure C-14: Select a Local Source Drive Step 6: Select a source partition (Part 1) from basic drive as shown in Figure C-15. Then click OK. Figure C-15: Select a Source Partition from Basic Drive Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called...

  • Page 123: Figure C-16: File Name To Copy Image To

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure C-16: File Name to Copy Image to Step 8: When the Compress Image screen in Figure C-17 prompts, click High to make the image file smaller. Figure C-17: Compress Image Page 110...

  • Page 124: Figure C-18: Image Creation Confirmation

    PCISA-PV-D4251/N4551/D5251 CPU Card Step 9: The Proceed with partition image creation window appears, click Yes to continue. Figure C-18: Image Creation Confirmation Step 10: The Symantec Ghost starts to create the factory default image (Figure C-19). Figure C-19: Image Creation Complete Step 11: When the image creation completes, a screen prompts as shown in Figure C-20.

  • Page 125: Setup Procedure For Linux

    PCISA-PV-D4251/N4551/D5251 CPU Card Step 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure C-21: Press Any Key to Continue C.3 Setup Procedure for Linux The initial setup procedures for Linux system are mostly the same with the procedure for Microsoft Windows.

  • Page 126: Figure C-22: Partitions For Linux

    PCISA-PV-D4251/N4551/D5251 CPU Card NOTE: Please reserve enough space for partition 3 for saving recovery images. Figure C-22: Partitions for Linux Step 3: Create a recovery partition. Insert the recovery CD into the optical disk drive. Follow Step 1 Step 3 described in Section C.2.2.

  • Page 127: Figure C-23: System Configuration For Linux

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure C-23: System Configuration for Linux Step 5: Access the recovery tool main menu by modifying the “menu.lst”. To first access the recovery tool main menu, the menu.lst must be modified. In Linux system, enter Administrator (root). When prompt appears, type: cd /boot/grub vi menu.lst...

  • Page 128: Recovery Tool Functions

    PCISA-PV-D4251/N4551/D5251 CPU Card Step 7: The recovery tool menu appears. (Figure C-25) Figure C-25: Recovery Tool Menu Step 8: Create a factory default image. Follow Step 2 Step 12 described in Section C.2.5 to create a factory default image. C.4 Recovery Tool Functions After completing the initial setup procedures as described above, users can access the recovery tool by pressing <F3>...

  • Page 129: Figure C-26: Recovery Tool Main Menu

    PCISA-PV-D4251/N4551/D5251 CPU Card Figure C-26: Recovery Tool Main Menu The recovery tool has several functions including: 6. Factory Restore: Restore the factory default image (iei.GHO) created in Section C.2.5. 7. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 130: Factory Restore

    PCISA-PV-D4251/N4551/D5251 CPU Card C.4.1 Factory Restore To restore the factory default image, please follow the steps below. Step 1: Type <1> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the factory default. A factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 131: Backup System

    PCISA-PV-D4251/N4551/D5251 CPU Card C.4.2 Backup System To backup the system, please follow the steps below. Step 1: Type <2> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to backup the system. A backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 132: Restore Your Last Backup

    PCISA-PV-D4251/N4551/D5251 CPU Card C.4.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Step 1: Type <3> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the last backup image (iei_user.GHO).

  • Page 133: Manual

    PCISA-PV-D4251/N4551/D5251 CPU Card C.4.4 Manual To restore the last system backup, please follow the steps below. Step 1: Type <4> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears. Use the Ghost program to backup or recover the system manually.

  • Page 134: Other Information

    PCISA-PV-D4251/N4551/D5251 CPU Card C.5 Other Information C.5.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 135 PCISA-PV-D4251/N4551/D5251 CPU Card Step 5: When the following window appears, press <S> to select “Specify Additional Device”. Step 6: In the following window, select a SATA controller mode used in the system. Then press <Enter>. The user can now start using the SATA HDD.

  • Page 136: System Memory Requirement

    PCISA-PV-D4251/N4551/D5251 CPU Card Step 7: After pressing <Enter>, the system will get into the recovery tool setup menu. Continue to follow the setup procedure from Step 4 in Section C.2.2 Create Partitions to finish the whole setup process. S t e p 0 : C.5.2 System Memory Requirement...

  • Page 137: D Watchdog Timer

    PCISA-PV-D4251/N4551/D5251 CPU Card Appendix Watchdog Timer Page 124...
  • Page 138 PCISA-PV-D4251/N4551/D5251 CPU Card NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
  • Page 139 PCISA-PV-D4251/N4551/D5251 CPU Card NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 140: E Digital I/O Interface

    PCISA-PV-D4251/N4551/D5251 CPU Card Appendix Digital I/O Interface Page 127...

  • Page 141: Introduction

    PCISA-PV-D4251/N4551/D5251 CPU Card E.1 Introduction The digital I/O is used for machine control and automation. E.2 DIO Connector Pinouts Located in the Connectors section of this document. E.3 Assembly Language Example ;************************************************** ; DIO Port: 0A21h[3:0] (4 Out) 0A22h[3:0] (4 In) ;**************************************************...

  • Page 142: F Hazardous Materials Disclosure

    PCISA-PV-D4251/N4551/D5251 CPU Card Appendix Hazardous Materials Disclosure Page 129...

  • Page 143: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    PCISA-PV-D4251/N4551/D5251 CPU Card F.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 144 PCISA-PV-D4251/N4551/D5251 CPU Card Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 145 PCISA-PV-D4251/N4551/D5251 CPU Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

This manual is also suitable for:

Pcisa-pv-d4251tPcisa-pv-n4551Pcisa-pv-n4551tPcisa-pv-d5251Pcisa-pv-n4551-r10Pcisa-pv-d5251-r10

Table of Contents
