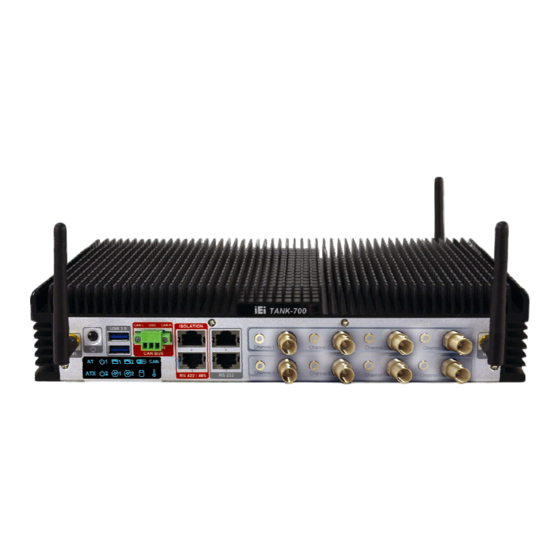

IEI Technology TANK-700 User Manual
  1. Manuals
  2. Brands
  3. IEI Technology Manuals
  4. Computer Hardware
  5. TANK-700
  6. User manual

IEI Technology TANK-700 User Manual

High performance fanless embedded system with intel 32nm cpu, on-board 2.0 gb ddr3 memory, vga/hdmi, usb 3.0, dual combo (sfp fiber/rj-45) gigabit lan, isolated can-bus, audio, 9v-36v dc input, rohs compliant
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TANK-700 Embedded System
IEI Technology Corp.
MODEL:
TANK-700
High Performance Fanless Embedded System with
Intel® 32nm CPU, On-board 2.0 GB DDR3 Memory, VGA/HDMI,
USB 3.0, Dual Combo (SFP Fiber/RJ-45) Gigabit LAN, Isolated
CAN-bus, Audio, 9V~36V DC Input, RoHS Compliant
Rev. 1.11 – 21 June, 2012
User Manual
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TANK-700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology TANK-700

Summary of Contents for IEI Technology TANK-700

  • Page 1 TANK-700 Embedded System IEI Technology Corp. MODEL: TANK-700 High Performance Fanless Embedded System with Intel® 32nm CPU, On-board 2.0 GB DDR3 Memory, VGA/HDMI, USB 3.0, Dual Combo (SFP Fiber/RJ-45) Gigabit LAN, Isolated CAN-bus, Audio, 9V~36V DC Input, RoHS Compliant User Manual Page i Rev.
  • Page 2 TANK-700 Embedded System Revision Date Version Changes 21 June, 2012 1.11 Updated memory spec 5 December, 2011 1.10 Updated Section 2.3: Unpacking Checklist Updated Section 3.9.13: RJ-45 RS-422/485 Serial Ports Updated Appendix A: One Key Recovery 17 October, 2011 1.00...
  • Page 3 TANK-700 Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 TANK-700 Embedded System WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    TANK-700 Embedded System Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 M ....................2 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 T ..................3 ECHNICAL PECIFICATIONS 1.5 C ....................5 ONNECTOR ANEL 1.5.1 Front Panel ......................5 1.5.2 Rear Panel ......................
  • Page 6 TANK-700 Embedded System 3.9.6 Digital Input/Output Connector............... 28 3.9.7 HDMI Connector ..................... 28 3.9.8 LAN Connectors....................29 3.9.9 Power Input, 4-pin Terminal Block..............31 3.9.10 Power Input, 4-pin DIN Connector ............... 31 3.9.11 Remote Control Connector................32 3.9.12 RJ-45 RS-232 Serial Ports ................33 3.9.13 RJ-45 RS-422/485 Serial Ports..............
  • Page 7 TANK-700 Embedded System 4.3.4 SATA Configuration ..................56 4.3.5 USB Configuration................... 57 4.3.6 Second Super IO Configuration ............... 59 4.3.6.1 Serial Port n Configuration ............... 59 4.3.7 Super IO Configuration ................... 62 4.3.7.1 Serial Port n Configuration ............... 63 4.3.8 H/W Monitor ....................69 4.3.9 Serial Port Console Redirection ..............
  • Page 8 TANK-700 Embedded System A.6 R LAN........114 ESTORE YSTEMS FROM A INUX ERVER THROUGH A.6.1 Configure DHCP Server Settings ..............115 A.6.2 Configure TFTP Settings ................116 A.6.3 Configure One Key Recovery Server Settings ..........117 A.6.4 Start the DHCP, TFTP and HTTP ..............118 A.6.5 Create Shared Directory.................118...
  • Page 9 TANK-700 Embedded System List of Figures Figure 1-1: TANK-700 ........................2 Figure 1-2: TANK-700 Front Panel ....................6 Figure 1-3: TANK-700 Rear Panel ....................7 Figure 1-4: TANK-700 LED Indicators...................8 Figure 1-5: Physical Dimensions (millimeters)................9 Figure 3-1: Bottom Panel Retention Screws................17 Figure 3-2: HDD Bracket Retention Screws................17 Figure 3-3: HDD Installation ......................18...
  • Page 10 TANK-700 Embedded System Figure 3-26: RJ-45 RS-422/485 Serial Device Connection............35 Figure 3-27: RJ-45 RS-422/485 Serial Port Pinout Location.............36 Figure 3-28: DB-9 Connector Pinout Location ................36 Figure 3-29: Serial Device Connector..................37 Figure 3-30: Serial Port Pinout Location ..................38 Figure 3-31: USB Device Connection ..................39 Figure 3-32: VGA Connector .......................40...
  • Page 11 TANK-700 Embedded System Figure A-18: Image Creation Confirmation ................100 Figure A-19: Image Creation Process..................100 Figure A-20: Image Creation Complete ................... 100 Figure A-21: Press Any Key to Continue ................101 Figure A-22: Auto Recovery Utility ..................102 Figure A-23: Launching the Recovery Tool ................102 Figure A-24: Auto Recovery Environment for Windows ............
  • Page 12 TANK-700 Embedded System List of Tables Table 1-1: TANK-700 Model Variations..................2 Table 1-2: Technical Specifications....................5 Table 3-1: DIO Connector Pinouts ....................28 Table 3-2: HDMI Connector Pinouts ...................29 Table 3-3: LAN Pinouts ........................30 Table 3-4: RJ-45 Ethernet Connector LEDs ................31 Table 3-5: 4-pin Terminal Block Pinouts ..................31 Table 3-6: Power Input Pinouts ....................32...

  • Page 13: Introduction

    TANK-700 Embedded System Chapter Introduction Page 1...

  • Page 14: Overview

    1.1 Overview Figure 1-1: TANK-700 The TANK-700 Series fanless embedded system is powered by the Intel® 32nm mobile Core™ i7/i5/i3 or Celeron® processor, uses the Intel® QM67 chipset and has 2.0 GB of DDR3 memory. It supports dual display via VGA and HDMI. One SATA 6Gb/s, two USB 3.0 and four USB 2.0 ports provide flexible expansion options.

  • Page 15: Features

    One SATA 6Gb/s port Eight COM ports (four with isolation) Extended temperature fanless design supports -20°C~70°C 1.4 Technical Specifications The TANK-700 technical specifications are listed in Table 1-2. Specifications System Intel® 32nm mobile Core™ i7/i5/i3 or Celeron® processor Intel® QM67...
  • Page 16 TANK-700 Embedded System Specifications I/O and Indicators 2 x Combo (SFP Fiber/RJ-45) Gigabit LAN Ethernet 4 x DB-9 serial ports on rear panel RS-232 2 x RJ-45 serial ports with isolation on front panel 2 x RJ-45 serial ports with isolation on front panel RS-422/RS-485 2 x USB 3.0 ports on front panel...

  • Page 17: Connector Panel

    Physical Dimensions Table 1-2: Technical Specifications 1.5 Connector Panel 1.5.1 Front Panel The TANK-700 front panel contains: 2 x 4-channel audio/video input (on selected models) 1 x CAN-bus terminal block with isolation 12 x LED indicators 1 x Power button...

  • Page 18: Rear Panel

    TANK-700 Embedded System Figure 1-2: TANK-700 Front Panel 1.5.2 Rear Panel The TANK-700 rear panel contains: 1 x DIO port 1 x 2-pin terminal block for remote control 2 x RJ-45 Gigabit LAN ports 1 x HDMI port 1 x Line-out port (green) 1 x Mic-in port (pink) 1 x 4-pin power jack for 10.5V (+/-0.3V) ~ 36V power input...

  • Page 19: Figure 1-3: Tank-700 Rear Panel

    TANK-700 Embedded System 4 x USB 2.0 port connectors 1 x VGA output 1 x Wireless antenna connector An overview of the rear panel is shown in F igure 1-3 below. Figure 1-3: TANK-700 Rear Panel Page 7...

  • Page 20: Led Indicators

    LED indicator lights up. Refer to Section 1.6 for the locations of the LED indicators. 1.6 LED Indicators There are several indicators on the front panel of the TANK-700 as shown in Figure 1-4. Figure 1-4: TANK-700 LED Indicators WARNING: The CPU Temperature Alert LED turns red when the CPU temperature is too high.

  • Page 21: Dimensions

    TANK-700 Embedded System 1.7 Dimensions The physical dimensions are shown below: Figure 1-5: Physical Dimensions (millimeters) Page 9...

  • Page 22: Unpacking

    TANK-700 Embedded System Chapter Unpacking Page 10...

  • Page 23: Anti-Static Precautions

    When the TANK-700 is unpacked, please do the following: Follow the anti-static precautions outlined in Section 2.1. Make sure the packing box is facing upwards so the TANK-700 does not fall out of the box. Make sure all the components shown in Section 2.3 are present.

  • Page 24: Unpacking Checklist

    If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the TANK-700 from or contact an IEI sales representative directly. To contact an IEI sales representative, please send an email to sales@iei.com.tw.
  • Page 25 TANK-700 Embedded System Quantity Item and Part Number Image Standard Mounting bracket screw (P/N: 44033-030062-RS) Chassis screw (P/N: 44013-030041-RS) RJ-45 to DB-9 COM port cable (P/N: 32005-000200-200-RS) Wireless antenna (P/N: 32505-000900-100-RS) Pluggable DC-in terminal block (P/N: 33502-000055-RS) Pluggable CAN-bus terminal block...
  • Page 26 TANK-700 Embedded System Quantity Item and Part Number Image Standard User manual and driver CD (P/N: 7B000-000740-RS) The following table lists the optional items that can be purchased separately. Optional Gigabit Ethernet SFP module (P/N: SFP1G-SX/-I SFP1G-MLX/-I SFP1G-LX10/-I SFP1G-ZX70/-I) Fiber cord...

  • Page 27: Installation

    TANK-700 Embedded System Chapter Installation Page 15...

  • Page 28: Installation Precautions

    Electric shock and personal injury might occur if the rear panel of the TANK-700 is opened while the power cord is still connected to an electrical outlet.

  • Page 29: Figure 3-1: Bottom Panel Retention Screws

    Step 2: Figure 3-2: HDD Bracket Retention Screws Lift the HDD bracket out of the TANK-700 and put it on a flat surface. Step 3: Attach the HDD to the HDD bracket. Secure the HDD with the HDD bracket by Step 4: four retention screws (Figure 3-3).

  • Page 30: Pluggable Can-Bus Terminal Block Installation

    Figure 3-3: HDD Installation Slide the HDD bracket to connect the HDD to the SATA connector. Secure the Step 5: HDD bracket with TANK-700 by the 2 retention screws that were previously removed (Figure 3-4). Figure 3-4: HDD Bracket Installation Reinstall the bottom panel to the TANK-700.

  • Page 31: Pluggable Dc-In Terminal Block Installation

    TANK-700 Embedded System Align the pluggable CAN-bus terminal block with the CAN-bus terminal block Step 2: connector on the TANK-700. Once aligned, insert the pluggable CAN-bus terminal block into the CAN-bus Step 3: terminal block connector. Secure the pluggable CAN-bus terminal block to the external interface by...

  • Page 32: Pluggable Remote Control Terminal Block Installation

    Figure 1-3. Align the pluggable remote control terminal block with the remote control Step 2: terminal block connector on the TANK-700. Once aligned, insert the pluggable remote control terminal block into the remote Step 3: control terminal block connector.

  • Page 33: Sfp Module Installation

    Locate the SFP fiber connectors. The locations of the connectors are shown in Step 1: Figure 1-3. Align the SFP module with one of the SFP fiber connectors on the TANK-700 Step 2: (Figure 3-8). Once aligned, slide the SFP module into place (Figure 3-8).

  • Page 34: So-Dimm Installation

    (Figure 3-1). Remove the 8 retention screws (Figure 3-9), unplug the SATA signal and power Step 2: cables connected to the TANK-700, and then lift the bracket out of the TANK-700. Figure 3-9: Retention Screws Locate the SO-DIMM socket on the motherboard (Figure 3-10).

  • Page 35: Figure 3-10: So-Dimm Socket

    TANK-700 Embedded System Figure 3-10: SO-DIMM Socket Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a Step 4: way that the notch in the middle of the SO-DIMM must be aligned with the plastic bridge in the socket (Figure 3-11...

  • Page 36: Mounting The System With Mounting Brackets

    Install the bracket that was previously removed in the same position it was Step 8: before. Reinstall the bottom panel to the TANK-700. Step 9: 3.8 Mounting the System with Mounting Brackets To mount the embedded system onto a wall or some other surface using the two mounting brackets, please follow the steps below.

  • Page 37: External Peripheral Interface Connectors

    TANK-700 Embedded System 3.9 External Peripheral Interface Connectors The TANK-700 has the following connectors. Detailed descriptions of the connectors can be found in the subsections below. Audio Audio/video input connectors CAN-bus Ethernet GPIO for remote control HDMI Power button Power input...

  • Page 38: Acc Mode Selection

    TANK-700 Embedded System 3.9.1 ACC Mode Selection The TANK-700 allows turning the ACC mode on or off. The setting can be made through the ACC mode switch on the rear panel as shown below. Figure 3-13: ACC Mode Switch 3.9.2 AT/ATX Power Mode Selection The TANK-700 supports AT and ATX power modes.

  • Page 39: Audio Connector

    Figure 3-15: Audio Connector 3.9.4 Audio/Video Input Connectors The TANK-700 can support up to eight video inputs and eight audio inputs through the BNC and RCA connectors on the front panel. The locations of the connectors are shown in Figure 1-2.

  • Page 40: Digital Input/Output Connector

    TANK-700 Embedded System 3.9.6 Digital Input/Output Connector CN Label: DIO x 8 DB-9 male connector CN Type: See Figure 1-3 CN Location: See Table 3-1 and Figure 3-17 CN Pinouts: The digital I/O connector provides programmable input and output for external devices.

  • Page 41: Lan Connectors

    Locate the RJ-45 connectors. The locations of the RJ-45 connectors are Step 1: shown in Figure 1-3. Align the connectors. Align the RJ-45 connector on the LAN cable with one of Step 2: the RJ-45 connectors on the TANK-700. See Figure 3-18. Page 29...

  • Page 42: Figure 3-18: Lan Connection

    TANK-700 Embedded System Figure 3-18: LAN Connection Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN Step 3: cable RJ-45 connector into the on-board RJ-45 connector. Description Description TRD1P0 TRD1P2 TRD1N0 TRD1N2 TRD1P1 TRD1P3 TRD1N1 TRD1N3 Table 3-3: LAN Pinouts Figure 3-19: RJ-45 Ethernet Connector The RJ-45 Ethernet connector has two status LEDs, one green and one yellow.

  • Page 43: Power Input, 4-Pin Terminal Block

    TANK-700 Embedded System Activity/Link LED Speed LED DESCRIPTION STATUS DESCRIPTION STATUS No link 10 Mbps connection Yellow Linked Green 100 Mbps connection Blinking TX/RX activity Orange 1 Gbps connection Table 3-4: RJ-45 Ethernet Connector LEDs 3.9.9 Power Input, 4-pin Terminal Block...

  • Page 44: Remote Control Connector

    TANK-700 Embedded System The power connector connects to the 10.5V~36V DC power adapter. Figure 3-21: Power Input Connector Description Description +12V +12V Table 3-6: Power Input Pinouts 3.9.11 Remote Control Connector CN Label: Remoter 2-pin terminal block CN Type: See Figure 1-3...

  • Page 45: Rs-232 Serial Ports

    Figure 1-2. Insert the RJ-45 connector. Insert the RJ-45 connector on the RJ-45 to DB-9 Step 2: COM port cable to one of the RJ-45 RS-232 connectors on the TANK-700. See Figure 3-23. Figure 3-23: RJ-45 RS-232 Serial Device Connection Insert the serial connector.

  • Page 46: Figure 3-24: Rj-45 Rs-232 Serial Port Pinout Location

    TANK-700 Embedded System Figure 3-24: RJ-45 RS-232 Serial Port Pinout Location Description Description Table 3-7: RJ-45 RS-232 Serial Port Pinouts Figure 3-25: DB-9 Connector Pinout Location Description Description Table 3-8: DB-9 Connector Pinouts Page 34...

  • Page 47: Rs-422/485 Serial Ports

    RS-422/485 connectors are shown in Figure 1-2. Insert the RJ-45 connector. Insert the RJ-45 connector on the RJ-45 to DB-9 Step 2: COM port cable to one of the RJ-45 RS-422/485 connectors on the TANK-700. See Figure 3-26. Figure 3-26: RJ-45 RS-422/485 Serial Device Connection Insert the serial connector.

  • Page 48: Figure 3-27: Rj-45 Rs-422/485 Serial Port Pinout Location

    TANK-700 Embedded System Figure 3-27: RJ-45 RS-422/485 Serial Port Pinout Location Description (RS-422) Description (RS-485) TXD422# TXD485# TXD422+ TXD485+ RXD422# RXD422+ Table 3-9: RJ-45 RS-422/485 Serial Port Pinouts Figure 3-28: DB-9 Connector Pinout Location Description (RS-422) Description (RS-485) RXD422+ RXD422#...

  • Page 49: Serial Port Connectors

    TANK-700 Embedded System 3.9.14 RS-232 Serial Port Connectors COM1, COM2, COM3 and COM4 CN Label: DB-9 connectors CN Type: See Figure 1-3 CN Location: See Table 3-11 and Figure 3-30 CN Pinouts: RS-232 serial port devices can be attached to the DB-9 ports on the rear panel.

  • Page 50: Sfp Fiber Connectors

    Table 3-11: Serial Port Pinouts Figure 3-30: Serial Port Pinout Location 3.9.15 SFP Fiber Connectors The TANK-700 has two SFP fiber connectors. The locations of the connectors are shown in Figure 1-3. To install an SFP module, refer to Section 3.6. 3.9.16 USB Connectors...

  • Page 51: Vga Connector

    TANK-700 Embedded System Figure 3-31: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device Step 3: connector into the on-board connector. Description Description DATA- DATA- DATA+ DATA+ GROUND GROUND Table 3-12: USB Port Pinouts 3.9.17 VGA Connector...

  • Page 52: Figure 3-32: Vga Connector

    Insert the VGA connector. Once the connectors are properly aligned with, Step 3: insert the male connector from the VGA screen cable into the female connector on the TANK-700. See Figure 3-32. Figure 3-32: VGA Connector Secure the connector. Secure the DB-15 VGA connector from the VGA...

  • Page 53: Powering On/Off The System

    TANK-700 Embedded System Description Description GREEN BLUE VCC / NC DDC DAT HSYNC VSYNC DDCCLK Table 3-13: VGA Connector Pinouts Powering On/Off the System 3.10 WARNING: Make sure a power supply with the correct input voltage is being fed into the system.

  • Page 54: Redundant Power

    TANK-700 Embedded System 3.11 Redundant Power The TANK-700 is a system that supports redundant power. The redundant power input increases the reliability of the system and prevents data loss and system corruption from sudden power failure. The system can instantly and uninterruptedly switch to the second power input when the main power is unavailable or in low voltage capacity.

  • Page 55: Acc On

    The ACC On mode is designed for vehicle applications. When the TANK-700 is in ACC On mode, the main power input is the Power 1 connector and the backup power is from the Power 2 connector.

  • Page 56: Switch To Backup Power

    TANK-700 Embedded System 3.11.1.2 Switch to Backup Power During operation, system power will switch from Power 1 to Power 2 automatically when the following situations occur: Power 1 < 9V and Power 2 > 10.5V Power 1 > 9V, but the ACC ON signal jumps from high to low Power 1 is unplugged and Power 2 >...

  • Page 57: Acc Off

    Press the Power button for six seconds to turn off the system. 3.11.2 ACC OFF When the TANK-700 is in ACC Off mode, the main power input is the Power 2 connector and the backup power is from the Power 1 connector. 3.11.2.1 Boot-up When both power connectors are connected to a power source with over 9 V, the two power LEDs on the front panel turn on.

  • Page 58: Switch To Backup Power

    TANK-700 Embedded System 3.11.2.2 Switch to Backup Power During operation, system power switches from Power 2 to Power 1 automatically when the following situations occur: Power 2 < 10.5V and Power 1 > 9V Power 2 is unplugged and Power 1 > 9V The following flow diagram shows how the power is switched between Power 2 and Power 1 and their LED statuses.

  • Page 59: Shutdown

    TANK-700 Embedded System 3.11.2.3 Shutdown The system will shutdown in the following situations: Power 2 < 10.5V and Power 1 < 9V Press Power buttons for 6 seconds The following flow diagram shows the system shutdown process and the LED statuses.

  • Page 60: Bios

    TANK-700 Embedded System Chapter BIOS Page 48...

  • Page 61: Introduction

    TANK-700 Embedded System 4.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 4.1.1 Starting Setup The UEFI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 62: Getting Help

    TANK-700 Embedded System Function Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...

  • Page 63: Main

    TANK-700 Embedded System 4.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 64: Advanced

    TANK-700 Embedded System System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 4.3 Advanced Use the Advanced menu (BIOS Menu 2) to configure the CPU and peripheral devices through the following sub-menus:...

  • Page 65: Acpi Settings

    TANK-700 Embedded System 4.3.1 ACPI Settings The ACPI Settings menu (BIOS Menu 3) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system...

  • Page 66: Trusted Computing

    TANK-700 Embedded System 4.3.2 Trusted Computing Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced TPM Configuration...

  • Page 67: Cpu Configuration

    TANK-700 Embedded System 4.3.3 CPU Configuration Use the CPU Configuration menu (BIOS Menu 5) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP and Linux (OS optimized Intel(R) Core(TM) i7-2710QE CPU @ 2.10GHz...

  • Page 68: Sata Configuration

    TANK-700 Embedded System Hyper-threading [Enabled] Use the Hyper-threading function to enable or disable the CPU hyper threading function. Disables the use of hyper threading technology Disabled Enables the use of hyper threading technology Enabled EFAULT Intel Virtualization Technology [Disabled] Use the Intel Virtualization Technology option to enable or disable virtualization on the system.

  • Page 69: Usb Configuration

    TANK-700 Embedded System SATA Controller(s) [Enabled] Use the SATA Controller(s) option to enable or disable the SATA controller. Enables the on-board SATA controller. Enabled EFAULT Disables the on-board SATA controller. Disabled SATA Mode Selection [IDE] Use the SATA Mode Selection option to configure SATA devices as normal IDE devices.
  • Page 70 TANK-700 Embedded System USB2.0 Support [Enabled] Use the USB2.0 Support option to enable or disable USB 2.0 support on the system. USB 2.0 support disabled Disabled USB 2.0 support enabled Enabled EFAULT Legacy USB2.0 Support [Enabled] Use the Legacy USB2.0 Support BIOS option to enable USB mouse and USB keyboard support.

  • Page 71: Second Super Io Configuration

    TANK-700 Embedded System 4.3.6 Second Super IO Configuration Use the F81216 Second Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced...
  • Page 72 TANK-700 Embedded System 4.3.6.1.1 Serial Port 7 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 73 TANK-700 Embedded System Device Mode [Normal] Use the Device Mode option to enable or disable the serial port. Sets the serial port mode to normal. Normal EFAULT Enables serial port RS-422/485 support. RS422/485 4.3.6.1.2 Serial Port 8 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.

  • Page 74: Super Io Configuration

    TANK-700 Embedded System Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ3, 4, 5, 6, 7, 9, 10, 11, 12 IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12 Serial Port I/O port address is 2E8h and the interrupt IO=2E8h;...

  • Page 75: Serial Port N Configuration

    TANK-700 Embedded System 4.3.7.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 11) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Serial Port n Configuration Enable or Disable Serial...
  • Page 76 TANK-700 Embedded System Serial Port I/O port address is 3F8h and the interrupt IO=3F8h; address is IRQ3, 4 IRQ=3, 4 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4 Serial Port I/O port address is 2C0h and the interrupt IO=2C0h;...
  • Page 77 TANK-700 Embedded System Serial Port I/O port address is 2C8h and the interrupt IO=2C8h; address is IRQ3, 4 IRQ=3, 4 4.3.7.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.
  • Page 78 TANK-700 Embedded System 4.3.7.1.4 Serial Port 4 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 79 TANK-700 Embedded System Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. The serial port IO port address and interrupt address Auto EFAULT are automatically detected. Serial Port I/O port address is 2C0h and the interrupt IO=2C0h;...
  • Page 80 TANK-700 Embedded System The serial port IO port address and interrupt address Auto EFAULT are automatically detected. Serial Port I/O port address is 2E0h and the interrupt IO=2E0h; address is IRQ10 IRQ=10 Serial Port I/O port address is 2C0h and the interrupt IO=2C0h;...

  • Page 81: H/W Monitor

    TANK-700 Embedded System 4.3.8 H/W Monitor The H/W Monitor menu (BIOS Menu 12) shows the operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced PC Health Status CPU(Tj) Temperature :+72 C...

  • Page 82: Serial Port Console Redirection

    TANK-700 Embedded System 4.3.9 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 13) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.
  • Page 83 TANK-700 Embedded System Disabled the console redirection function Disabled EFAULT Enabled the console redirection function Enabled Terminal Type [VT100+] Use the Terminal Type option to specify the remote terminal type. The target terminal type is VT100 VT100 The target terminal type is VT100+...

  • Page 84: Iei Feature

    TANK-700 Embedded System 4.3.10 iEi Feature Use the iEi Feature menu (BIOS Menu 14) to configure the iEi features. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function...

  • Page 85: Chipset

    TANK-700 Embedded System 4.4 Chipset Use the Chipset menu (BIOS Menu 15) to access the Northbridge and Southbridge configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 86: Northbridge Configuration

    TANK-700 Embedded System 4.4.1 NorthBridge Configuration Use the NorthBridge Configuration menu (BIOS Menu 16) to configure the Northbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset NorthBridge Configuration Config Graphics Settings. Memory Information Memory Frequency 1333 Mhz...
  • Page 87 TANK-700 Embedded System DVMT Pre-Allocated [64 M] Use the DVMT Pre-Allocated option to specify the amount of system memory that can be used by the Internal Graphics Device. 0 MB of memory used by internal graphics device 32 MB of memory used by internal graphics device...

  • Page 88: Southbridge Configuration

    TANK-700 Embedded System 480 MB of memory used by internal graphics 480 M device 512 MB of memory used by internal graphics 512 M device DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to select the amount of DVMT5.0 total memory used by the Internal Graphics Device.
  • Page 89 TANK-700 Embedded System Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset SouthBridge Configuration Enabled or Disabled USB Controller Auto Power Button Status [ON] USB Controller [Enabled] --------------------- USB 3.0 Controller [Enabled] : Select Screen ↑ ↓: Select Item...
  • Page 90 TANK-700 Embedded System Wake on GbE LAN [Disabled] Use the Wake on GbE LAN option to enable or disable resuming from GbE LAN controller. Disables Resume on GbE LAN option Disabled EFAULT Enables Resume on GbE LAN option Enabled PCIe LAN PXE Boot [Disabled] Use the PCIe LAN PXE Boot option to enable or disable the boot option for the PCIe LAN PXE.

  • Page 91: Me Configuration

    TANK-700 Embedded System Power Saving Function [Disabled] Use the Power Saving Function BIOS option to enable or disable the power saving function. The power saving function is disabled Disabled EFAULT The power saving function is enabled Enabled 4.4.3 ME Configuration Use the ME Configuration menu (BIOS Menu 19) to configure the Intel®...

  • Page 92: Boot

    TANK-700 Embedded System Un-Configure ME [Disabled] Use the Un-Configure ME option to perform ME un-configure without password operation. Disable ME un-configure Disabled EFAULT Enable ME un-configure Enabled 4.5 Boot Use the Boot menu (BIOS Menu 20) to configure system boot options.

  • Page 93: Security

    TANK-700 Embedded System Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad. The Number Lock LED on the keyboard lights up when the Number Lock is engaged.

  • Page 94: Exit

    TANK-700 Embedded System User Password Use the User Password to set or change a user password. 4.7 Exit Use the Exit menu (BIOS Menu 22) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
  • Page 95 TANK-700 Embedded System Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults. Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 96: A One Key Recovery

    TANK-700 Embedded System Appendix One Key Recovery Page 84...

  • Page 97: One Key Recovery Introduction

    TANK-700 Embedded System A.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 98: System Requirement

    TANK-700 Embedded System After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section A.5. NOTE: The initial setup procedures for Linux system are described in Section A.3.

  • Page 99: Supported Operating System

    TANK-700 Embedded System partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows® XPE 776 MB 560 MB Windows® CE 6.0...

  • Page 100: Setup Procedure For Windows

    TANK-700 Embedded System Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch) SuSe 11.2 SuSe 10.3 NOTE: Installing unsupported OS versions may cause the recovery tool to fail. A.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore Windows system, a few setup procedures are required.

  • Page 101: Hardware And Bios Setup

    TANK-700 Embedded System A.2.1 Hardware and BIOS Setup Make sure the system is powered off and unplugged. Step 1: Install a hard drive or SSD in the system. An unformatted and unpartitioned disk Step 2: is recommended. Connect an optical disk drive to the system and insert the recovery CD.

  • Page 102: Figure A-2: Launching The Recovery Tool

    TANK-700 Embedded System Figure A-2: Launching the Recovery Tool The recovery tool setup menu is shown as below. Step 3: Figure A-3: Recovery Tool Setup Menu Press <6> then <Enter>. Step 4: Page 90...

  • Page 103: Figure A-4: Command Mode

    TANK-700 Embedded System Figure A-4: Command Mode The command prompt window appears. Type the following commands (marked Step 5: in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 104: Figure A-5: Partition Creation Commands

    TANK-700 Embedded System Figure A-5: Partition Creation Commands Page 92...

  • Page 105: Install Operating System, Drivers And Applications

    TANK-700 Embedded System NOTE: Use the following commands to check if the partitions were created successfully. Press any key to exit the recovery tool and automatically reboot the system. Step 6: Please continue to the following procedure: Build-up Recovery Partition.

  • Page 106: Build-Up Recovery Partition

    TANK-700 Embedded System A.2.4 Build-up Recovery Partition Put the recover CD in the optical drive. Step 1: Start the system. Step 2: Boot the system from recovery CD. When prompted, press any key to boot Step 3: from the recovery CD. It will take a while to launch the recovery tool. Please be...

  • Page 107: Figure A-8: Building The Recovery Partition

    TANK-700 Embedded System The Symantec Ghost window appears and starts configuring the system to build Step 5: a recovery partition. In this process the partition created for recovery files in Section A.2.2 is hidden and the recovery tool is saved in this partition.

  • Page 108: Create Factory Default Image

    TANK-700 Embedded System A.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 109: Figure A-12: About Symantec Ghost Window

    TANK-700 Embedded System Figure A-12: About Symantec Ghost Window Use mouse to navigate to the option shown below ( Step 4: F igure A-13). Figure A-13: Symantec Ghost Path Select the local source drive (Drive 1) as shown in F igure A-14. Then click OK.

  • Page 110: Figure A-14: Select A Local Source Drive

    TANK-700 Embedded System Figure A-14: Select a Local Source Drive Select a source partition (Part 1) from basic drive as shown in Step 6: F igure A-15. Then click OK. Figure A-15: Select a Source Partition from Basic Drive Select 1.2: [Recovery] NTFS drive and enter a file name called Step 7: F igure A-16).

  • Page 111: Figure A-16: File Name To Copy Image To

    TANK-700 Embedded System Figure A-16: File Name to Copy Image to When the Compress Image screen in F igure A-17 prompts, click High to make Step 8: the image file smaller. Figure A-17: Compress Image Page 99...

  • Page 112: Figure A-18: Image Creation Confirmation

    TANK-700 Embedded System The Proceed with partition image creation window appears, click Yes to Step 9: continue. Figure A-18: Image Creation Confirmation The Symantec Ghost starts to create the factory default image ( Step 10: F igure A-19). Figure A-19: Image Creation Process...

  • Page 113: Auto Recovery Setup Procedure

    TANK-700 Embedded System The recovery tool main menu window is shown as below. Press any key to Step 12: reboot the system. S t e p 0 : Figure A-21: Press Any Key to Continue A.3 Auto Recovery Setup Procedure...

  • Page 114: Figure A-22: Auto Recovery Utility

    TANK-700 Embedded System Figure A-22: Auto Recovery Utility Reboot the system from the recovery CD. When prompted, press any key to Step 3: boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure A-23: Launching the Recovery Tool When the recovery tool setup menu appears, press <4>...

  • Page 115: Figure A-25: Building The Auto Recovery Partition

    TANK-700 Embedded System The Symantec Ghost window appears and starts configuring the system to build Step 5: an auto recovery partition. In this process the partition created for recovery files in Section A.2.2 is hidden and the auto recovery tool is saved in this partition.

  • Page 116: Figure A-27: Image Creation Complete

    TANK-700 Embedded System The Symantec Ghost starts to create the factory default image (Figure A-27). Step 7: Figure A-27: Image Creation Complete After completing the system configuration, press any key in the following window Step 8: to restart the system.

  • Page 117: Setup Procedure For Linux

    TANK-700 Embedded System BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Auto Recovery Function [Enabled] Recover from PXE [Disabled] Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc.

  • Page 118: Figure A-29: Partitions For Linux

    TANK-700 Embedded System Install Linux operating system. Make sure to install GRUB (v0.97 or earlier) Step 2: MBR type and Ext3 partition type. Leave enough space on the hard drive to create the recover partition later. NOTE: If the Linux OS is not installed with GRUB (v0.97 or earlier) and Ext3, the Symantec Ghost may not function properly.

  • Page 119: Figure A-30: Manual Recovery Environment For Linux

    TANK-700 Embedded System DISKPART>create part pri size= DISKPART>assign letter=N DISKPART>exit system32>format N: /fs:ntfs /q /v:Recovery /y system32>exit Build-up recovery partition. Press any key to boot from the recovery CD. It will Step 4: take a while to launch the recovery tool. Please be patient. When the recovery tool setup menu appears, type <3>...

  • Page 120: Figure A-31: Access Menu.lst In Linux (Text Mode)

    TANK-700 Embedded System Figure A-31: Access menu.lst in Linux (Text Mode) Modify the menu.lst as shown below. Step 6: The recovery tool menu appears. ( Step 7: F igure A-32) Figure A-32: Recovery Tool Menu Create a factory default image. Follow...

  • Page 121: Recovery Tool Functions

    TANK-700 Embedded System A.5 Recovery Tool Functions After completing the initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. However, if the setup procedure in Section A.3 has been completed and the auto recovery function is enabled, the system will automatically restore from the factory default image without pressing the F3 key.

  • Page 122: Factory Restore

    TANK-700 Embedded System WARNING: All data in the system will be deleted during the system recovery. Please backup the system files before restoring the system (either Factory Restore or Restore Backup). A.5.1 Factory Restore To restore the factory default image, please follow the steps below.

  • Page 123: Backup System

    TANK-700 Embedded System Figure A-35: Recovery Complete Window A.5.2 Backup System To backup the system, please follow the steps below. Type <2> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to backup the system. A Step 2: backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 124: Restore Your Last Backup

    TANK-700 Embedded System Figure A-37: System Backup Complete Window A.5.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Type <3> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears and starts to restore the last backup Step 2: image (iei_user.GHO).

  • Page 125: Manual

    TANK-700 Embedded System Figure A-39: Restore System Backup Complete Window A.5.4 Manual To restore the last system backup, please follow the steps below. Type <4> and press <Enter> in the main menu. Step 1: The Symantec Ghost window appears. Use the Ghost program to backup or Step 2: recover the system manually.

  • Page 126: Restore Systems From A Linux Server Through Lan

    TANK-700 Embedded System A.6 Restore Systems from a Linux Server through LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 127: Configure Dhcp Server Settings

    TANK-700 Embedded System A.6.1 Configure DHCP Server Settings Install the DHCP Step 1: #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Confirm the operating system default settings: dhcpd.conf. Step 2: CentOS Use the following command to show the DHCP server sample location: #vi /etc/dhcpd.conf...

  • Page 128: Configure Tftp Settings

    TANK-700 Embedded System filename “pxelinux.0”; A.6.2 Configure TFTP Settings Install the tftp, httpd and syslinux. Step 1: #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) Enable the TFTP server by editing the “/etc/xinetd.d/tftp” file and make it use the Step 2: remap file.

  • Page 129: Configure One Key Recovery Server Settings

    TANK-700 Embedded System Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp A.6.3 Configure One Key Recovery Server Settings Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key...

  • Page 130: Start The Dhcp, Tftp And Http

    TANK-700 Embedded System A.6.4 Start the DHCP, TFTP and HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart A.6.5 Create Shared Directory Install the samba.

  • Page 131: Setup A Client System For Auto Recovery

    TANK-700 Embedded System Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 Edit “/etc/samba/smb.conf” for your environment. For example: Step 4: Modify the hostname...
  • Page 132 TANK-700 Embedded System Continue to configure the Boot Option Priorities BIOS option of the client Step 2: system: Boot Option #1 remain the default setting to boot from the original OS. Boot Option #2 select the boot from LAN option.
  • Page 133 TANK-700 Embedded System NOTE: A firewall or a SELinux is not in use in the whole setup process. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. Page 121...

  • Page 134: Other Information

    TANK-700 Embedded System A.7 Other Information A.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 135 TANK-700 Embedded System When the following window appears, press <S> to select “Specify Additional Step 5: Device”. In the following window, select a SATA controller mode used in the system. Then Step 6: press <Enter>. The user can now start using the SATA HDD.

  • Page 136: System Memory Requirement

    TANK-700 Embedded System After pressing <Enter>, the system will get into the recovery tool setup menu. Step 7: Continue to follow the setup procedure from in Section A.2.2 Create Step 4 Partitions to finish the whole setup process. S t e p 0 : A.7.2 System Memory Requirement...

  • Page 137: B Safety Precautions

    TANK-700 Embedded System Appendix Safety Precautions Page 125...

  • Page 138: Safety Precautions

    TANK-700 Embedded System B.1 Safety Precautions WARNING: The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the TANK-700. Please follow the safety precautions outlined in the sections that follow: B.1.1 General Safety Precautions...

  • Page 139: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the TANK-700. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the TANK-700 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 140: Product Disposal

    When maintaining or cleaning the TANK-700, please follow the guidelines below. B.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the TANK-700, please read the details below. The interior of the TANK-700 does not require cleaning. Keep fluids away from the TANK-700 interior.

  • Page 141: Cleaning Tools

    In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the TANK-700.  C loth – Although paper towels or tissues can be used, a soft, clean piece of cloth is recommended when cleaning the TANK-700.

  • Page 142: C Hazardous Materials Disclosure

    TANK-700 Embedded System Appendix Hazardous Materials Disclosure Page 130...

  • Page 143: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    TANK-700 Embedded System C.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 144 TANK-700 Embedded System Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 145 TANK-700 Embedded System 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
