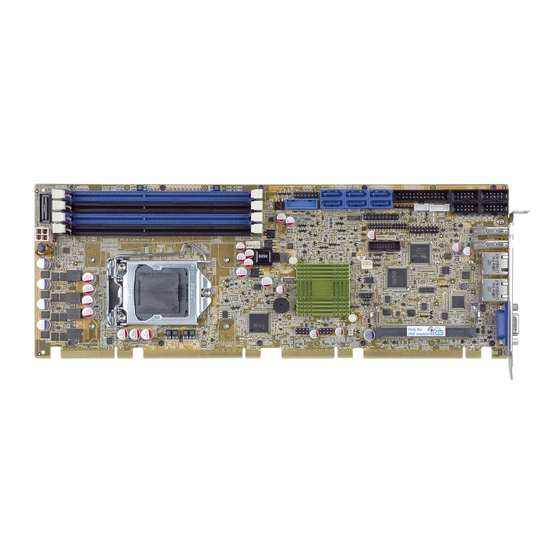

SPCIE-C2260-i2 PICMG 1.3 CPU Card
MODEL:
SPCIE-C2260-i2
Full-Size PICMG 1.3 CPU Card Supports LGA1150 Intel®
Xeon® E3, Core™ i3, Pentium® or Celeron® CPU, Intel® C226
Chipset, DDR3, VGA, iDP, Dual Intel® PCIe GbE, SATA 6Gb/s,
PCIe Mini, mSATA, RS-232, HD Audio, iRIS-2400 and RoHS
User Manual
Page i
Rev. 1.06 – July 9, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPCIE-C2260-i2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology SPCIE-C2260-i2

Summary of Contents for IEI Technology SPCIE-C2260-i2

  • Page 1 SPCIE-C2260-i2 PICMG 1.3 CPU Card MODEL: SPCIE-C2260-i2 Full-Size PICMG 1.3 CPU Card Supports LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® CPU, Intel® C226 Chipset, DDR3, VGA, iDP, Dual Intel® PCIe GbE, SATA 6Gb/s, PCIe Mini, mSATA, RS-232, HD Audio, iRIS-2400 and RoHS...
  • Page 2 SPCIE-C2260-i2 PICMG 1.3 CPU Card Revision Date Version Changes July 9, 2021 1.06 Updated Section 2.3: Packing List Updated Chapter 6: Software Drivers November 13, 2015 1.05 Updated Section 1.6: Technical Specifications Updated Section 2.4: Optional Items Updated Chapter 5: BIOS March 23, 2015 1.04...
  • Page 3 SPCIE-C2260-i2 PICMG 1.3 CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
  • Page 4 SPCIE-C2260-i2 PICMG 1.3 CPU Card Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Table of Contents 1 INTRODUCTION ......................1 1.1 I ......................2 NTRODUCTION 1.2 F ........................3 EATURES 1.3 C ......................4 ONNECTORS 1.4 D ....................... 5 IMENSIONS 1.5 D ........................ 6 1.6 T ..................7...
  • Page 6 SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.11 Internal DisplayPort Connector ..............29 3.2.12 Infrared Interface Connector ................. 30 3.2.13 iRIS Module Slot .................... 31 3.2.14 Keyboard and Mouse Connector ..............32 3.2.15 LAN LED Connectors ..................33 3.2.16 Parallel Port Connector ................34 3.2.17 PCIe Mini Card Slot ..................
  • Page 7 SPCIE-C2260-i2 PICMG 1.3 CPU Card 4.4.1 Airflow ......................60 4.4.2 CPU Card Installation ..................61 4.5 I ............61 NTERNAL ERIPHERAL EVICE ONNECTIONS 4.5.1 Dual RS-232 Cable with Slot Bracket .............. 61 4.5.2 iRIS Module Installation .................. 62 4.5.3 SATA Drive Connection ................... 63 4.5.4 USB Cable (Dual Port) with Slot Bracket ............
  • Page 8 SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.10.1 Smart Fan Mode Configuration .............. 96 5.3.11 Serial Port Console Redirection ..............98 5.3.12 iEi Feature ....................100 5.4 C ......................... 101 HIPSET 5.4.1 PCH-IO Configuration .................. 102 5.4.1.1 PCI Express Configuration ..............104 5.4.1.2 PCH Azalia Configuration ..............
  • Page 9 SPCIE-C2260-i2 PICMG 1.3 CPU Card F.2 F ..................140 EATURES AND ENEFITS F.3 A ® M .......... 140 CCESSING THE NTEL ATRIX TORAGE ANAGER F.4 I RAID A ........141 NSTALLING THE PERATING YSTEM TO THE RRAY G ERROR BEEP CODE ....................142 G.1 PEI B...
  • Page 10 List of Figures Figure 1-1: SPCIE-C2260-i2 ......................2 Figure 1-2: Connectors ........................4 Figure 1-3: SPCIE-C2260-i2 Dimensions (mm) ................5 Figure 1-4: Data Flow Diagram ...................... 6 Figure 3-1: Connectors and Jumpers ..................16 Figure 3-2: ATX Power Connector Pinout Location ..............19 Figure 3-3: Audio Connector Location ..................
  • Page 11 SPCIE-C2260-i2 PICMG 1.3 CPU Card Figure 3-27: USB 3.2 Gen 1 Connector Location ..............44 Figure 3-28: External Peripheral Interface Connector .............. 45 Figure 3-29: Ethernet Connector ....................45 Figure 3-30: VGA Connector ....................... 47 Figure 4-1: Disengage the CPU Socket Load Lever ..............51 Figure 4-2: Remove Protective Cover..................
  • Page 12 SPCIE-C2260-i2 PICMG 1.3 CPU Card List of Tables Table 1-1: SPCIE-C2260-i2 Specifications ................... 9 Table 2-1: Packing List ......................... 12 Table 2-2: Optional Items ......................14 Table 3-1: Peripheral Interface Connectors ................18 Table 3-2: Rear Panel Connectors ....................18 Table 3-3: ATX Power Connector Pinouts .................
  • Page 13 SPCIE-C2260-i2 PICMG 1.3 CPU Card Table 3-28: USB 3.2 Gen 1 Connector Pinouts ................44 Table 3-29: LAN Pinouts ......................45 Table 3-30: Connector LEDs ......................46 Table 3-31: USB 3.2 Gen 1 Port Pinouts ..................46 Table 3-32: VGA Connector Pinouts ................... 47 Table 4-1: AT/ATX Power Mode Switch Settings ...............
  • Page 14 SPCIE-C2260-i2 PICMG 1.3 CPU Card BIOS Menus BIOS Menu 1: Main ........................75 BIOS Menu 2: Advanced ......................77 BIOS Menu 3: ACPI Configuration ....................77 BIOS Menu 4: RTC Wake Settings ....................78 BIOS Menu 5: Trusted Computing ....................80 BIOS Menu 6: CPU Configuration ....................
  • Page 15 SPCIE-C2260-i2 PICMG 1.3 CPU Card BIOS Menu 31: Save & Exit ......................115 BIOS Menu 32: Server Mgmt .....................116 BIOS Menu 33: System Event Log ....................117 BIOS Menu 34: System Event Log ....................119 Page xv...

  • Page 17: Introduction

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Chapter Introduction Page 1...

  • Page 18: Introduction

    1.1 Introduction Figure 1-1: SPCIE-C2260-i2 The SPCIE-C2260-i2 is a PICMG 1.3 CPU card. It accepts a Socket LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor and supports four 240-pin 1600/1333 MHz dual-channel DDR3 DIMM modules up to 32 GB.

  • Page 19: Features

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 1.2 Features Some of the SPCIE-C2260-i2 motherboard features are listed below:  PICMG 1.3 full-size solution  LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported  Intel® C226 chipset  Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB ...

  • Page 20: Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 1.3 Connectors The connectors on the SPCIE-C2260-i2 are shown in the figure below. Figure 1-2: Connectors Page 4...

  • Page 21: Dimensions

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 1.4 Dimensions The main dimensions of the SPCIE-C2260-i2 are shown in the diagram below. Figure 1-3: SPCIE-C2260-i2 Dimensions (mm) Page 5...

  • Page 22: Data Flow

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 1.5 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 23: Technical Specifications

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 1.6 Technical Specifications The SPCIE-C2260-i2 technical specifications are listed below. Specification/Model SPCIE-C2260-i2 Form Factor PICMG 1.3 CPU Supported LGA1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® CPU Chipset Intel® C226 Four 240-pin 1600/1333 MHz dual-channel ECC/non-ECC unbuffered Memory DDR3/DDR3L SDRAM DIMMs support (system max.
  • Page 24 SPCIE-C2260-i2 PICMG 1.3 CPU Card I/O Interface Connectors One internal audio connector (10-pin header) Audio Connector Chassis Intrusion One 2-pin header Digital I/O 8-bit digital I/O One VGA (up to 1920 x 1200, 60 Hz) Display Output One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to...

  • Page 25: Table 1-1: Spcie-C2260-I2 Specifications

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A (3.4 GHz Intel® E3-1240 v3 CPU with four 4 GB Power Consumption 1333 MHz DDR3 memory) Operating -20ºC ~ 60ºC Temperature Storage Temperature -30ºC ~ 70ºC Humidity 5% ~ 95% (non-condensing)

  • Page 26: Packing List

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Chapter Packing List Page 10...

  • Page 27: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the SPCIE-C2260-i2 is unpacked, please do the following:  Follow the anti-static guidelines above.

  • Page 28: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the SPCIE-C2260-i2 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.

  • Page 29: Optional Items

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image iRIS-2400 module, IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM socket interface (P/N: iRIS-2400-R10)

  • Page 30: Table 2-2: Optional Items

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Item and Part Number Image DisplayPort to VGA converter board for IEI IDP connector (P/N: DP-VGA-R10) DisplayPort to DVI-D converter board for IEI IDP connector (P/N: DP-DVI-R10) DisplayPort to DisplayPort converter board for IEI iDP...

  • Page 31: Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Chapter Connectors Page 15...

  • Page 32: Peripheral Interface Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.1 Peripheral Interface Connectors This chapter details all the peripheral interface connectors. 3.1.1 SPCIE-C2260-i2 Layout The figures below show all the peripheral interface connectors. Figure 3-1: Connectors and Jumpers Page 16...

  • Page 33: Peripheral Interface Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label 4-pin Molex power +12V ATX power supply connector CPU12V1 connector Audio kit connector 10-pin header J_AUDIO1 Battery connector...

  • Page 34: External Interface Panel Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Connector Type Label COM1, COM3, Serial port, RS-232 10-pin box header COM4, COM5 Serial port, RS-422/485 4-pin wafer COM2 SMBus connector 4-pin wafer SPI flash connector 8-pin header JSPI1 SPI flash connector, EC 8-pin header...

  • Page 35: Internal Peripheral Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2 Internal Peripheral Connectors The section describes all of the connectors on the SPCIE-C2260-i2. 3.2.1 +12V ATX Power Supply Connector CN Label: CPU12V1 4-pin Molex power connector CN Type: CN Location: See Figure 3-2 CN Pinouts: See Table 3-3 This connector provides power to the CPU.

  • Page 36: Audio Kit Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.2 Audio Kit Connector CN Label: J_AUDIO1 10-pin header CN Type: CN Location: See Figure 3-3 CN Pinouts: See Table 3-4 This connector connects to an external audio kit. Figure 3-3: Audio Connector Location Description...

  • Page 37: Battery Connector

    This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off. NOTE: It is recommended to attach the RTC battery onto the system chassis in which the SPCIE-C2260-i2 is installed. Figure 3-4: Battery Connector Location...

  • Page 38: Chassis Intrusion Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.4 Chassis Intrusion Connector CN Label: CHASSIS1 2-pin header CN Type: CN Location: See Figure 3-5 CN Pinouts: See Table 3-6 The chassis intrusion connector is for a chassis intrusion detection sensor or switch that detects if a chassis component is removed or replaced.

  • Page 39: Ddr3 Dimm Slots

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.5 DDR3 DIMM Slots CN Label: CHA_DIMM1, CHA_DIMM2, CHB_DIMM1, CHB_DIMM2 DDR3 DIMM slot CN Type: CN Location: See Figure 3-6 The DIMM slots are for DDR3 DIMM memory modules. CAUTION: For quad channel configuration, always install four identical memory modules that feature the same capacity, timings, voltage, number of ranks and the same brand.

  • Page 40: Digital I/O Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.6 Digital I/O Connector CN Label: DIO1 10-pin header CN Type: CN Location: See Figure 3-7 CN Pinouts: See Table 3-7 The digital I/O connector provides programmable input and output for external devices. The digital I/O provides 4-bit output and 4-bit input.

  • Page 41: Ec Debug Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.7 EC Debug Connector CN Label: 18-pin header CN Type: CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The EC debug connector is used for EC debug. Figure 3-8: EC Debug Connector Location...

  • Page 42: Fan Connector (Cpu)

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.8 Fan Connector (CPU) CN Label: CPU_FAN1 4-pin wafer CN Type: CN Location: See Figure 3-9 CN Pinouts: See Table 3-9 The fan connector attaches to a CPU cooling fan. Figure 3-9: CPU Fan Connector Location...

  • Page 43: Fan Connector (System)

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.9 Fan Connector (System) CN Label: SYS_FAN1 3-pin wafer CN Type: CN Location: See Figure 3-10 CN Pinouts: See Table 3-10 The fan connector attaches to a system cooling fan. Figure 3-10: System Fan Connector Location...

  • Page 44: Front Panel Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.10 Front Panel Connector CN Label: F_PANEL1 14-pin header CN Type: CN Location: See Figure 3-11 CN Pinouts: See Table 3-11 The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.

  • Page 45: Internal Displayport Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.11 Internal DisplayPort Connector CN Label: 19-pin box header CN Type: CN Location: See Figure 3-12 CN Pinouts: See Table 3-12 The DisplayPort connector supports HDMI, LVDS, VGA, DVI and DisplayPort graphics interfaces with up to 3840x2160 resolution.

  • Page 46: Infrared Interface Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.12 Infrared Interface Connector CN Label: 5-pin header CN Type: CN Location: See Figure 3-13 CN Pinouts: See Table 3-13 The infrared connector attaches to an infrared receiver for use with remote controls. Figure 3-13: Infrared Connector Location...

  • Page 47: Iris Module Slot

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.13 iRIS Module Slot CN Label: IPMI1 iRIS module slot CN Type: CN Location: See Figure 3-14 The iRIS module slot allows installation of the iRIS-2400 module. Figure 3-14: iRIS Module Slot Location WARNING: The iRIS module slot is designed to install the iRIS-2400 module only.

  • Page 48: Keyboard And Mouse Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.14 Keyboard and Mouse Connector CN Label: KB_MS1 6-pin wafer CN Type: CN Location: See Figure 3-15 CN Pinouts: See Table 3-14 The keyboard and mouse connector connects to a PS/2 Y-cable that can be connected to a PS/2 keyboard and mouse.

  • Page 49: Lan Led Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.15 LAN LED Connectors CN Label: LED_LAN1, LED_LAN2 2-pin header CN Type: CN Location: See Figure 3-16 CN Pinouts: See Table 3-15 and Table 3-16 The LAN LED connectors are used to connect to the LAN LED indicators on the chassis to indicate users the link activities of the two LAN ports.

  • Page 50: Parallel Port Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.16 Parallel Port Connector CN Label: LPT1 26-pin box header CN Type: CN Location: See Figure 3-17 CN Pinouts: See Table 3-17 The parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 51: Pcie Mini Card Slot

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.17 PCIe Mini Card Slot CN Label: PCIe Mini card slot CN Type: CN Location: See Figure 3-18 CN Pinouts: See Table 3-18 The PCIe Mini card slot is for installing a PCIe Mini expansion card.

  • Page 52: Sata 6Gb/S Drive Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Description Description USB_DATA- USB_DATA+ +3.3V +3.3V +3.3V CLINK_CLK CLINK_DATA 1.5V CLINK_RST# MSATA_DET +3.3V Table 3-18: PCIe Mini Card Slot Pinouts 3.2.18 SATA 6Gb/s Drive Connector CN Label: S_ATA1, S_ATA2, S_ATA3, S_ATA4, S_ATA5, S_ATA6 CN Type:...

  • Page 53: Serial Port Connectors, Rs-232

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Description SATA_TX+ SATA_TX- SATA_RX- SATA RX+ Table 3-19: SATA 6Gb/s Drive Connector Pinouts 3.2.19 Serial Port Connectors, RS-232 CN Label: COM1, COM3, COM4, COM5 CN Type: 10-pin box header CN Location: See Figure 3-20 CN Pinouts: See Table 3-20 Each of these connectors provides RS-232 connections.

  • Page 54: Serial Port Connector, Rs-422/485

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Description Description Table 3-20: RS-232 Serial Port Connector Pinouts 3.2.20 Serial Port Connector, RS-422/485 CN Label: COM2 CN Type: 4-pin wafer See Figure 3-21 CN Location: CN Pinouts: See Table 3-21 This connector provides RS-422 or RS-485 communications.

  • Page 55: Smbus Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card RS-422 Pinouts RS-485 Pinouts Table 3-22: DB-9 RS-422/485 Pinouts 3.2.21 SMBus Connector CN Label: CN Type: 4-pin wafer CN Location: See Figure 3-22 CN Pinouts: See Table 3-23 The SMBus (System Management Bus) connector provides low-speed system management communications.

  • Page 56: Spi Flash Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.22 SPI Flash Connector CN Label: JSPI1 8-pin header CN Type: CN Location: See Figure 3-23 CN Pinouts: See Table 3-24 The SPI flash connector is used to flash the SPI ROM. Figure 3-23: SPI Flash Connector Location...

  • Page 57: Spi Flash Connector, Ec

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.23 SPI Flash Connector, EC CN Label: JSPI2 8-pin header CN Type: CN Location: See Figure 3-24 CN Pinouts: See Table 3-25 The SPI flash connector is used to flash the EC ROM. Figure 3-24: SPI EC Flash Connector Location...

  • Page 58: Tpm Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.24 TPM Connector CN Label: TPM1 20-pin header CN Type: CN Location: See Figure 3-25 CN Pinouts: See Table 3-26 The TPM connector connects to a TPM module. Figure 3-25: TPM Connector Location Description Description...

  • Page 59: Usb 2.0 Connectors

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.25 USB 2.0 Connectors CN Label: USB1, USB2 8-pin header CN Type: CN Location: See Figure 3-26 CN Pinouts: See Table 3-27 The USB 2.0 connectors connect to USB 2.0 devices. Each pin header provides two USB 2.0 ports.

  • Page 60: Usb 3.2 Gen 1 (5Gb/S) Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.2.26 USB 3.2 Gen 1 (5Gb/s) Connector CN Label: CN Type: 19-pin box header CN Location: See Figure 3-27 See Table 3-28 CN Pinouts: The USB 3.2 Gen 1 (5Gb/s) connector connects to USB 3.2 Gen 1 devices. This connector provides two USB 3.2 Gen 1 ports.

  • Page 61: External Peripheral Interface Connector Panel

    CN Type: CN Location: See Figure 3-28 CN Pinouts: See Figure 3-29 and Table 3-29 The SPCIE-C2260-i2 is equipped with two built-in RJ-45 Ethernet controllers. Each controller can connect to the LAN through one RJ-45 LAN connector. Description Description MDIA3-...

  • Page 62: Usb 3.2 Gen 1 (5Gb/S) Connectors

    3.3.2 USB 3.2 Gen 1 (5Gb/s) Connectors CN Label: CN5, CN6 CN Type: USB port CN Location: See Figure 3-28 CN Pinouts: See Table 3-31 The SPCIE-C2260-i2 has two external USB 3.2 Gen 1 (5Gb/s) ports. Description Description VBUS STDA_SSRX_N STDA_SSRX_P GND_DRAIN STDA_SSTX_N STDA_SSTX_P Table 3-31: USB 3.2 Gen 1 Port Pinouts...

  • Page 63: Vga Connector

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 3.3.3 VGA Connector CN Label: VGA1 15-pin Female CN Type: CN Location: See Figure 3-28 CN Pinouts: See Figure 3-30 and Table 3-32 The VGA connector connects to a monitor that accepts a standard VGA input.

  • Page 64: Installation

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Chapter Installation Page 48...

  • Page 65: Anti-Static Precautions

    SPCIE-C2260-i2 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the SPCIE-C2260-i2. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the SPCIE-C2260-i2 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 66 Before and during the installation please DO the following:  Read the user manual: The user manual provides a complete description of the SPCIE-C2260-i2 installation instructions and configuration options.  Wear an electrostatic discharge cuff (ESD): Electronic components are easily damaged by ESD.

  • Page 67: Socket Lga1150 Cpu Installation

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 4.2.1 Socket LGA1150 CPU Installation WARNING: CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

  • Page 68: Figure 4-2: Remove Protective Cover

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Figure 4-2: Remove Protective Cover Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 69: Figure 4-3: Insert The Socket Lga1150 Cpu

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are properly aligned, the CPU should slide into the CPU socket smoothly. See Figure 4-3. Figure 4-3: Insert the Socket LGA1150 CPU Step 8: Close the CPU socket.

  • Page 70: Socket Lga1150 Cooling Kit Installation

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power supply to the board. Step 0: 4.2.2 Socket LGA1150 Cooling Kit Installation WARNING: DO NOT attempt to install a push-pin cooling fan.

  • Page 71: Figure 4-5: Cooling Kit Support Bracket

    Secure the cooling kit by fastening the four retention screws of the cooling kit. Step 5: Connect the fan cable. Connect the cooling kit fan cable to the CPU fan connector on the SPCIE-C2260-i2. Carefully route the cable and avoid heat generating chips and fan blades.Step 0:...

  • Page 72: Dimm Installation

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 4.2.3 DIMM Installation To install a DIMM, please follow the steps below and refer to Figure 4-6. CAUTION: For quad channel configuration, always install four identical memory modules that feature the same capacity, timings, voltage, number of ranks and the same brand.

  • Page 73: System Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 4.3 System Configuration The system configuration should be performed before installation. 4.3.1 AT/ATX Power Mode Setting The AT and ATX power mode selection is made through the AT/ATX power mode switch which is shown in Figure 4-7.

  • Page 74: Flash Descriptor Security Override Jumper

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 4.3.3 Flash Descriptor Security Override Jumper The Flash Descriptor Security Override jumper (J_FLASH1) allows to enable or disable the ME firmware update. Refer to Figure 4-9 and Table 4-2 for the jumper location and settings.

  • Page 75: Msata Mode Selection

    Figure 4-10: mSATA Mode Selection Jumper Location 4.3.5 PCIe x16 Interface Setup The SPCIE-C2260-i2 supports one PCIe x16 interface on the backplane. The PCIe x16 interface setup is made through the BIOS menu in “Chipset  PCH-IO Configuration”. Use the PCIEX16 Power BIOS option to configure the PCIe x16 channel mode.

  • Page 76: Usb Power Selection

    The SPCIE-C2260-i2 must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface. In a system with an individual power supply unit, the cooling fan of a power supply can also help generate airflow through the board surface.

  • Page 77: Cpu Card Installation

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 4.4.2 CPU Card Installation To install the CPU card onto the backplane, carefully align the CPU card edge connector with the CPU card socket on the backplane. To do this, please refer to the reference material that came with the backplane.

  • Page 78: Iris Module Installation

    To install the iRIS-2400 module, please follow the steps below and refer to Figure 4-12. Figure 4-12: iRIS Module Installation Step 1: Locate the iRIS module slot. Place the SPCIE-C2260-i2 on an anti-static pad. Step 2: Align the iRIS-2400 module with the iRIS module slot. Align the notch on the module with the notch on the iRIS module slot.

  • Page 79: Sata Drive Connection

    Please refer to Section 4.7 for IPMI setup procedures. 4.5.3 SATA Drive Connection The SPCIE-C2260-i2 is shipped with two SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors. The locations of the SATA drive connectors are shown in Chapter 3.

  • Page 80: Usb Cable (Dual Port) With Slot Bracket

    Step 0: Figure 4-14: SATA Power Drive Connection 4.5.4 USB Cable (Dual Port) with Slot Bracket The SPCIE-C2260-i2 is shipped with a dual port USB 2.0 cable. To connect the USB cable connector, please follow the steps below. Step 1: Locate the connectors.

  • Page 81: Pcie Mini Card Installation

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Step 2: Align the connectors. The cable has two connectors. Correctly align pin 1on each cable connector with pin 1 on the SPCIE-C2260-i2 USB connector. Step 3: Insert the cable connectors. Once the cable connectors are properly aligned with the USB connectors on the SPCIE-C2260-i2, connect the cable connectors to the on-board connectors.

  • Page 82: Figure 4-16: Remove The Retention Screws For The Pcie Mini Card

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Step 2: Remove the retention screws. Remove the two retention screws secured on the motherboard as shown in Figure 4-16. Figure 4-16: Remove the Retention Screws for the PCIe Mini Card Step 3: Insert into the socket at an angle. Line up the notch on the card with the notch on the connector.

  • Page 83: Intel ® Amt Setup Procedure

    ® 4.6 Intel AMT Setup Procedure The SPCIE-C2260-i2 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below. Step 1: Make sure the DIMM socket is installed with one DDR3 memory.

  • Page 84: Ipmi Setup Procedure

    The SPCIE-C2260-i2 features Intelligent Platform Management Interface (IPMI) that helps lower the overall costs of server management by enabling users to maximize IT resources, save time and manage multiple systems. The SPCIE-C2260-i2 supports IPMI 2.0 through the optional iRIS-2400 module. Follow the steps below to setup IPMI.

  • Page 85: Figure 4-19: Iei Iman Web Address

    SPCIE-C2260-i2 PICMG 1.3 CPU Card a. Copy the Ipmitool.exe file to a bootable USB flash drive. b. Insert the USB flash drive to the SPCIE-C2260-i2 c. The SPCIE-C2260-i2 boots from the USB flash drive d. Enter the following command: ipmitool 20 30 02 01 03 00 00 (there is a space between each two-digit number) e.

  • Page 86: Figure 4-20: Iei Iman Web Gui

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Figure 4-20: IEI iMAN Web GUI NOTE: To understand how to use the IEI iMAN Web GUI, please refer to the iRIS-2400 Web GUI user manual which can be obtained from Resource Download Center. The user manual describes each function in detail.

  • Page 87: Bios

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Chapter BIOS Page 71...

  • Page 88: Introduction

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 89: Getting Help

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Function Decrease the numeric value or make changes Page Up Move to the previous page Page Dn Move to the next page Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu --...
  • Page 90 SPCIE-C2260-i2 PICMG 1.3 CPU Card  Security – Sets User and Supervisor Passwords.  Save & Exit – Selects exit options and loads default settings  Server Mgmt – Configures system event log and BMC network parameters The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above.

  • Page 91: Main

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.

  • Page 92: Advanced

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  System Overview The system overview lists a brief summary of the BIOS. The fields in system overview cannot be changed. The items shown in the system overview include:  BIOS Information  Processor Information ...

  • Page 93: Acpi Settings

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Server Mgmt > ACPI Settings System ACPI Parameters > RTC Wake Settings > Trusted Computing > CPU Configuration ---------------------- : Select Screen...

  • Page 94: Rtc Wake Settings

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  ACPI Sleep State [S1 only (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.  Suspend Disabled  The system enters S1(POS) sleep state. The...

  • Page 95: Trusted Computing

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  Wake system with Fixed Time [Disabled] Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event.  Disabled The real time clock (RTC) cannot generate a wake...

  • Page 96: Bios Menu 5: Trusted Computing

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Configuration Enables or Disables BIOS Security Device Support [Disable] support for security device. O.S. will not Current Status Information show Security Device. NO Security Device Found...

  • Page 97: Cpu Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.4 CPU Configuration Use the CPU Configuration menu (BIOS Menu 6) to view detailed CPU specifications or enable the Intel Virtualization Technology. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced CPU Configuration...
  • Page 98 SPCIE-C2260-i2 PICMG 1.3 CPU Card  Active Processor Cores [All] Use the Active Processor Cores BIOS option to enable numbers of cores in the processor package.  Enable all cores in the processor package. EFAULT  Enable one core in the processor package.

  • Page 99: Sata Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.5 SATA Configuration Use the SATA Configuration menu (BIOS Menu 7) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.

  • Page 100: Intel(R) Rapid Start Technology

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.6 Intel(R) Rapid Start Technology Use the Intel(R) Rapid Start Technology (BIOS Menu 8) menu to configure Intel® Rapid Start Technology support. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Intel(R) Rapid Start Technology...

  • Page 101: Amt Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.7 AMT Configuration The AMT Configuration menu (BIOS Menu 9) allows the Intel® AMT options to be configured. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Intel AMT [Enabled] Enable/Disable Intel (R)

  • Page 102: Usb Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 10) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 103: F81866 Super Io Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  Disabled Legacy USB support disabled  Legacy USB support disabled if no USB devices are Auto connected 5.3.9 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 11) to set or change the configurations for the parallel ports and serial ports.

  • Page 104: Serial Port N Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.9.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 12) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Serial Port n Configuration...
  • Page 105 SPCIE-C2260-i2 PICMG 1.3 CPU Card  IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=3, 4 address is IRQ3, 4  Serial Port I/O port address is 2C0h and the interrupt IO=2C0h; address is IRQ3, 4 IRQ=3, 4 ...
  • Page 106 SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.9.1.3 Serial Port 3 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enabled Enable the serial port EFAULT ...
  • Page 107 SPCIE-C2260-i2 PICMG 1.3 CPU Card  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.  Auto The serial port IO port address and interrupt address EFAULT are automatically detected.

  • Page 108: Irda Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  IO=2C0h; Serial Port I/O port address is 2C0h and the interrupt IRQ=11 address is IRQ11  Serial Port I/O port address is 2D0h and the interrupt IO=2D0h; address is IRQ10, 11 IRQ=10, 11 ...
  • Page 109 SPCIE-C2260-i2 PICMG 1.3 CPU Card  Change Settings [Auto] Use the Change Settings option to change the infrared port IO port address and interrupt address.  Auto The infrared port IO port address and interrupt EFAULT address are automatically detected.

  • Page 110: Parallel Port Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.9.3 Parallel Port Configuration Use the Parallel Port Configuration menu (BIOS Menu 14) to configure the parallel port. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Parallel Port Configuration Enable or Disable...

  • Page 111: F81866 H/W Monitor

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  IO=278h; Parallel Port I/O port address is 278h and the IRQ=5, 7 interrupt address is IRQ5, 7  Parallel Port I/O port address is 3BCh and the IO=3BCh; interrupt address is IRQ5, 7 IRQ=5, 7 ...

  • Page 112: Smart Fan Mode Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  PC Health Status The following system parameters and values are shown. The system parameters that are monitored are:  System Temperatures: CPU Temperature System Temperature  Fan Speeds: CPU Fan Speed System Fan Speed ...

  • Page 113: Bios Menu 16: Smart Fan Mode Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Smart Fan Mode Configuration Smart Fan Mode Select CPU_FAN1 Smart Fan Control [Auto Mode] Fan start temperature --------------------- : Select Screen Fan off temperature ↑...

  • Page 114: Serial Port Console Redirection

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.3.11 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 17) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.
  • Page 115 SPCIE-C2260-i2 PICMG 1.3 CPU Card  Terminal Type [ANSI] Use the Terminal Type option to specify the remote terminal type.  The target terminal type is VT100 VT100  The target terminal type is VT100+ VT100+  VT-UTF8 The target terminal type is VT-UTF8 ...

  • Page 116: Iei Feature

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  The parity bit is 0 if the number of ones in the data bits is odd.  The parity bit is always 1. This option does not Mark provide error detection.  Space The parity bit is always 0. This option does not provide error detection.

  • Page 117: Chipset

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  Auto Recovery Function [Disabled] Use the Auto Recovery Function BIOS option to enable or disable the auto recovery function of the IEI One Key Recovery.  Disabled Auto recovery function disabled EFAULT  Auto recovery function enabled Enabled 5.4 Chipset...

  • Page 118: Pch-Io Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.4.1 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 20) to configure the PCH parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Auto Power Button Status [Disabled (ATX)] Select AC power state...
  • Page 119 SPCIE-C2260-i2 PICMG 1.3 CPU Card  PCIEX16 Power [1 x16 PCIE] Use the PCIEX16 Power BIOS option to configure the PCIe x16 channel mode on the backplane.  1 x16 PCIE Sets the PCIe x16 slot as one PCIe x16 EFAULT ...

  • Page 120: Pci Express Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.4.1.1 PCI Express Configuration Use the PCI Express Configuration menu (BIOS Menu 21) to configure the PCI Express slots. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset PCI Express Configuration PCI Express Root Port Settings.

  • Page 121: Pch Azalia Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  PCIe Speed [Gen1] Use this option to select the support type of the PCI Express ports. The following options are available:  Auto Default  Gen1  Gen2  Detect Non-Compliance Device [Enabled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express port.

  • Page 122: Bios Menu 23: Pch Azalia Configuration Menu

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit PCH Azalia Configuration Control Detection of the Azalia device. Azalia (HD Audio) [Enabled] Disabled = Azalia will be...

  • Page 123: System Agent (Sa) Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.4.2 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 24) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset VT-d [Disabled] Check to enable VT-d function on MCH.

  • Page 124: Bios Menu 25: Graphics Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX/PEG/PCI Graphics Primary Display [Auto] device should be Primary DVMT Pre-Allocated [256M] Display Or select SG for DVMT Total Gfx Mem [MAX] Switchable Gfx.

  • Page 125: Bios Menu 26: Lcd Control

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to select DVMT5.0 total graphic memory size used by the internal graphic device. The following options are available:  128M  256M ...

  • Page 126: Nb Pcie Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.4.2.2 NB PCIe Configuration Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset NB PCIe Configuration Configure PEG0 B0:D1:F0 PEG0 Not Present Gen1-Gen3 (PCIEX16_1 PEG0 – Gen X [Auto] Slot) Enable PEG [Auto]...

  • Page 127: Memory Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express port.  Disabled Disables to detect if a non-compliance PCI...

  • Page 128: Boot

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.5 Boot Use the Boot menu (BIOS Menu 29) to configure system boot options. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Server Mgmt Boot Configuration...
  • Page 129 SPCIE-C2260-i2 PICMG 1.3 CPU Card  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  OEM Logo displayed instead of POST messages Enabled EFAULT ...

  • Page 130: Security

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.6 Security Use the Security menu (BIOS Menu 30) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Server Mgmt...

  • Page 131: Save & Exit

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.7 Save & Exit Use the Safe & Exit menu (BIOS Menu 31) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.

  • Page 132: Server Mgmt

    SPCIE-C2260-i2 PICMG 1.3 CPU Card  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. 5.8 Server Mgmt Use the Server Mgmt menu (BIOS Menu 32) to configure system event log and BMC network parameters.

  • Page 133: System Event Log

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.8.1 System Event Log Use the System Event Log menu (BIOS Menu 33) to configure system event log options. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Server Mgmt Enabling/Disabling Options Change this to enable or...
  • Page 134 SPCIE-C2260-i2 PICMG 1.3 CPU Card  When SEL is Full [Do Nothing] Use the When SEL is Full option to select an option for reaction to a full SEL.  Do nothing when SEL is full Do Nothing EFAULT ...

  • Page 135: Bmc Network Configuration

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 5.8.2 BMC Network Configuration Use the BMC Network Configuration menu (BIOS Menu 34) to configure BMC network parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Server Mgmt BMC network configuration Select to configure LAN...
  • Page 136 SPCIE-C2260-i2 PICMG 1.3 CPU Card  Dynamic-Obtained by Select configure channel parameters dynamically by BMC  Select configure channel Dynamic-Loaded by parameters dynamically by BIOS BIOS  Dynamic-BMC running Select configure channel parameters dynamically Other Protocol running other protocol Page 120...

  • Page 137: Software Drivers

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Chapter Software Drivers Page 121...

  • Page 138: Available Drivers

    SPCIE-C2260-i2 PICMG 1.3 CPU Card 6.1 Available Drivers All the drivers for the SPCIE-C2260-i2 are available on IEI Resource Download Center (https://download.ieiworld.com). Type SPCIE-C2260-i2 and press Enter to find all the relevant software, utilities, and documentation. Figure 6-1: IEI Resource Download Center 6.2 Driver Download...
  • Page 139 SPCIE-C2260-i2 PICMG 1.3 CPU Card Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or double click an  individual item to find its driver file and click the file name to download (...

  • Page 140: A Regulatory Compliance

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix Regulatory Compliance Page 124...
  • Page 141 SPCIE-C2260-i2 PICMG 1.3 CPU Card DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply.

  • Page 142: B Product Disposal

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix Product Disposal Page 126...
  • Page 143 SPCIE-C2260-i2 PICMG 1.3 CPU Card CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 144: Cbios Options

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix BIOS Options Page 128...
  • Page 145 SPCIE-C2260-i2 PICMG 1.3 CPU Card Below is a list of BIOS configuration options in the BIOS chapter. System Overview ......................... 76 System Date [xx/xx/xx] ......................76 System Time [xx:xx:xx] ....................... 76 ACPI Sleep State [S1 only (CPU Stop Clock)] ..............78 Wake system with Fixed Time [Disabled] ................
  • Page 146 SPCIE-C2260-i2 PICMG 1.3 CPU Card PC Health Status ........................96 CPU_FAN1 Smart Fan Control/SYS_FAN1 Smart Fan Control [Auto Mode] ....97 Fan start/off temperature ....................97 Fan start PWM ........................97 Fan slope PWM ........................97 Console Redirection [Disabled] ..................98 Terminal Type [ANSI] ......................
  • Page 147 SPCIE-C2260-i2 PICMG 1.3 CPU Card Save Changes and Reset ....................115 Discard Changes and Reset .....................115 Restore Defaults ........................115 Save as User Defaults .......................115 Restore User Defaults .......................116 SEL Components [Enabled] ....................117 Erase SEL [No] ........................117 When SEL is Full [Do Nothing] ..................118 Log EFI Status Codes [Both] ....................118...

  • Page 148: D Digital I/O Interface

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix Digital I/O Interface Page 132...

  • Page 149: Introduction

    SPCIE-C2260-i2 PICMG 1.3 CPU Card D.1 Introduction The DIO connector on the SPCIE-C2260-i2 is interfaced to GPIO ports on the Super I/O chipset. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices. Data can be read or written to the selected address to enable the DIO functions.

  • Page 150: Assembly Language Sample

    SPCIE-C2260-i2 PICMG 1.3 CPU Card D.2 Assembly Language Sample 1 AX, 6F08H ;setting the digital port as input AL low byte = value AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O input value D.3 Assembly Language Sample 2...

  • Page 151: E Watchdog Timer

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix Watchdog Timer Page 135...
  • Page 152 SPCIE-C2260-i2 PICMG 1.3 CPU Card NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for other operating systems. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 153 SPCIE-C2260-i2 PICMG 1.3 CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...

  • Page 154: F Intel® Matrix Storage Manager

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix Intel® Matrix Storage Manager Page 138...

  • Page 155: Introduction

    SPCIE-C2260-i2 PICMG 1.3 CPU Card F.1 Introduction The SPCIE-C2260-i2 can provide data protection for serial ATA (SATA) disks via the Intel® Matrix Storage Manager using one of three fault-tolerant RAID levels: RAID 1, 5 or 10. When using two hard drives, matrix RAID allows RAID 0 and RAID 1 functions to be combined, where critical files can be stored on RAID 1, and RAID 0 can be used for non-critical items such as software.

  • Page 156: Features And Benefits

    SPCIE-C2260-i2 PICMG 1.3 CPU Card CAUTION! Do not accidentally disconnect the SATA drive cables. Carefully route the cables within the chassis to avoid system down time. F.2 Features and Benefits  Supports RAID levels 0, 1, 5 and 10 ...

  • Page 157: Installing The Operating System To The Raid Array

    SPCIE-C2260-i2 PICMG 1.3 CPU Card appear during the POST. Refer to the applicable BIOS configuration section in this user manual. Step 4: Save and Exit BIOS. After the SATA support option is enabled, save and exit the BIOS. Step 5: Reboot the system.

  • Page 158: G Error Beep Code

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix Error Beep Code Page 142...

  • Page 159: Pei Beep Codes

    SPCIE-C2260-i2 PICMG 1.3 CPU Card G.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found...

  • Page 160: H Hazardous Materials Disclosure

    SPCIE-C2260-i2 PICMG 1.3 CPU Card Appendix Hazardous Materials Disclosure Page 144...

  • Page 161: Rohs Ii Directive (2015/863/Eu)

    SPCIE-C2260-i2 PICMG 1.3 CPU Card H.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 162: China Rohs

    SPCIE-C2260-i2 PICMG 1.3 CPU Card H.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 146...

Table of Contents
