IEI Technology SPCIE-C2160 Quick Installation Manual

Full-size PICMG 1.3 CPU Card supports LGA1155 Intel®
Xeon® E3 and Intel® Core™ i3/Pentium®/Celeron® CPU
per Intel® C216, DDR3, VGA/DVI-D, Dual Intel® PCIe GbE,
SATA 6Gb/s, mini PCIe, Audio and RoHS

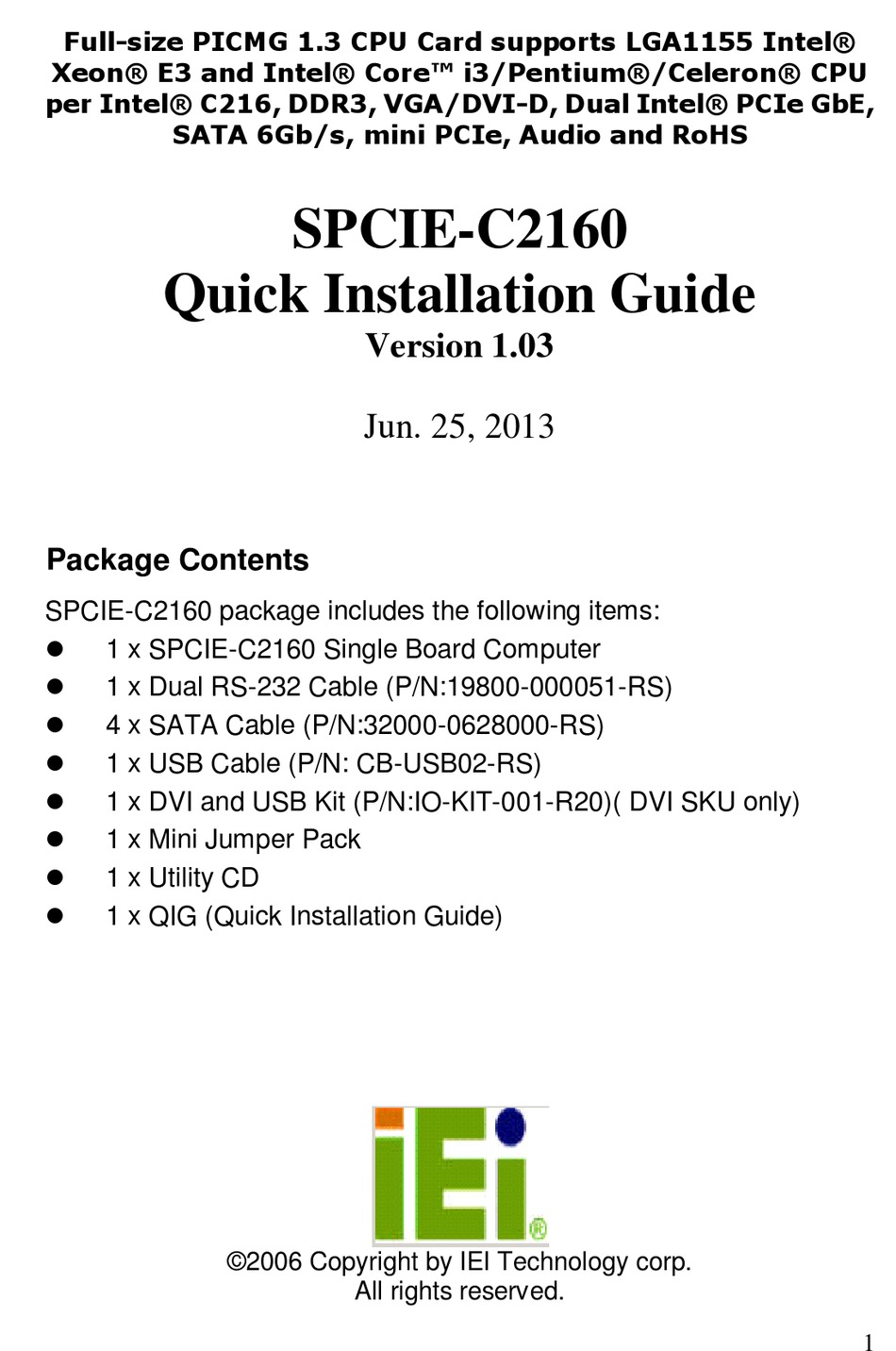

Quick Installation Guide
Package Contents
SPCIE-C2160 package includes the following items:

1 x SPCIE-C2160 Single Board Computer

1 x Dual RS-232 Cable (P/N:19800-000051-RS)

4 x SATA Cable (P/N:32000-0628000-RS)

1 x USB Cable (P/N: CB-USB02-RS)

1 x DVI and USB Kit (P/N:IO-KIT-001-R20)( DVI SKU only)

1 x Mini Jumper Pack

1 x Utility CD

1 x QIG (Quick Installation Guide)
SPCIE-C2160
Version 1.03
Jun. 25, 2013
© 2006 Copyright by IEI Technology corp.
All rights reserved.
1
