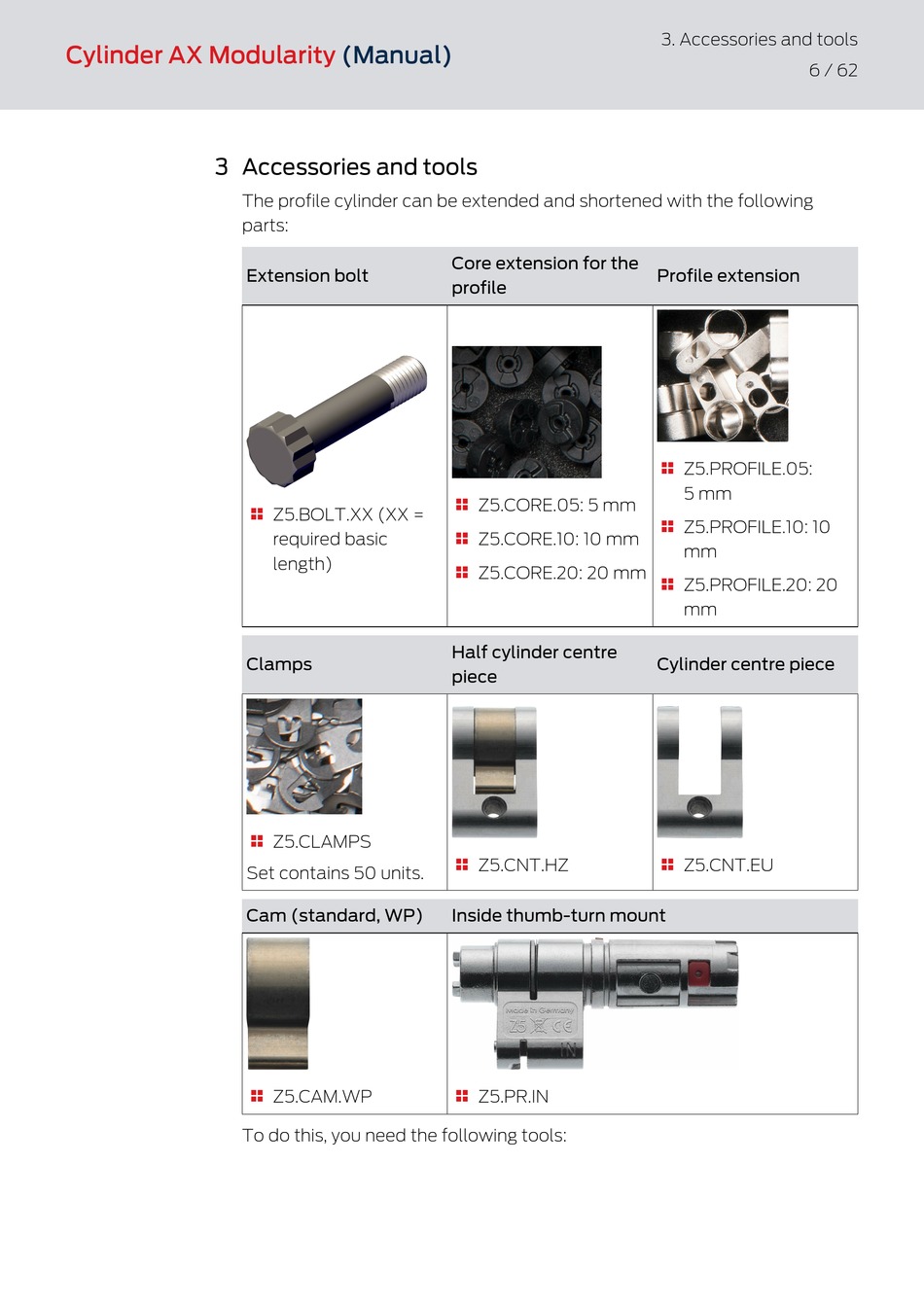

3 Accessories and tools

(Manual)
The profile cylinder can be extended and shortened with the following
parts:
Extension bolt
Z5.BOLT.XX (XX =

required basic
length)
Clamps
Z5.CLAMPS

Set contains 50 units.
Cam (standard, WP)
Z5.CAM.WP

To do this, you need the following tools:
Core extension for the
profile
Z5.CORE.05: 5 mm

Z5.CORE.10: 10 mm

Z5.CORE.20: 20 mm

Half cylinder centre
piece
Z5.CNT.HZ

Inside thumb-turn mount
Z5.PR.IN

3. Accessories and tools
6 / 62
Profile extension
Z5.PROFILE.05:

5 mm
Z5.PROFILE.10: 10

mm
Z5.PROFILE.20: 20

mm
Cylinder centre piece
Z5.CNT.EU

