Cylinder AX Modularity
(Manual)

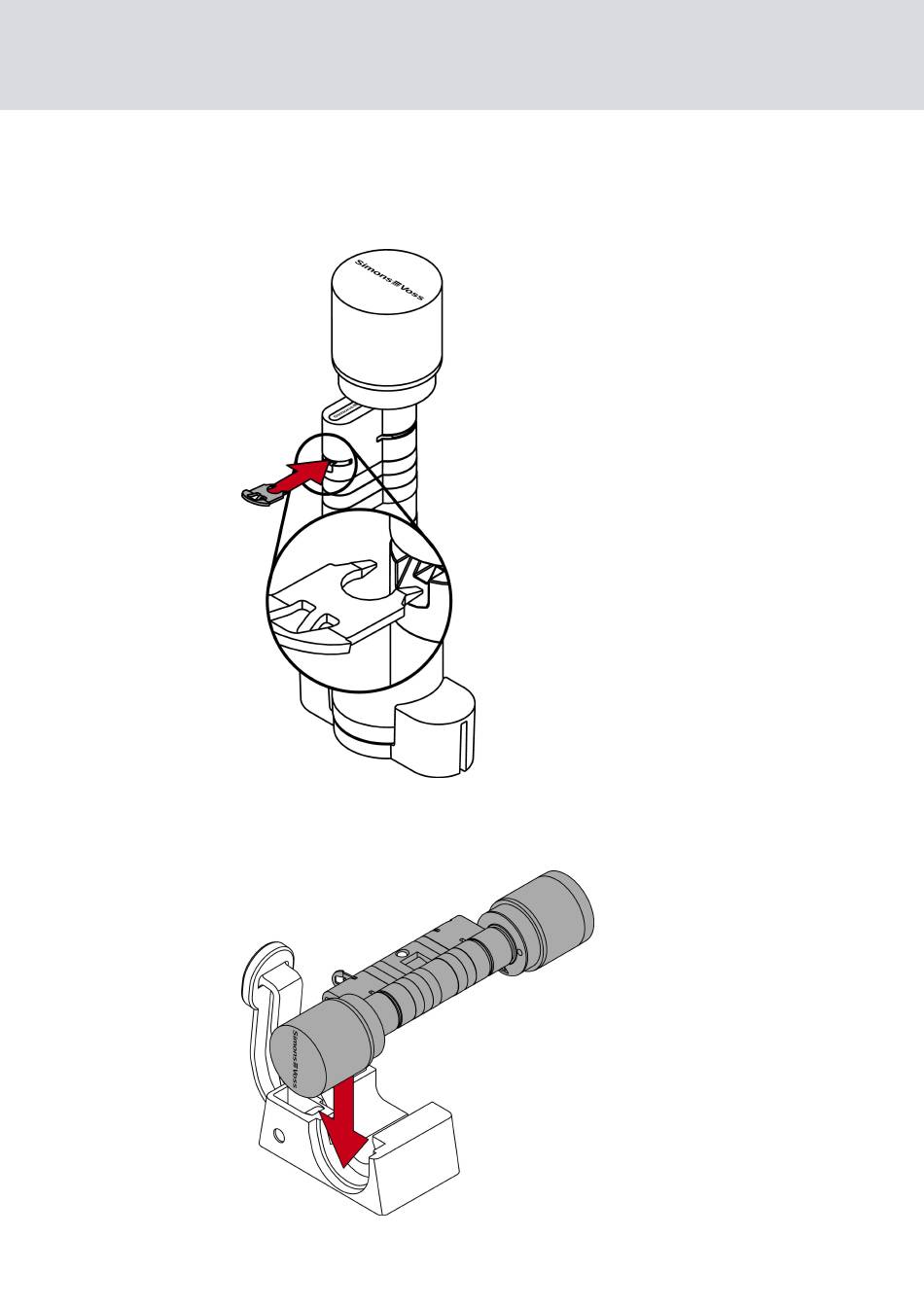

14. Place the clip back into the slot of the profile cylinder with its lug facing
the fastening screw and press the clamp with your thumb so that it can
no longer fall out.
15. Insert the cylinder into the clamping block so that the profile cylinder
and the thumb-turn lie flush in the recesses.
4. Extend Cylinder AX
18 / 62
