5. Shorten Cylinder AX
Cylinder AX Modularity
(Manual)
21 / 62

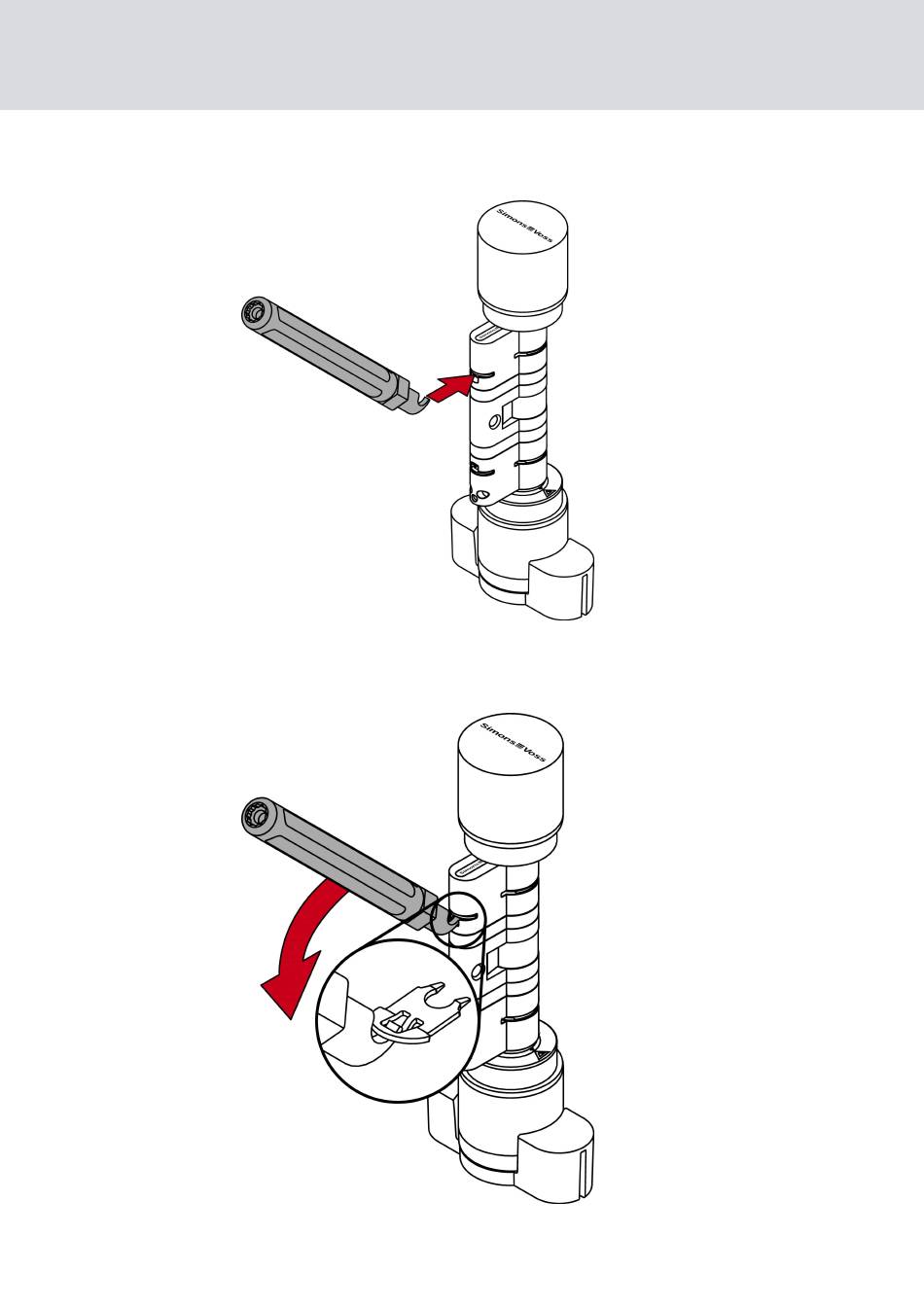

2. Hook the tip of the extractor into the clamp.
3. Lever the clamp out of the profile cylinder by moving the extractor to
the centre of the cylinder.
