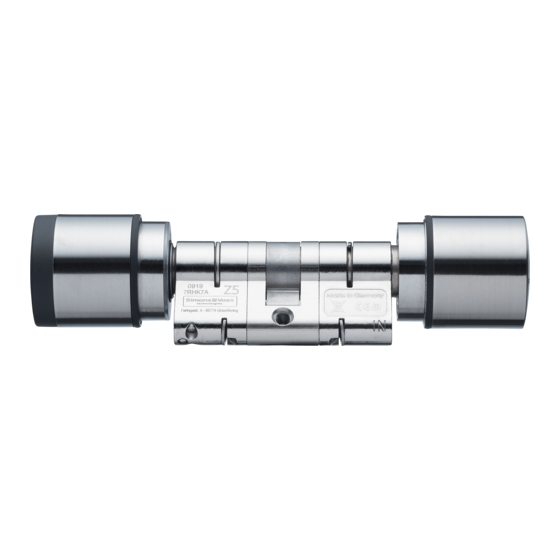

Simons Voss Technologies Cylinder AX Modularity Manual
  1. Manuals
  2. Brands
  3. Simons Voss Technologies Manuals
  4. Locks
  5. Cylinder AX Modularity
  6. Manual

Simons Voss Technologies Cylinder AX Modularity Manual

Hide thumbs Also See for Cylinder AX Modularity:

Advertisement

Quick Links

Download this manual
Cylinder AX
Modularity
Manual
10.11.2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cylinder AX Modularity and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simons Voss Technologies Cylinder AX Modularity

Summary of Contents for Simons Voss Technologies Cylinder AX Modularity

  • Page 1 Cylinder AX Modularity Manual 10.11.2021...

  • Page 2: Table Of Contents

    Contents Cylinder AX Modularity (Manual) 2 / 62 Contents General safety instructions........................ 3 Product-specific safety instructions.................... 5 Accessories and tools.......................... 6 Extend Cylinder AX ............................ 8 Shorten Cylinder AX .......................... 20 Combine CO cylinders to FD......................... 32 Reduce CO cylinders to HZ ........................ 48...

  • Page 3: General Safety Instructions

    1. General safety instructions Cylinder AX Modularity (Manual) 3 / 62 1 General safety instructions Signal word (ANSI Possible immediate effects of non-compliance Z535.6) DANGER Death or serious injury (likely) WARNING Death or serious injury (possible, but unlikely) CAUTION Minor injury...
  • Page 4 1. General safety instructions Cylinder AX Modularity (Manual) 4 / 62 Incorrect installation SimonsVoss Technologies GmbH accepts no liability for damage caused to doors or compon- ents due to incorrect fitting or installation. Modifications or further technical developments cannot be excluded and may be implemented without notice.

  • Page 5: Product-Specific Safety Instructions

    2. Product-specific safety instructions Cylinder AX Modularity (Manual) 5 / 62 2 Product-specific safety instructions WARNING Malfunction of the anti-panic function due to unauthorised manipulation The length of the Cylinder AX can be modified. If the AP side is removed, the anti-panic unit may be damaged.

  • Page 6: Accessories And Tools

    3. Accessories and tools Cylinder AX Modularity (Manual) 6 / 62 3 Accessories and tools The profile cylinder can be extended and shortened with the following parts: Core extension for the Extension bolt Profile extension profile Z5.PROFILE.05:  5 mm Z5.CORE.05: 5 mm ...
  • Page 7 3. Accessories and tools Cylinder AX Modularity (Manual) 7 / 62 Terminal BLOCK Extractor (Z5.LIFTER) SPACER (Z5.SPACER) (Z5.BLOCK) The Cylinder AX thumb-turn assembly tool is designed so that you can use it as a bracket for the Cylinder AX. Place it with the flat side on a flat surface and place the Cylinder AX with the knob in the assembly tool.

  • Page 8: Extend Cylinder Ax

    4. Extend Cylinder AX Cylinder AX Modularity (Manual) 8 / 62 4 Extend Cylinder AX The core extension and profile extension must be the same length. You also need an extension bolt for the desired length. ü Extractor for releasing the clamp Spacer for aligning the extension bolt ü...
  • Page 9 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 9 / 62 2. Hook the tip of the extractor into the clamp. 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 10 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 10 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 11 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 11 / 62 5. Disassemble the two cylinder halves.
  • Page 12 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 12 / 62 6. Use the extractor to unscrew the extension bolt. 7. Insert suitable core extensions.
  • Page 13 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 13 / 62 8. Attach suitable profile extensions. 9. Place the spacer.
  • Page 14 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 14 / 62 10. Screw in a suitable extension bolt with the extractor until it rests on the spacer. NOTE Length on bolt head You will find a number on the bolt head. This number is the length of the...
  • Page 15 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 15 / 62 11. Reassemble the two cylinder halves. Extension bolt is protected against twisting.
  • Page 16 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 16 / 62 12. Pull the spacer off again.
  • Page 17 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 17 / 62 13. Push the halves together completely.
  • Page 18 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 18 / 62 14. Place the clip back into the slot of the profile cylinder with its lug facing the fastening screw and press the clamp with your thumb so that it can no longer fall out.
  • Page 19 4. Extend Cylinder AX Cylinder AX Modularity (Manual) 19 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate. 16. Push the clamp block lever towards the base plate until the clamp is fully seated in the profile cylinder.

  • Page 20: Shorten Cylinder Ax

    5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 20 / 62 5 Shorten Cylinder AX You need a bolt for the desired length. ü Extractor for releasing the clamp ü Spacer for aligning the bolt Clamp block for pressing in the clamp ü...
  • Page 21 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 21 / 62 2. Hook the tip of the extractor into the clamp. 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 22 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 22 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 23 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 23 / 62 5. Disassemble the two cylinder halves.
  • Page 24 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 24 / 62 6. Unscrew the bolt with the extractor. 7. Remove the profile extension.
  • Page 25 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 25 / 62 8. Remove the core extension. 9. Place the spacer.
  • Page 26 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 26 / 62 10. Screw in a suitable bolt with the extractor until it rests on the spacer. NOTE Length on bolt head You will find a number on the bolt head. This number is the length of the...
  • Page 27 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 27 / 62 11. Reassemble the two cylinder halves. Bolt is protected against twisting.
  • Page 28 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 28 / 62 12. Pull the spacer off again.
  • Page 29 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 29 / 62 13. Push the halves together completely.
  • Page 30 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 30 / 62 14. Refit the clip into the slot of the profile cylinder with the lug facing the fastening screw. 15. Insert the cylinder into the clamping block so that the profile cylinder...
  • Page 31 5. Shorten Cylinder AX Cylinder AX Modularity (Manual) 31 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate. 16. Push the clamp block lever towards the base plate until the clamp is fully seated in the profile cylinder.

  • Page 32: Combine Co Cylinders To Fd

    6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 32 / 62 6 Combine CO cylinders to FD You can assemble a freely rotating AX cylinder from two AX comfort cylinders. Extractor for releasing the clamp ü Spacer for aligning the extension bolt ü...
  • Page 33 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 33 / 62 2. Hook the tip of the extractor into the clamp.
  • Page 34 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 34 / 62 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 35 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 35 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 36 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 36 / 62 5. Disassemble the two cylinder halves. First cylinder half prepared with centre piece and tappet piece.
  • Page 37 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 37 / 62...
  • Page 38 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 38 / 62 6. Place the second comfort cylinder AX in the thumb-turn assembly tool with the electronic thumb-turn facing upwards.
  • Page 39 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 39 / 62 7. Hook the tip of the extractor into the clamp.
  • Page 40 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 40 / 62 8. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 41 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 41 / 62 9. Pull the clamp completely out of the profile cylinder.
  • Page 42 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 42 / 62 10. Disassemble the two cylinder halves. Second cylinder half prepared without centre piece.
  • Page 43 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 43 / 62...
  • Page 44 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 44 / 62 11. Place the first cylinder half on the second cylinder half.
  • Page 45 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 45 / 62 12. Refit the clip into the slot of the profile cylinder with the lug facing the fastening screw. 13. Insert the cylinder into the clamping block so that the profile cylinder...
  • Page 46 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 46 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate. 14. Push the clamp block lever towards the base plate until the clamp is fully seated in the profile cylinder.
  • Page 47 6. Combine CO cylinders to FD Cylinder AX Modularity (Manual) 47 / 62 NOTE Freely rotating active/hybrid Digital Cylinder AX only with shortened range With freely rotating cylinders, the reader knobs may not have sufficient clearance at low cylinder lengths. Due to the range of the active techno- logy, the radio signal can also be unintentionally received by the second reader knob.

  • Page 48: Reduce Co Cylinders To Hz

    7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 48 / 62 7 Reduce CO cylinders to HZ You can use a special centre piece to assemble a half cylinder from an AX comfort cylinder or a freely rotating cylinder.
  • Page 49 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 49 / 62 2. Hook the tip of the extractor into the clamp.
  • Page 50 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 50 / 62 3. Lever the clamp out of the profile cylinder by moving the extractor to the centre of the cylinder.
  • Page 51 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 51 / 62 4. Pull the clamp completely out of the profile cylinder.
  • Page 52 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 52 / 62 5. Disassemble the two cylinder halves. First cylinder half prepared without centre piece.
  • Page 53 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 53 / 62 6. Place the spacer on the half-cylinder centre piece.
  • Page 54 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 54 / 62 7. Screw in a suitable extension bolt with the extractor until it rests on the spacer. 8. Place the prepared cylinder half in the thumb-turn assembly tool.
  • Page 55 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 55 / 62 9. Place the half cylinder centre piece on the prepared cylinder half. Extension bolt is protected against twisting.
  • Page 56 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 56 / 62 10. Pull the spacer off again.
  • Page 57 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 57 / 62 11. Push the cylinder parts together completely.
  • Page 58 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 58 / 62 12. Refit the clip into the slot of the profile cylinder with the lug facing the fastening screw. 13. Insert the cylinder into the clamping block so that the profile cylinder...
  • Page 59 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 59 / 62 The lever of the clamping block is reinforced at one point with a metal plate. The bracket that was previously inserted lies opposite this metal plate. 14. Push the clamp block lever towards the base plate until the clamp is fully seated in the profile cylinder.
  • Page 60 7. Reduce CO cylinders to HZ Cylinder AX Modularity (Manual) 60 / 62...

  • Page 61: Help And Other Information

    8. Help and other information Cylinder AX Modularity (Manual) 61 / 62 8 Help and other information Information material/documents You will find detailed information on operation and configuration and other documents on the website: www.simons-voss.com/en/documents.html Declarations of conformity You will find declarations of conformity and other certificates on the website: www.simons-voss.com/en/certificates.html...
  • Page 62 This is SimonsVoss SimonsVoss, the pioneer in remote-controlled, cable-free locking technology provides system solutions with a wide range of products for SOHOs, SMEs, major companies and public institutions. SimonsVoss locking systems combine intelligent functionality, high quality and award- winning design Made in Germany. As an innovative system provider, SimonsVoss focuses on scalable systems, high security, reliable components, powerful software and simple operation.
