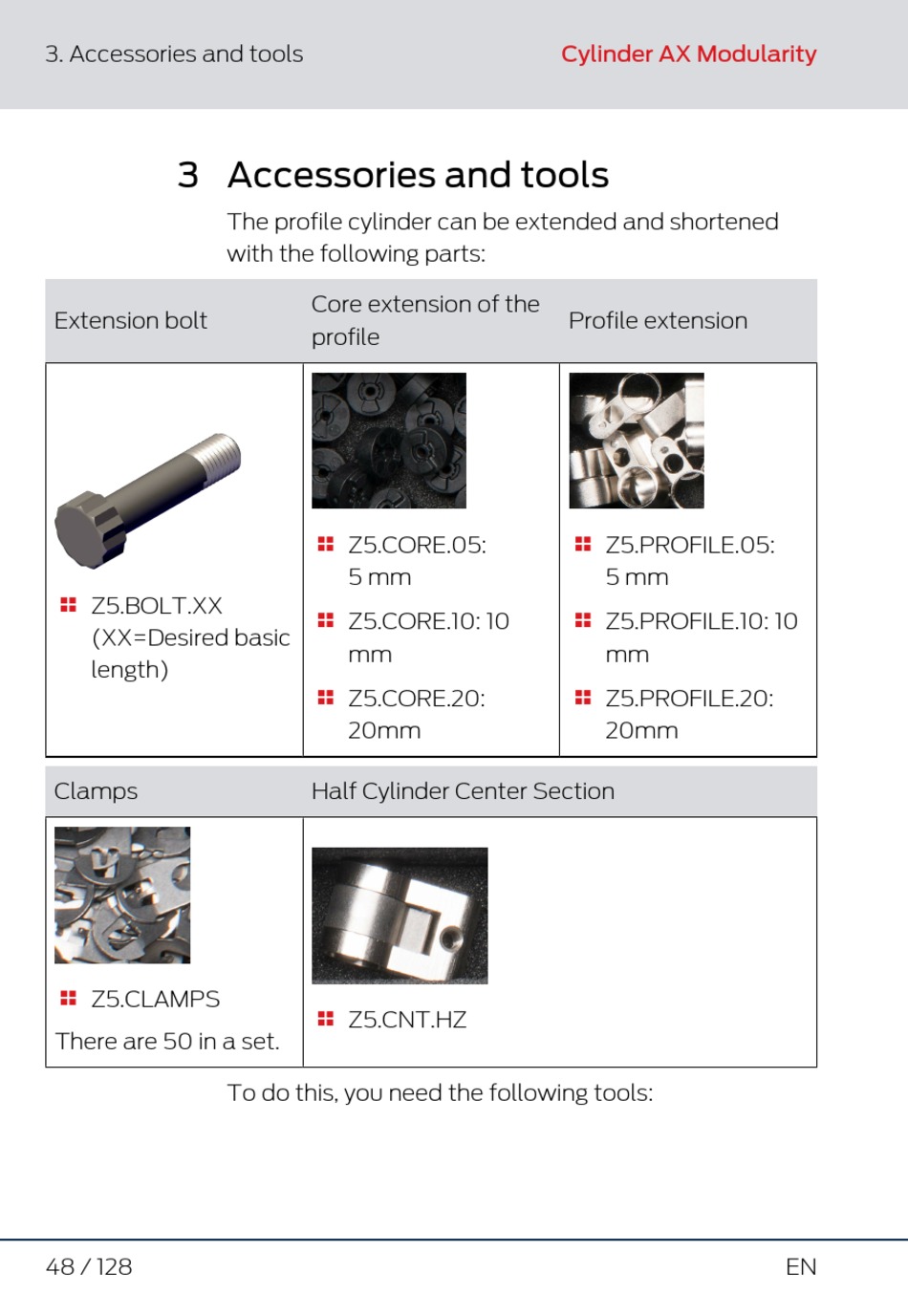

3. Accessories and tools

3 Accessories and tools
Extension bolt
Z5.BOLT.XX

(XX=Desired basic
length)
Clamps
Z5.CLAMPS

There are 50 in a set.
48 / 128
The profile cylinder can be extended and shortened
with the following parts:
Core extension of the
profile
Z5.CORE.05:

5 mm
Z5.CORE.10: 10

mm
Z5.CORE.20:

20mm
Half Cylinder Center Section
Z5.CNT.HZ

To do this, you need the following tools:
Cylinder AX Modularity
Profile extension
Z5.PROFILE.05:

5 mm
Z5.PROFILE.10: 10

mm
Z5.PROFILE.20:

20mm
