Cylinder AX Modularity
(Manual)

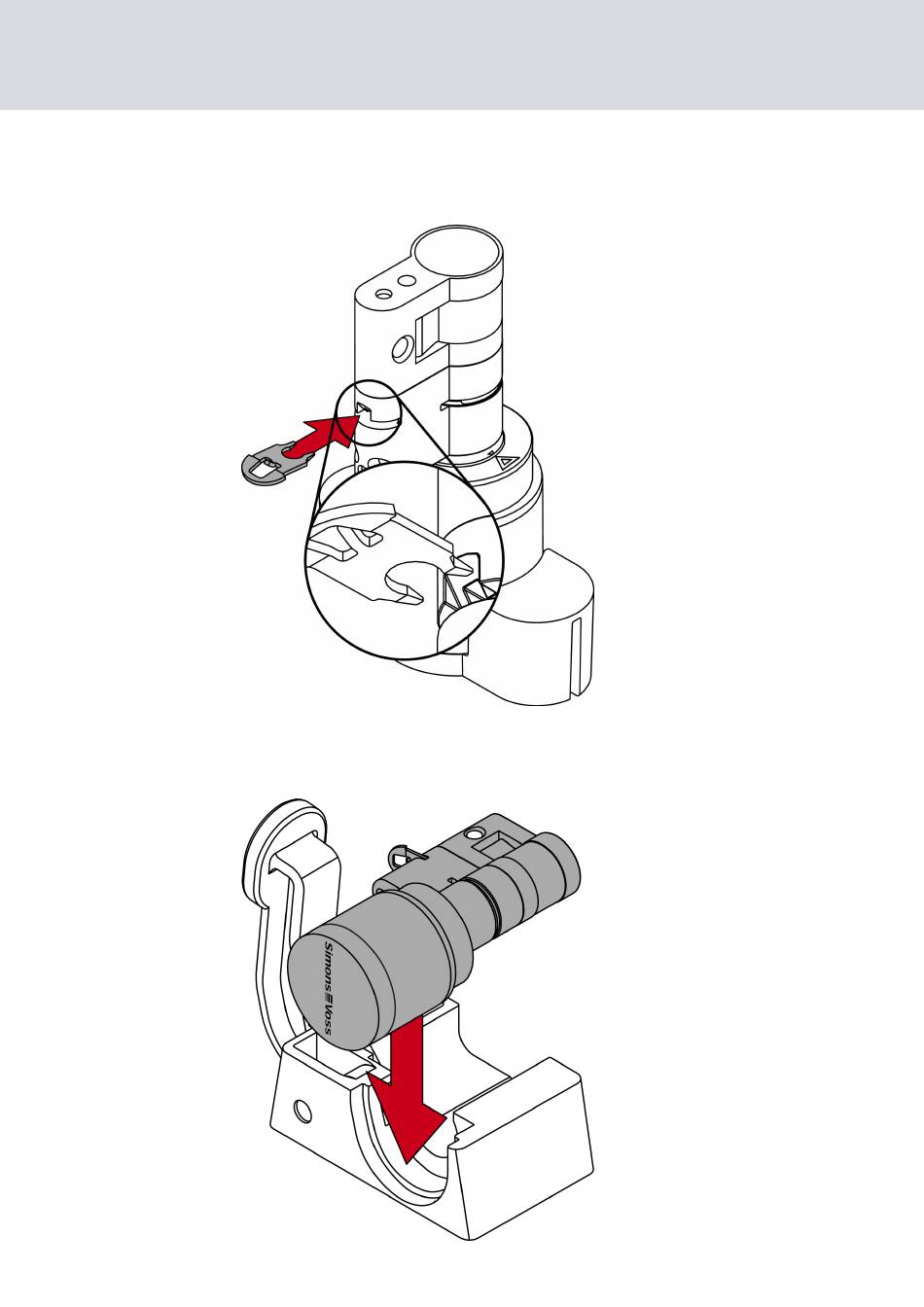

12. Refit the clip into the slot of the profile cylinder with the lug facing the
fastening screw.
13. Insert the cylinder into the clamping block so that the profile cylinder
and the thumb-turn lie flush in the recesses.
7. Reduce CO cylinders to HZ
58 / 62
