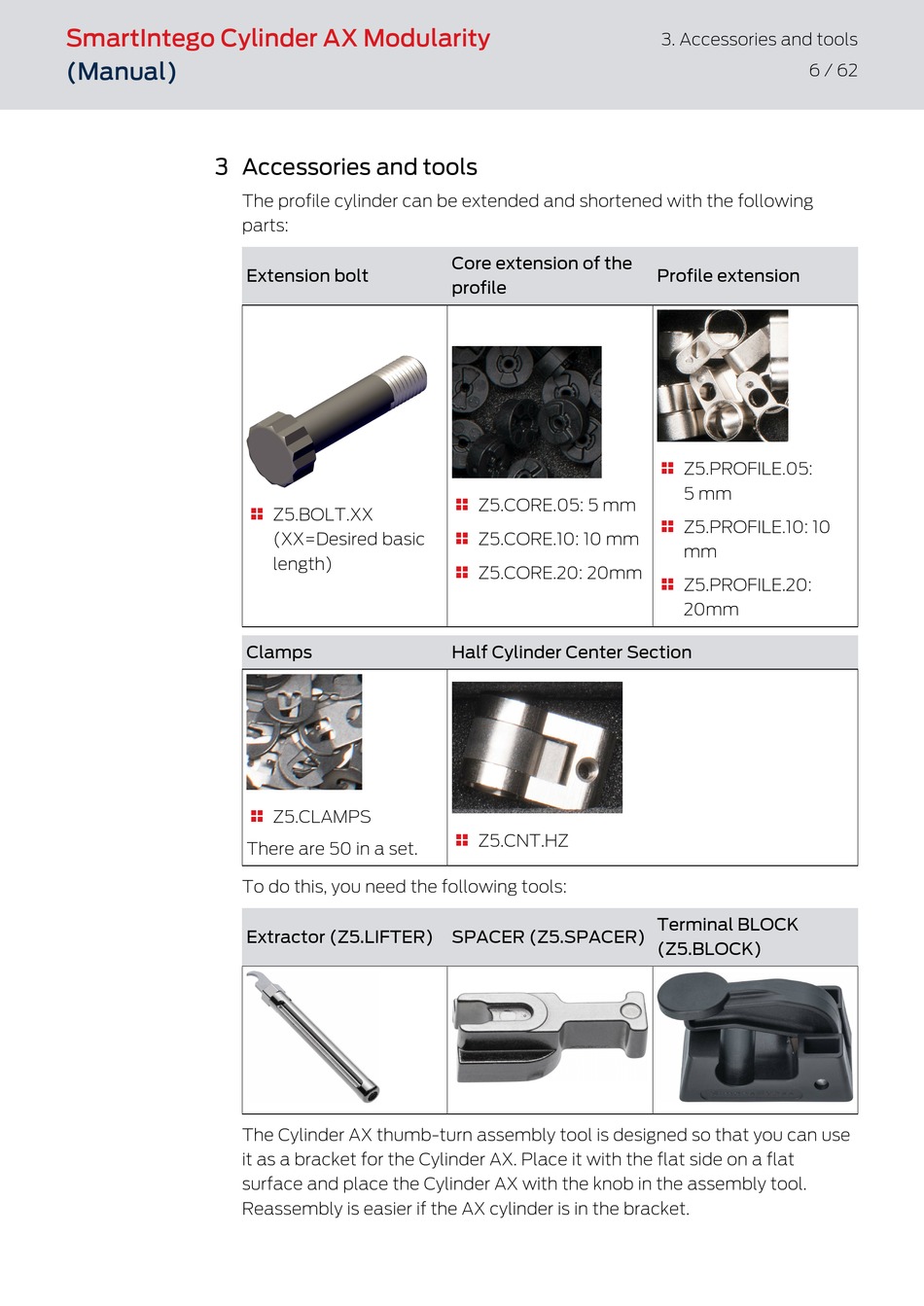

3 Accessories and tools

The profile cylinder can be extended and shortened with the following
parts:
Extension bolt
Z5.BOLT.XX

(XX=Desired basic
length)
Clamps
Z5.CLAMPS

There are 50 in a set.
To do this, you need the following tools:
Extractor (Z5.LIFTER)
The Cylinder AX thumb-turn assembly tool is designed so that you can use
it as a bracket for the Cylinder AX. Place it with the flat side on a flat
surface and place the Cylinder AX with the knob in the assembly tool.
Reassembly is easier if the AX cylinder is in the bracket.
Core extension of the
profile
Z5.CORE.05: 5 mm

Z5.CORE.10: 10 mm

Z5.CORE.20: 20mm

Half Cylinder Center Section
Z5.CNT.HZ

SPACER (Z5.SPACER)
3. Accessories and tools
6 / 62
Profile extension
Z5.PROFILE.05:

5 mm
Z5.PROFILE.10: 10

mm
Z5.PROFILE.20:

20mm
Terminal BLOCK
(Z5.BLOCK)
