Cylinder AX Modularity
5 Shorten Cylinder AX
(Manual)
You need a bolt for the desired length.
ü
Extractor for releasing the clamp
ü
Spacer for aligning the bolt
Clamp block for pressing in the clamp
ü

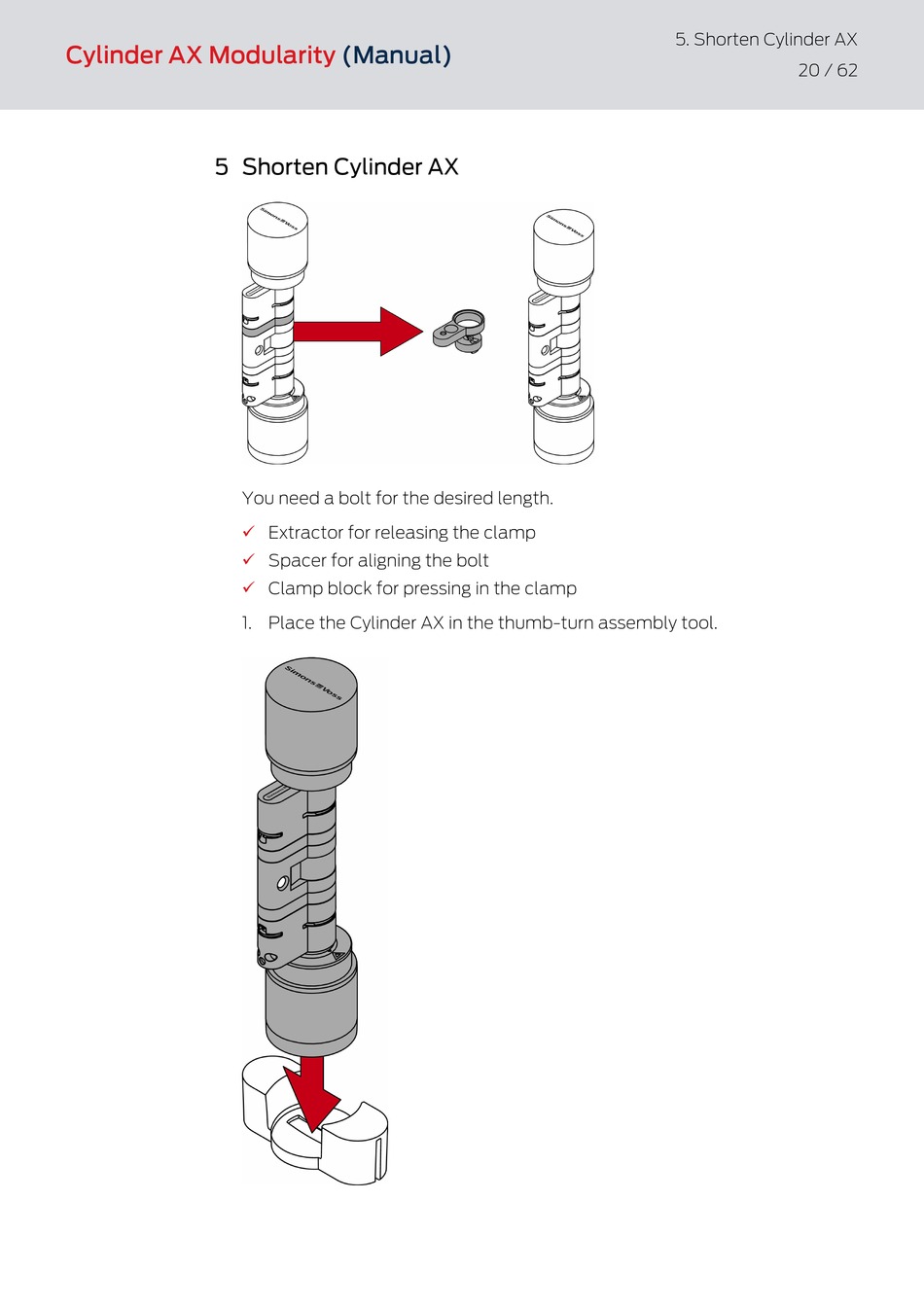

1. Place the Cylinder AX in the thumb-turn assembly tool.
5. Shorten Cylinder AX
20 / 62
