Cylinder AX Modularity

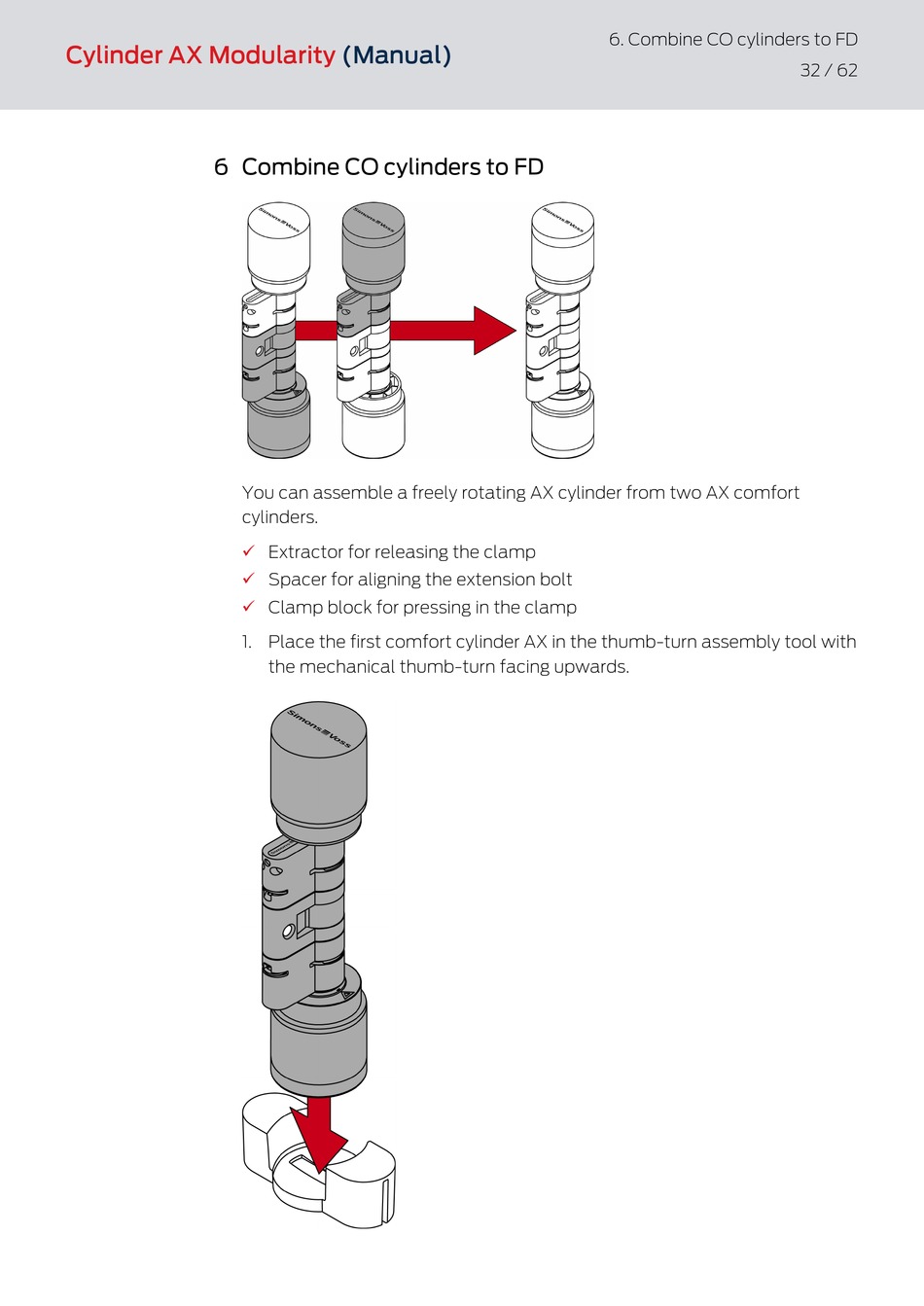

6 Combine CO cylinders to FD

(Manual)
You can assemble a freely rotating AX cylinder from two AX comfort
cylinders.
Extractor for releasing the clamp
ü
Spacer for aligning the extension bolt
ü
ü Clamp block for pressing in the clamp
1. Place the first comfort cylinder AX in the thumb-turn assembly tool with
the mechanical thumb-turn facing upwards.
6. Combine CO cylinders to FD
32 / 62
