6. Combine CO cylinders to FD

6 Combine CO cylinders to FD
66 / 128
9 The lever of the clamping block is reinforced at
one point with a metal plate. The bracket that
was previously inserted lies opposite this metal
plate.

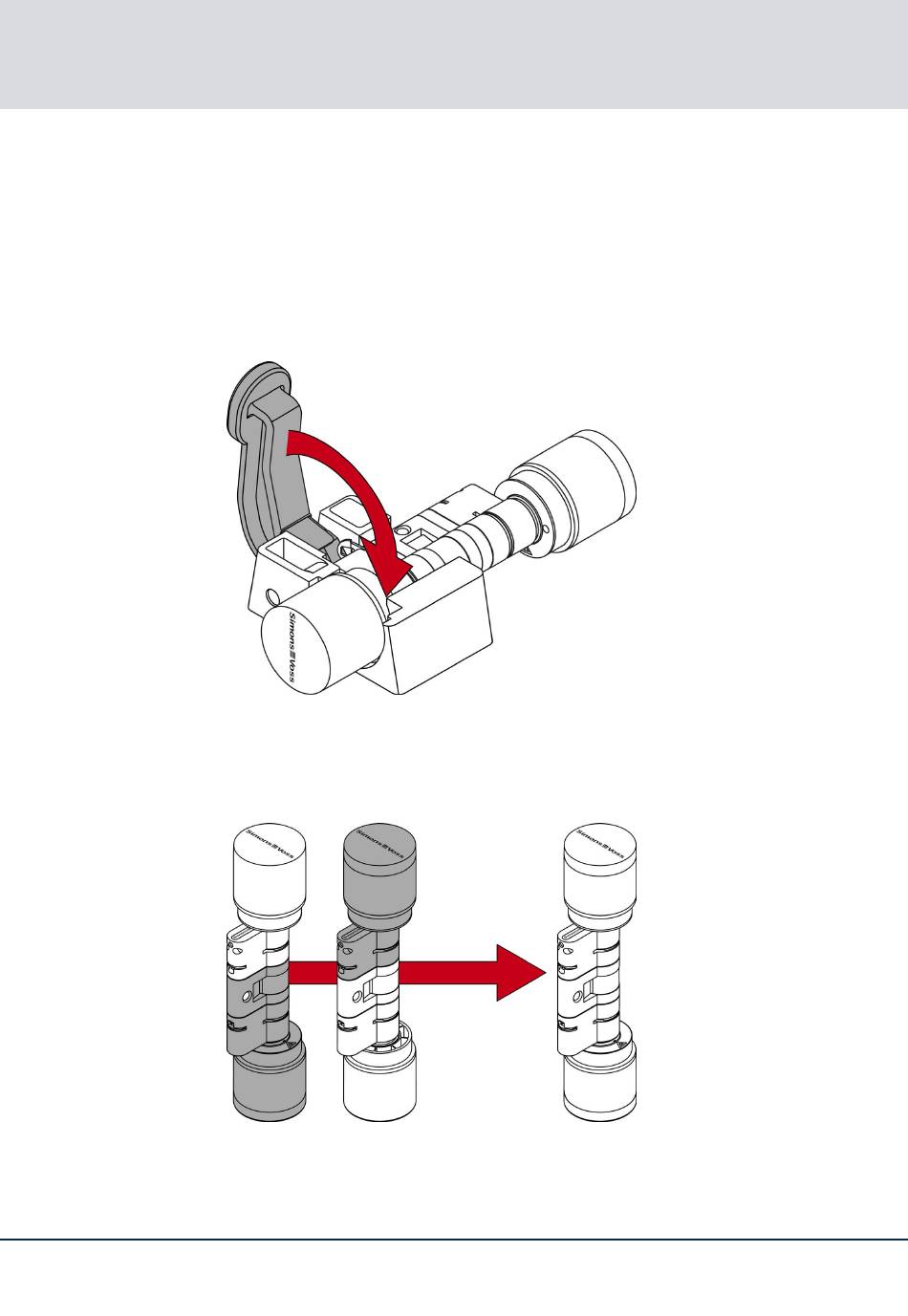

16. Push the clamp block lever towards the base plate
until the clamp is fully seated in the profile cylinder.
Cylinder AX is shortened.
9
You can assemble a freely rotating AX cylinder from
two AX comfort cylinders.
Cylinder AX Modularity
EN
