GRAUPNER HOT TG/mz-12 Operating Instruction

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

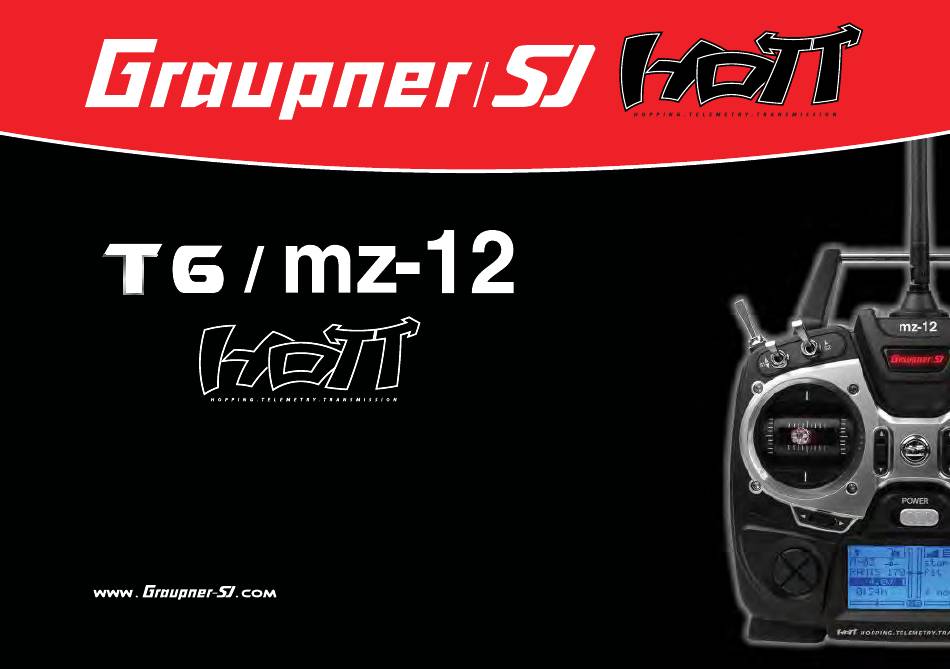

No. S1002
OPERATING INSTRUCTION
Prior to use, please read this manual thoroughly.
Keep this manual in a convenient place for quick and easy reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOT TG/mz-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRAUPNER HOT TG/mz-12

Summary of Contents for GRAUPNER HOT TG/mz-12

  • Page 1 No. S1002 OPERATING INSTRUCTION Prior to use, please read this manual thoroughly. Keep this manual in a convenient place for quick and easy reference.

  • Page 2: Table Of Contents

    Contents 7. Wing mix (AIRCRAFT) • Before Use - Diff aile • Support and Service - Diff flap 31~32P - Customer support - Aile->rudd - Aile->flap - Internet sales site 32~33P - A/S regulation - Brak->elev - Brak->flap - Warranty regulation •...

  • Page 3: Openhobby A/S Center

    Graupner/SJ Service Center. Due to unforeseen incompatible components or augment product in any way without the approval of Graupner/SJ. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow...

  • Page 4: Transmitter Control Identification

    4. TRANSMITTER CONTROL IDENTIFICATION ANTENNA TX HANDEL RF T RAINER SWITC H S4 SWITCH S2 SWITCH DIAL VOLUME S3 SWITCH S1 SWITCH BATTERY COVER NECKSTRAP LUG ELEV/RUDO STICK THRO/AILE STICK ELEV/TRIM THRO TRIM POWER SWITCH RUDD TRIM AILE TRIM ENT, ESC, TEL DIRECTION VIEW BUTTON BUTTON...

  • Page 5: Specification

    5. SPECIFICATION 7. ADJUSTBLE STICK LENGTH The control stick is consisted of 2pc of stick levers and it allows you to adjust the control stick’s Transmitter mz-12 Receiver GR-16 length as you want. Frequency band 2.4~2.4835GHz 2.4~2.4835GHz Modulation FHSS FHSS 1.

  • Page 6: Mode Exchange Of Throttle Stick For Mode 1 And Mode

    9. Mode exchange of throttle stick for Mode 1 and Mode 2 Unscrew the tension spring control bolt in Screw the disassembled bolt from the the elevator gimbal of mode 1 transmitter throttle gimbal of mode 1 transmitter into the Unscrew the transmitter’s rear case and Disassemble the centering cam form elevator gimbal to fix the controller...

  • Page 7: What Is Hott 7P

    The included charger is designed to recharge your batteries at a rate of 150mA. Do not use this charger for equipment other than Graupner/SJ transmitters that use 4-cell battery packs. The charging plug Assemble the transmitter’s rear case and switch to mode 2 from mode 1 at Stick mode page in polarity may not be the same and equipment damage can result.

  • Page 8: Binding

    press 12. BINDING You must bind the receiver to the transmitter before the receiver will operate. Binding teaches the receiver the specific code of the transmitter so that it will only connect to it’s correspond- ing transmitter. 1. With the transmitter on and the home screen displayed, press the ENT button. press 4.
  • Page 9 press press press press press - Select model In the home screen, press the ENT button then the model mem is highlighted. Press the ENT button to access the function. press - Model name When the model mem is highlighted, press the ENT button then the cursor is on the select model line.
  • Page 10 press - Clear model When the model mem is highlighted, press the ENT button then the cursor is on the select model line. Press the direction button to select the clear model line then press the ENT button to access to the function.
  • Page 11 - Copy mod->mod The model mem is highlighted in the menu screen then press the ENT button. The cursor is on the select model line. Press the direction button to select the copy mod ->mod line then press the ENT button to access to the function.
  • Page 12 - Motor at C1 no With the transmitter and the home screen displayed, press the ENT button. Press the direction but- It creates the air brakes using aile/flap. When the C1 (The throttle channel) is moved, 1~3 air brakes ton to highlight the m.type quick then press the ENT button to access. The model type is selected that the user programmed is created.
  • Page 13 - Motor at C1 idel fr press The idle position of the throttle stick (C1) is forward, away from the user, if the throttle stick is not there, the throttle warning message “Throttle too high” appears and the cut off option is activated. Press the direction button to select the value,+150%,.

  • Page 14: Motor At C1

    press press press press - Tail type Use the Tail type functions to program the tail mix to match your airplane. 4 tail types (normal, V tail, delt/flw, 2elev sv appear) are available. The correct value should be matched each other since the some value is not match to the others, refer to the below table.

  • Page 15: Quick Link Sett 15~16P

    press press press - Quick link sett The quick link sett function allows to adjust the D/R expo value and assign the corresponding switch to cope with the unexpected situation such as the flight with the strong wind. Since the adjusted value is activated by moving the switch, you can cope with the crisis with just one switch.

  • Page 16: Quick Link Trim 16~17P

    - Quick link trim Use the quick link trim function to program the appropriate trims of the quick 2 and quick 3 in the quick link. The user can program the trim in advance to cope with the unexpected situation such as the flight with the strong wind and match the flight situation of the takeoff , thermal and speed of the glider.
  • Page 17 press press press press press After completing the normal quick link adjustment, press the direction button to select the thermal quick link line. The thermal quick link and speed quick link can be programmed in the same meth- od. If you already set the quick link switch and the switch is ON, the cursor is automatically moved to the corresponding quick link value.

  • Page 18: Rotor Direct 20P

    press 2-1. Model type ( Helicopter ) : 5 functions are available Swashplate Use the swashplate function to set the swahplate type to match your Helicopter model. It supports 6 value (1servo, 2 servo,3sv(2rol),3sv(140),3sv(2nic),4sv(90)) Cut off The cut off function allows to turn off the internal combustion engine or the electric motor. press Rotor direct Use the rotor direct function to set the rotation direction of the main rotor.
  • Page 19 Press the direction button to select +150% in the value. Place the throttle stick at the desired posi- tion and press the ENT button then adjusted value is applied (The adjusted value is activated when the throttle stick is in that position). NOTE : the value of +150% is the throttle stick position where the cut off function is activated.
  • Page 20 - Pitch min Use the pitch min function to reverse the servo direction in all of pitch, elevator, aileron and throttle channels, the default value is rear. Available settings are rear and front. Press the direction button to select the pith min line then press the ENT button to highlight the pitch min value.
  • Page 21 press press press press press press - Quick link sett The quick link sett function allows to adjust the quick2 value and assign the corresponding switch to cope with the unexpected situation such as the flight with the strong wind. Since the adjusted value is activated by moving the switch, you can cope with the crisis with just one switch.

  • Page 22: Servo Sett (Aircraft And Helicopter)

    3. Servo sett ( Aircraft and Helicopter ) The servo sett adjusts the servo reverse, center, travel for all six channels. - Rev : used to reverse the servo direction for all channels. - Cent : used to set the neutral position of the servo. press - Trv : used to increase or decrease the moving angle of the servo travel.
  • Page 23 press press press press press press press press press press press press press...

  • Page 24: Cont Sett (Aircraft And Helicopter) 24~25P

    press press press press 4. Cont sett ( Aircraft and Helicopter ) It contains 3 categories: model type, quick link set and quick link trim. You can program the 5 and 6 channels in mz-12 to the special function that you want. Typically, the 5 channel is used for the on/ off switch of the retractor gear and the 6 channel is used for the on/off switch of the flap function.
  • Page 25 press press press press press press press press - Cont sett ( Helicopter ) The basic setting of the Helicopter cont sett is NO.5 gyro, NO6. Throttle, Lim. DV (Digital volume). Generally, this function is seldom used, but Lim. DV (Digital volume) can control the operation range of digital volume -100 ~ +100.
  • Page 26 5. D/R expo (Aircraft and Helicopter) The basic setting of the Helicopter cont sett is NO.5 gyro, NO6. Throttle, Lim. DV (Digital volume). Generally, this function is seldom used, but Lim. DV (Digital volume) can control the operation range of digital volume -100 ~ +100. If DV is programmed, throttle channel is operated only programmed range.

  • Page 27: Rf Sett (Aircraft And Helicopter) 27P

    press • Timer The mz-12 has four stick modes with the two dual axis sticks. The user can select one among the four default stick modes the default mode is the mode 1. • Receiv out For the maximum flexibility of the receiver socket assignment, the mz-12 provides to swap over the servo outputs 1 to max.6.
  • Page 28 - Stick mode Enter the stick mode from the RF sett on the menu. Press the ENT button to highlight the value then press the direction button to select the mode number of 4 modes. press press press press press press press - Timer...

  • Page 29: Rx Bind 29P

    Press the direction button to select the range test, the cursor is at the 99sec. Turn on the receiver then press the ENT button on the transmitter. With the range test started, the Graupner/SJ logo blinks with beep for 99sec. Walk over 50 meters away from the model with controlling the trans- mitter sticks constantly and check whether the model is operating normally.

  • Page 30: Rf Transmit 30P

    press 7. wing mix (AIRCRAFT) Diff aile The diff aile mixing allows to overcome the adverse yaw when the Aircraft is deflected. the servo travel of the aileron channel is so adjusted that the flight vertical axis is straightened. Diff flaps The diff flaps mixing allows the aileron channel to be mixed to the flap channel.

  • Page 31: Diff Aile 31P

    - Diff aile Press the ENT button to access the diff aile mixing then press the ENT button again to highlight the value. Press the direction button to adjust the desired value then press the ESC button to remove the highlight. Press the direction button to select the hyphen then press the ENT button. The popup message “push desired switch into position on”...
  • Page 32 press press press press - Ail->rudd Press the direction button to select the ail -> rudd line and press the ENT button to highlight the value. Press the direction button to adjust the desired value then press the ESC button to remove the highlight.
  • Page 33 press press press press press press press press - Brak->elev Press the direction button to select the brak -> elev line and press the ENT button to highlight the value. Press the direction button to adjust the desired value then press the ESC button to remove the highlight.

  • Page 34: Brak->Flap 34P

    - Brak->flap Press the direction button to select the brak -> flap line and press the ENT button to highlight the value. Press the direction button to adjust the desired value then press the ESC button to remove the highlight. Press the direction button to select the hyphen then press the ENT button. The popup message “push desired switch into position on”...
  • Page 35 press - Elev->flap Press the direction button to select the elec -> flap line and press the ENT button to highlight the value. Press the direction button to adjust the desired value then press the ESC button to remove the highlight. Press the direction button to select the hyphen then press the ENT button. The pop- up message “push desired switch into position on”...
  • Page 36 press press press press press - Flap->elev Press the direction button to select the flap -> elev line and press the ENT button to highlight the value. Press the direction button to adjust the desired value then press the ESC button to remove the highlight.

  • Page 37: Heli Mix (Helicopter) 37P

    press press press press press press 8. heli mix (Helicopter) The mz-12 offers the mixing function in Helicopter model type. Heli mix is connected to 2 quick link function and the mixes are assigned to each quick link function. • Ptch : The ptch mixing allows to adjust 5 points of the pitch curve that corresponds to the throttle stick to maintain the best flight condition.
  • Page 38 - Ptch Press ENT button to access the ptch mixing then press the ENT button again to access the func- tion. -100% of the point 1 value is highlighted. Move the throttle stick to the high position step by step then the point 2,3,4,5 is selected in turn. After selecting the point number, press the direction button to adjust the desired value.
  • Page 39 press - Pitc->thro Press the direction button to select pitc->thro line and press the ENT button to access the pitc- >thro function. 0% of the point 1 value is highlighted. Move the throttle stick to the high position step by step then the point 2,3,4,5 is selected in turn. After selecting the point number, press the direction button to adjust the desired value.

  • Page 40: Pitc-Rudd 40~41P

    - Pitc->rudd ruddPress the direction button to select pitc->tail line and press the ENT button to access the pitc-> tail function. 0% of the point 1 value is highlighted. Move the throttle stick to the high position step by step then the point 2,3,4,5 is selected in turn. After selecting the point number, press the direc- tion button to adjust the desired value.

  • Page 41: Rudd-Thro 41P

    - Aile-thro Press the direction button to select aile – thro line and press the ENT button to access the aile – thro function. The value 0% is highlighted then press the direction button to adjust the desired value. press - Rudd-thro Press the direction button to select rudd –...

  • Page 42: Swash Lim 42~43P

    press press press press - Swash lim Press the direction button to select the swash lim mixing then press the ENT button to access the function. off of the swash lim value is highlighted. Press the direction button to adjust the desired the gain then press the ESC button to remove the highlight. press - Gyro Press the direction button to select the gyro mixing line then press the ENT button to...

  • Page 43: Governor 8Ch 43P

    press - Governor 8ch Press the direction button to select the governor 8ch then press the ENT button to access the function. The value no of is highlighted. You may select yes or no by the direction button. Press the ESC button to remove the highlight. press press press...
  • Page 44 press press press press press press press press press press press press press...
  • Page 45 press press press press press press press press - ASY To adjust the different value for the master channel, press the direction button to highlight the ASY from the SYM then press the ENT button to highlight the trv value in the right. Move the stick of the master channel then you can select the trv value in the right side or left side.

  • Page 46: Swash Mix (Helicopter)

    press 10. Swash mix (Helicopter) The Swash mix adjusts the amount and direction of travel for the aileron, elevator and pitch func- tions. You can adjust the high/low travel range of the swashplate and prevent from the mechani- cal interference of the linkage. - SEL Press the direction button to select the offset line then the STO is highlighted.

  • Page 47: Basic Sett (Aircraft And Helicopter) 47P

    - Batt type Press the direction button to highlight the basic sett then press the ENT button to access the Batt type line. Press the ENT button to highlight the value then press the direction button to adjust the value. Press the ESC button to remove the highlight. You may select the function of which you wish to adjust the value by pressing the direction button.
  • Page 48 - Batt warning - Touch sense Press the direction button to access the Batt warning line then press the ENT button to highlight the The same method is used to access the function and adjust the value with Batt type programming. value.
  • Page 49 press press press press press press - RF country The same method is used to access the function and adjust the value with Batt type programming. press - Display light The same method is used to access the function and adjust the value with Batt type programming. press press press...
  • Page 50 press press press press - Voice volume - Beep volume The same method is used to access the function and adjust the value with Batt type program- The same method is used to access the function and adjust the value with Batt type program- ming.

  • Page 51: Fail Safe (Aircraft And Helicopter)

    When you bind your transmitter, you are programming the receiver with failsafe defaults. If con- nection is lost between the transmitter and receiver, the receiver immediately operates in those preprogrammed default positions. Graupner/SJ receiver has 2 failsafe modes, hold and Pos (Position/Fail Safe)

  • Page 52: Trainer (Aircraft And Helicopter)

    press press press 13. Trainer (Aircraft and Helicopter) press The mz-12 has the trainer function. The function activates when you select Teacher, Pupil and Normal mode. You may use this function by wireless and wired. - The teacher mode programming setup press Press the direction button to highlight the teach pupil then press the ENT button to access the func- tion.

  • Page 53: Info Disp (Aircraft And Helicopter)

    press press press press - The pupil mode programming setup After selecting the n/a in the BIND, press the ENT button then bind to the teacher transmitter. The pupil transmitter doesn’t need to program the other value. When the teacher transmitter to the pupil transmitter has been bound, the teacher transmitter can con- trol all channels and if RF trainer switch of the teacher transmitter would be moved to PUPIL position, the pupil transmitter can control all channels 14.

  • Page 54: Telemetry (Aircraft And Helicopter)

    15. Telemetry 16. SETTING & DATA VIEW This function is used to program receiver and telemetry sensor and get the data information on Telemetry is used to perform HoTT telemetry programming setup and check HoTT telemetry them. This function can be accessed only if transmitter and receiver are bound. If not, when the data.

  • Page 55: Rx Servo

    16-2. RX SERVO This function allows you to perform servo programming set up at the entries of OUTPUT CH RE- VERSE, CENTER, TRIM, LIMIT-, LIMIT+, PERIOD. Press the direction button on RX DATA VIEW mode to access to RX SERVO then press DOWN button to select the desired article. Press ENT button to highlight the value on the selected article, you may change to the desired value.
  • Page 56 press - CENTER The value of servo center in the selected channel at OUTPUT CH can be programmed. The center value depends on transmitter throttle and trim position. General servo center value is 1500us. Press DOWN button to access to CENTER line then press ENT button to highlight the default value 1500usec.

  • Page 57: Rx Fail Safe

    press press press press press press - PERIOD 16-3. RX FAIL SAFE The servo response time for transmitter throttle can be adjusted. All channels that servo connect- ed are applied separately. Press DOWN button to access to PERIOD line then press ENT button to highlight the default value 20msec.
  • Page 58 - MODE It is failsafe mode and HOLD/ FAIL SAFE/ HOLD are available. Press DOWN button to access to MODE line then press ENT button to highlight the default value HOLD. Press UP/DOWN button to select the desired value then press ENT button to remove the highlight. press press press...
  • Page 59 - F.S.POS. - DELAY It is used to set fail safe position at the desired channel that you select on OUTPUT CH. This function allows you to set the time that failsafe takes to start under failsafe situation Press DOWN button to access to F.S. Pos line then press ENT button to highlight the default Press DOWN button to access to DELAY line then press ENT button to highlight the default value value 1500usec.

  • Page 60: Rx Free Mixer

    - FAIL SAFE ALL 16-4. RX FREE MIXER It is used when you change failsafe position value of all channels. You need set all channels to FAIL SAFE to use this function. Press DOWN button to access to FAIL SAFE ALL line then press ENT button to highlight the default value NO.
  • Page 61 - MASTER CH - SLAVE CH Master CH in FREE MIXER can be selected. Slave CH in FREE MIXER can be selected. Press DOWN button to access to MASTER CH line then press ENT button to highlight the Press DOWN button to access to SLAVE CH line then press ENT button to highlight the default default value 00.
  • Page 62 - S-TRAVEL + / - The maximum servo travel that is connected to slave channel can be programmed. Press DOWN button to access to S- TRAVEL+/- line then press ENT button to highlight the default value 00. Press UP/DOWN button to select the desired channel then press ENT button to remove the highlight.

  • Page 63: Rx Curve 63P

    press press press press press press 16-5. RX CURVE press Perform the exponential programming setup at RX CURVE mode. You may program the exponential value of channel 2,3,4. The default setup is B curve that leads Servo responds proportionally depending on transmitter throttle movement. A curve leads that Servo responds sensitively and C curve leads that Servo responds softly.

  • Page 64: Rx Servo Test

    press 16-6. RX SERVO TEST It used to perform servo test and program the voltage of receiver power, the max/min tempera- ture of receiver CH OUT TYPE of receiver. Press UP/DOWN buttons to select the desired line and press ENT button then the default value is highlighted. Press UP/DOWN buttons to set the press desired value and press ENT button to remove the highlight.
  • Page 65 press press press press press press - ALARM TEMP + / - : Temperature warning - ALARM VOLT : Low voltage warning If receiver temperature is out of the preset temperature, transmitter repeats a beep warning. If receiver voltage is out of the preset voltage, transmitter repeats a beep warning. Press DOWN buttons to access to ALARM TEMP and press ENT button then the default value is Press DOWN buttons to access to ALARM VOLT and press ENT button then the default value highlighted.
  • Page 66 press press press press CH OUT TYPE You may decide the signal output type of receiver. 5 types of ONCE / SAME / SUMO12/ SUMI / SUMD HD12 are available. - ONCE It is use for analogue servo. If ONCE is selected, PERIOD on RX SERVO is set to 20msec auto- matically.

  • Page 67: Sensor Select

    press press press press press 17. SENSOR SELECT press It is used to program telemetry sensor that is connected to HoTT receiver. The sensor should be connected to the telemetry pin of receiver to use voice function, warning and the telemetry data information.

  • Page 68: Rf Status View

    press press press press 19. VOICE TRIGGER It is used to program the sensors related with voice function. The default article REPEAT, TRIG, VARIO, TRANSSMITTER, RECEIVER are available and the optional sensors could be attached. If the optional sensor is connected, it is need to add the function for the optional sensor at SEN- SOR SELECT mode then VOICE TRIGGER article is created.
  • Page 69 press press - TRIG You may designate the switch for the voice functions of transmitter and receiver and the voice functions are changed in turn whenever the switch is on/off. Press DOWN buttons to access to TRIG and press ENT button then the popup message “push desired switch into position on” is appeared.
  • Page 70 - VARIO - TRANSSMITTER You may set the on/off switch of vario module for voice function. You may program the telemetry voice function of transmitter, TX VOLT, BATTERY TIME, STOP- Press DOWN buttons to access to VARIO and press ENT button then the popup message “push WATCH, RUNTIME, Press DOWN buttons to go to TRANSMITTER line and press ENT button to desired switch into position on”...

  • Page 71: The Programming Setup For Telemetry Sensors

    - RECEIVER - If the optional sensors are attached, the telemetry voice functions of an attached optional You may program the telemetry voice function of receiver, TEMP, STRENGTH, RX VOLT, LOW- sensors can be programmed. It is need to add the function for the optional sensor at SENSOR VOLT, Press DOWN buttons to go to RECEIVER line and press ENT button to access to RECEIV- SELECT mode then VOICE TRIGGER article is created.
  • Page 72 press press press press press press press press...

  • Page 73: Safety Approval

    • Safety Approval Declaration of Conformity (in accordance with ISO/IEC 17050-1) press - Product(s): Graupner/SJ mz-12 Transmitter Item Number(s): Equipment class: 2 The objects of declaration described above are in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/...
  • Page 74 For more infor- - Graupner /SJ mz-12 Transmitter mation about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the produce - KCC인증번호: KCC-RRM-sjr-16005100, KCC-CRM-sjr-36204210...
  • Page 75 No. S1002...
