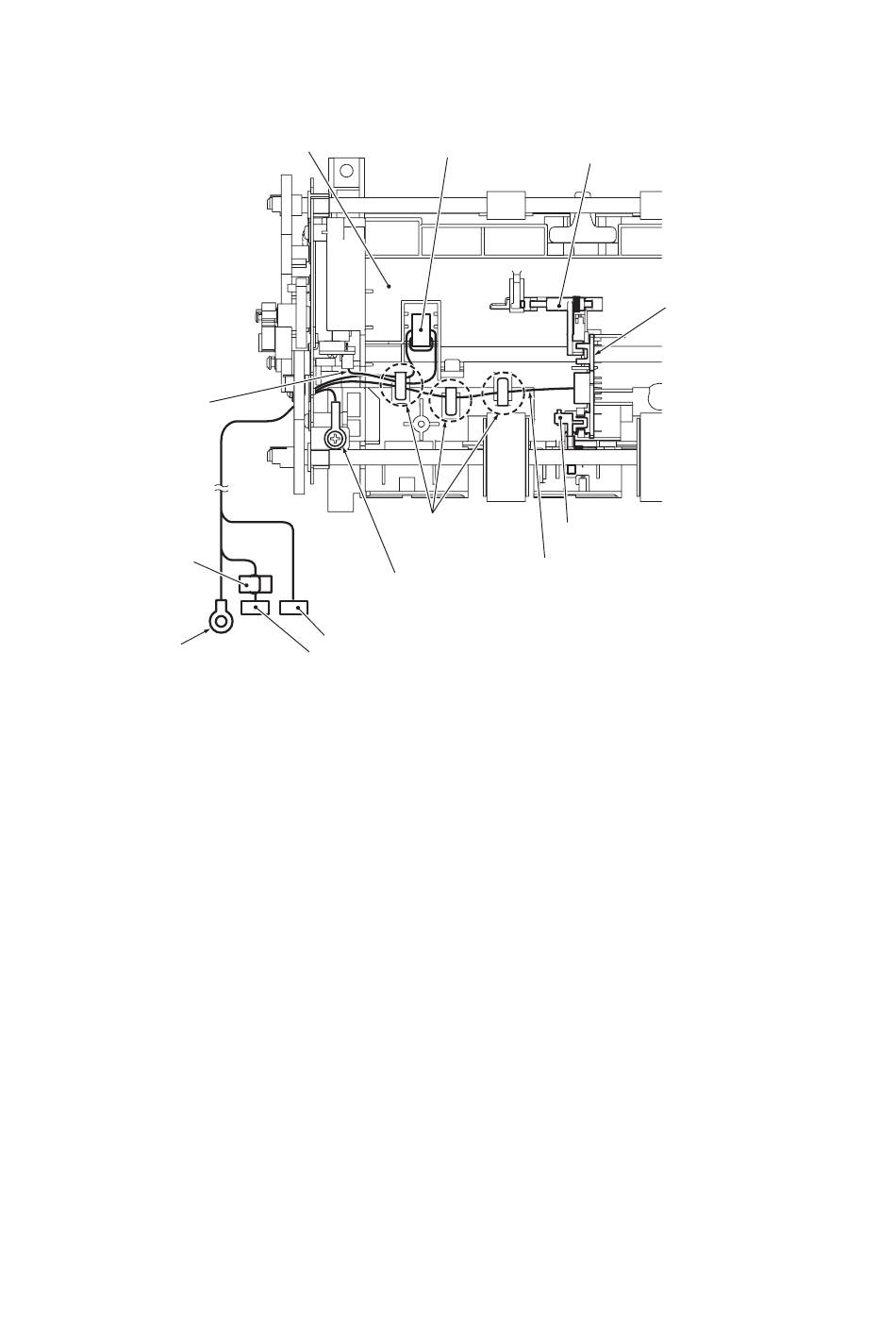

Assembling Note: Route the ADF motor harness and its grounding wire, and document
sensor PCB harness through the cable guides on the lower ADF chute as shown below.
Lower ADF chute
ADF motor
harness
Ferrite core
Grounding wire
Ferrite core
Cable
guides
Grounding
wire
Document sensor PCB harness
ADF motor harness
6-23
Document front
sensor actuator
Document sensor
PCB
Document rear
sensor actuator
Document sensor
PCB harness
(6_24)
