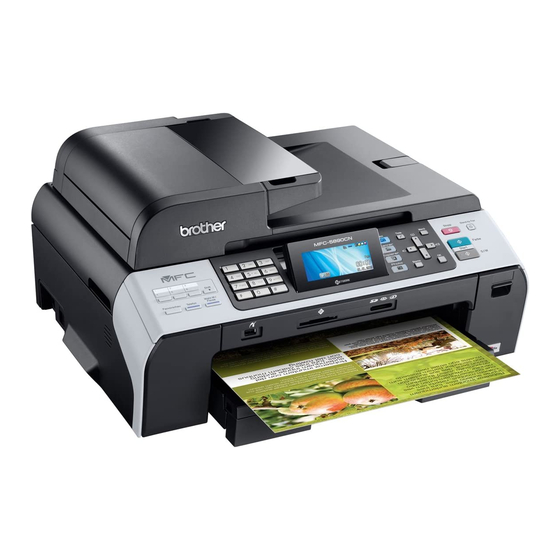

  5. MFC 5890CN - Color Inkjet - All-in-One
  6. Quick setup manual

Brother MFC-5890CN Quick Setup Manual

Hide thumbs Also See for MFC-5890CN:
Table of Contents

Advertisement

Quick Links

See also: Software User Manual , Quick Setup Manual
Quick Setup Guide
Start Here
Before you can use the machine, read this Quick Setup Guide for the correct setup and installation.
WARNING
Important
DO NOT connect the USB cable yet (if you are using a USB
cable).
1
Unpack the machine and check the components
User's Guide
CD-ROM
WARNING
Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep
these bags away from babies and children.
a
Remove the protective tape and film covering the scanner glass.
b
Make sure you have all components.
Note
• The components included in the box may differ depending on your country.
• Save all packing materials and the box in case for any reason you must ship your machine.
• You need to purchase the correct interface cable for the interface you want to use (for USB or network
connection).
USB cable
Please make sure you use a USB 2.0 cable (Type A/B) that is no more than 2 metres long.
Network cable
Use a straight-through Category5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.
Warnings tell you what to do to prevent possible personal injury.
Ink Cartridges
[x4]
Power Cord
Black (LC1100HY-BK)
Yellow (LC1100HY-Y)
Cyan (LC1100HY-C)
Magenta (LC1100HY-M)
Telephone Line Cord
MFC-5890CN
Quick Setup Guide
One Touch Labels
UK/IRE/GEN/SAF Version 0
1
