Scanner Cover (Scanner Unit) - Brother MFC5890CN Service Manual

6.1.2

Scanner Cover (Scanner Unit)

The scanner cover should be removed together with the ADF & document cover ASSY whose
removal procedure is given in
ASSY is detailed in
(1) Open the scanner cover until it locks.

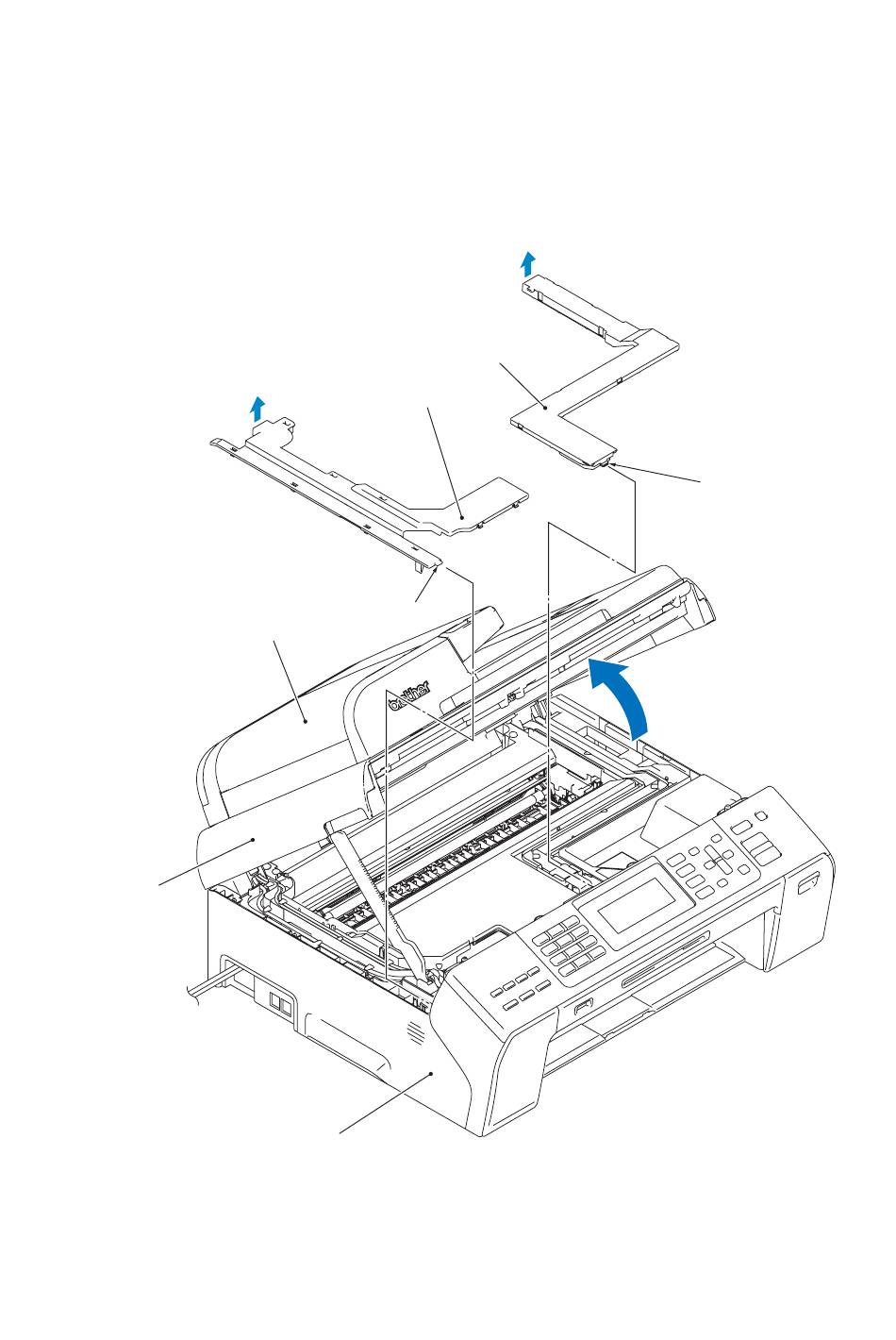

(2) Remove the CIS flat cable cover and the harness cover by pulling up their rear ends.
ADF & document cover ASSY
Scanner cover
(Scanner unit)
Section 6.1.3. The disassembly of the ADF & document cover
Section 6.1.4.
CIS flat cable cover
Harness cover
Pawl
Upper cover
6-7
Pawl
(6_03_BHL9_A3_J)
